Detail Information

Power: 10W/12W/18W Frequency Range: 50Hz--60Hz
Beam Angle: 24°/36°/55° Voltage: AC100-277V
Material: Die-casting Alu. Working Temperature: -20~50°C
Light Color: White Product Dimension: D65*H72/D85*H79/D105*H94mm/pcs
URG: <19 Life Time: 50000h
Protection Level: IP65 CCT: 2700/3000/4000/5000/6000K
Light Source: O-SRAM/Bridgelux CRI: Ra80/90
Dimming Options: Non-Dim, TRIAC, 0-10V, DALI
Highlight:

IP65 dimmable LED down light

,

recessed commercial LED spot lamp

,

no glare high feet downlight

Product Description

MF-HGS20-H Series LED Down Light
Professional IP65 rated recessed LED down light with dimmable capabilities, designed for public spaces, schools, hospitals, and commercial applications.
Technical Specifications
Model No. MF-HGS20-H10W/12W/18W
Power 10W/12W/18W
Voltage AC100-277V
Frequency Range 50Hz-60Hz
Beam Angle 24°/36°/55°
Material Die-casting Aluminum
Working Temperature -20°C to 50°C
Protection Level IP65 Waterproof
Warranty 3 Years
Lifetime 50,000 hours

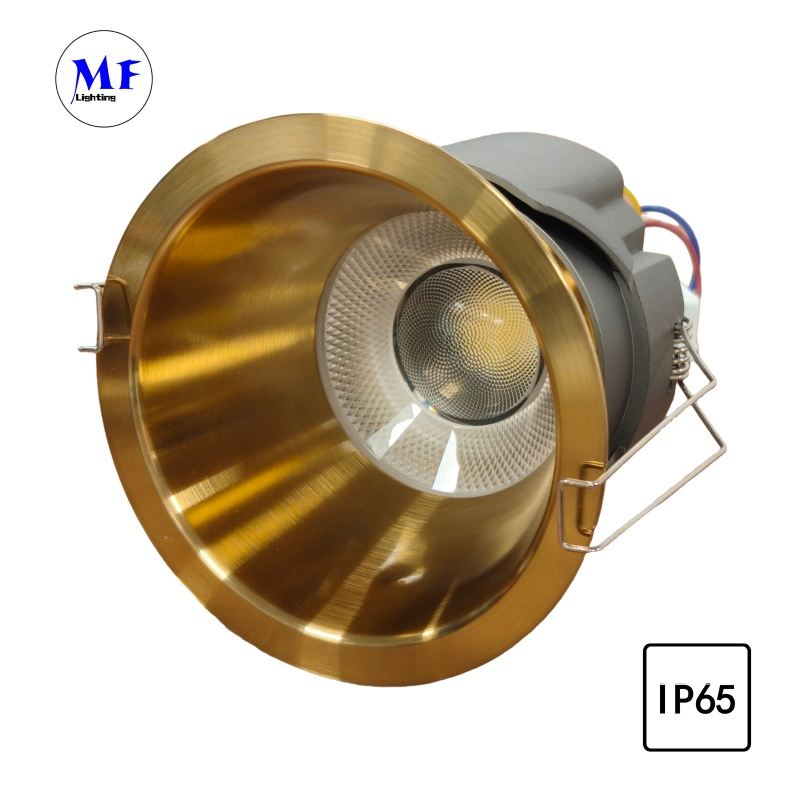

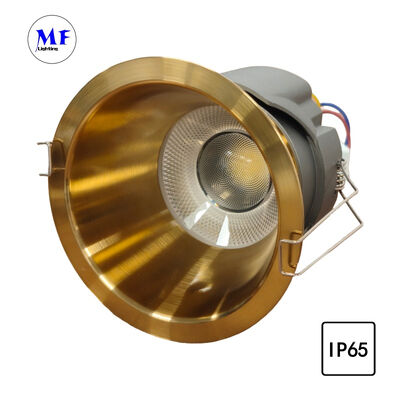

MF-HGS20-H Series LED Down Light product image
Product Features
  • Available Colors: Matte White, Matte Silver, Matte Black, Bright Silver, Gun Black, Rose Gold, Bronze
  • CCT Options: 2700K, 3000K, 4000K, 5000K, 6000K
  • Light Source: OSRAM/Bridgelux
  • Input Voltage: AC100-277V or AC200-240V
  • CRI: Ra80/90
  • Deep recessed structure with UGR<19 provides eye-friendly lighting
  • Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP

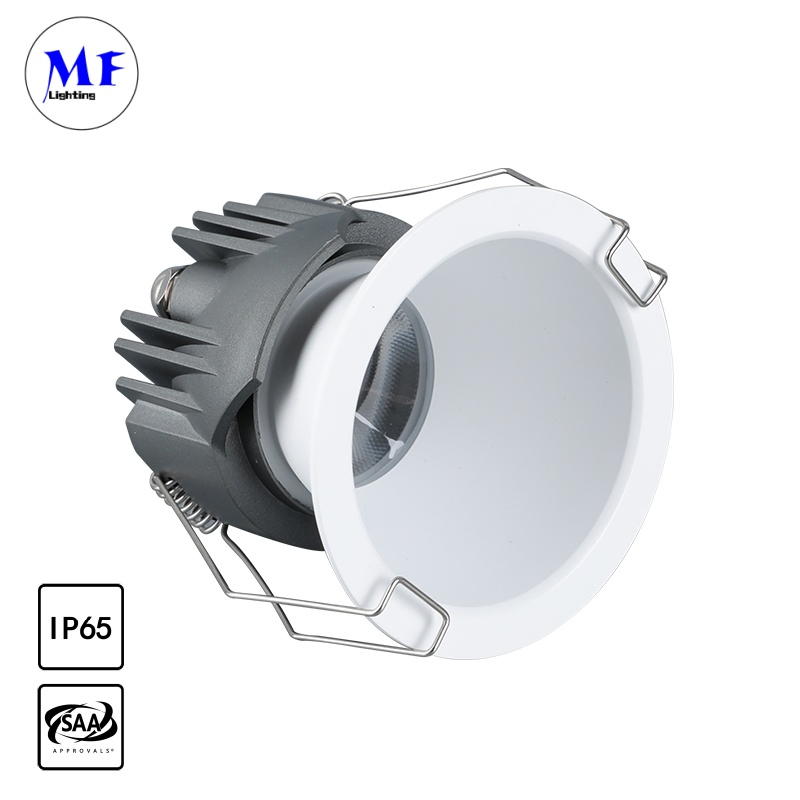

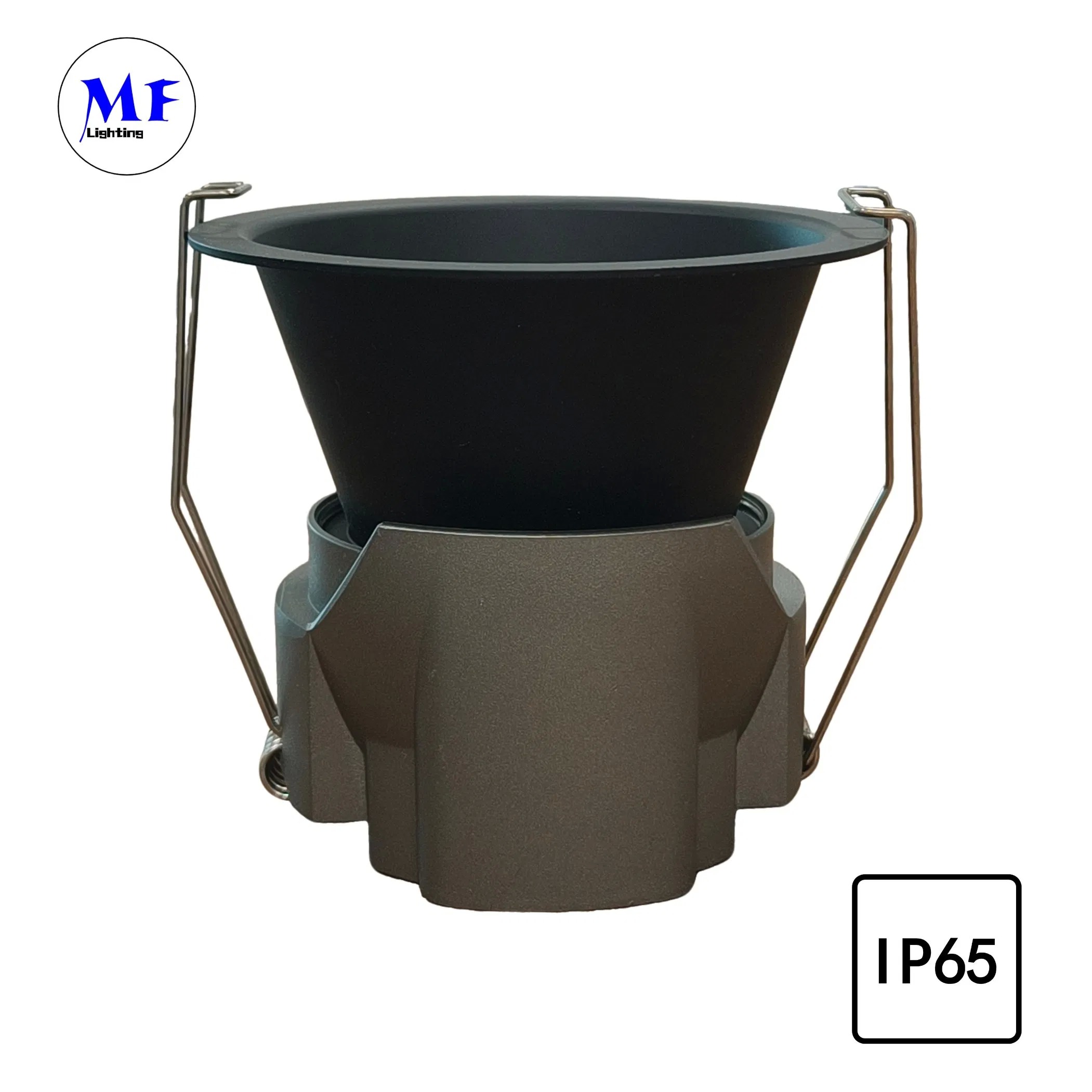

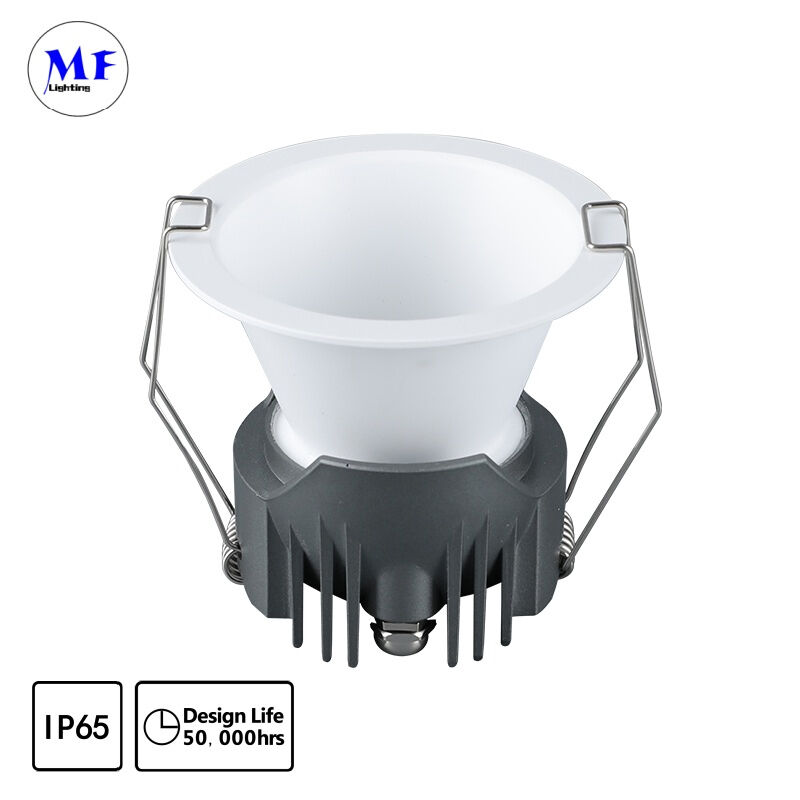

LED Down Light close-up view LED Down Light installation example
Applications
Ideal for schools, hotels, hospitals, subway stations, train stations, shopping malls, supermarkets, airport halls, offices, factories, basements, parking lots, and public spaces.
LED Down Light application examples
Installation Guide
Easy Spring Clip Installation
  1. Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the luminaire size
  2. Connect the Wires: Connect wires to luminaire terminals correctly (recommended for professional electricians)
  3. Insert into Ceiling: Align spring clips vertically and insert into ceiling hole
  4. Lower Spring Clips: Confirm proper fit and wiring, then lower clips and power on
LED Down Light installation diagram
Customization & Support
Q1: If this product exceeds your market requirements?
A1: Contact us for more suitable product options tailored to your market
Q2: Need higher performance products?
A2: We can order the most suitable products for you quickly
Q3: Custom outer shape design?
A3: We provide complete customization services for private lighting solutions
Q4: Logo printing available?
A4: Yes, we offer OEM services with custom labels and packaging
Q5: What about defective products?
A5: With less than 0.2% defect rate, we replace defective units during warranty period
Q6: Do you have your own factory?
A6: Yes, we specialize in LED lighting R&D and manufacturing since 2009 with ISO quality management
Q7: Can I order samples?
A7: Yes, we welcome sample orders and mixed samples for quality testing
Product packaging and quality control
Packaging & Shipping
We support air and marine shipment with strategic location near major ports and airports. Multi-layer packaging with internal and external protection plus sponge padding ensures safe transit.
Shipping and logistics network
Company Profile
Ming Feng Lighting Co., Ltd, established in 2009, is a leading LED lighting manufacturer in Guangdong Province, China. With over 15 years of experience, we produce LED indoor and outdoor lighting including triproof lights, vapor tight lights, down lights, flat panels, flood lights, high bay lights, stadium lights, and aviation obstruction lights.
Ming Feng Lighting factory facility Ming Feng Lighting product showcase
