17+ Years Factory IP65 20W 25W 30W Dimmable Recessed Public Mall Hotel Hospital Commercial Residential L Spot Lamp High Feet LED Down Light

Minimum Order Quantity : 1 Price : 9.4
Certification: CE, FCC, CCC

Detail Information

Voltage: 100~277V Beam Angle: 24°/36°/55°
Working Temperature: -20~50°C Material: Die-Casting Alu.
Gross Weight: 0.3kg Lifetime: 50000h
Power: 20W/25W/30W Frequency Range: 50Hz--60Hz
Light Color: White Product Dimension: D105*H94/D135*H107/D135*H107/pcs
URG: <19 Protection Level: IP65
CRI: Ra80/90 Dimming Options: Non-Dim, TRIAC, 0-10V, DALI
Light Source: O-SRAM/Bridgelux
Highlight:

IP65 dimmable LED down light

,

commercial recessed LED spot lamp

,

high feet LED down light

Product Description

MF-HGS20-H Series High-Performance LED Down Light
IP65 rated dimmable recessed lighting solution for commercial and residential applications with URG <19 for eye-friendly illumination.
Technical Specifications
Model No.MF-HGS20-H20W/25W/30W
Power20W/25W/30W
Frequency Range50Hz-60Hz
Beam Angle24°/36°/55°
Light QualityBright, Soft
VoltageAC100-277V
MaterialDie-casting Aluminum
Working Temperature-20°C to 50°C
Light ColorWhite
CertificatesCE, FC, ROHS, CB
Product DimensionD105*H94/D135*H107/D135*H107/pcs
Warranty3 years
URG<19
Life Time50,000 hours
Protection LevelIP65

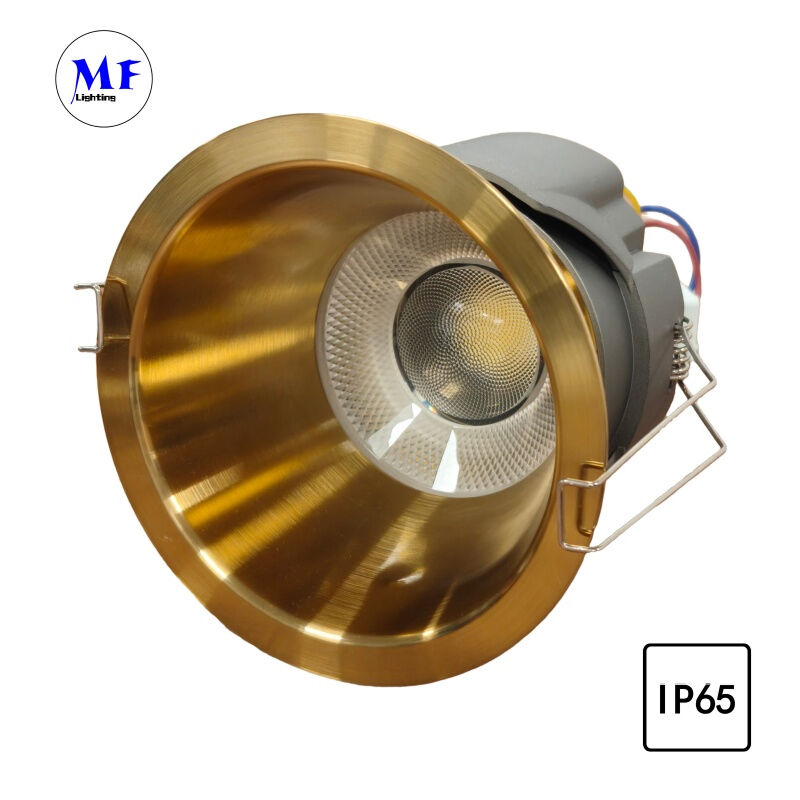

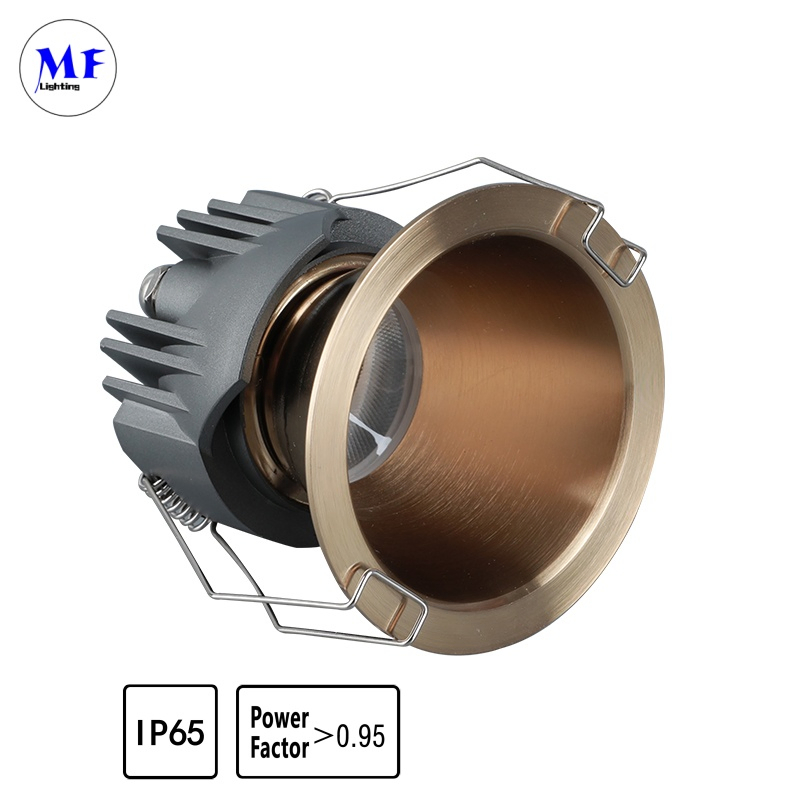

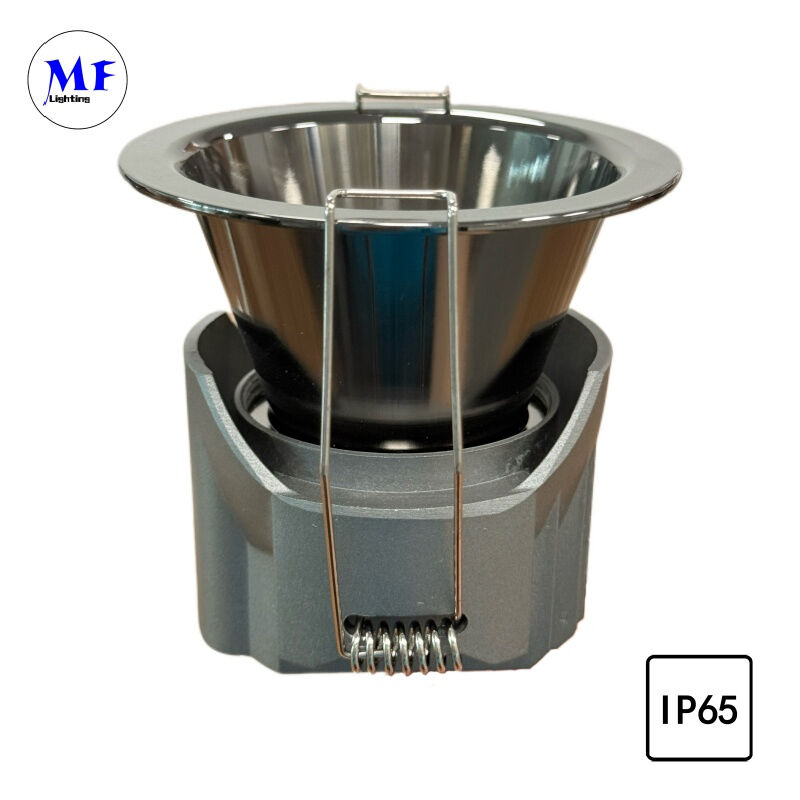

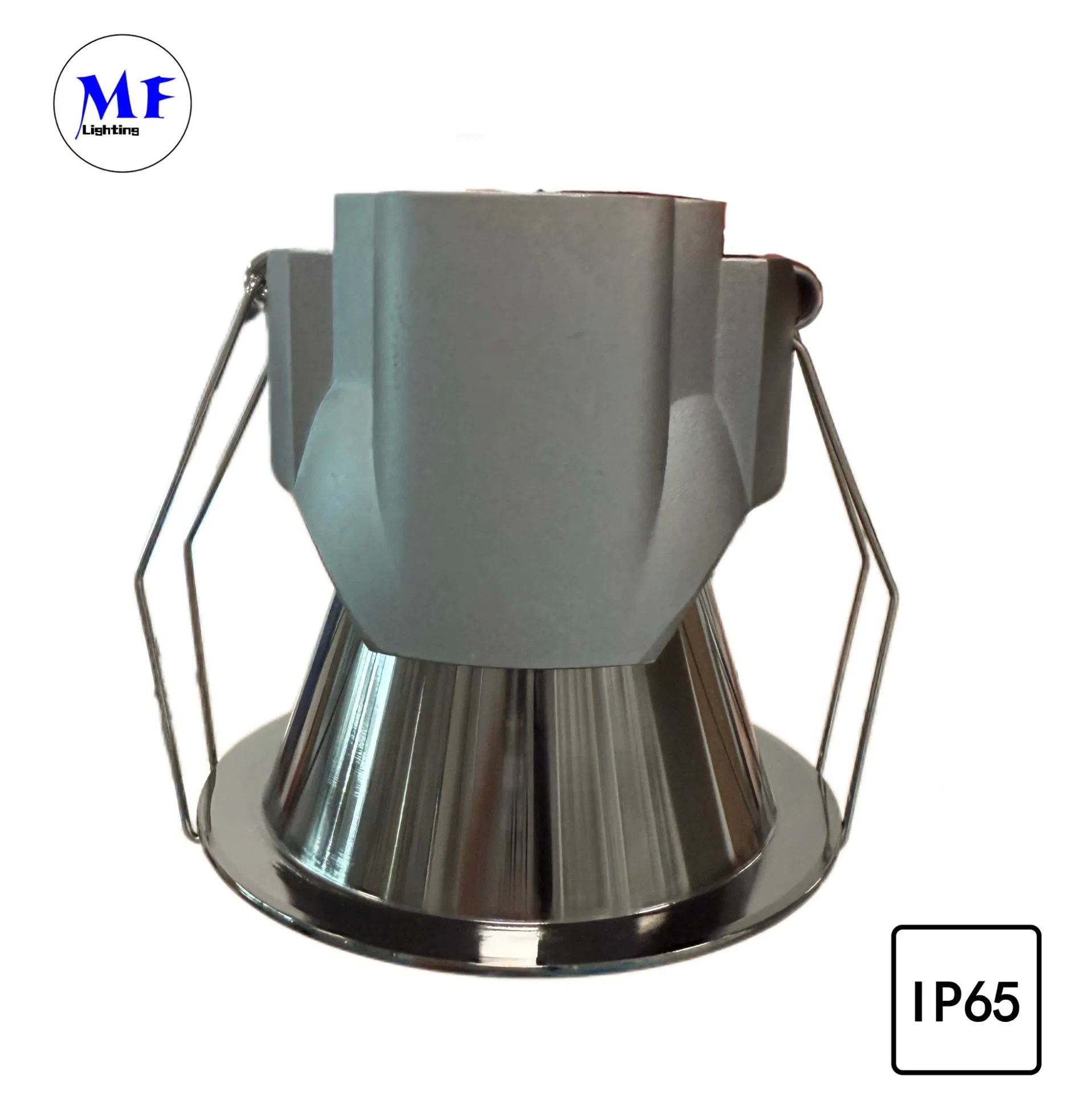

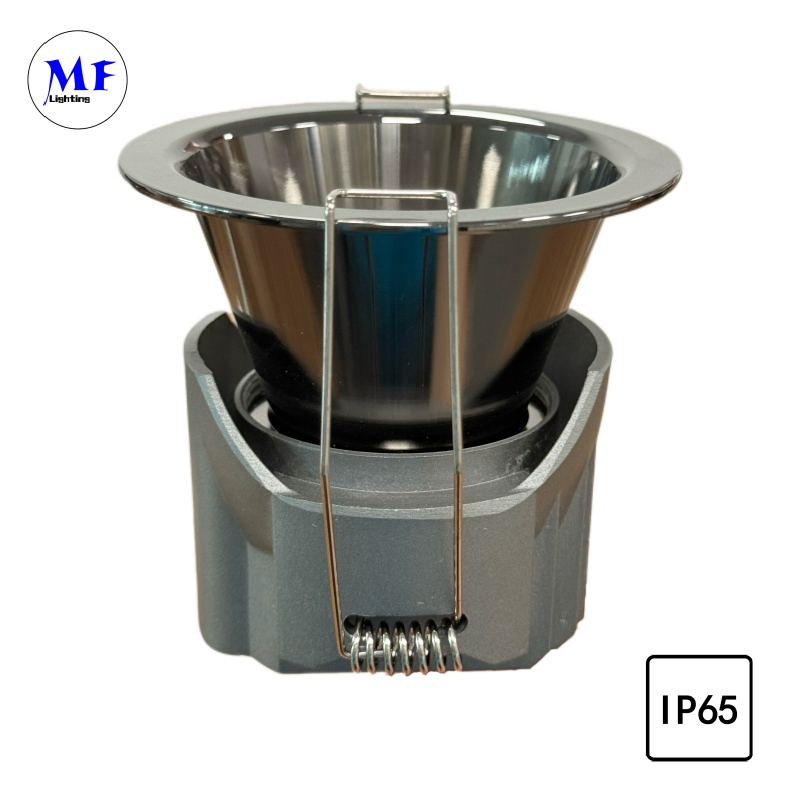

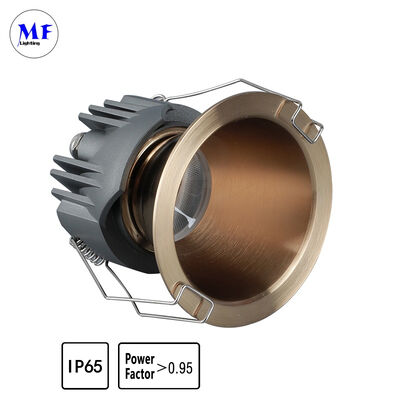

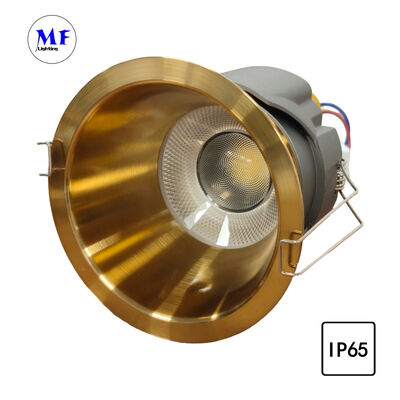

MF-HGS20-H Series LED Down Light product view
Series Configuration Options
  • Available Colors: Matte White, Matte Silver, Matte Black, Bright Silver, Gun Black, Rose Gold, Bronze
  • CCT Options: 2700K, 3000K, 4000K, 5000K, 6000K
  • Light Source: OSRAM/Bridgelux
  • Power Options: 10W, 12W, 18W
  • Input Voltage: AC100-277V or AC200-240V
  • IP65 Waterproof Rating
  • Material: Die-casting Aluminum
  • Temperature Range: -20°C to 50°C
  • CRI: Ra80/90
LED Down Light close-up view LED Down Light installation example
Key Features
  • Deep recessed structure with URG <19 provides eye-friendly lighting for bedrooms and offices
  • Flexible dimming options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP
  • 3-year warranty with 50,000 work hours lifespan
LED Down Light application in commercial space LED Down Light in residential setting LED Down Light technical diagram
Application Areas
Ideal for schools, hotels, hospitals, subways, train stations, shopping malls, supermarkets, airport halls, offices, factories, basements, parking lots, and public places.
LED Down Light in hotel application LED Down Light in commercial building
Installation Guide
LED Down Light installation diagram
Easy Spring Clip Installation
  1. Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the luminaire size
  2. Connect the Wires: Connect wires to luminaire terminals correctly according to installation manual (professional electrician recommended)
  3. Insert into Ceiling: Align spring clips vertically and insert into ceiling hole
  4. Lower Spring Clips: After confirming proper fit and wiring, lower clips and turn on power
LED Down Light installation steps
Customization & Support
Q1: If this product exceeds your market requirements?
A1: Contact us for more suitable product options tailored to your market.
Q2: Need higher performance products?
A2: We can develop customized solutions to meet your specific requirements.
Q3: Custom outer shape design?
A3: We provide complete customization services for private label lighting solutions.
Q4: Can I print my logo on the LED light?
A4: Yes, we provide OEM services including custom labels and packaging.
Q5: What if I receive defective products?
A5: With less than 0.2% defect rate, we provide warranty replacements with evidence of defective units.
Q6: Do you have your own factory?
A6: Yes, we specialize in LED lighting R&D and manufacturing since 2009 with ISO quality management.
Q7: Can I order samples for testing?
A7: Yes, we welcome sample orders and accept mixed samples for quality verification.
LED Down Light packaging example
Packaging & Shipping
We support air and marine shipment with strategic location near major ports including Shenzhen Shekou Port, Dongguan Humen Port, and Zhanjiang Haian New Port. Proximity to Shenzhen Airport, Guangzhou Baiyun Airport, and Foshan Airport ensures efficient logistics. Multi-layer packaging with internal and external protection, plus sponge cushioning, minimizes transit damage.
LED Down Light shipping and logistics
Company Profile
Ming Feng Lighting factory facility
Ming Feng Lighting Co., Ltd, established in 2009 and located in Guangdong Province, China, is a leading LED lighting manufacturer with over 15 years of export experience. Our product range includes LED Indoor Lights (Triproof Lights, Vapor Tight Lights, Down Lights, Flat Panels) and LED Outdoor Lamps (Flood Lights, High Bay Lighting, Stadium Lights, Landscape Lights, Aviation Obstruction Lights, Search Lights). Our rapidly expanding R&D team meets growing market demands with partners worldwide.
Ming Feng Lighting product portfolio
