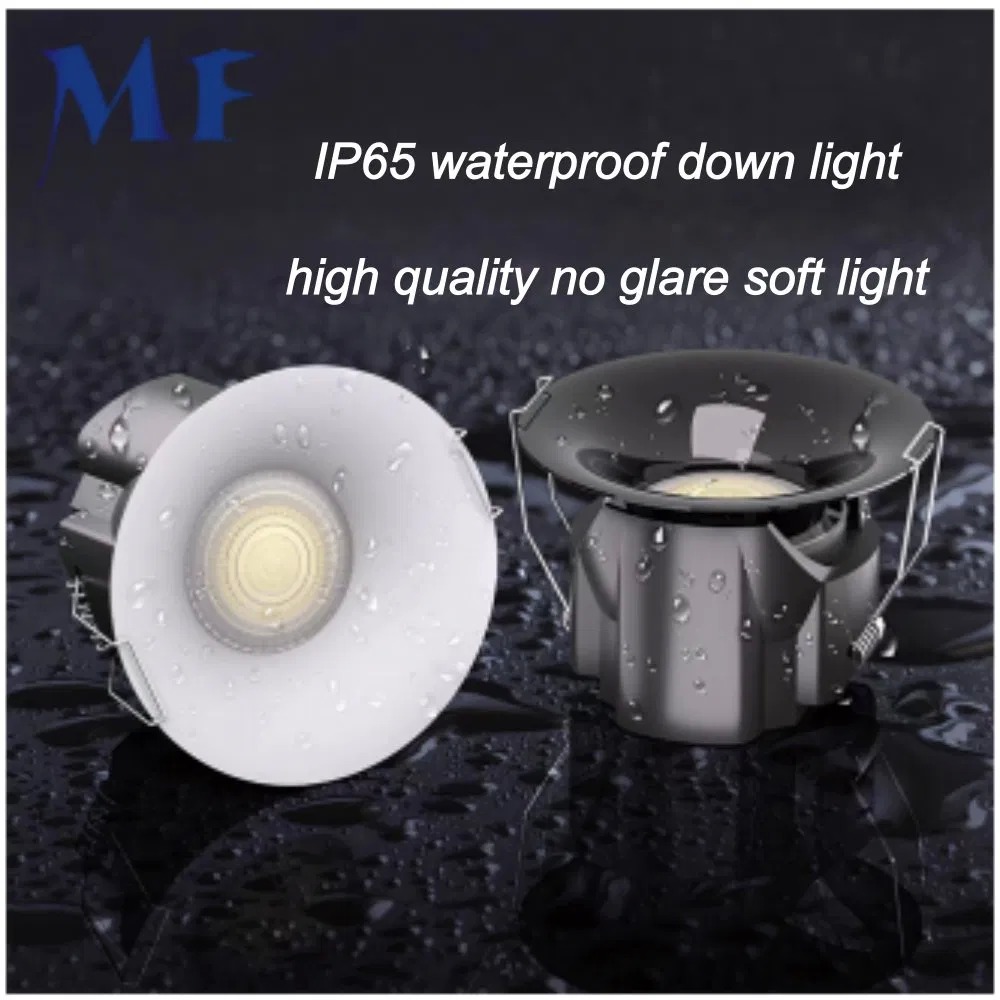

17+ Years Factory IP65 20W 25W 30W Dimmable Recessed Public Mall Hotel Hospital Commercial Residential L Spot Lamp Short Feet LED COB Down Light

Minimum Order Quantity : 1 Price : 9.4
Certification: CE, FCC, CCC

Detail Information

Model NO.: MF-HGS20-S30W Lifetime: 50000h
Material: Die-Casting Alu. Working Temperature: -20~50°C
Beam Angle: 24°/36°/55° Voltage: 100~277V
G.W.: 0.3kg Power: 20W/25W/30W
Frequency Range: 50Hz--60Hz Light Color: White
Product Dimansion: D105*H68/D135*H80/D135*H80mm/pcs Protection Level: IP65
CRI: Ra80/90 URG: <19
Dimming Options: Non-Dim, TRIAC, 0-10V, DALI
Highlight:

IP65 dimmable LED down light

,

commercial recessed COB down light

,

short feet LED spot lamp

Product Description

Professional LED COB Down Light

17+ Years Factory IP65 20W 25W 30W Dimmable Recessed Public Mall Hotel Hospital Commercial Residential L Spot Lamp Short Feet LED COB Down Light

Product Specifications
Model No.MF-HGS20-S20W/25W/30W
Power20W/25W/30W
Frequency Range50Hz-60Hz
Beam Angle24°/36°/55°
Light QualityBright, Soft
VoltageAC100-277V
MaterialDie-casting Aluminum
Working Temperature-20°C to 50°C
Light ColorWhite
CertificatesCE, FC, ROHS, CB etc.
Product DimensionD105*H68/D135*H80/D135*H80mm/pcs
Warranty3 years
UGR<19
Life Time50,000 hours
Protection LevelIP65

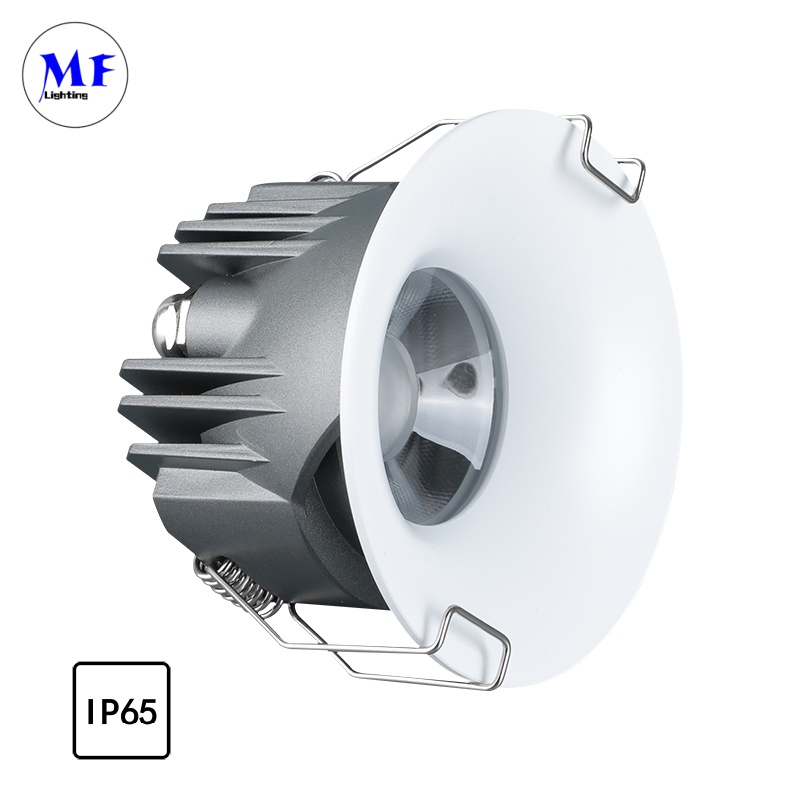

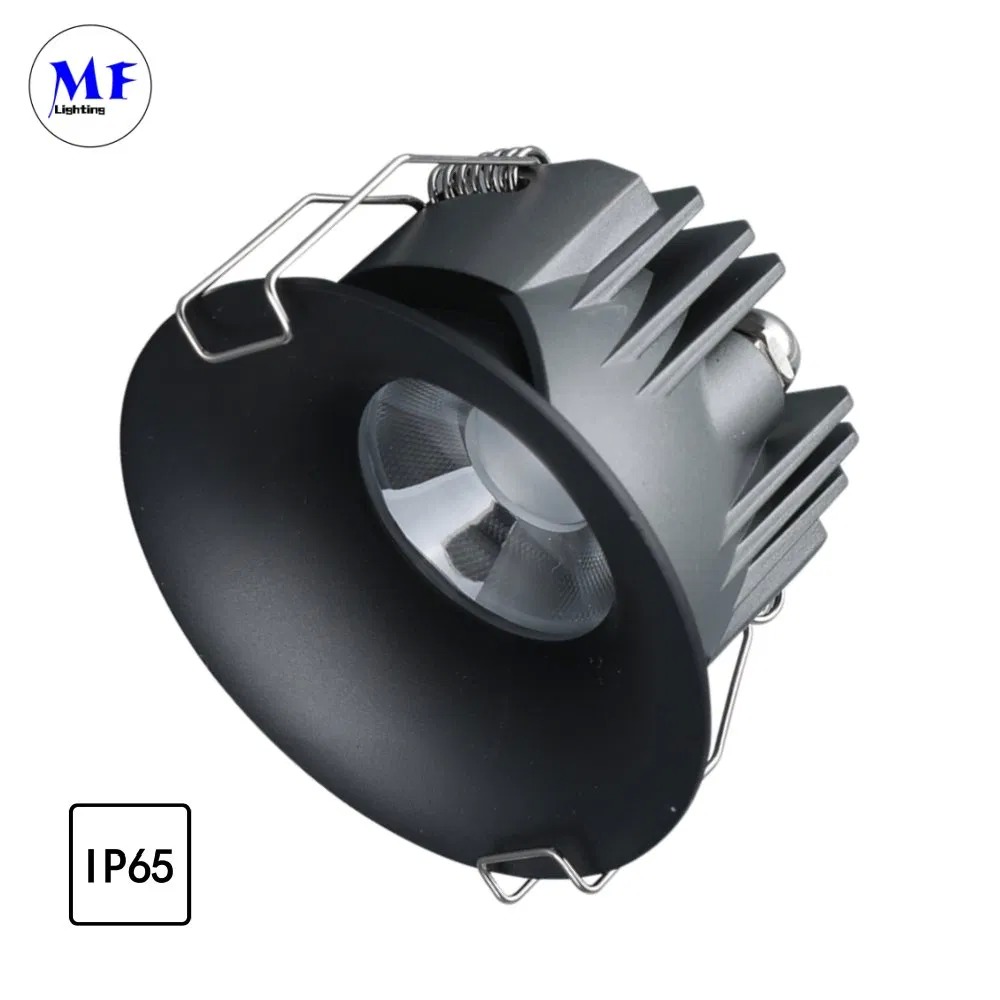

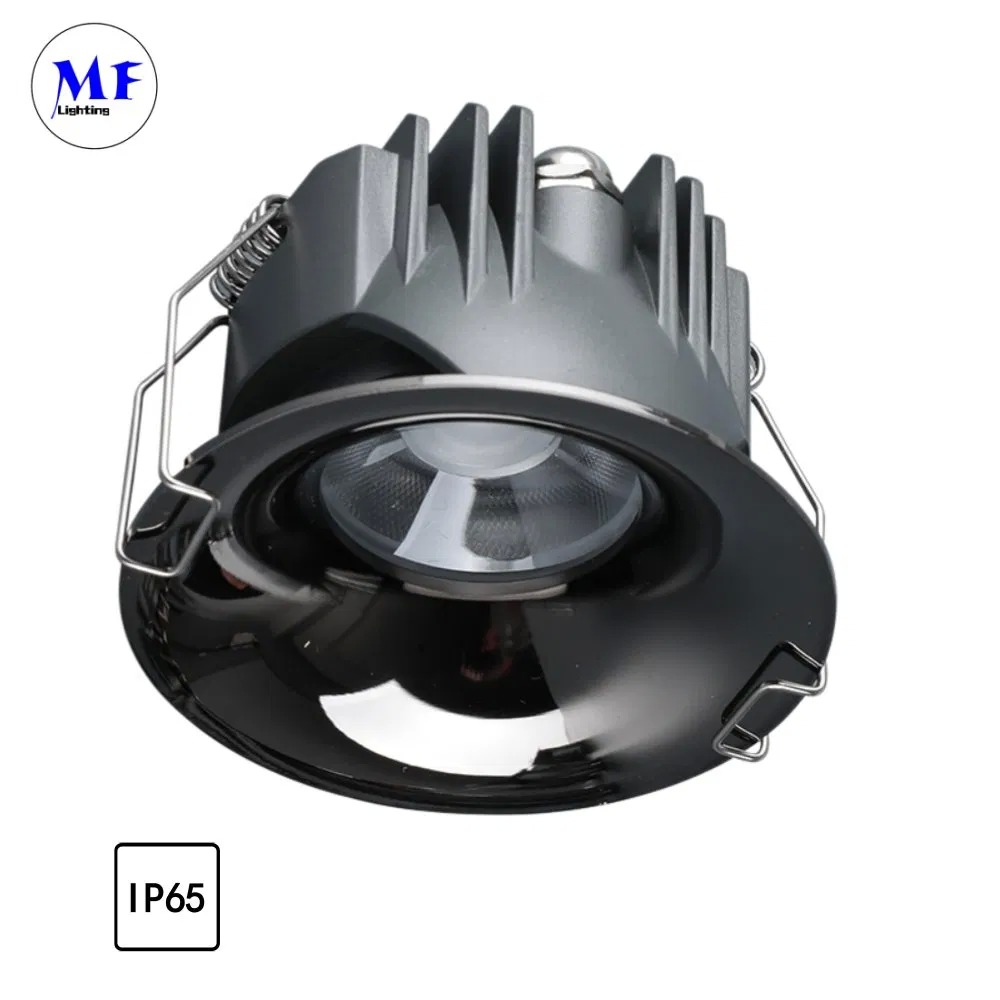

MF-HGS20-H Series LED Down Light
MF-HGS20-H Series Features
  • Color Options: Matte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold/Bronze
  • CCT: 2700/3000/4000/5000/6000K
  • Light Source: OSRAM/Bridgelux
  • Power: 10W/12W/18W
  • Input: AC100-277V or AC 200-240V
  • IP65 Waterproof Rating
  • Material: Die-casting Aluminum
  • Temperature Range: -20°C to 50°C
  • CRI: Ra80/90
LED Down Light Close-up View LED Down Light Installation Example
Advanced Features
  • Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices
  • Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP
  • Warranty: 3 years
  • 50,000 work hours lifespan
LED Down Light in Commercial Setting LED Down Light in Hotel Application LED Down Light Various Applications
Application Places

Ideal for schools, hotels, hospitals, subways, train stations, shopping malls, supermarkets, airport halls, offices, factories, basements, parking lots, and public places.

LED Down Light in Office Environment LED Down Light in Retail Setting
Installation Guide
Easy Spring Clip Installation Diagram
Easy Spring Clip Installation
  1. Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
  2. Connect the Wires: Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
  3. Insert into the Ceiling: Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
  4. Lower the Spring Clips: After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.
LED Down Light Installation Complete
Customization & Support
If you feel that this product is higher than your market demand, resulting in you selling this product without any profit at all?
Then please contact us as soon as possible, our professional team will order more suitable products for you!
If you need higher performance products to meet your needs?
Then please contact us as soon as possible, we will order the most suitable products for you in the shortest time!
If you want a totally different design of outer shape?
No Problem! Calling us, we customize a private Light for U!
Can I print my logo on the LED light?
Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.
What if I receive defective products?
The defective rate of our lights is less than 0.2% according to our shipment records. If there is any defect during the warranty period, please contact us and provide evidence of the defective unit in working situations, and we will ship new lights to you within a few days or together with your next order.
Do you have your own factory?
Yes, we specialize in research and development for LED Lights over 14 years, as well as manufacturing, and operate based on ISO quality management since 2009.
Can I order several samples for testing?
Yes, we welcome sample orders to test and check the quality of our products. Mixed samples can be acceptable.
Packaging & Shipping
Packaging and Shipping Process

We support air shipment, marine shipment, and other delivery means. Our company is strategically located in Dongguan, close to Shenzhen Shekou Port, Dongguan Humen port, and Zhanjiang Haian New Port and other ports. In addition, our company is also close to Shenzhen Airport, Guangzhou Baiyun Airport, Foshan Airport. Our city and nearby cities have a very developed railway network and highway network, making transportation very convenient.

In terms of product packaging, we adopt multi-layer packaging, using internal and external packaging, while also laying a layer of sponge around the product. This careful packing makes the product less likely to be damaged in transit.

Secure Product Packaging
Company Profile
Ming Feng Lighting Factory

Ming Feng Lighting Co., Ltd is one of the leading LED light product manufacturers, located in Guangdong Province, China. Established in year 2009 and has more than 15 years experience in exporting LED lighting products. Ming Feng LED lighting factory produces LED Indoor Light and LED outdoor lamps.

For LED indoor lighting, we produce LED Triproof Lights, LED Vapor Tight Lights, LED down lights, and LED Flat panels. For Outdoor LED Lighting, we produce LED flood lights, LED high bay lighting, LED stadium lights, outdoor LED landscape lights, and some LED Aviation Obstruction lights and LED Search lights.

With the rapid growth of our sales volume in the market, our R&D is expanding quickly to meet market demands. Our partners come from all over the world.
