Factory Price IP65 Waterproof Triac 0-10V Dali Dt6 Dt8 Dimmable 10W 12W 18W 20W 25W 30W100lm/W Various Metallic Color Reflector Recessed LED Down Light

Minimum Order Quantity : 1 Price : 8
Certification: CCC, CE, FCC, RoHS, SAA

Detail Information

LED Chip: Osr-Am/Bri-Dgelux As Options CRI: Ra90+
Color Temperature: 2700/3000K/ 3500K/4000/ 5000K/6000K Luminous Flux: 100lm/W
Beam Angle: 24°/36°/55° IP Rating: IP65
Operating Temperature: -20 ~50℃ Dimmable: Non-Dim/Triac/0-10V/Dali-2 Dimmable As Options
Housing Colour: White/Black/Rose Gold/Bronze/Silver As Options Lifespan: ≥50000hrs
PF: 10-12W≥0.50, 20W≥0.95 Power: 10W 12W 18W 20W 25W 30W
Input Voltage: AC100-277V Or AC 200-240V Reflector Color: Matte White/Matte Silver/Matte Black/Shiny Sliver/
Lamp Body Material: Die-Casting Aluminum
Highlight:

IP65 waterproof LED down light

,

Dimmable recessed LED down light

,

Metallic color reflector LED down light

Product Description

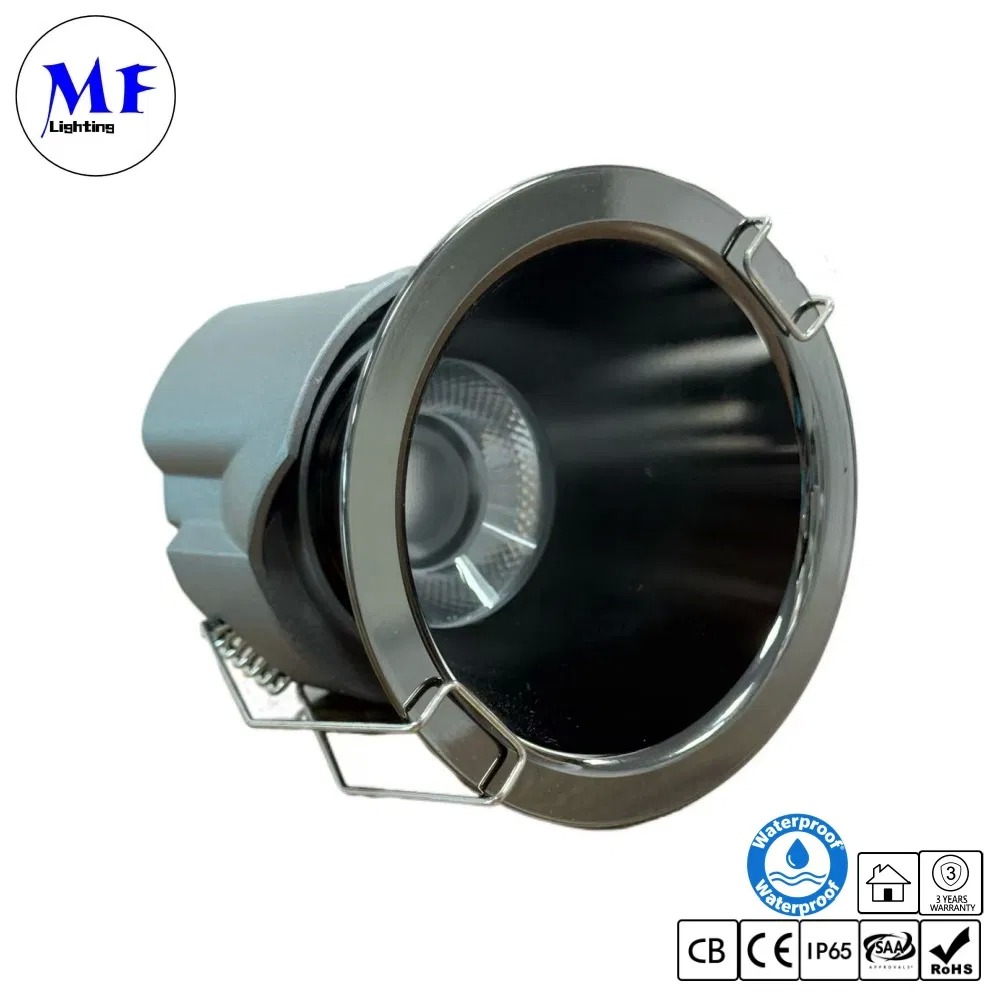

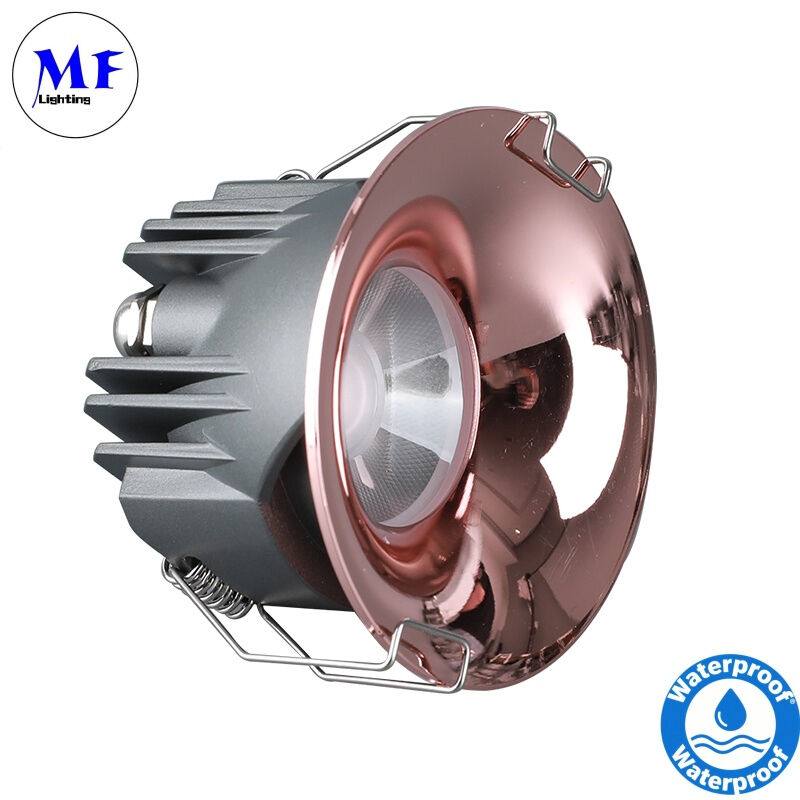

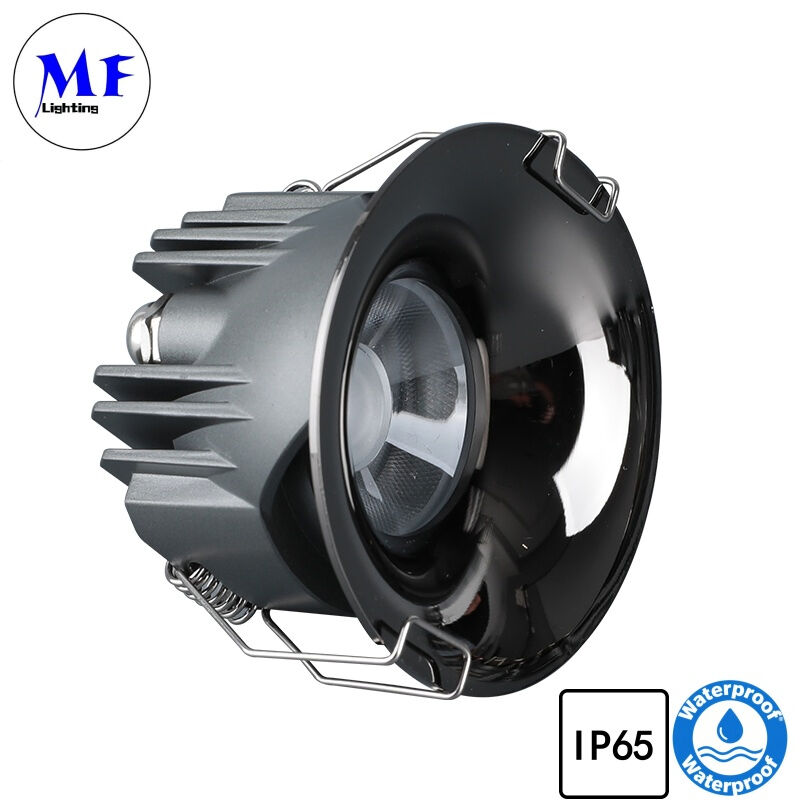

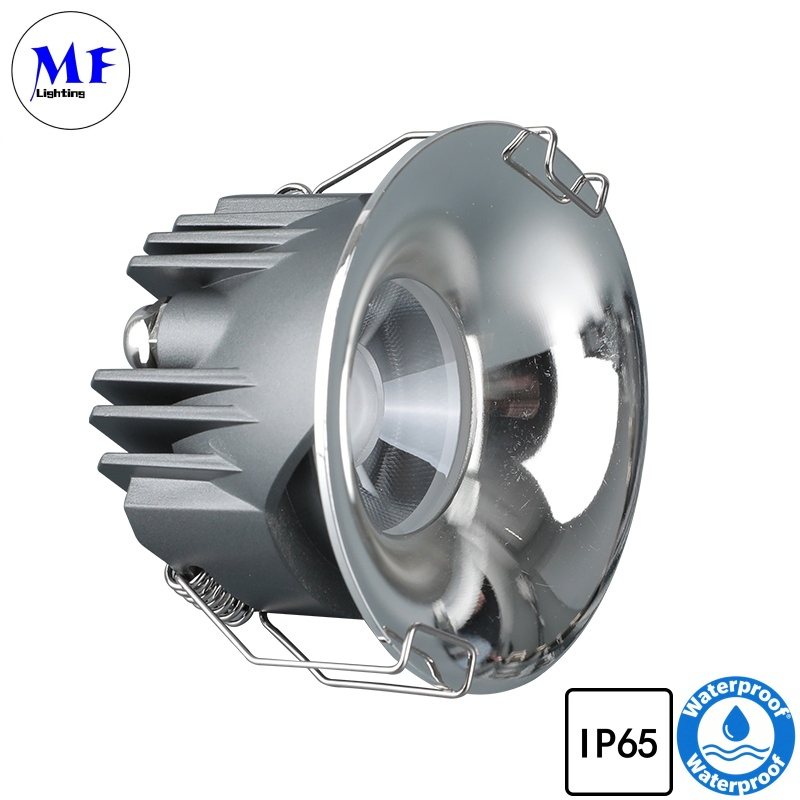

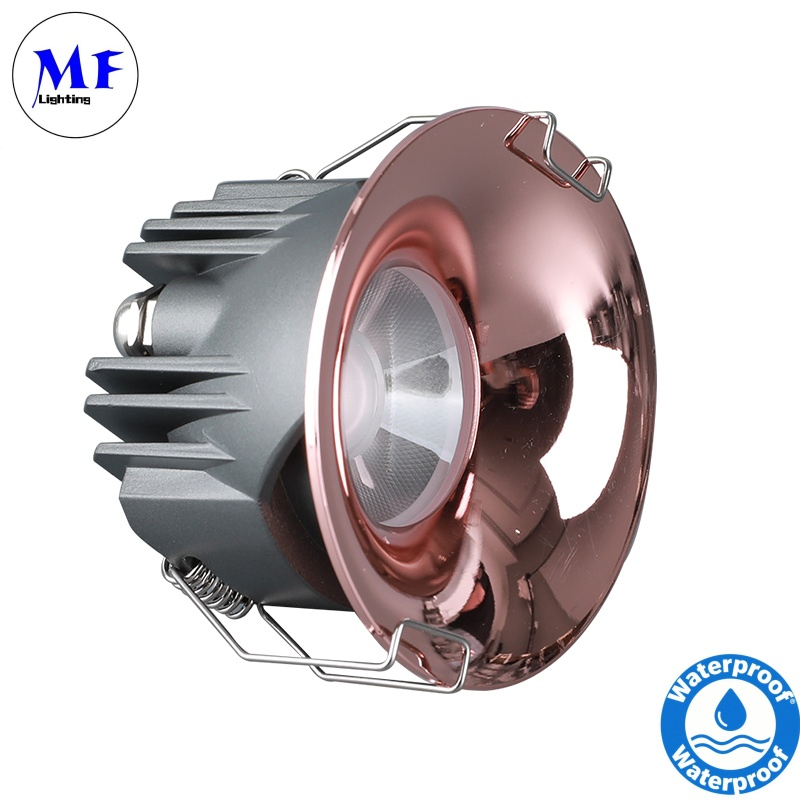

Factory Price IP65 Waterproof Dimmable LED Down Light
Professional recessed LED downlight with IP65 waterproof rating, multiple dimming options, and high luminous efficiency for various commercial and residential applications.
IP65 Waterproof LED Down Light product overview
Key Features
  • IP65 Waterproof Rating: Full waterproof and dustproof design suitable for wet areas like bathrooms and outdoor spaces
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more
  • Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices
  • Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP
  • Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes
  • High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering
  • Multiple Housing Colors: Available in White, Black, Rose Gold, Bronze, and Silver to match various interior styles
LED Down Light close-up view LED Down Light installation example LED Down Light in different settings LED Down Light color options LED Down Light technical details LED Down Light performance features
Technical Specifications
Model MF-HGS20-S10W/12W/18W/20W/25W/30W
Input Voltage 100-277Vac or 200-240Vac, 50hz/60hz
Power (Watt) 10W/12W/18W/20W/25W/30W
Color Temperature 2700K/3000K/3500K/4000K/5000K/6000K
LED Chip OS-RAM/Bridgelux
LED Driver DONEIAohua/Lifud/Eaglerise Brand for different dim version
PF 10-12W≥0.50, 20W≥0.95
Housing Colour White/Black/Rose Gold/Bronze/Silver
Reflector Color Matte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold/Bronze
Luminous Flux 100LM/W
CRI (Ra) Ra80+/Ra90+
Lifespan ≥50000 hours
Beam Angle 24°, 36°, 55°
Material Die-casting Aluminum
Operating Temperature -20ºC to 50ºC
Dimmable Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable 2700-6000K Tunable as optional if needed
IP Rating IP65
UGR <19
Certificate CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty Period 3 years
Detail Photos
LED Down Light detailed view 1 LED Down Light detailed view 2 LED Down Light detailed view 3 LED Down Light detailed view 4
Dimensions
LED Down Light dimensional drawing
Applications
MF-HGS20-S downlights are designed for recessed installation and are suitable for various applications that require waterproof lighting solutions:
  • Outdoor Lighting: Outdoor walkways, gardens, or building exteriors
  • Bathroom Lighting: Bathrooms and other wet areas where moisture resistance is essential
  • Kitchen Lighting: Kitchens where steam and cooking splashes are common
  • Swimming Pool Areas: Around swimming pools or in pool houses where water resistance is crucial
  • Spa or Wellness Areas: Spa environments with high humidity and moisture
  • Industrial Settings: Industrial environments exposed to dust, moisture or water
  • Retail or Commercial Spaces: Retail stores, restaurants and other commercial spaces requiring water resistance and durability
LED Down Light application examples
Installation Instructions
Easy Spring Clip Installation Process:
  1. Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire
  2. Connect the Wires: Connect the wires to the luminaire terminals correctly following the installation manual. Installation should preferably be carried out by a professional electrician
  3. Insert into the Ceiling: Vertically align the spring clips on both ends of the product, then insert the light into the ceiling hole
  4. Lower the Spring Clips: After verifying the hole size matches the fixture and wiring is correct, release the spring clips. The light is now ready to power on for use
LED Down Light installation diagram
Packaging & Shipping
LED Down Light packaging overview LED Down Light packaging details LED Down Light shipping preparation LED Down Light packaged units
Company Profile
Mingfeng Lighting company overview Mingfeng Lighting facilities and operations
Frequently Asked Questions
Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience. Our products include IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamp, and LED underground lights.
What is your main product?
Our main products are as follows: LED Triproof lights/ LED Vapor Tight Lights, LED High Bay Lights, LED Flood lights, LED Explosion Proof Lights, LED Down Lights, LED underwater lights (swimming pool lights, fountain lights, underwater spotlights), LED garden spot/spike lights, LED inground lights.
What is the minimum order quantity (MOQ)?
For customized models, samples should be prepaid. We offer free customized models if the order quantity is more than 1000 pieces.
What are the payment options?
We accept T/T, Western Union, Paypal. Payment terms are 50% advanced payment and 50% balance payment. Our shipping terms are EXW, FOB, and CIF, CNF and DDP.
What is the delivery time?
The delivery time is about 5-7 working days for samples and 20-30 working days for mass production, depending on the quantity.
How are the products packaged?
Each piece is packed in an individual color box and then placed in a strong master carton.
Why should you choose us?
  • We offer OEM/ODM services
  • We have our own design team
  • We offer high-quality products at reasonable prices
  • We have no MOQ request
  • Our sales team has 12 years of experience in underwater lighting
