Product Overview

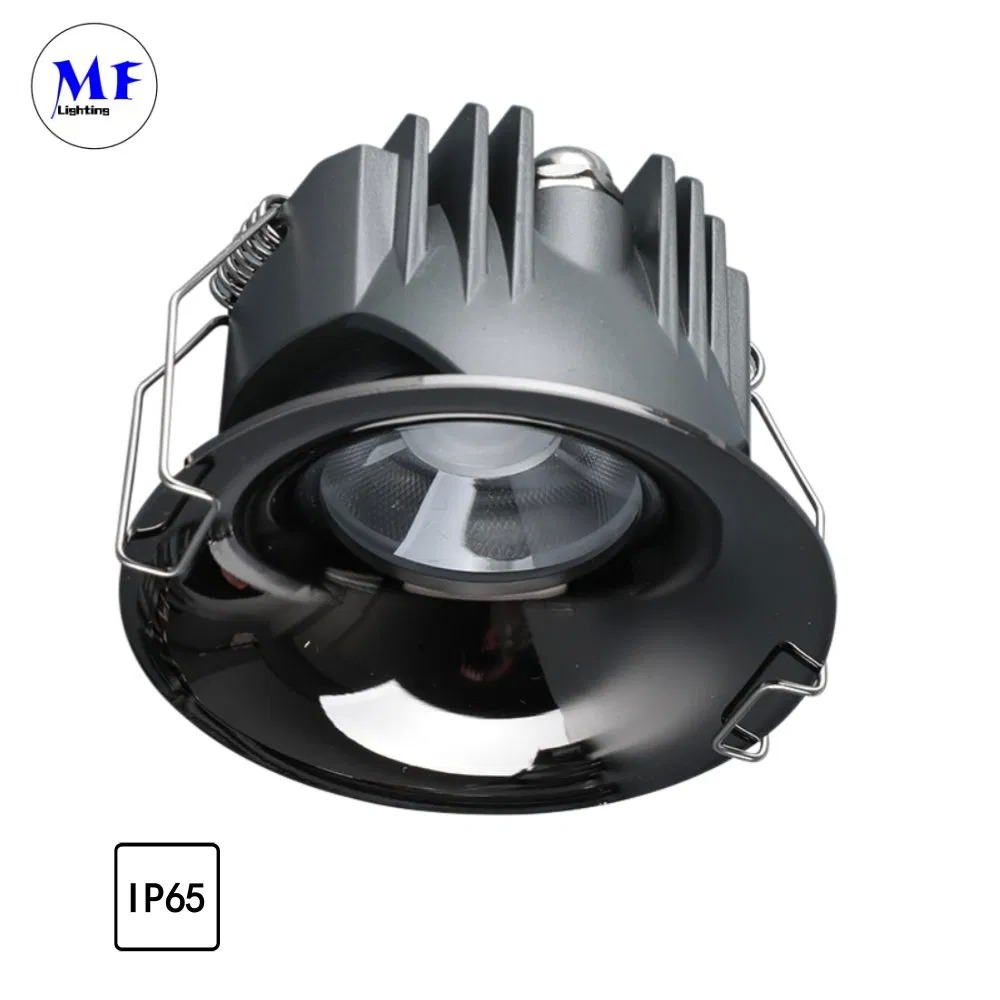

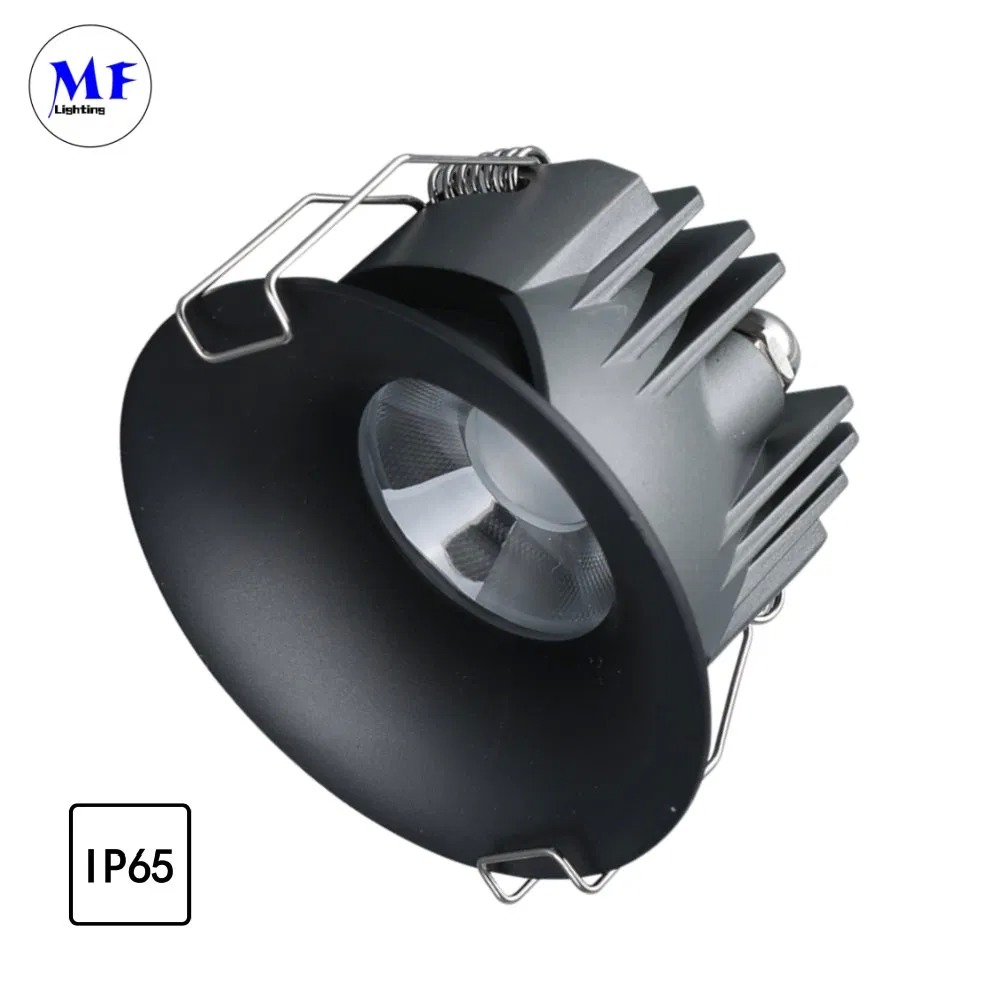

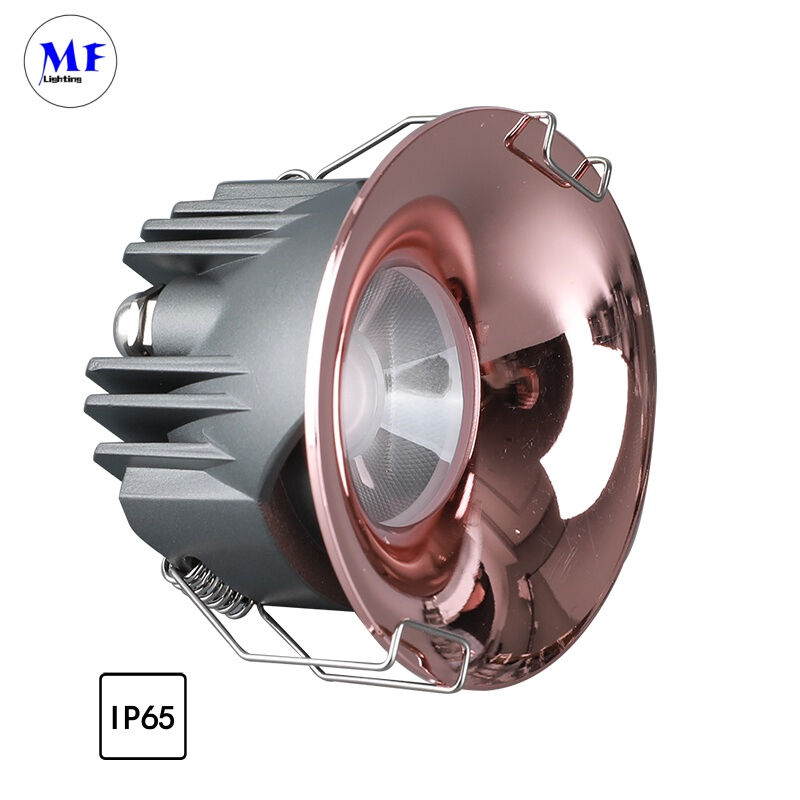

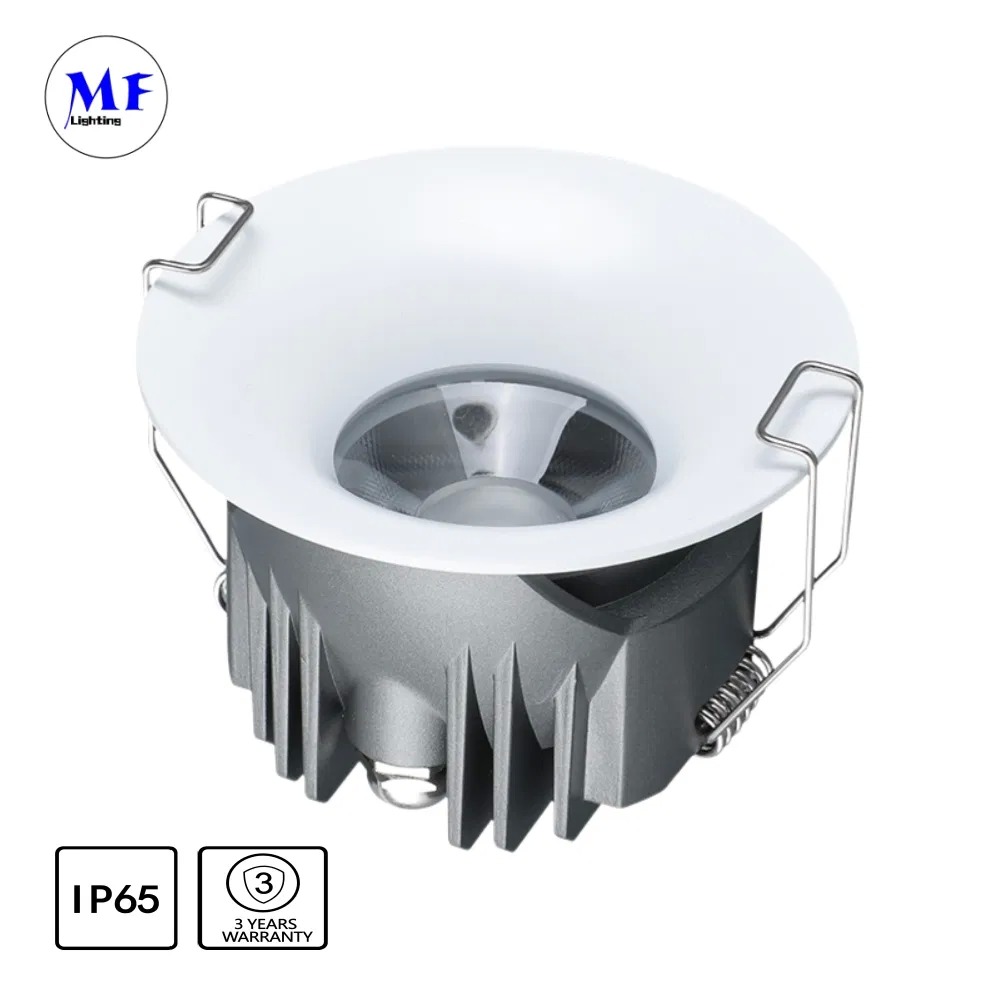

17+ Years Factory IP65 10W 12W 18W Smart Control Recessed Dimmable Hospital Commercial Residential Home Hotel Spot Lamp Short Feet LED Down Light
Technical Specifications
| Model No. | MF-HGS20-S10W/12W/18W |
| Power | 10W/12W/18W |
| Frequency Range | 50Hz-60Hz |
| Beam Angle | 24°/36°/55° |
| Light Quality | Bright, Soft |
| Voltage | AC100-277V |
| Material | Die-casting Aluminum |
| Working Temperature | -20°C to 50°C |
| Light Color | White |
| Certificates | CE, FC, ROHS, CB etc. |
| Product Dimension | D65*H52/D85*H56/D105*H68mm/pcs |
| Warranty | 3 years |
| UGR | <19 |
| Life Time | 50,000 hours |
| Protection Level | IP65 |
Product Features
- Color Options: Matte White, Matte Silver, Matte Black, Bright Silver, Gun Black, Rose Gold, Bronze
- CCT (Correlated Color Temperature): 2700K, 3000K, 4000K, 5000K, 6000K
- Light Source: OSRAM/Bridgelux
- Power Input: AC100-277V or AC 200-240V
- IP65 Waterproof Rating for durable performance
- Material: Die-casting Aluminum construction
- Temperature Range: -20°C to 50°C
- CRI (Color Rendering Index): Ra80/90
- Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices
- Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP
Application Places
Ideal for schools, hotels, hospitals, subways, train stations, shopping malls, supermarkets, airport halls, offices, factories, basements, parking lots, and various public places.
Installation Guide
Easy Spring Clip Installation
- Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
- Connect the Wires: Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
- Insert into the Ceiling: Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
- Lower the Spring Clips: After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.
Customization & Support
Q1: If you feel that this product is higher than your market demand, resulting in you selling this product without any profit at all?
A1: Then please contact us as soon as possible, our professional team will order more suitable products for you!
Q2: If you need higher performance products to meet your needs?
A2: Then please contact us as soon as possible, we will order the most suitable products for you in the shortest time!
Q3: If you want a totally different design of outer shape?
A3: No Problem! Calling us, we customize a private Light for U!
Q4: Can I print my logo on the LED light?
A4: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.
Q5: What if I receive defective products?
A5: The defective rate of our lights is less than 0.2% according to our shipment records. If there is any defect during the warranty period, please contact us and provide evidence of the defective product in working situations, and we will ship new lights to you within a few days or together with your next order.
Q6: Do you have your own factory?
A6: Yes, we specialize in research and development for LED Lights over 14 years, as well as manufacturing, and operate based on ISO quality management since 2009.
Q7: Can I order several samples for testing by myself?
A7: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples can be acceptable.
Packaging & Shipping
We support air shipment, marine shipment, and other delivery means. Our company is strategically located in Dongguan, close to Shenzhen Shekou Port, Dongguan Humen Port, and Zhanjiang Haian New Port and other ports. In addition, our company is also close to Shenzhen Airport, Guangzhou Baiyun Airport, and Foshan Airport. Our city and nearby cities have a very developed railway network and highway network, making transportation very convenient.
In terms of product packaging, we adopt multi-layer packaging, using internal and external packaging, while also laying a layer of sponge around the product. This careful packing makes the product less likely to be damaged in transit.
Company Profile
Ming Feng Lighting Co., Ltd is one of the leading LED light product manufacturers, located in Guangdong Province, China. Established in 2009 and has more than 15 years of experience in exporting LED lighting products. Ming Feng LED lighting factory produces LED Indoor Lights and LED outdoor lamps. For LED indoor lights, we produce LED Triproof Lights, LED Vapor Tight Lights, LED down lights, and LED Flat Panels. For Outdoor LED Lights, we produce LED flood lights, LED high bay lighting, LED stadium lights, outdoor LED landscape lights, and some LED Aviation Obstruction lights and LED Search lights. With the rapid growth of our sales volume in the market, our R&D is expanding quickly to meet market demands. Our partners come from all over the world.
