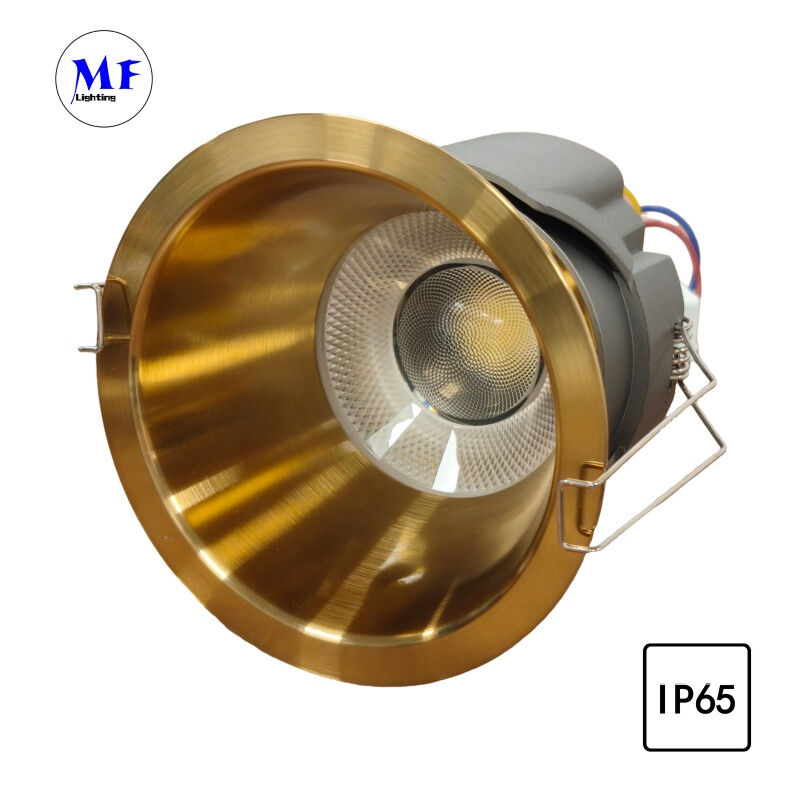

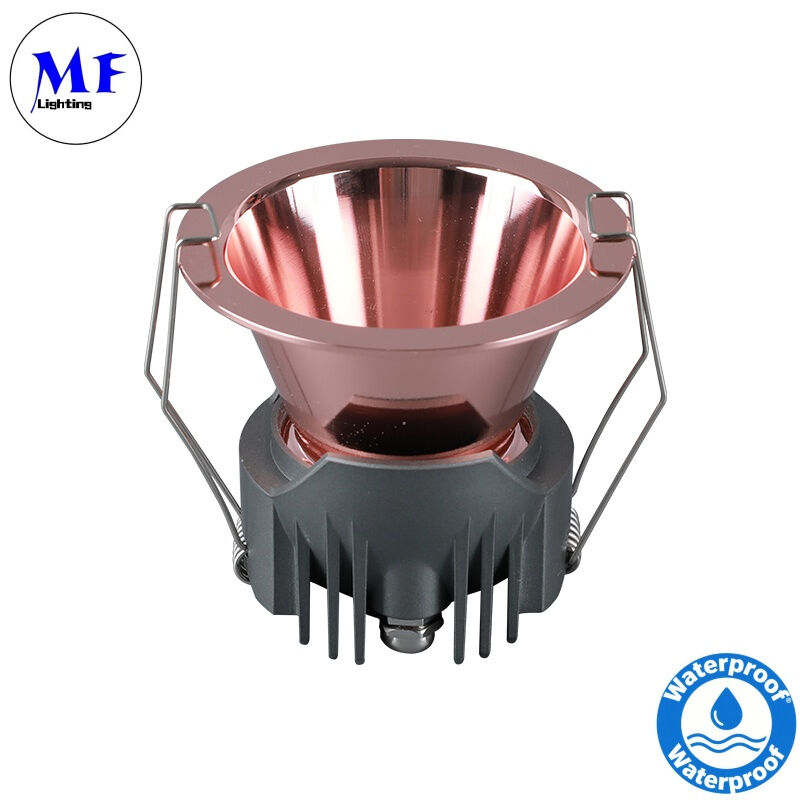

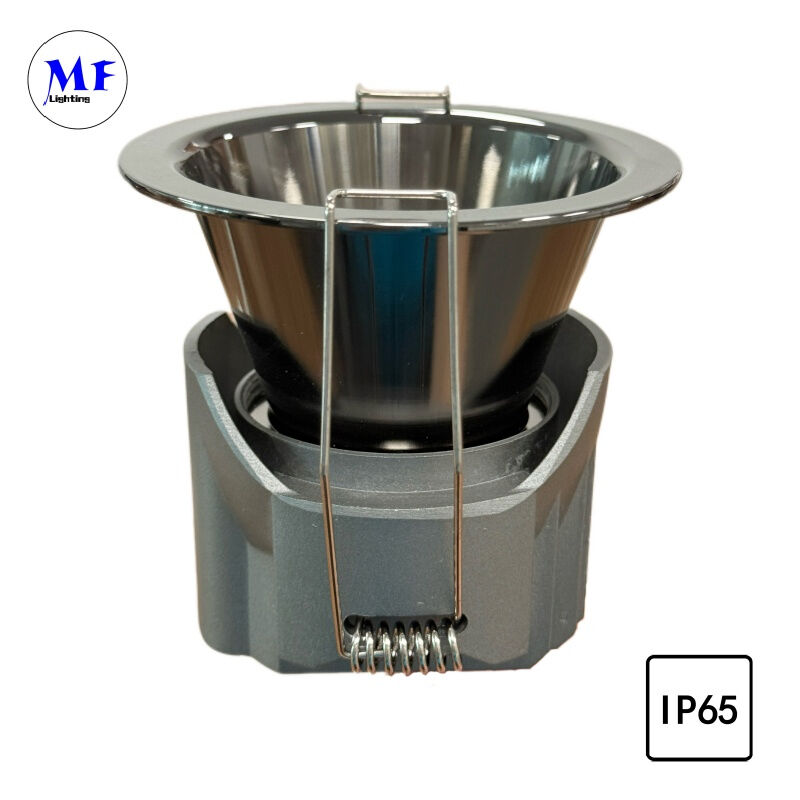

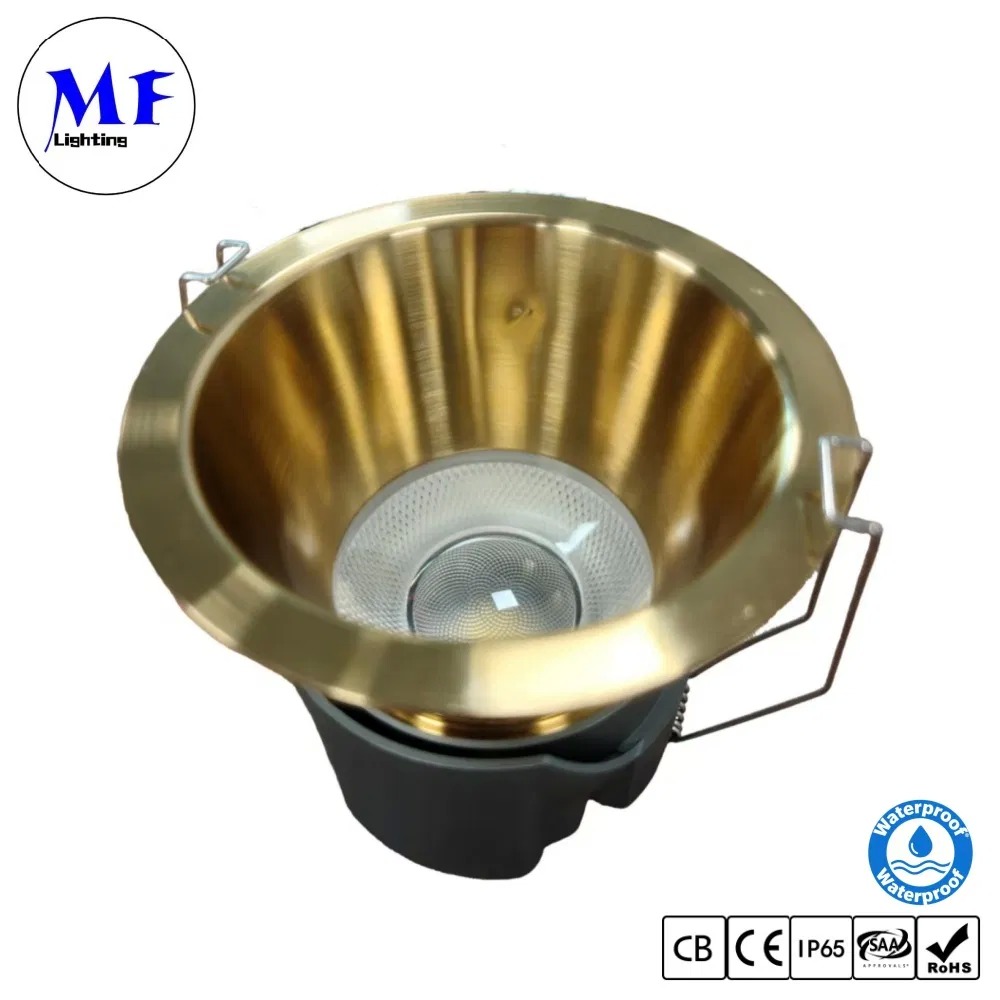

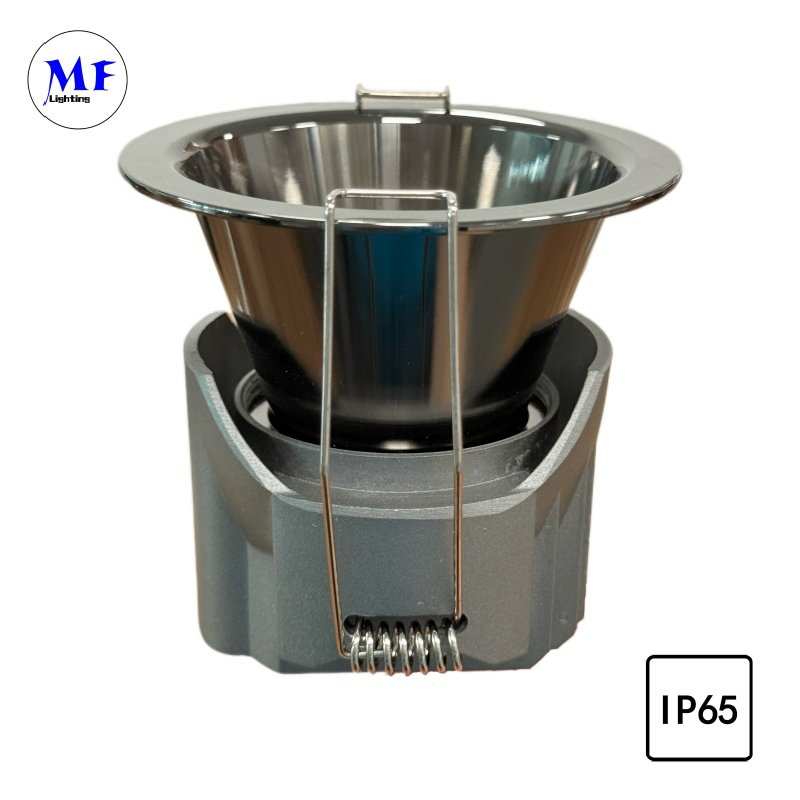

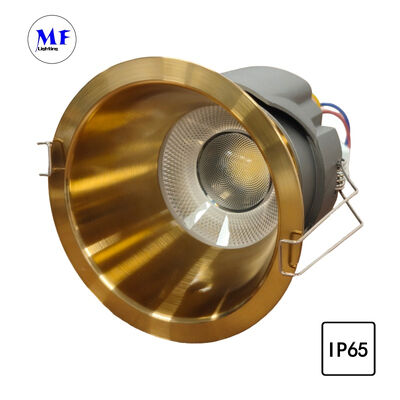

Factory Price IP65 Waterproof Triac 0-10V Dali Dimmable CCT Adjustable 10W 12W 18W 20W 25W 30W100lm/W Various Metallic Color Reflector Recessed LED Down Light

Minimum Order Quantity : 1 Price : 8
Certification: CCC, CE, FCC, RoHS, SAA

Detail Information

Power: 10W 12W 18W 20W 25W 30W IP Rating: IP65
Luminous Flux: 100lm/W Dimmable: Non-Dim/Triac/0-10V/Dali-2 Dimmable As Options
Color Temperature: 2700/3000K/ 3500K/4000/ 5000K/6000K PF: 10-12W≥0.50, 20W≥0.95
CRI: Ra90+ LED Chip: Osr-Am/Bri-Dgelux As Options
Operating Temperature: -20 ~50℃ Lamp Body Material: Die-Casting Aluminum
Lifespan: ≥50000hrs Input Voltage: 100-277Vac Or 200-240Vac,50hz/60hz
Beam Angle: 24°,36° ,55° UGR: <19
Housing Colour: White/Black/Rose Gold/Bronze/Silver As Options
Highlight:

IP65 waterproof LED down light

,

Dimmable CCT adjustable recessed LED light

,

Metallic color reflector LED down light

Product Description

Factory Price IP65 Waterproof Dimmable LED Down Light

Professional recessed LED downlight with IP65 waterproof rating, multiple dimming options, and adjustable color temperature for versatile commercial and residential applications.

IP65 Waterproof LED Down Light - Main Product Image
Key Features
  • IP65 Waterproof Rating: Complete waterproof and dustproof protection for wet areas including bathrooms and outdoor spaces
  • Extended Lifespan: Die-cast aluminum heat sink ensures 50,000+ hours of reliable operation
  • Anti-Glare Design: Deep recessed structure with UGR<19 for comfortable lighting in offices and bedrooms
  • Flexible Dimming: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart app control
  • Adjustable Color Temperature: Available from 2700K to 6000K with tunable CCT options
  • High Efficiency: 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering
  • Multiple Finishes: Available in White, Black, Rose Gold, Bronze, and Silver to match interior designs
LED Down Light Feature Close-up LED Down Light Installation Example LED Down Light Color Options LED Down Light Application Setting
Technical Specifications
ParameterSpecification
ModelMF-HGS20-H10W/12W/18W/20W/25W/30W
Input Voltage100-277Vac or 200-240Vac, 50hz/60hz
Power10W/12W/18W/20W/25W/30W
Color Temperature2700K/3000K/3500K/4000K/5000K/6000K
LED ChipOS-RAM/Bridgelux
LED DriverDONEIAohua/Lifud/Eaglerise Brand
Power Factor10-12W≥0.50, 20W≥0.95
Housing ColorWhite/Black/Rose Gold/Bronze/Silver
Reflector ColorMatte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold/Bronze
Luminous Flux100LM/W
CRI (Ra)Ra80+/Ra90+
Lifespan≥50,000 hours
Beam Angle24°, 36°, 55°
MaterialDie-casting Aluminum
Operating Temperature-20ºC to 50ºC
DimmableNon-Dim/TRIAC/0-10V/DALI-2
CCT Adjustable2700-6000K Tunable (Optional)
IP RatingIP65
UGR<19
CertificationCE/RoHS (Whole Lamp); CE/RoHS/CB/SAA (Driver)
Warranty3 Years
Product Details
LED Down Light Internal Components LED Down Light Construction Details LED Down Light Close-up View LED Down Light Finish Options LED Down Light Installation View LED Down Light Performance Testing
Dimensions
LED Down Light Dimensional Diagram
Applications
  • Outdoor Lighting: Walkways, gardens, and building exteriors exposed to weather elements
  • Bathroom Lighting: Wet areas requiring moisture-resistant illumination
  • Kitchen Lighting: Spaces with steam and cooking splashes
  • Swimming Pool Areas: Pool houses and surrounding areas requiring water resistance
  • Spa & Wellness Areas: High humidity environments with moisture protection needs
  • Industrial Settings: Environments exposed to dust, moisture, or water
  • Retail & Commercial Spaces: Stores and restaurants requiring durable, water-resistant lighting
LED Down Light Commercial Application
Installation Instructions
  1. Ceiling Preparation: Cut ceiling hole according to luminaire size using appropriate tools
  2. Electrical Connection: Connect wires to luminaire terminals following installation manual (professional electrician recommended)
  3. Fixture Placement: Vertically align spring clips and insert light into ceiling hole
  4. Final Installation: Verify hole size and wiring, then release spring clips to secure fixture
LED Down Light Installation Diagram
Packaging & Shipping
LED Down Light Packaging - Individual Box LED Down Light Packaging - Master Carton LED Down Light Shipping Preparation LED Down Light Bulk Packaging
Manufacturer Profile
Mingfeng Lighting Manufacturing Facility Mingfeng Lighting Production Line
Frequently Asked Questions
Are you a manufacturer?

Yes, we are a professional manufacturer with 16 years of experience specializing in IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamps, and LED underground lights.

What are your main products?

Our product portfolio includes LED Triproof lights, LED Vapor Tight Lights, LED High Bay Lights, LED Flood lights, LED Explosion Proof Lights, LED Down Lights, LED underwater lights (swimming pool lights, fountain lights, underwater spotlights), LED garden spot/spike lights, and LED inground lights.

What is the minimum order quantity (MOQ)?

For customized models, samples require prepayment. We offer free customization for orders exceeding 1000 pieces.

What are the payment options?

We accept T/T, Western Union, and PayPal. Payment terms: 50% advance, 50% balance. Shipping terms: EXW, FOB, CIF, CNF, and DDP.

What is the delivery time?

Samples: 5-7 working days. Mass production: 20-30 working days, depending on quantity.

How are products packaged?

Each unit is individually packed in color boxes, then placed in strong master cartons for secure shipping.

Why choose us?

• OEM/ODM services available
• Dedicated design team
• High-quality products at competitive prices
• No minimum order quantity requirements
• 12 years of specialized experience in underwater lighting
