Recessed Anti-Glare LED Spot Light, IP20 Aluminum 20W 1700lm Tunable Cabochon LED Down Light, Ceiling Downlights for Exhibition Hall Project

Contact Now

Recessed Anti-Glare LED Spot Light, IP20 Aluminum 20W 1700lm Tunable Cabochon LED Down Light, Ceiling Downlights for Exhibition Hall Project

Minimum Order Quantity :	1	Price :	15

Certification:	CE, RoHS

Detail Information
CRI (Ra):	Ra80+/Ra90+	LED Chip:	Bridge1ux / 0sram As Optional
Lifespan:	≥50000hrs	Lamp Material:	Die-Casting Aluminum
Ugr:	<19	CCT Adjustable:	2700-6000K Tunable As Optional
Beam Angle:	8°/15°/24°/38°/55°	Input Voltage:	AC 200-240V
IP Rating:	IP20/IP44	Power:	7W/10W/12W/15W/20W/25W/30W/35W
Color Temperature:	2700K/3000K/4000K/5000K/6000K	Dimmable:	Non-Dim / Triac Dimmable As Optional
LED Driver:	Lifud/BOKE/Tridonic/Novbo As Optional,Optional 0-10V/Dali	PF:	5-15W≥0.50 20-80W≥0.95
Operating Temperature:	-20℃ ~50℃
Highlight:	recessed anti-glare LED down light , aluminum 20W LED spot light , tunable cabochon ceiling downlights

Product Description

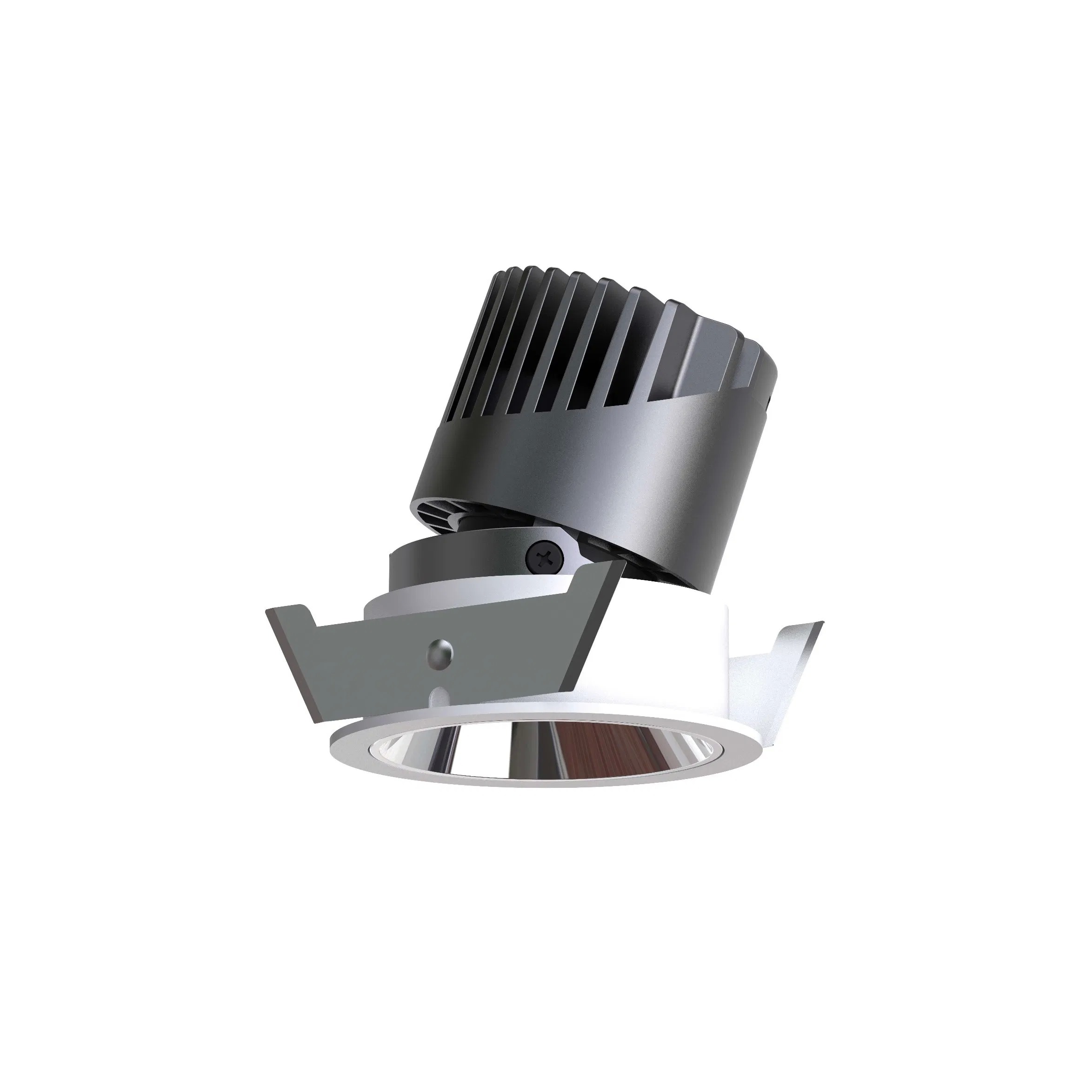

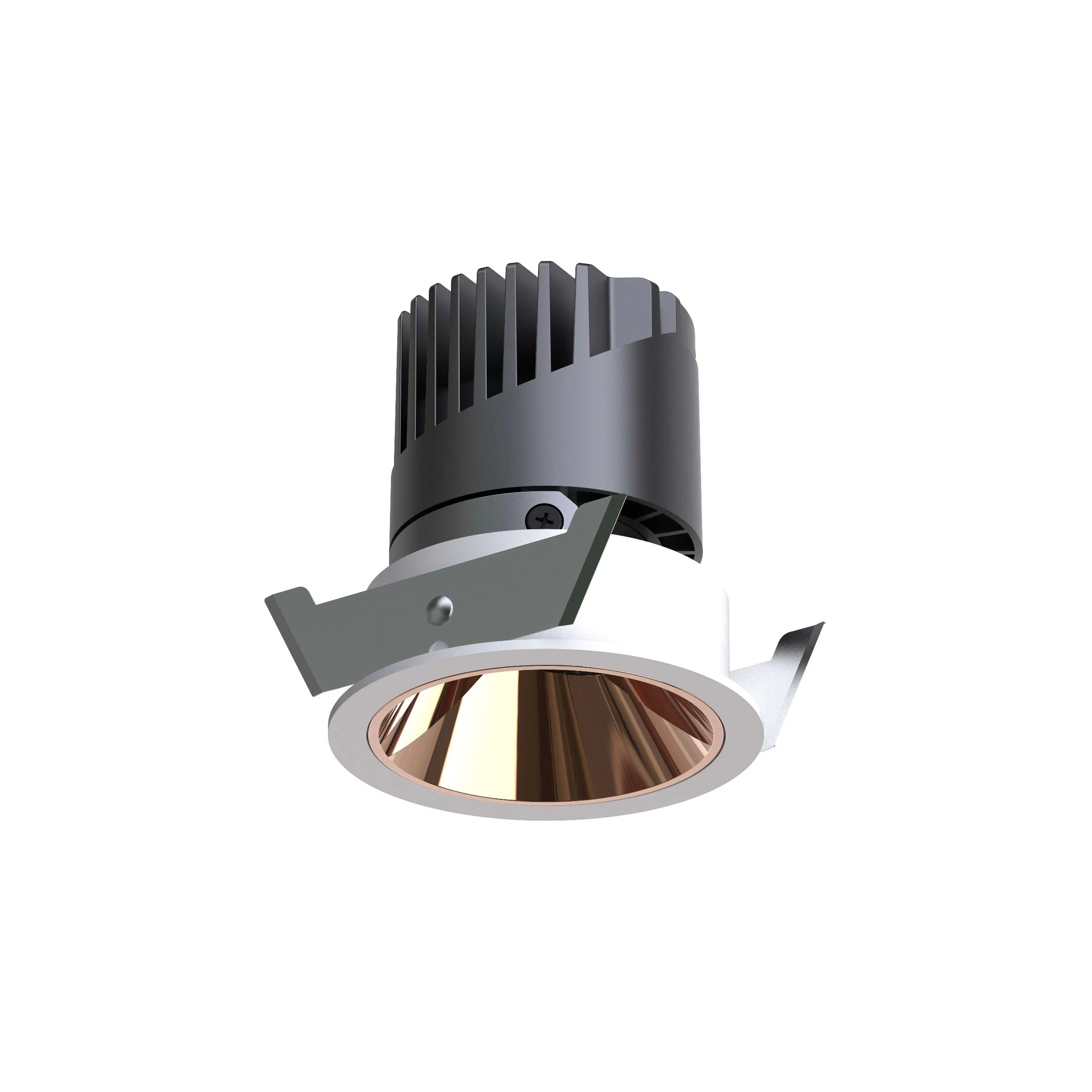

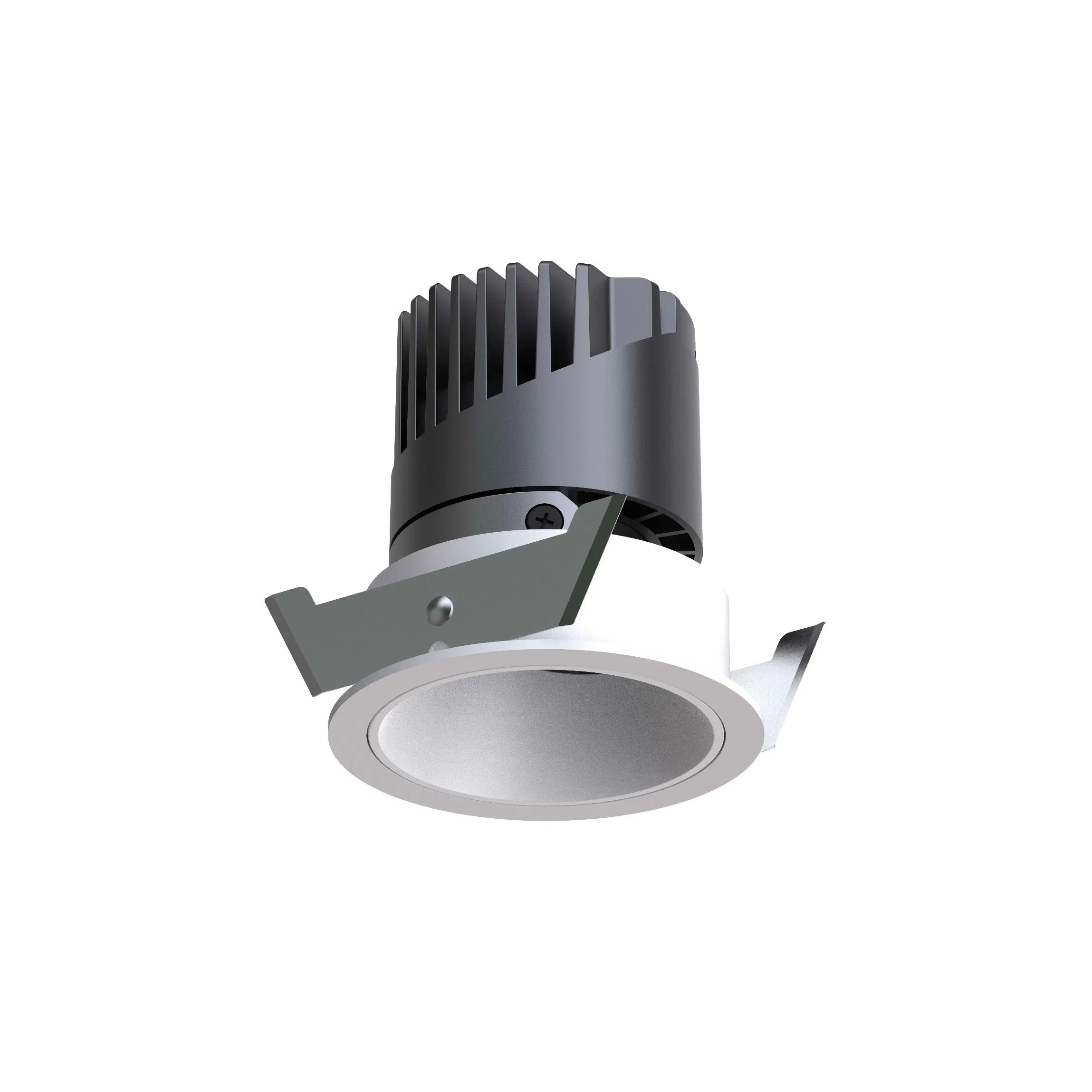

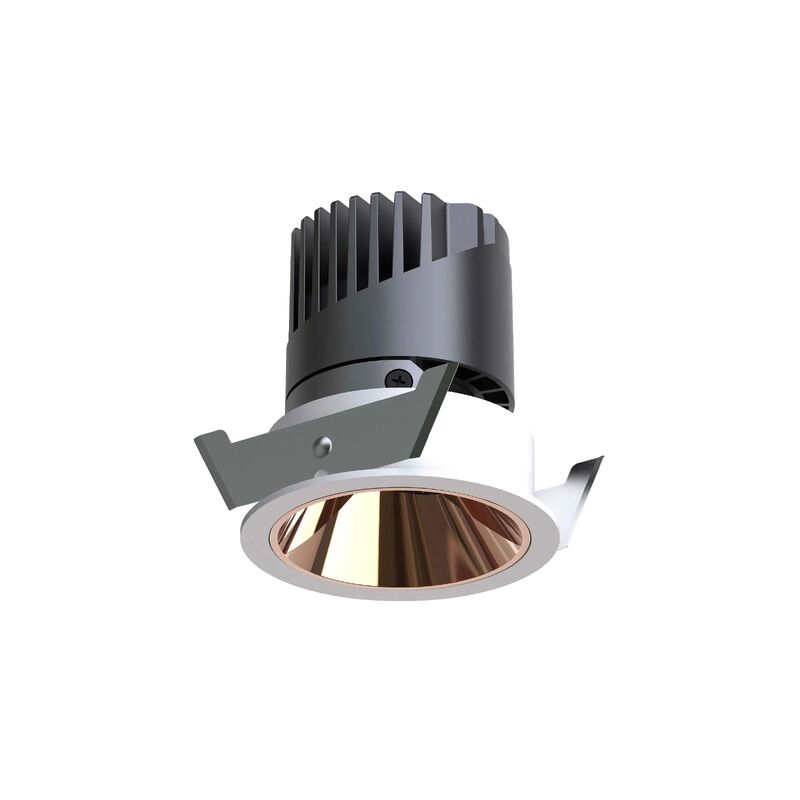

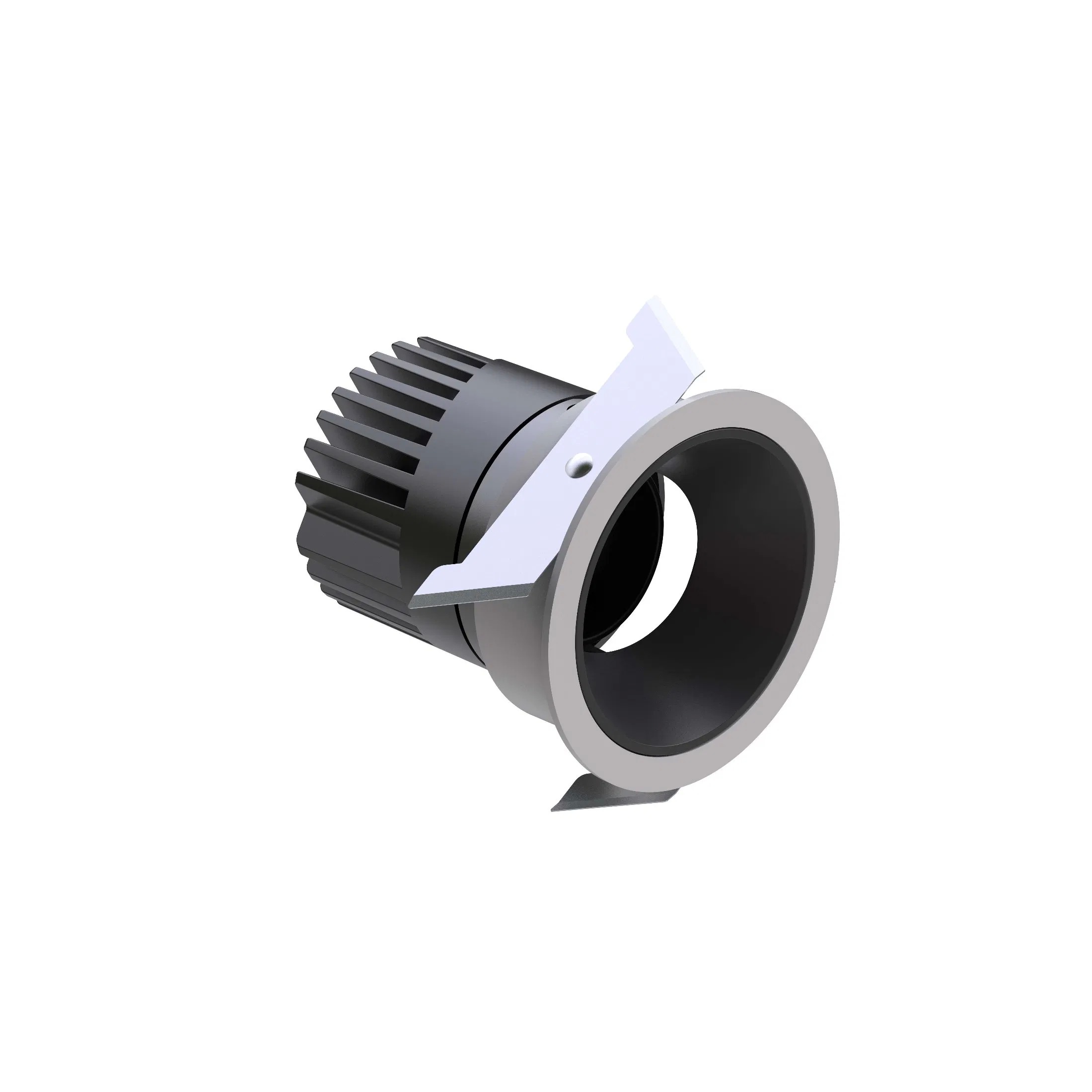

Recessed Anti-Glare LED Spot Light

IP20/IP44 Aluminum 2700-6000K Anti-Glare Tunable LED Down Light Spot Light for Exhibition Hall Projects

Product Overview

MF-HGS10 series frameless COB recessed spotlights feature integrated die-cast aluminum construction for optimal heat dissipation. Available in multiple power configurations from 7W to 35W with cutout sizes of 55mm, 75mm, and 95mm to accommodate various ceiling installations.

Key Features

Adjustable beam angles from 8° to 55°
Full color temperature range from 2700K to 6000K
Premium COB chips including CREE and OSRAM options
High CRI Ra90+ for accurate color rendering
Low UGR less than 19 for eye-friendly anti-glare lighting
360° rotation and 30° tilt adjustment capability
Multiple housing finishes and trim styles available
Dimmable drivers (Triac / 0-10V / DALI) optional
50,000-hour lifespan with 3-year warranty

Technical Specifications

Model	MF-HGS10-7W / MF-HGS10-10W / MF-HGS10-12W / MF-HGS10-15W / MF-HGS10-20W / MF-HGS10-25W / MF-HGS10-30W / MF-HGS10-35W
Power	7W/10W/12W/15W/20W/25W/30W/35W
Input Voltage	AC 200-240V
LED Chip	Bridgelux / OSRAM as optional
Color Temperature	2700K/3000K/4000K/5000K/6000K
CRI (Ra)	Ra80+/Ra90+
Beam Angle	8°,15°,24°,38°,55°
Material	Die-casting Aluminum
Dimmable	Non-Dim / Triac dimmable as optional
UGR	<19
LED Driver	Lifud/BOKE/Tridonic/Novbo as optional, Optional 0-10V/DALI
Power Factor	5-15W≥0.50 20-80W≥0.95
Lifespan	≥50,000 hours
Operating Temperature	-20℃ ~50℃
CCT Adjustable	2700-6000K Tunable as optional
Certification	CE/ RoHS (Whole Lamp) CE/ROHS/CB/SAA(Driver)
Warranty Period	3 years

Product Gallery

Manufacturer Information

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development and manufacturing, operating based on ISO quality management since 2009.

Can I order a sample of the LED Light?

Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

What is the lead time for the LED Light?

For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

How do you ship the finished products?

We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Can I print my logo on the LED Light?

Yes, we provide OEM service to our customers. We can help make the label and color box according to your requirements.

How do I proceed with an order for the LED Light?

Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend suitable products and solutions based on your request. Thirdly, after confirming all details, customers will issue a purchase order and make payment to confirm, then we will start production and arrange shipment.

How do you handle defective products?

All our products are produced under strict quality control systems, with a defective rate less than 0.2% according to our shipment records. We offer a 3-year warranty for this product. If any defects occur during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
