Square LED Down Light with Multi Dimming Control
IP20/IP44 aluminum downlight offering 2700-6000K anti-glare tunable white lighting with Dali-2, Triac & 0-10V multi dimming control. Ideal for commercial bathrooms, kitchens, retail spaces, and exhibition halls.
Product Overview
MF-HGS10 is a square deep anti-glare recessed LED spot downlight featuring adjustable lamp head (15° tilt), multiple dimming modes, and color temperature tuning from 2700K to 6000K. Constructed from die-cast aluminum with high CRI options and UGR<19 rating for comfortable lighting environments.
Key Features
- Multiple power options: 7W, 10W, 12W, 15W, 20W
- Adjustable beam angles: 8°, 15°, 24°, 38°, 55°
- Tunable white CCT: 2700K-6000K
- High CRI options: Ra80+ or Ra90+
- Multiple dimming controls: Dali-2, Triac, 0-10V
- Low glare design: UGR <19
- Long lifespan: ≥50,000 hours
- IP20/IP44 rated for various environments
Technical Specifications
| Model |
MF-HGS10F-7W/10W/12W/15W/20W |
| Power |
7W/10W/12W/15W/20W |
| Input Voltage |
200-240Vac or 110Vac, 50hz/60hz, DC24V available |
| LED Chip |
Bridge1ux / 0SRAM as optional |
| Color Temperature |
2700K/3000K/4000K/5000K/6000K |
| CRI (Ra) |
Ra80+/Ra90+ |
| Beam Angle |
8°,15°,24°,38°,55° |
| Material |
Die-casting Aluminum |
| Dimmable |
Non-Dim / Triac dimmable as optional |
| UGR |
<19 |
| LED Driver |
Lifud/BOKE/Tridonic/Novbo as optional, Optional 0-10V/Dali |
| PF |
5-15W≥0.50 20-80W≥0.95 |
| Lifespan |
≥50,000 hours |
| Operating Temperature |
-20℃ ~50℃ |
| CCT Adjustable |
2700-6000K Tunable as optional |
| Certificate |
CE/ RoHS (Whole Lamp) CE/ROHS/CB/SAA(Driver) |
| Warranty Period |
3 years |

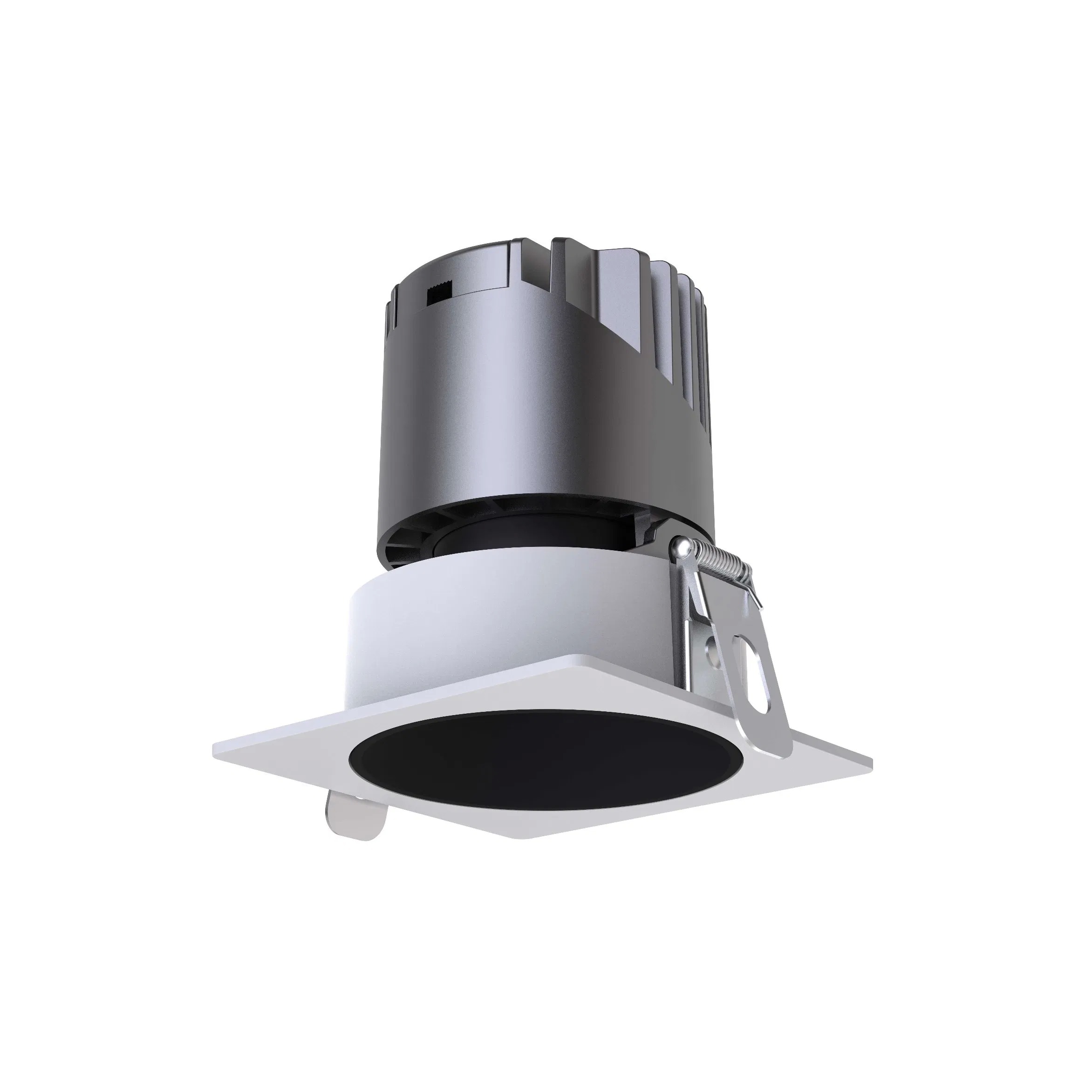

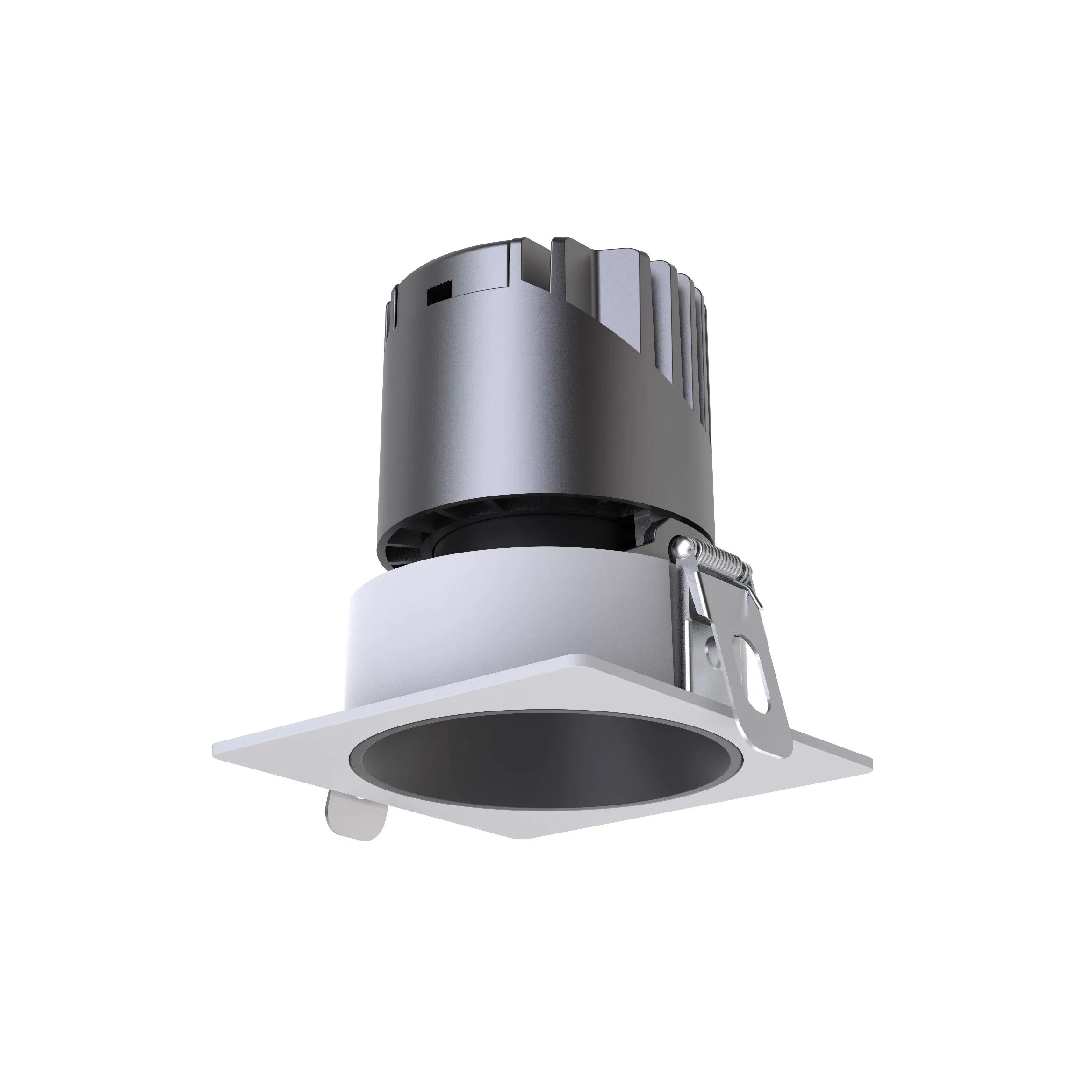

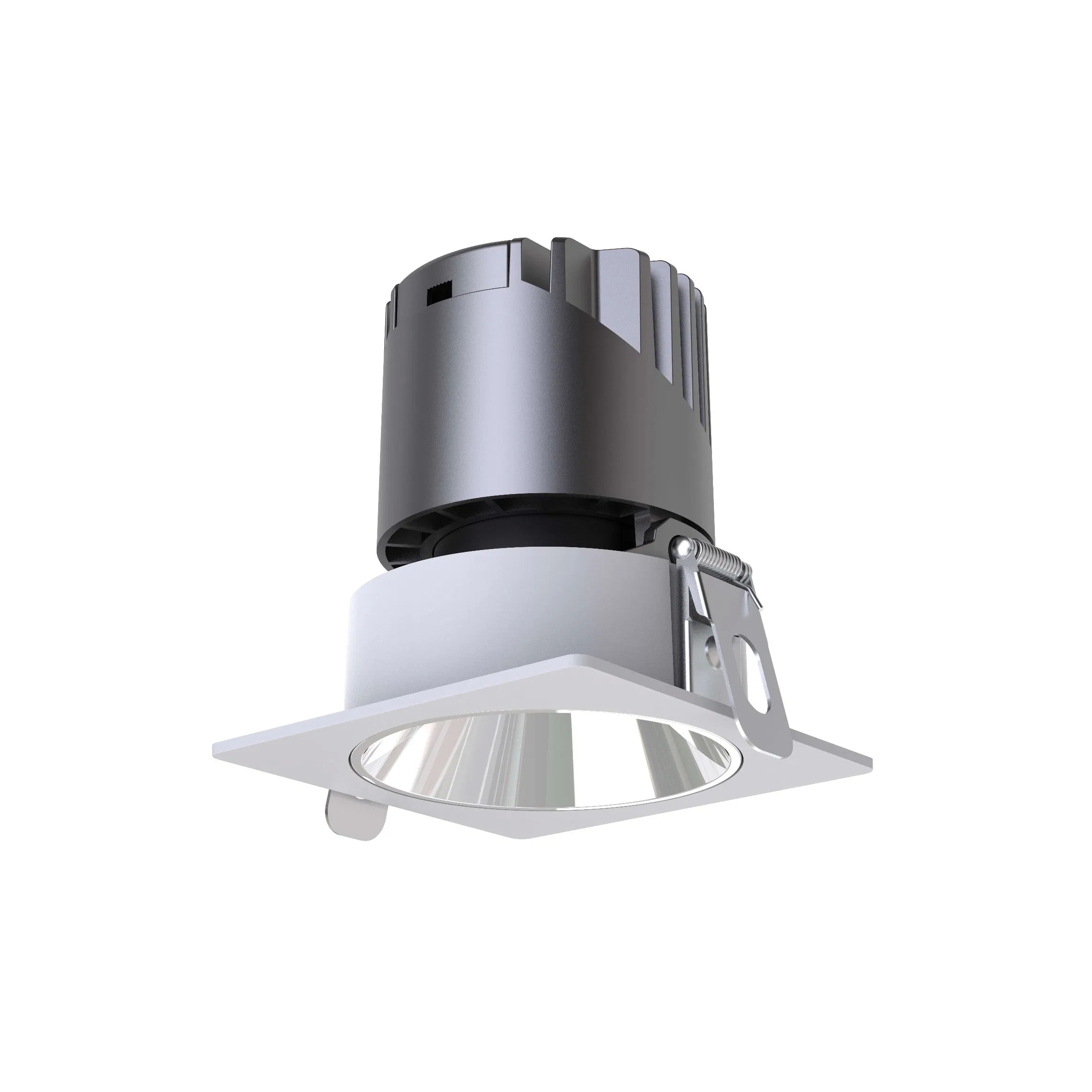

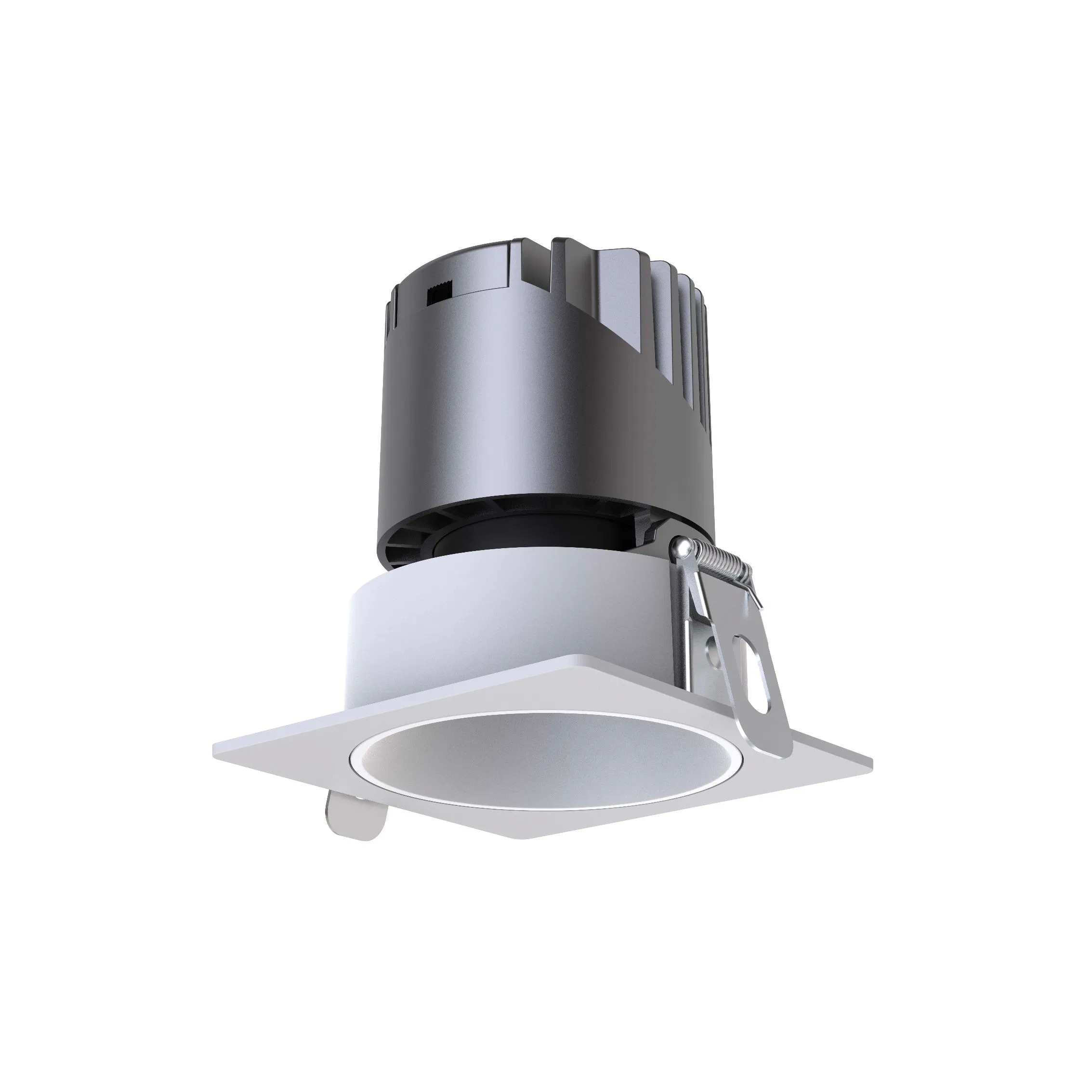

Product Photos
Manufacturer Profile
With over 14 years of experience in research, development, and manufacturing, we operate under ISO quality management standards since 2009, ensuring premium quality LED lighting solutions.
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.
Can I order a sample of the LED Light?
Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.
What is the lead time for the LED Light?
For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.
How do you ship the finished products?
We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).
Can I print my logo on the LED Light?
Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.
How do I proceed with an order for the LED Light?
Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.
How do you handle defective products?
All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
