Trimless Recessed LED Spot Down Light, Factory Price 10W IP22 IP40 Triac 0-10V Dali-2 Dali Dt6 Dt8 Down Light, LED Down Light for Office Commercial Lighting

Minimum Order Quantity : 1 Price : 22.8
Certification: CE, RoHS

Detail Information

CRI (Ra): Ra80+/Ra90+ Power: 7W/10W/12W/15W/18W/20W/25W/30W
IP Rating: IP20/IP44 CCT Adjustable: 2700-6000K Tunable As Optional
Lamp Body Material: Die-Casting Aluminum Lifespan: ≥50000hrs
Input Voltage: AC 200-240V Beam Angle: 8°/15°/24°/38°/55°
Ugr: <19 Color Temperature: 2700K/3000K/4000K/5000K/6000K
LED Chip: Bridge1ux / 0sram As Optional Luminous Flux: 100LM/W
Operating Temperature: -200C ~500C Dimmable: Non-Dim/Triac/0-10V/Dali-2dimmable As Options
PF: 7-15W≥0.50, 20W≥0.95
Highlight:

Trimless recessed LED down light

,

10W IP22 LED down light

,

DALI-2 compatible LED down light

Product Description

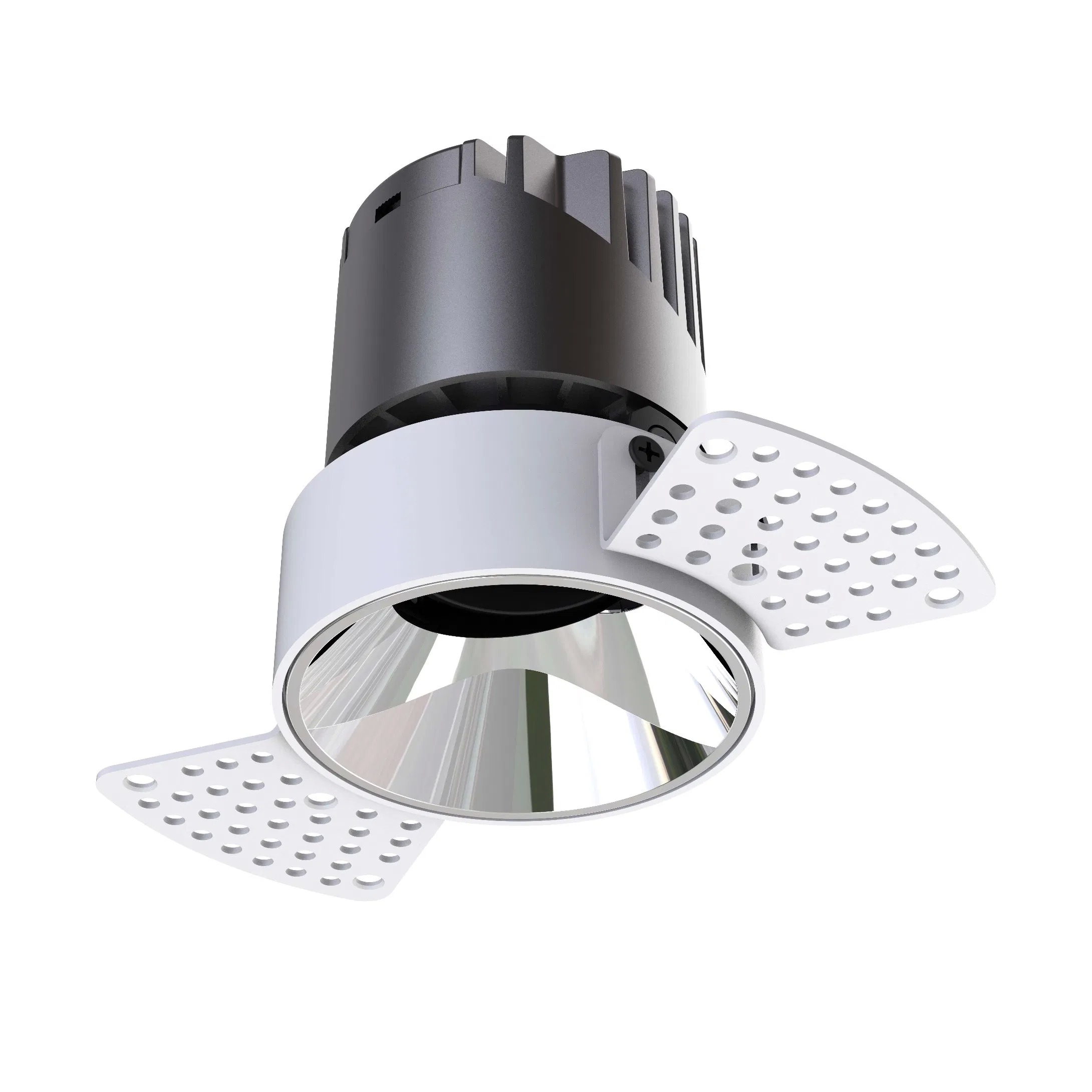

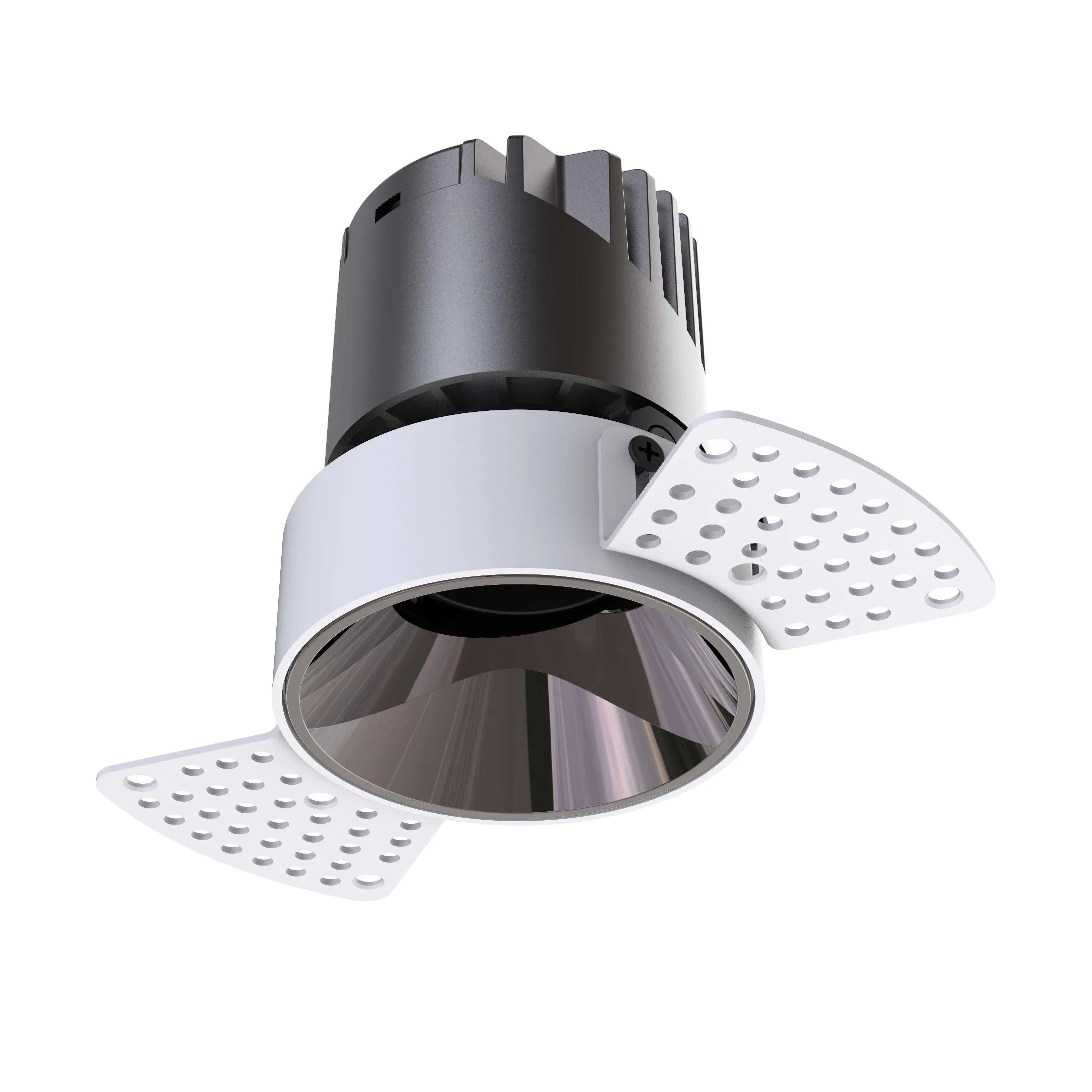

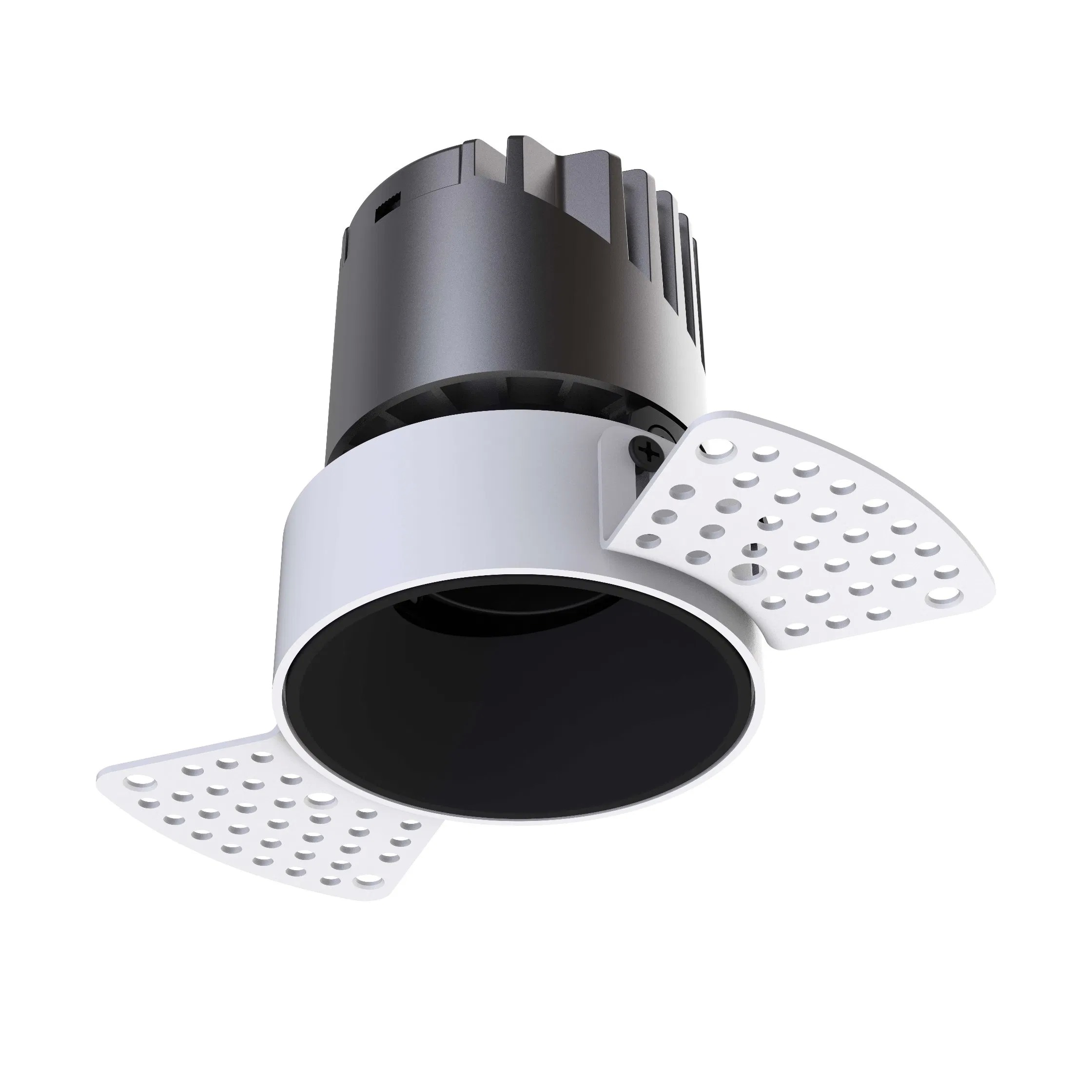

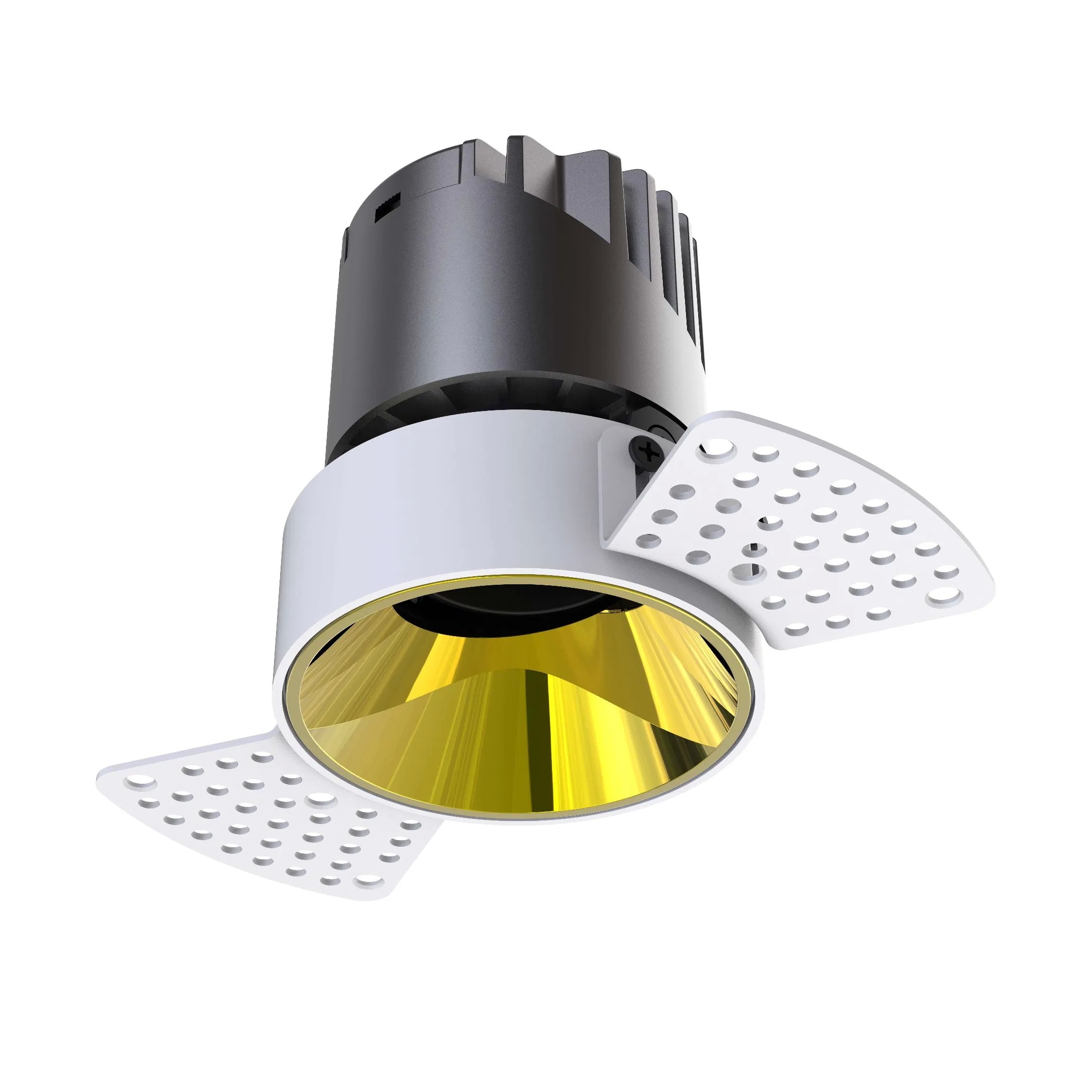

Trimless Recessed LED Spot Down Light
Anti-glare LED Recessed Spot Downlight MF-HGS10 Family - Factory Price 10W IP22 IP40 Triac 0-10V Dali-2 Dali Dt6 Dt8 Down Light for Office Commercial Lighting
MF-HGS10 Trimless Recessed LED Spot Downlight product overview
Our MF-HGS10 trimless plaster-in LED spot downlight features deep recess anti-glare performance with UGR less than 19. Power ranges from 7W to 30W with IP20/IP44 protection. It supports TRIAC, 0-10V and DALI-2 dimming, high-CRI output, and adopts split pre-embedded frame for easy tool-free maintenance. Suited for high-end commercial projects including offices, hotels, bathrooms and retail spaces.
MF-HGS10 downlight installation example MF-HGS10 downlight close-up view MF-HGS10 downlight technical details MF-HGS10 downlight application in commercial space
Product Features
  • IP20/IP44 Protection Rating: Anti-humid and dustproof design suitable for wet areas like bathrooms
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more
  • Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices
  • Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP
  • Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes
  • High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering
  • Multiple Housing Colors: Available in Matte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold
  • Frameless & Split Design with Pre-installed Frame: Tool-free Removal & Quick Replacement
Technical Specifications
Model MF-HGSTS10-7W/10W/12W/15W/20W/25W/30W
Input Voltage 200-240Vac or 110Vac, 50hz/60hz, DC24V available
Power (Watt) 7W/10W/12W/15W/20W/25W/30W
Color Temperature 2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable
LED Chip OSRAM/Bridgelux
LED Driver Aohuaweiye/Lifud/BOKE Brand for different dim version
Power Factor 7-15W≥0.50, 20W≥0.95
Housing Color White Ring
Reflector Color Matte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold
Luminous Flux 100LM/W
CRI (Ra) Ra80+/Ra90+
Lifespan ≥50000hrs
Beam Angle 8°/15°/24°/38°/55°
Material Die-casting Aluminum
Operating Temperature -20°C ~ 50°C
Dimmable Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable 2700-6000K Tunable as optional if needed
IP Rating IP20/IP44
UGR <19
Certificate CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty Period 3 years
MF-HGS10 downlight technical diagram MF-HGS10 downlight installation diagram MF-HGS10 downlight dimensional drawing
Company Profile
Mingfeng Lighting factory and company overview
Frequently Asked Questions
Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.
Q2: Can I order a sample of the LED Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.
Q3: What is the lead time for the LED Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.
Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).
Q5: Can I print my logo on the LED Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.
Q6: How do I proceed with an order for the LED Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.
Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
