Anti-Glare Frameless Triple Heads IP20 Dimmable LED Down Light
Professional triple-head square anti-glare recessed LED spot downlight with multiple dimming compatibility including Triac, 0-10V, DALI-2 DT6/DT8. Ideal for residential, retail, office, and wet-zone lighting applications.
Product Overview
The MF-HGS10 triple-head square anti-glare recessed LED spot downlight features a die-cast aluminum heat sink with power options ranging from 3×7W to 3×20W. Each head provides ±30° adjustment capability with beam angles from 8° to 55° and UGR rating less than 19 for superior visual comfort.
Key Features
- Triple-head design with individual ±30° adjustment
- Anti-glare technology with UGR <19
- High CRI options: Ra80+ or Ra90+
- Color temperature: 2700K-6000K fixed or tunable
- IP20/IP44 protection rating
- Multiple dimming options: Triac, 0-10V, DALI-2 DT6/DT8
- 50,000-hour lifespan with 3-year warranty
- Die-cast aluminum construction
Technical Specifications
| Model |
MF-HGS10F-3*7W/3*10W/3*12W/3*15W/3*20W |
| Power |
3×7W/3×10W/3×12W/3×15W/3×20W |
| Input Voltage |
AC 200-240V |
| LED Chip |
Bridge1ux / OSRAM as optional |
| Color Temperature |
2700K/3000K/4000K/5000K/6000K |
| CRI (Ra) |
Ra80+/Ra90+ |
| Beam Angle |
8°,15°,24°,38°,55° |
| Material |
Die-casting Aluminum |
| Dimmable |
Non-Dim / Triac dimmable as optional |
| UGR |
<19 |
| LED Driver |
Lifud/BOKE/Tridonic/Novbo as optional, Optional 0-10V/DALI |
| Power Factor |
5-15W≥0.50 20-80W≥0.95 |
| Lifespan |
≥50,000 hours |
| Operating Temperature |
-20℃ ~50℃ |
| CCT Adjustable |
2700-6000K Tunable as optional |
| Certificate |
CE/RoHS (Whole Lamp) CE/ROHS/CB/SAA(Driver) |
| Warranty Period |
3 years |

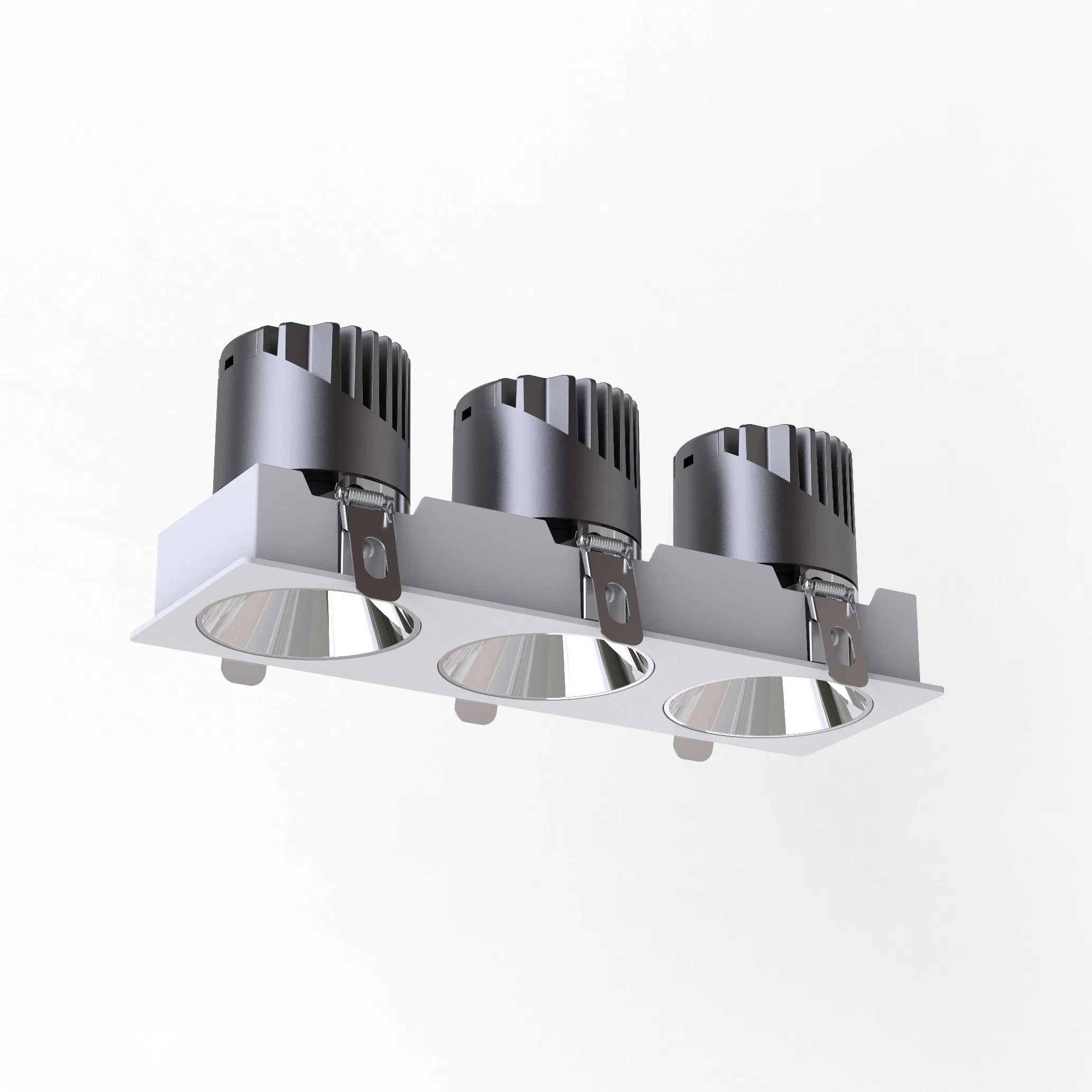

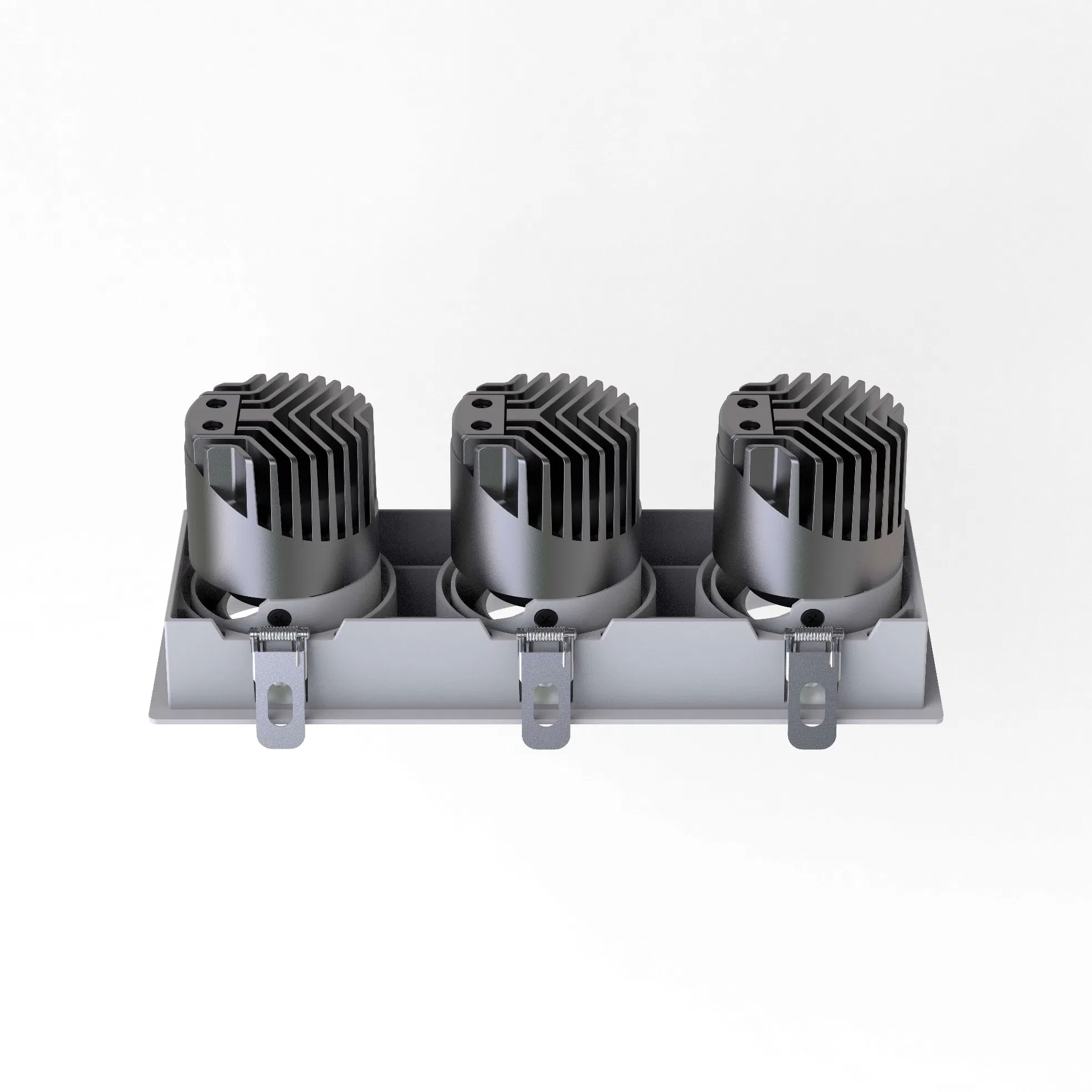

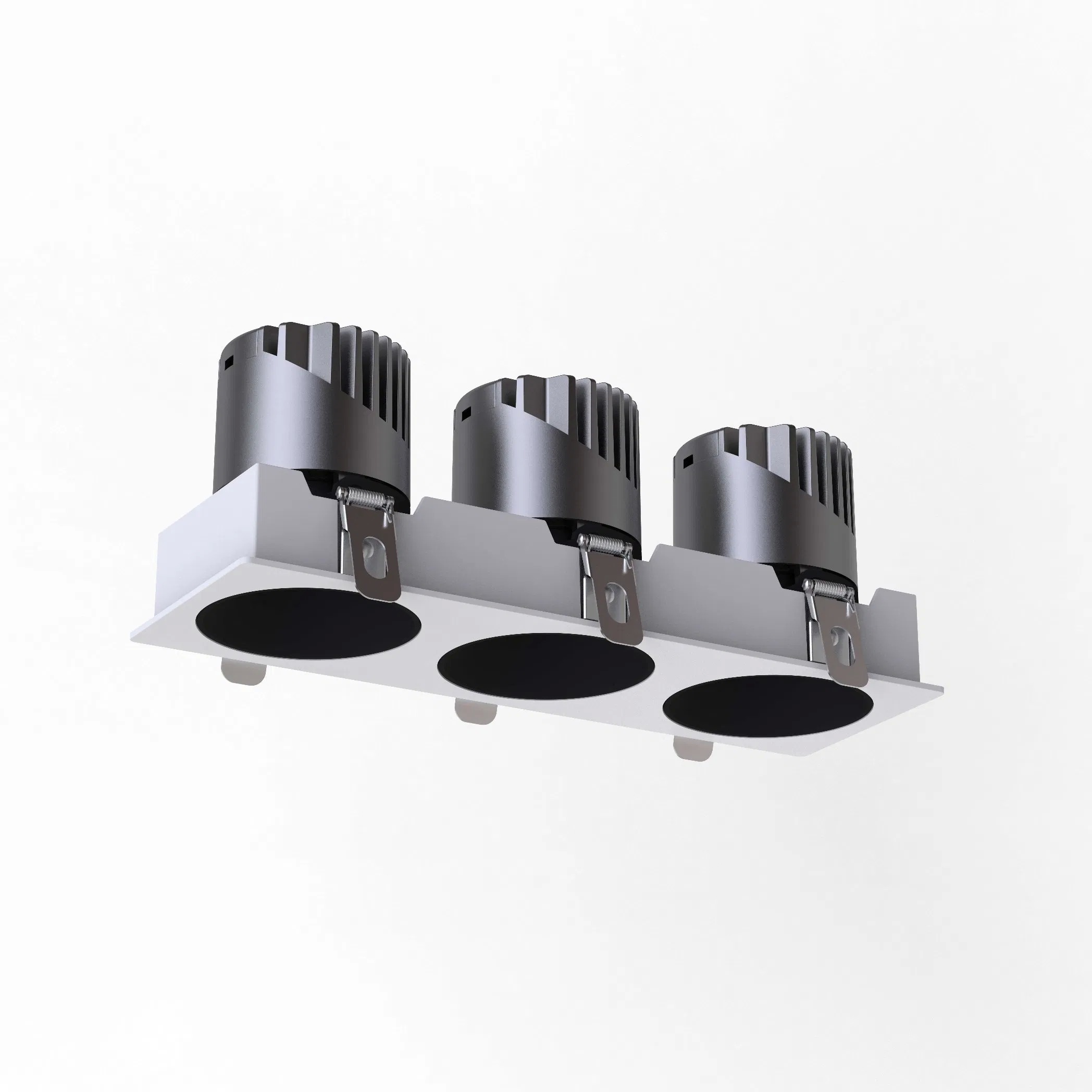

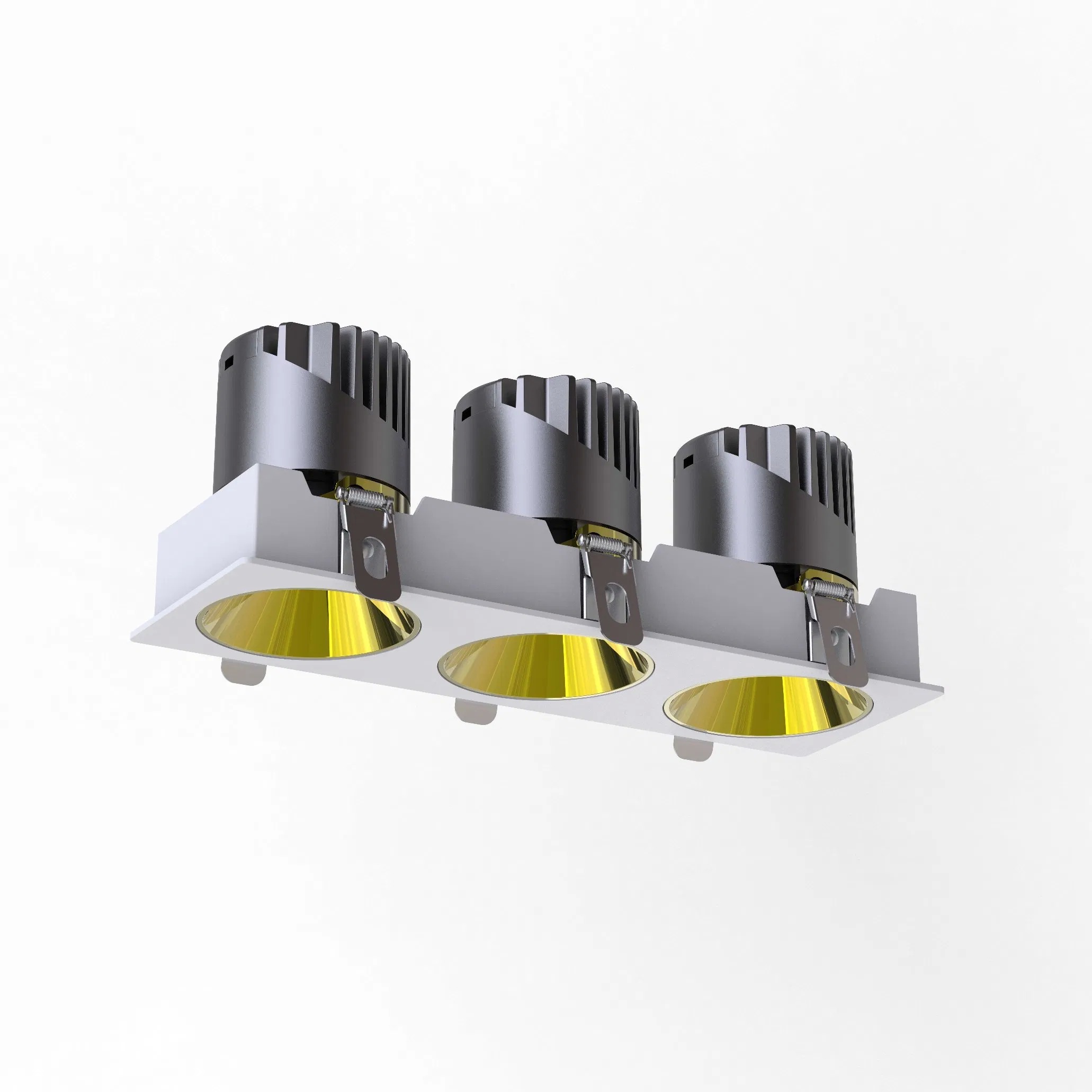

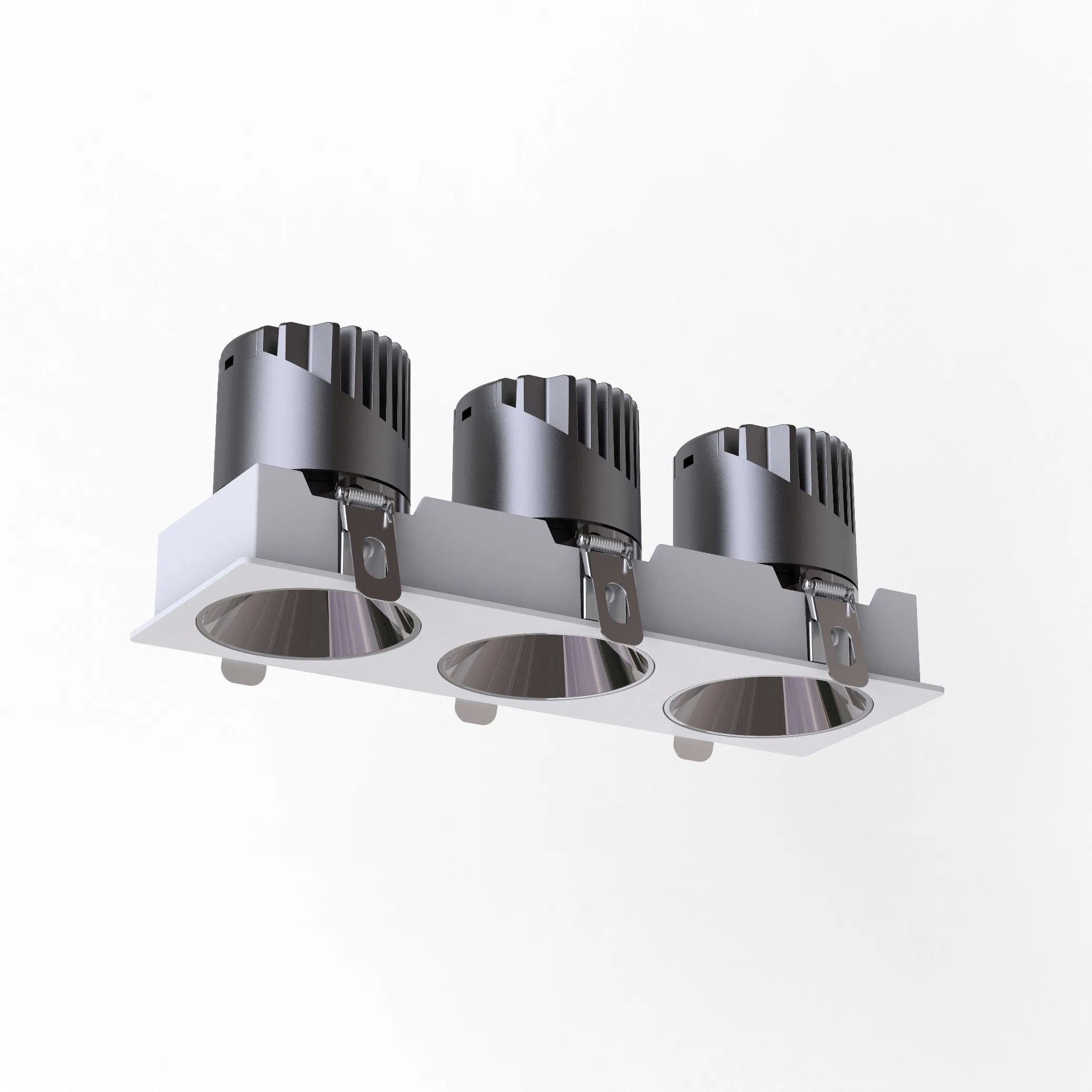

Product Gallery
Manufacturer Profile
Professional LED lighting manufacturer with over 14 years of experience in research, development, and manufacturing. Operating under ISO quality management since 2009.
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.
Can I order a sample of the LED Light?
Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.
What is the lead time for the LED Light?
For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.
How do you ship the finished products?
We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).
Can I print my logo on the LED Light?
Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.
How do I proceed with an order for the LED Light?
Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend suitable products and solutions. Thirdly, after confirming all details, customers will issue a purchase order and make payment to confirm, then we start production and arrange shipment.
How do you handle defective products?
All products are produced under strict quality control systems with a defective rate less than 0.2%. We offer a 3-year warranty for this product. If defects occur during warranty, please provide pictures or videos of defective lights in working situations, and we will ship replacements within a few days or with your next order.
