Factory Price Frameless Four-Head Anti-Glare Light, IP20 LED Down Light Dimmable Triac 0-10V Dali-2 Dt6 Dt8 Spot Light

Contact Now

Factory Price Frameless Four-Head Anti-Glare Light, IP20 LED Down Light Dimmable Triac 0-10V Dali-2 Dt6 Dt8 Spot Light

Minimum Order Quantity :	1	Price :	29.4

Certification:	CE, RoHS

Detail Information
Lamp Body Material:	Die-Casting Aluminum	Ugr:	<19
IP Rating:	IP20/IP44	Lifespan:	≥50000hrs
LED Chip:	Bridge1ux / 0sram As Optional	Power:	47W/410W/412W/415W/4*20W
CRI (Ra):	Ra80+/Ra90+	CCT Adjustable:	2700-6000K Tunable As Optional
Color Temperature:	2700K/3000K/4000K/5000K/6000K	Input Voltage:	AC 200-240V
Beam Angle:	8°,15°,24°,38°,55°	Dimmable:	Non-Dim / Triac Dimmable As Optional
LED Driver:	Lifud/BOKE/Tridonic/Novbo As Optional,Optional 0-10V/Dali	PF:	5-15W≥0.50 20-80W≥0.95
Operating Temperature:	-20℃ ~50℃
Highlight:	frameless four-head LED down light , dimmable triac LED spot light , IP20 anti-glare down light

Product Description

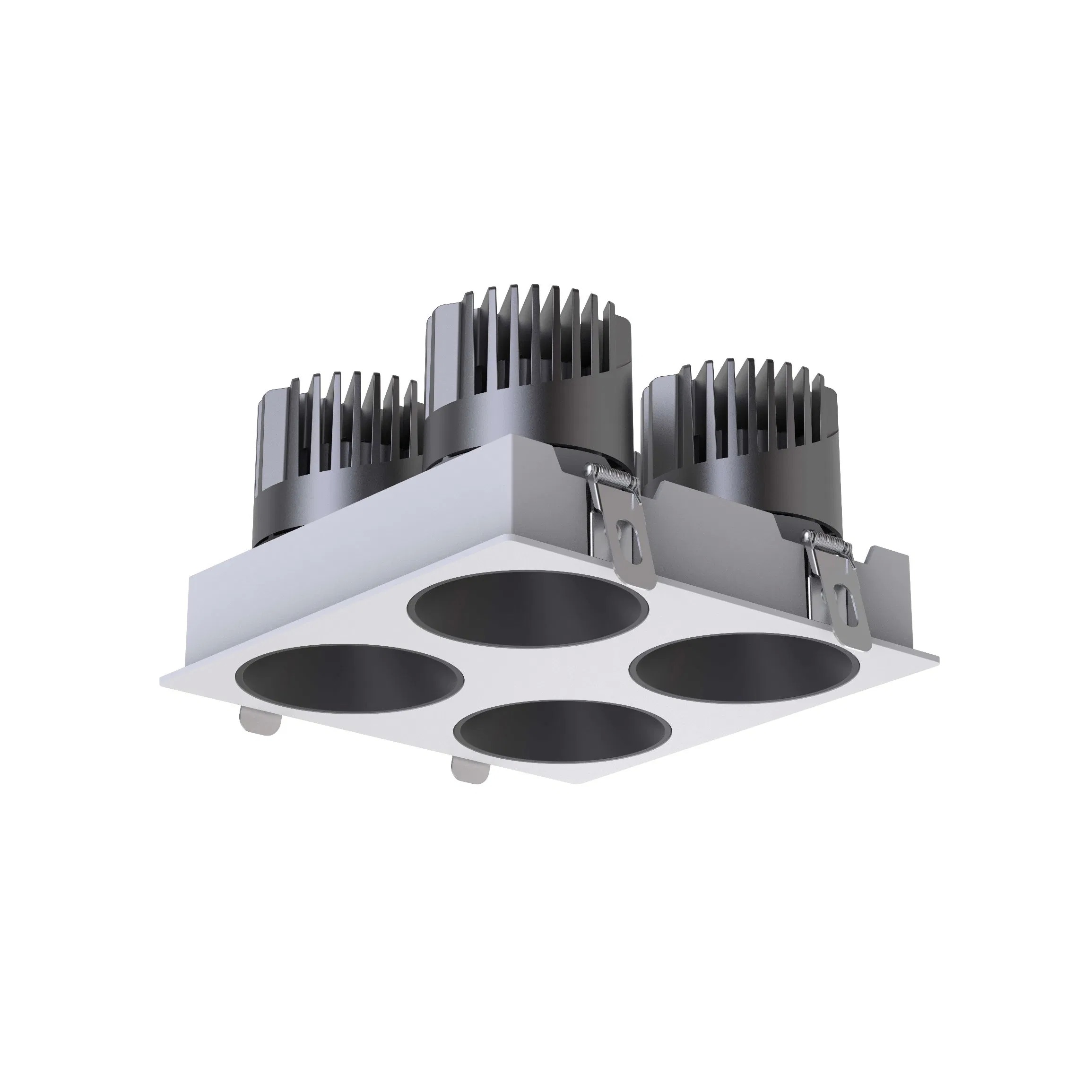

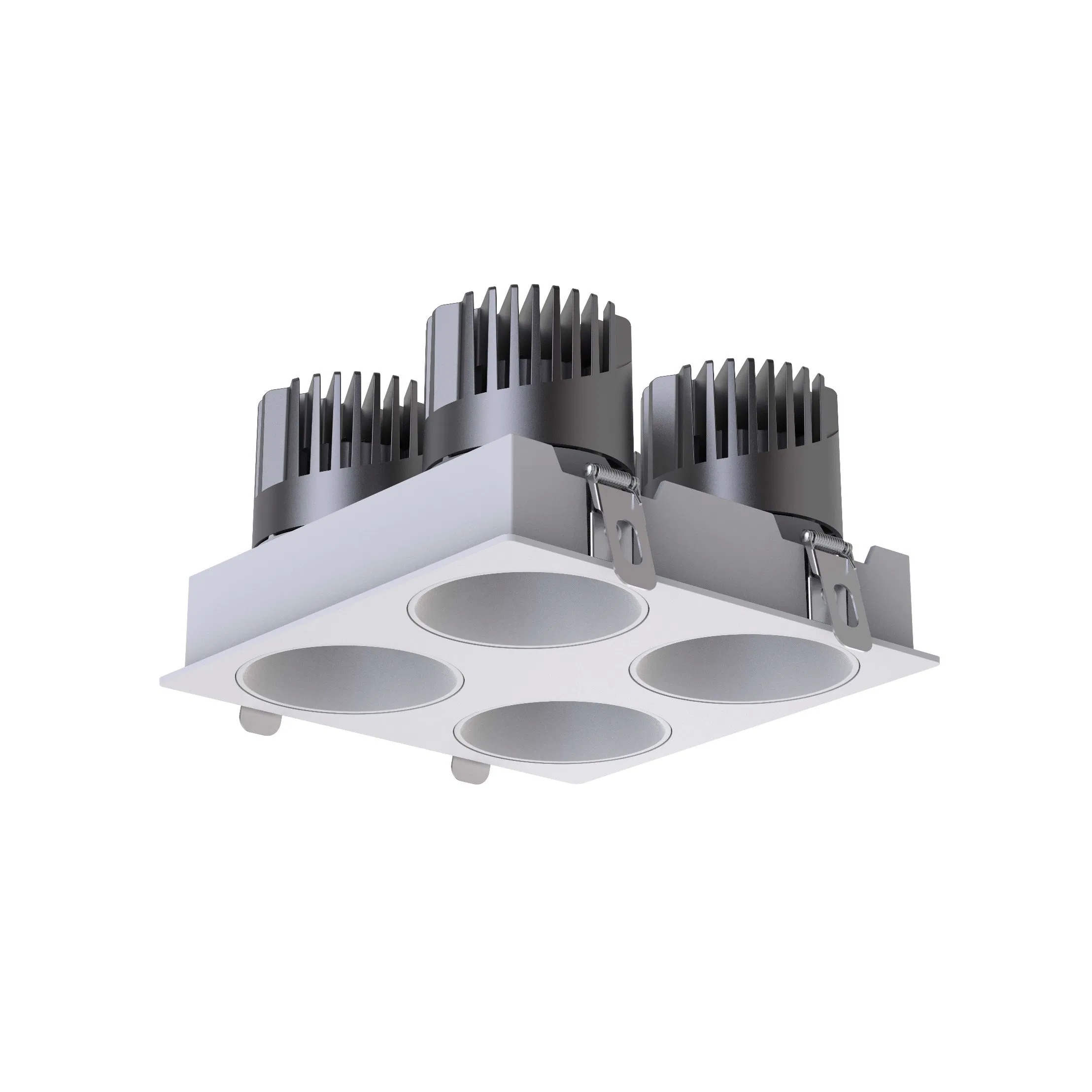

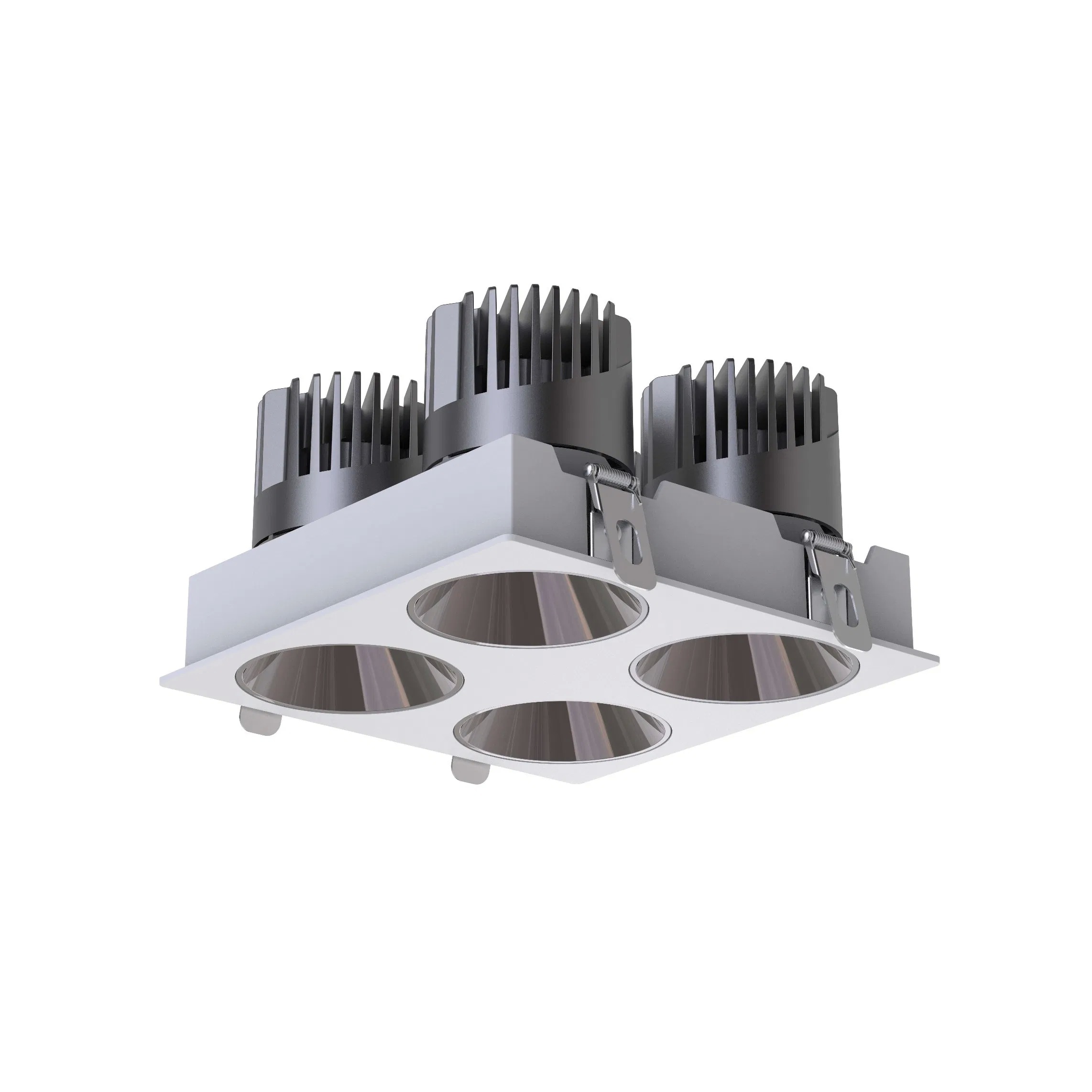

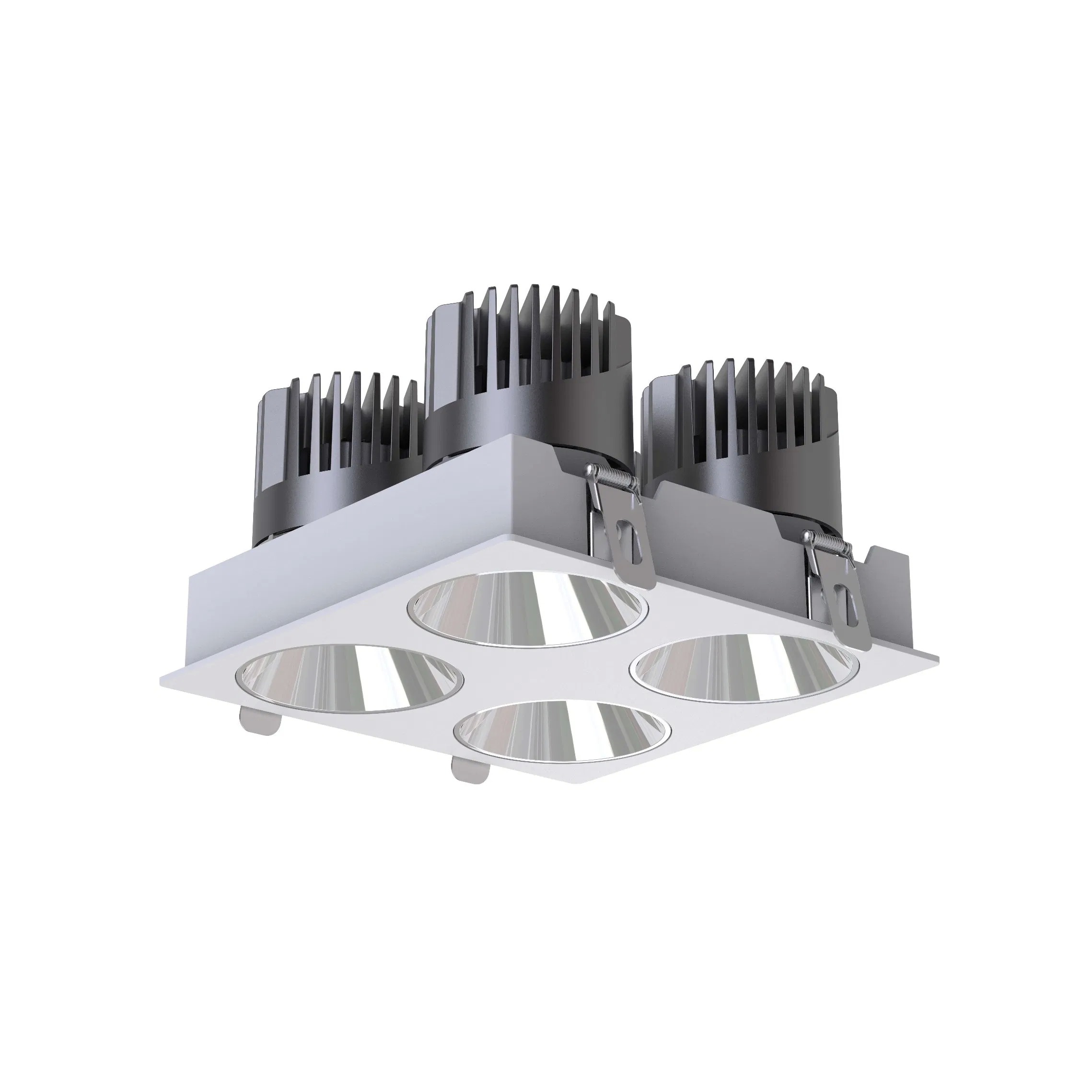

MF-HGS10 Four-Head Square Anti-Glare LED Downlight

Premium aluminum recessed spot downlight featuring four adjustable heads with advanced anti-glare technology and multiple dimming options.

Product Overview

The MF-HGS10 four-head square anti-glare recessed LED spot downlight is constructed from die-cast aluminum for optimal heat dissipation. This versatile lighting solution offers power options from 4×7W to 4×20W, with each head providing ±30° adjustment capability. Engineered for superior visual comfort with UGR less than 19, it delivers exceptional lighting performance for various applications.

Key Features

Four adjustable heads with ±30° rotation each
Anti-glare design with UGR < 19 for enhanced visual comfort
High CRI options: Ra80+ and Ra90+ for accurate color rendering
Multiple color temperature options: 2700K-6000K fixed or tunable
Comprehensive dimming compatibility: Triac, 0-10V, DALI-2 DT6/DT8
Die-cast aluminum construction for efficient thermal management
IP20/IP44 protection ratings for various environmental conditions
50,000-hour lifespan with 3-year warranty

Technical Specifications

Model	MF-HGS10F-47W/410W/412W/415W/4*20W
Power	4×7W / 4×10W / 4×12W / 4×15W / 4×20W
Input Voltage	AC 200-240V
LED Chip	Bridge1ux / OSRAM (optional)
Color Temperature	2700K / 3000K / 4000K / 5000K / 6000K
CRI (Ra)	Ra80+ / Ra90+
Beam Angle	8°, 15°, 24°, 38°, 55°
Material	Die-casting Aluminum
Dimmable	Non-Dim / Triac dimmable (optional)
UGR	< 19
LED Driver	Lifud/BOKE/Tridonic/Novbo (optional) Optional 0-10V/DALI
Power Factor	5-15W ≥ 0.50, 20-80W ≥ 0.95
Lifespan	≥ 50,000 hours
Operating Temperature	-20℃ to 50℃
CCT Adjustable	2700-6000K Tunable (optional)
Certification	CE/RoHS (Whole Lamp) CE/ROHS/CB/SAA (Driver)
Warranty Period	3 years

Application Areas

Ideal for residential lighting, retail spaces, office environments, and damp-area lighting projects requiring precise, comfortable illumination.

Manufacturer Information

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development and manufacturing, operating under ISO quality management since 2009.

Can I order a sample of the LED Light?

Yes, we welcome sample orders to test and check product quality. Mixed samples are also acceptable.

What is the lead time for the LED Light?

Sample orders: 3-7 days. Mass production orders: 15-25 days. Exact lead time depends on order quantities.

How do you ship the finished products?

We offer optional shipping methods including SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Can I print my logo on the LED Light?

Yes, we provide OEM services. We can create labels and color boxes according to your requirements.

How do I proceed with an order for the LED Light?

First, provide your detailed requirements and application environment. Second, we'll recommend suitable products and solutions. Third, after confirming details, issue a purchase order and make payment to confirm, then we start production and arrange shipment.

How do you handle defective products?

Our products are produced under strict quality control with a defective rate below 0.2%. We offer a 5-year warranty. During warranty, provide pictures/videos of defective lights in working situations, and we'll ship replacements within days or with your next order.
