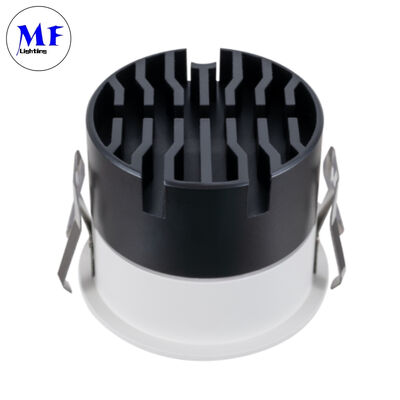

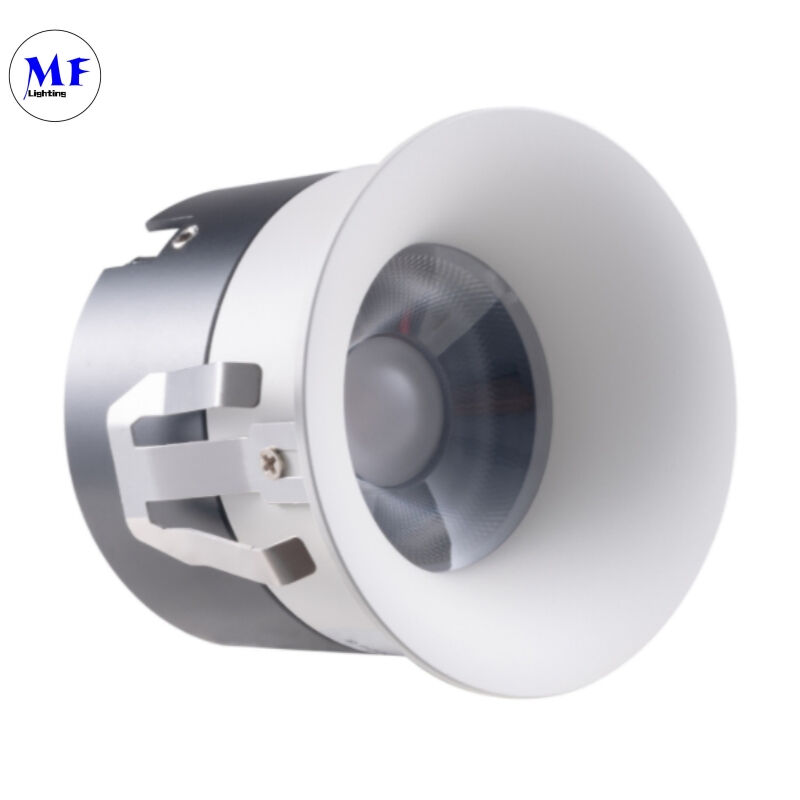

Cabochon Frameless Recessed LED Spot Downlight 5W Triac 0-10V Dali-2 Dali Dt8 Dimmable 100lm/W CRI90 AC100-277VAC Anti-Glare CCT Adjustable LED Down Light

Minimum Order Quantity : 1 Price : 5.7
Certification: CCC, CE, EMC, ETL, FCC, LVD, PSE, RoHS, SAA

Detail Information

Switch Type: Triac Mode,0-10V Mode, Dali Mode Lamp Body Material: Die-Cast Aluminum
Source Number: 1 Dimension: D65*H52
Color Temperature: 2700/3000K/ 3500K/4000/ 5000K/6000K Power: 5W
Installation: Recessed Waterproof Rating: IP65
Lifespan: 50,000 Hours Anti-Glare Design: UGR<19
Dimming Options: Non-Dim, TRIAC, 0-10V, DALI Luminous Efficiency: 100 Lumens Per Watt
CRI: Ra80+/Ra90+ Voltage Range: AC100-277V
Housing Colors: White, Black, Rose Gold, Bronze, Silver
Highlight:

dimmable LED downlight with CCT adjustable

,

recessed LED spot light 5W triac

,

frameless LED downlight anti-glare 100lm/W

Product Description

Cabochon Frameless Recessed LED Spot Downlight
Professional 5W recessed LED downlight featuring multi-protocol dimming compatibility including Triac, 0-10V, DALI-2, DALI DT8. Delivers 100LM/W high luminous efficiency with CRI90 and wide AC100-277V voltage range. Anti-glare design with CCT adjustable options for versatile lighting applications.
Key Features
  • Die-cast aluminum housing with multi-color reflectors
  • IP65 waterproof rating for damp-area installation
  • Multi-protocol dimming: Triac, 0-10V, DALI DT6 & DT8
  • Os-ram & Bridgelux chips with high CRI 80-90
  • Wide AC100-277V voltage range
  • 10-30W power options available
  • 100LM/W high luminous efficiency
  • 3-5 year warranty coverage

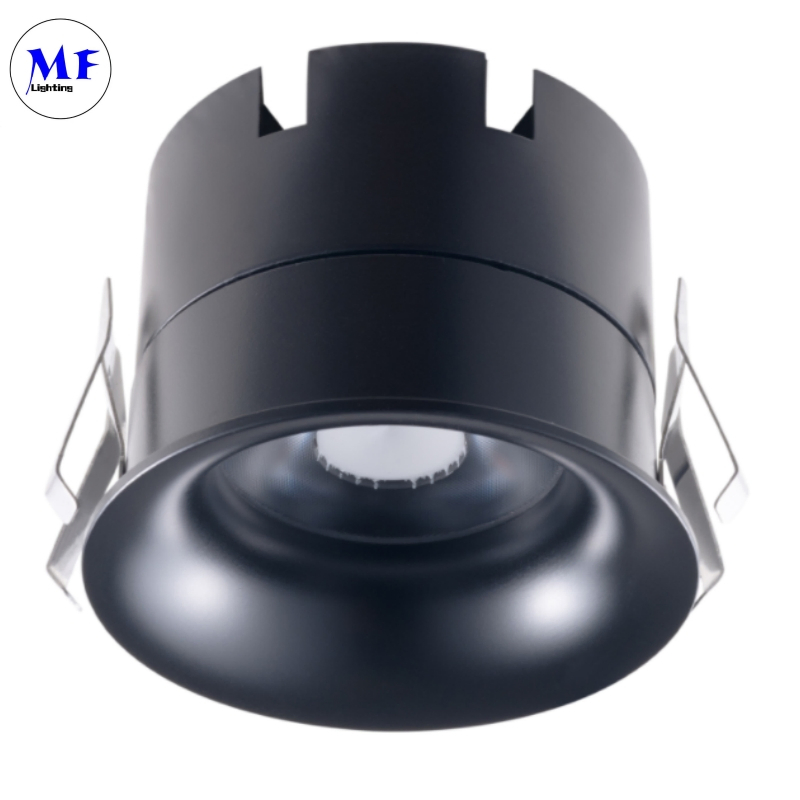

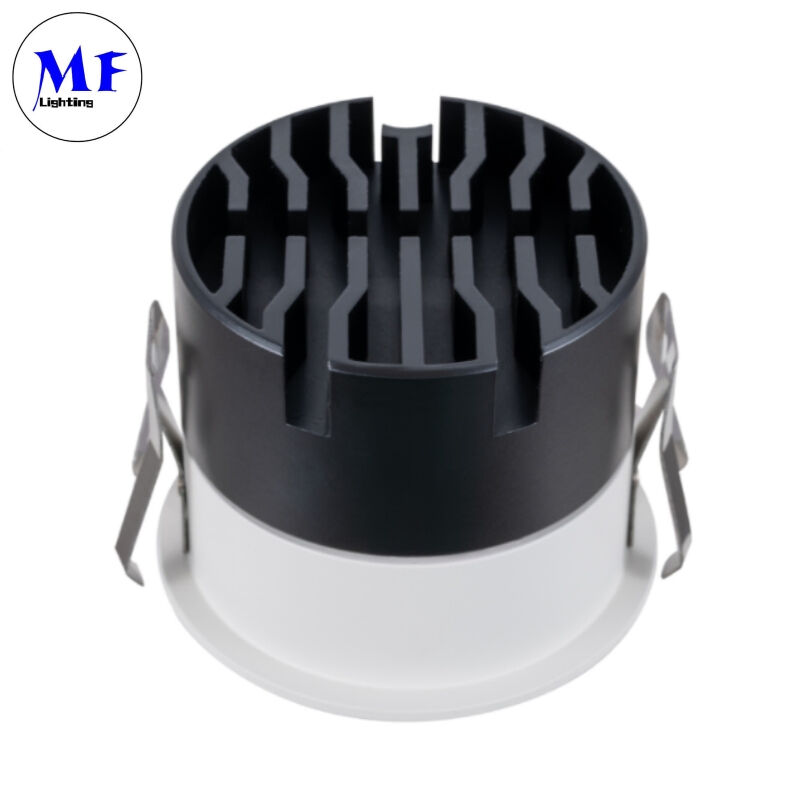

Cabochon LED Downlight front view Cabochon LED Downlight side view
Product Highlights
Premium die-cast aluminum housing ensures excellent heat dissipation and durability. Multiple reflector finishes available to match various project decoration styles.
Product Gallery

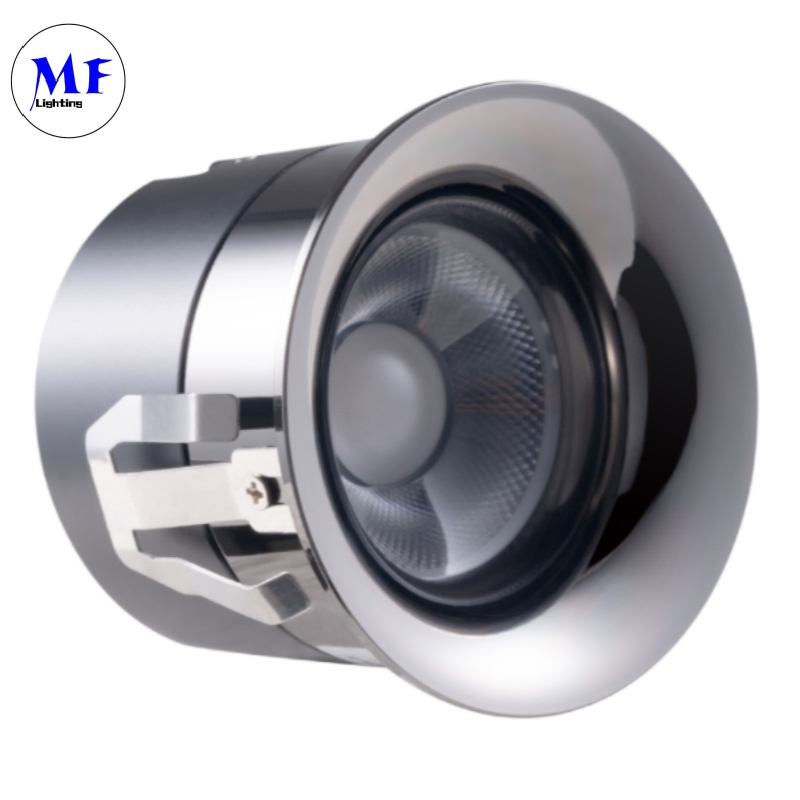

LED Downlight installation view LED Downlight close-up detail LED Downlight illuminated view LED Downlight multiple units LED Downlight different angle LED Downlight finish options
Dimensions
LED Downlight dimensional drawing
Technical Details
LED Downlight technical specifications LED Downlight component details
Advanced Features
  • IP65 Waterproof Rating: Full waterproof and dustproof design suitable for wet areas
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures 50,000+ hours operation
  • Anti-Glare Design: Deep recessed structure with UGR<19 for eye-friendly lighting
  • Flexible Dimming: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control
  • Wide Color Temperature: Available in 2700K to 6000K with tunable CCT options
  • High Efficiency: 100 lumens per watt with high CRI options (Ra80+/Ra90+)
  • Multiple Colors: White, Black, Rose Gold, Bronze, and Silver housing options
LED Downlight color options LED Downlight installation example LED Downlight application view LED Downlight performance chart
Product Parameters
LED Downlight parameter specifications
Installation Instructions
LED Downlight installation diagram
Easy Spring Clip Installation
  • Ceiling Hole Cutting: Use appropriate tools to cut hole according to luminaire size
  • Connect Wires: Connect wires to terminals correctly (professional electrician recommended)
  • Insert into Ceiling: Align spring clips vertically and insert into ceiling hole
  • Lower Spring Clips: Confirm proper fit and wiring, then lower clips and power on
Packaging & Shipping
LED Downlight packaging LED Downlight shipping preparation LED Downlight bulk packaging
Applications
LED Downlight application examples
MF-HGS13TF is designed for recessed installation and suitable for various waterproof lighting applications including:
  • Outdoor Lighting: Walkways, gardens, building exteriors
  • Bathroom Lighting: Wet areas requiring moisture resistance
  • Kitchen Lighting: Areas with steam and cooking splashes
  • Swimming Pool Areas: Locations where water resistance is crucial
  • Spa/Wellness Areas: High humidity environments
  • Industrial Settings: Dust, moisture, or water exposure areas
  • Commercial Spaces: Retail stores, restaurants requiring durability
Manufacturer Profile
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. We specialize in design, production, and distribution of high-quality LED lighting products. With years of industry experience, we maintain a reputation for excellence and innovation in LED lighting technology. Our skilled professionals are dedicated to providing the best LED lighting solutions and services for both residential and commercial applications.
Ming Feng Lighting factory and facilities
Frequently Asked Questions
What products do you sell?
We provide high-quality floodlights, high bay lights, explosion proof lights, tri-proof lights, downlights, and other lighting products with reliable services and warranty.
Can I add my logo to the LED light products?
Yes, we provide ODM and OEM services. Please inform us before production and confirm the design based on our sample.
How do you handle faulty products?
During the guarantee period, we send replacement lights with new orders for small quantities. For defective batches, we repair and resend or discuss appropriate solutions.
Can I place a sample order?
Yes, we welcome sample orders to test and check quality. Both single samples and mixed samples are acceptable.
What is your shipping timeline?
Typically 7 days for samples or small orders, 15 working days for bulk orders, depending on order quantity.
