Anti Glare Smart Triac 0-10V Dali Power Dimmable CCT Tunable Downlight Spot 3W, 5W, 7W, 10W, 12W, 15W Indoor Room LED Down Light

Contact Now

Anti Glare Smart Triac 0-10V Dali Power Dimmable CCT Tunable Downlight Spot 3W, 5W, 7W, 10W, 12W, 15W Indoor Room LED Down Light

Minimum Order Quantity :	1	Price :	4.2

Certification:	CE, RoHS

Detail Information
Switch Type:	Touch On/Off Switch	CCT Tunable:	2700-6000K Optional
Luminous Efficacy:	100-110lm/W	Voltage (AC):	AC100-277V/AC200-240V
Anti-Glare:	Ugr<19	Beam Angle:	15°/24°/36°
Input Voltage:	AC100-277V Or AC 200-240V	Power:	3W/5W/7W/10W/12W/15W
Lamp Body Material:	Aluminum	LED Source:	COB LED
IP Rating:	IP44	Color Temperature:	2700/3000K/ 3500K/4000/ 5000K/6000K
Operating Temperature:	-20ºC ~ 50ºC	Lifespan:	50, 000 Hours
Power Factor:	≥0.50(5-15W), ≥0.95(20-80W)
Highlight:	Anti Glare Dimmable LED Downlight , Triac 0-10V Dali Tunable Downlight , CCT Tunable Indoor LED Down Light

Product Description

Product Overview

Anti Glare Smart Triac 0-10V Dali Power Dimmable CCT Tunable Downlight Spot available in 3W, 5W, 7W, 10W, 12W, and 15W for indoor room LED down lighting applications.

Key Features

Frameless Cambered Design: Curved shape provides near frameless appearance; matte white finish blends seamlessly with ceiling decor
Deep Tube Anti-Glare Optics: UGR<19 rating with deep hidden light source structure for flicker-free, comfortable lighting
Premium LED Chips: Optional CREE, EPISTAR, O-SRAM, Bridgelux or XPE COB chips with 100-110LM/W efficiency
Customizable Optical Parameters: Three beam angles (15°, 24°, 36°) and wide color temperature range (2700K-6000K)
Dimming Versatility: Non-dimmable, Triac, 0-10V, and DALI dimming options available
Full Die Cast Aluminum Housing: Optimized heat dissipation for extended service life
Multiple Finish Options: Matte White, Gun Black, and Matte Black bezel finishes
Wide Power Range: 3W, 5W, 7W, 10W, 12W, 15W options with corresponding cut-out sizes
Branded Driver Options: Lifud, BOKE, Tridonic, and Novbo drivers available
IP44 Protection: Dust and splash water resistance for indoor applications
Complete Certification: CE & RoHS certified with 3-year warranty and ≥50,000 hours lifespan
Broad Input Voltage: Supports 100Vac or 200-240Vac at 50Hz/60Hz for global compatibility

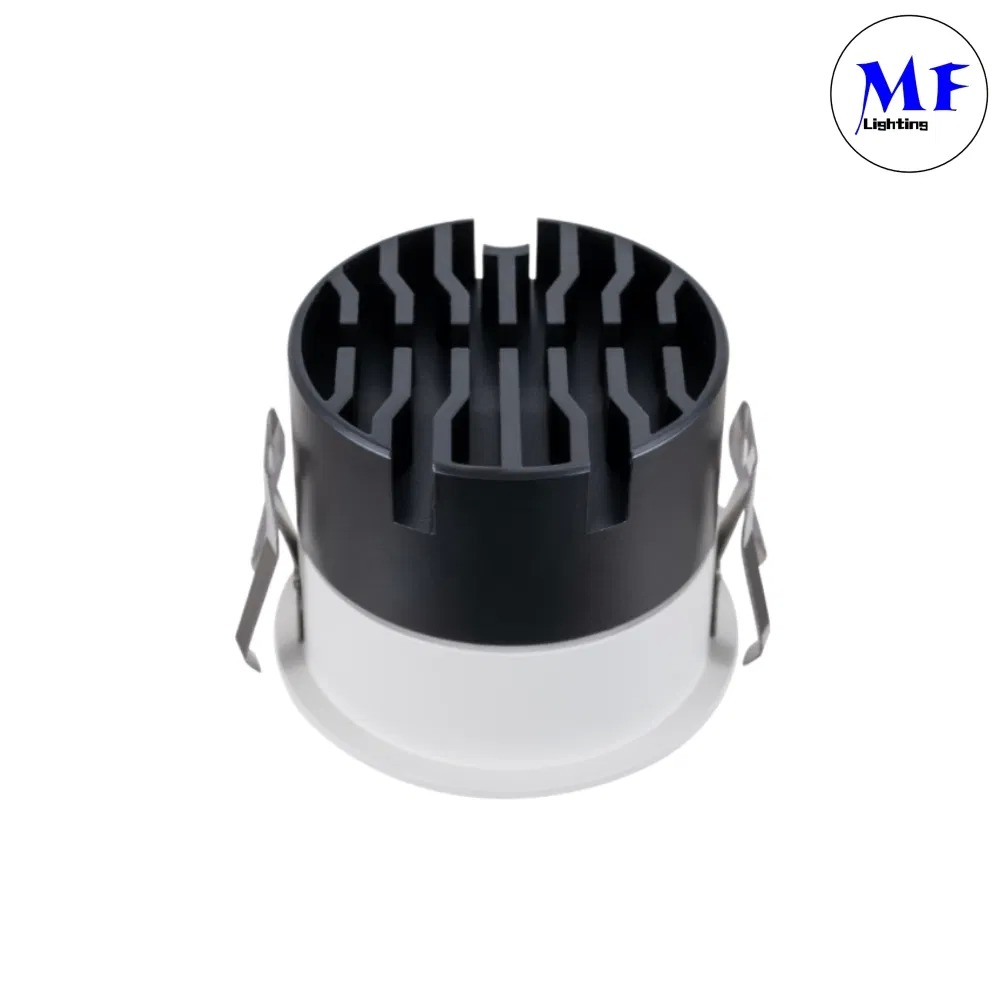

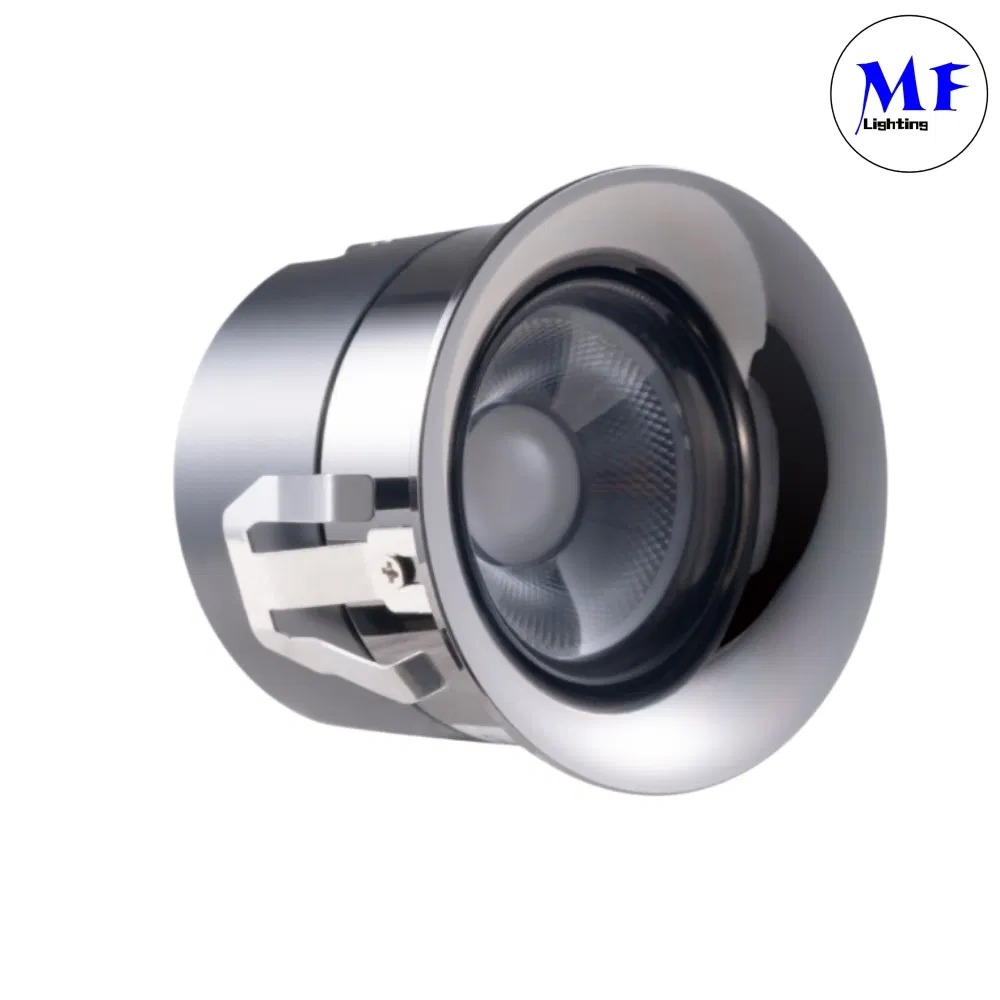

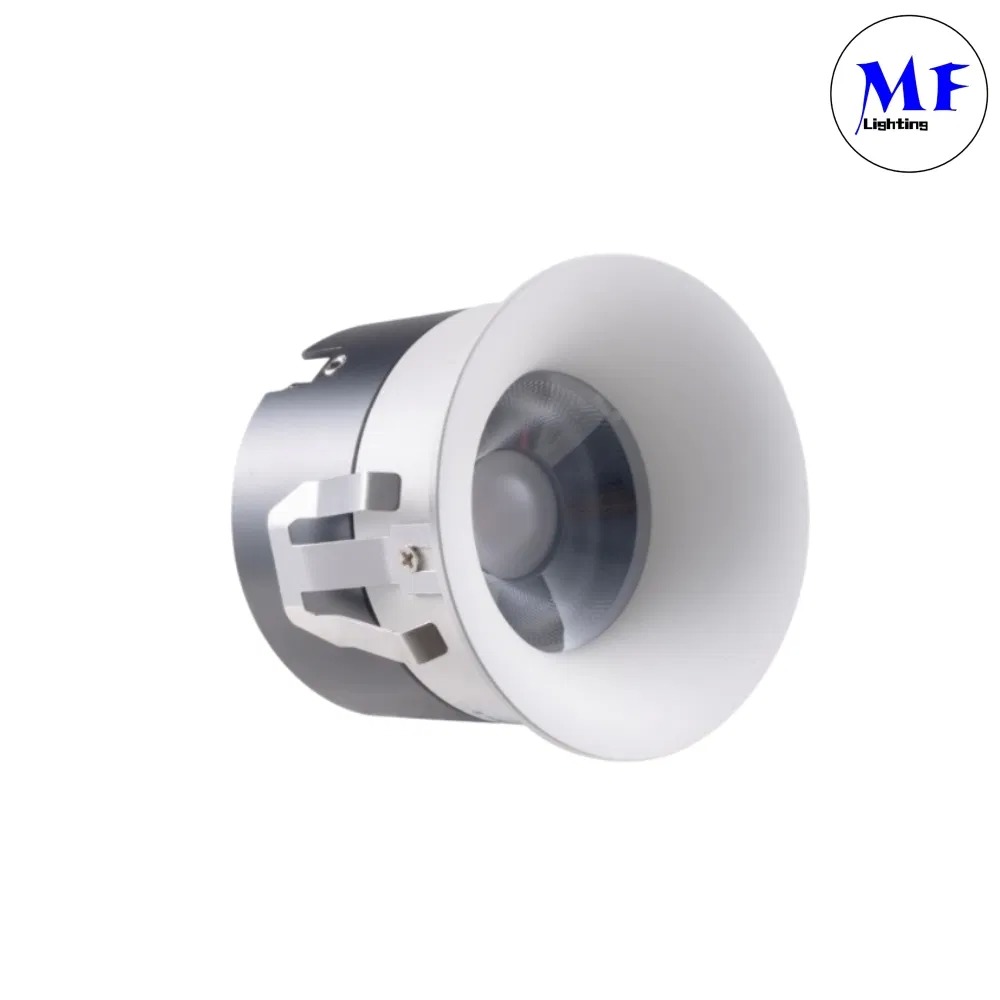

Product Images

Technical Characteristics

Electrical Characteristics

Input voltage: 100Vac / 200-240Vac, 50/60Hz
Power factor: ≥0.50 for 5-15W models, ≥0.95 for 20-80W series
Operating temperature: -20°C to 50°C
Service life: ≥50,000 hours with low light decay
Warranty: 3-year official warranty period

Photometric Characteristics

Luminous efficacy: 100-110 lumen per watt
CRI options: Ra80+ and Ra90+ for accurate color rendering
UGR<19 anti-glare performance eliminates harsh direct glare
Flicker-free light output protects eyesight
Beam angles: 15° (narrow), 24° (medium), 36° (wide)
Color temperature: 2700K to 6000K with optional CCT tunable function

Mechanical & Installation Characteristics

Full die cast aluminum housing for excellent thermal dissipation
Spring clip recessed mounting for quick ceiling installation
IP44 dust proof and splash proof rating
Multiple trim colors for aesthetic matching

Compliance Characteristics

Whole lamp: CE, RoHS compliant
Drivers: CE, RoHS, CB, SAA safety certified

Specifications

Model	MF-HGS13
Input Voltage	100Vac / 200-240Vac, 50Hz/60Hz
Power	3W, 5W, 7W, 10W, 12W, 15W
LED Chip	O-SRAM / Bridgelux / XPE optional
LED Driver	Lifud / BOKE / Tridonic / Novbo optional
Power Factor	≥0.50(5-15W), ≥0.95(20-80W)
Color Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 6000K
CCT Tunable	2700-6000K optional
Luminous Efficacy	100-110LM/W
CRI(Ra)	Ra80+, Ra90+
Beam Angle	15°, 24°, 36°
UGR	<19
IP Rating	IP44
Dimmable	Non-Dim / Triac / 0-10V / DALI optional
Material	Die-casting Aluminum
Housing Color	Matte White, Gun Black, Matte Black
Operating Temperature	-20°C ~ 50°C
Lifespan	≥50,000 hours
Certification	Whole lamp: CE, RoHS; Driver: CE, RoHS, CB, SAA
Warranty	3 Years

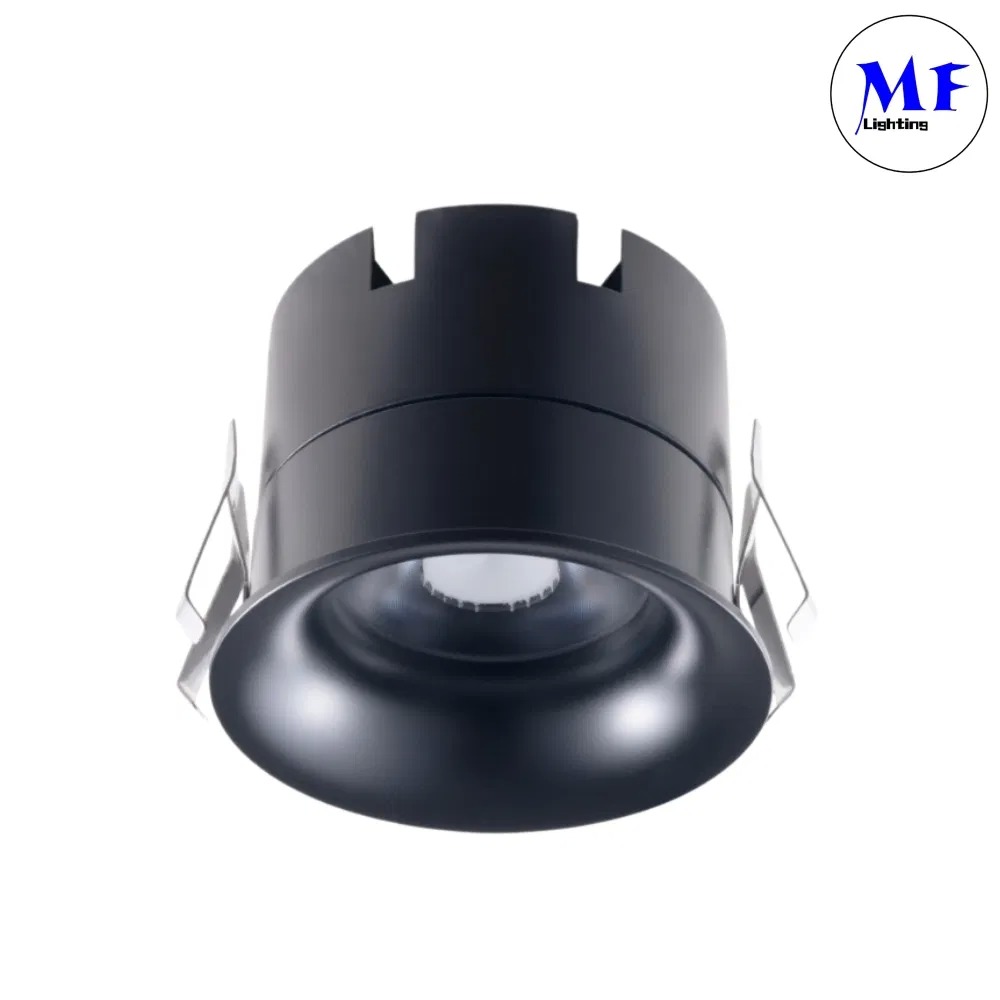

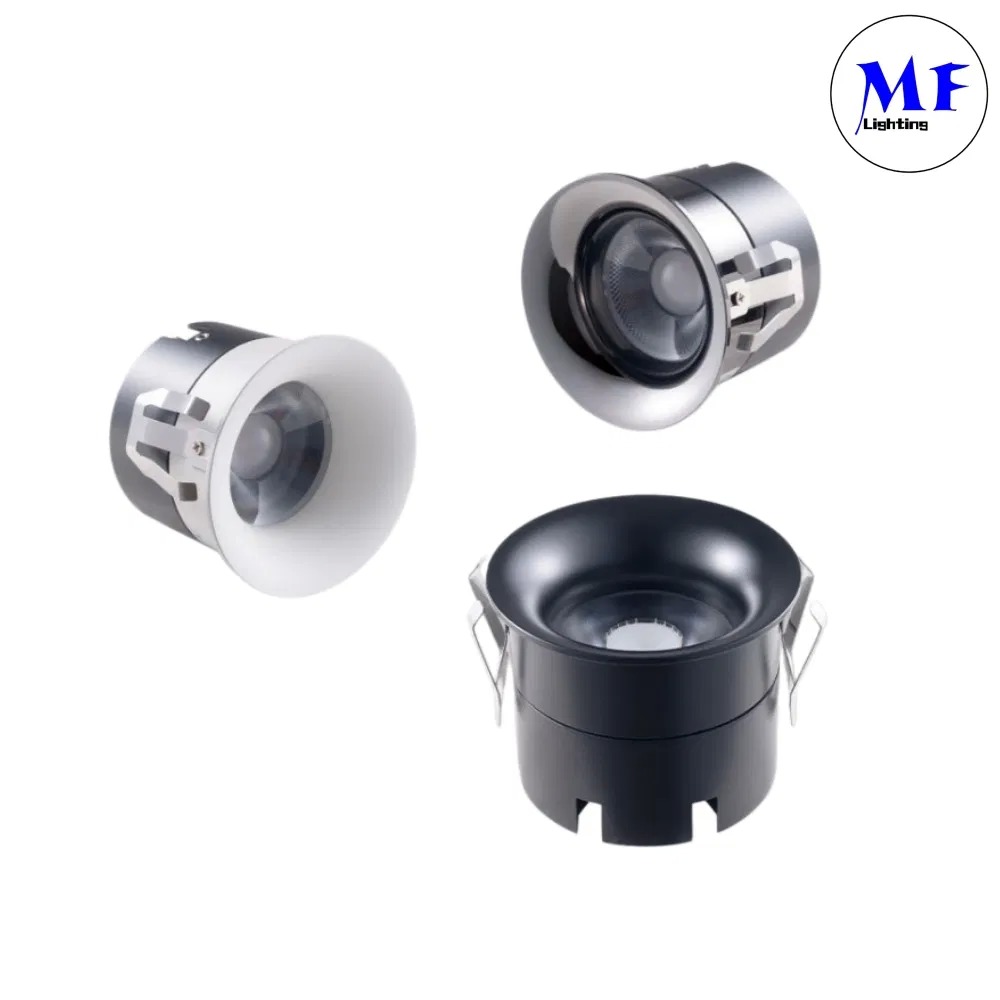

Additional Product Views

Dimensions & Packaging

Installation Dimensions

Power	Cutout Size	Outer Diameter	Height
3W	25mm	30mm	44mm
5W	35mm	40mm	47mm
7W	35mm	40mm	66mm
10W	45mm	50mm	70mm
12W	55mm	60mm	74mm
12W	65mm	70mm	55mm
15W	75mm	80mm	58mm

Packaging Information

Power	Carton Size (cm)	Gross Weight (KG)	PCS/CTN
3W	49.5×32×26	16	100
5W	49.5×32×26	17	100
7W	49.5×32×26	15	100
10W	47×22×32	16	50
12W	47×22×32	17	50
12W	52×21×39.5	18	50
15W	52×21×39.5	19	50

Installation Instructions

Applications

Residential Indoor Lighting

Modern minimalist home ceilings: living room, bedroom, hallway, corridor, walk-in closet, kitchen
Display accent for household built-in cabinets, wine cabinets and display niches

Commercial Space Lighting

Retail shops, boutiques and showrooms: accent illumination for merchandise and displays
Office areas, meeting rooms and reception lobbies with anti-glare performance

Hospitality Project Lighting

Hotel guest rooms, hotel corridors, resort suites, club lounges
Frameless low profile design coordinates with high-end interior decoration

Art & Exhibition Lighting

Art galleries, exhibition halls: spot lighting for wall hung paintings and art installations

Other Premium Interior Projects

Villa renovation, high-end apartment fit-out, cafe and restaurant interior lighting
IP44 version applicable for sheltered semi-wet indoor zones
