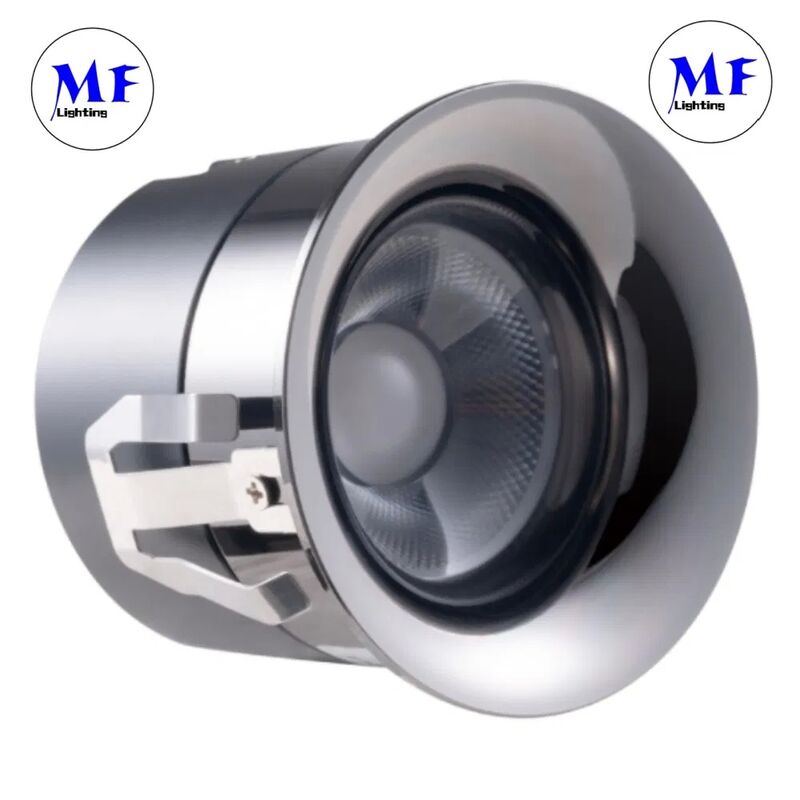

Factory Price 3W 5W 7W 10W 12W 15W Anti-Glare CRI90 LED Spot Light LED Down Light Recessed Down Light for Living Room Kitchen Bedroom

Minimum Order Quantity : 1 Price : 21.9
Certification: CCC, CE, RoHS, SAA

Detail Information

Operating Temperature: -20 0c ~50 0c CRI(Ra): Ra80+/Ra90+
IP Rating: IP44 Lamp Body Material: Die-Casting Aluminum
Dimmable: Non-Dim/Triac/0-10V/Dali-2 Dimmable As Options CCT Adjustable: 2700-6000K Tunable As Optional If Need
Color Temperature: 2700K/3000K / 4000K / 5000K /6000K PF: 5-15W≥0.50, 20-80W≥0.95
Ugr: <19 Luminous Flux: 100lm/W
Lifespan: ≥50000hrs Power: 3W/5W/7W/10W/12W/15W
LED Chip: OS-RAM/Brid-Gelux/X-PE Specification: 40.5*16.5*43CM
Beam Angle: 15°, 24°, 36°
Highlight:

3W anti-glare LED down light

,

CRI90 recessed down light

,

10W LED spot light for kitchen

Product Description

High-Performance LED Downlight Series
Factory-priced anti-glare recessed LED downlights available in 3W to 25W configurations with CRI90+ for superior color rendering in living rooms, kitchens, and bedrooms.
MF-HGS21-TR LED Downlight product overview
Technical Specifications
Model MF-HGS21-TR 7W/10W/12W/15W/20W/25W
Input Voltage 100-277Vac or 200-240Vac, 50hz/60hz, DC24V available
Power (Watt) 7W/10W/12W/15W/20W/25W
Color Temperature 2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable
LED Chip O-SRAM/Bridgelux
LED Driver DONE/Aohua/Lifud/Eaglerise Brand for different dim version
PF 10-20W≥0.50, 25W≥0.95
Housing Colour White
Luminous Flux 100-110LM/W
CRI (Ra) Ra80+/Ra90+
Lifespan ≥50000hrs
Beam Angle 15°, 24°, 36°
Material Die-casting Aluminum
Operating Temperature -20°C ~50°C
Dimmable Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable 2700-6000K Tunable as optional if needed
IP Rating IP44
UGR < 19
Certificate CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty Period 3 years
Product Details
LED downlight detailed view Downlight installation view Downlight close-up details LED downlight components
Key Features

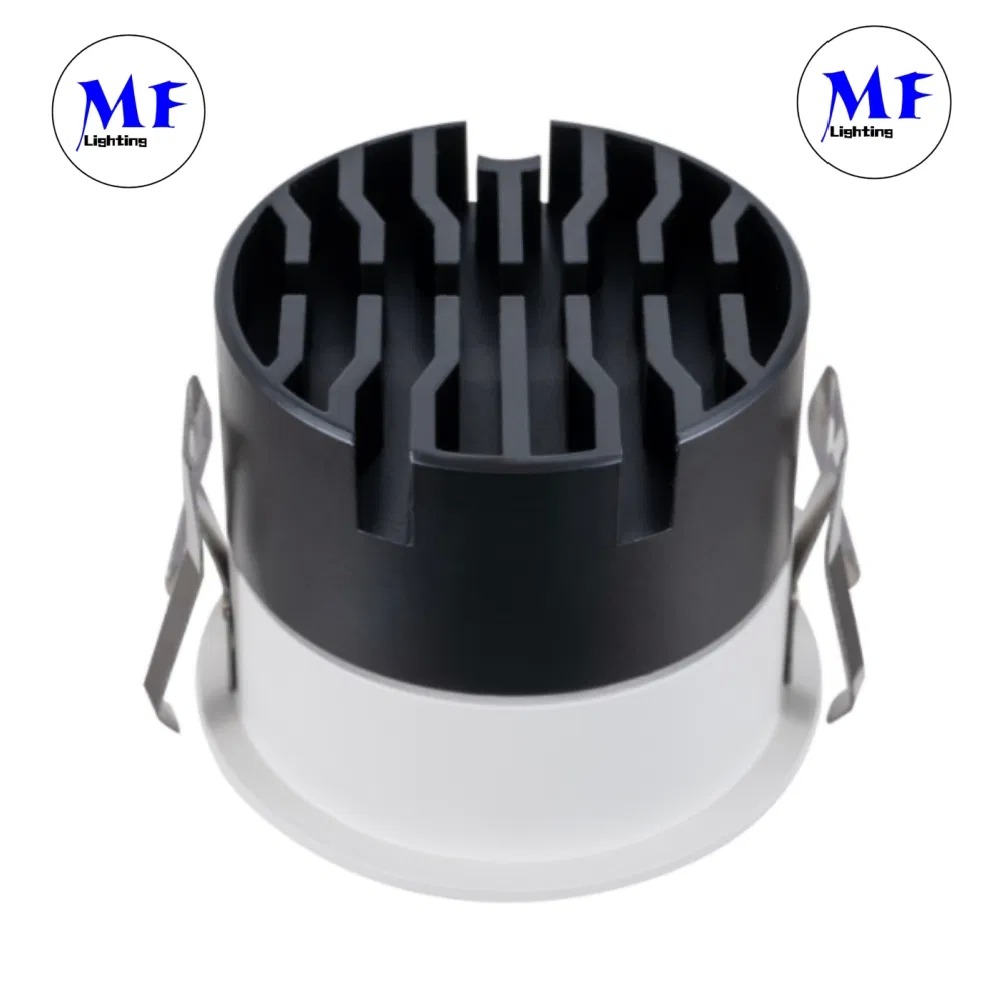

  • Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.
  • Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices.
  • Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP.
  • Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes.
  • High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.
Downlight performance demonstration LED downlight in use Downlight installation example Downlight technical details LED downlight applications Downlight in commercial setting
Installation Instructions
Easy spring clip installation diagram
Easy Spring Clip Installation
1. Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
2. Connect the Wires: Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
3. Insert into the Ceiling: Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
4. Lower the Spring Clips: After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.
Product Dimensions
LED downlight dimensional drawing
Product Applications
MF-HGS21-TR are designed for recessed installation and are suitable for various applications that require waterproof lighting solutions.
Outdoor Lighting: Waterproof downlights for outdoor walkways, gardens, or building exteriors.
Bathroom Lighting: Suitable for bathrooms and other wet areas where moisture resistance is essential.
Kitchen Lighting: Provides functional and aesthetic lighting solutions for kitchens with steam and cooking splashes.
Swimming Pool Areas: Ideal for use around swimming pools or in pool houses where water resistance is crucial.
Spa or Wellness Areas: Perfect for spa environments with high humidity and moisture.
Industrial Settings: Beneficial in industrial environments where dust, moisture, or water exposure can be an issue.
Retail or Commercial Spaces: Suitable for retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.
Downlight in commercial application LED downlight installation example
