10W CRI90 100lm/W Triac /0-10/Dali Dimmable Beam Angle 15°/24°/36°/ Optional 3 Year Warranty Recessed Anti-Glare Frameless LED Down Light for Office Hotel

Minimum Order Quantity : 1 Price : 4.2
Certification: CCC, CE, RoHS, SAA

Detail Information

Color Temperature: 2700K/3000K / 4000K / 5000K /6000K Operating Temperature: -20℃ ~50℃
Ugr: <19 LED Chip: O.Sram/Brid.Gelux/XPE
Beam Angle: 15°/24°/36° Lamp Body Material: Die-Casting Aluminum
Power: 3W/5W/7W/10W/12W/15W CRI: Ra80+/Ra90+
Dimmable: Non-Dim/Triac/0-10V/Dali Dimmable As Optional IP Rating: IP44
Luminous Flux: 100-110lm/W Lifespan: ≥50000hrs
Input Voltage: 100Vac/200-240Vac, 50hz/60hz PF: 5-15W≥0.50, 20-80W≥0.95
Cut Out: 25/35/45/55/65/75 MM
Highlight:

Triac dimmable LED down light

,

CRI90 recessed LED down light

,

frameless anti-glare LED down light

Product Description

10W CRI90 100lm/W Dimmable LED Downlight
High-performance recessed LED downlight featuring deep-recessed anti-glare design with UGR<19, flicker-free operation, and multiple dimming options. Ideal for office and hotel applications requiring precise lighting control and visual comfort.

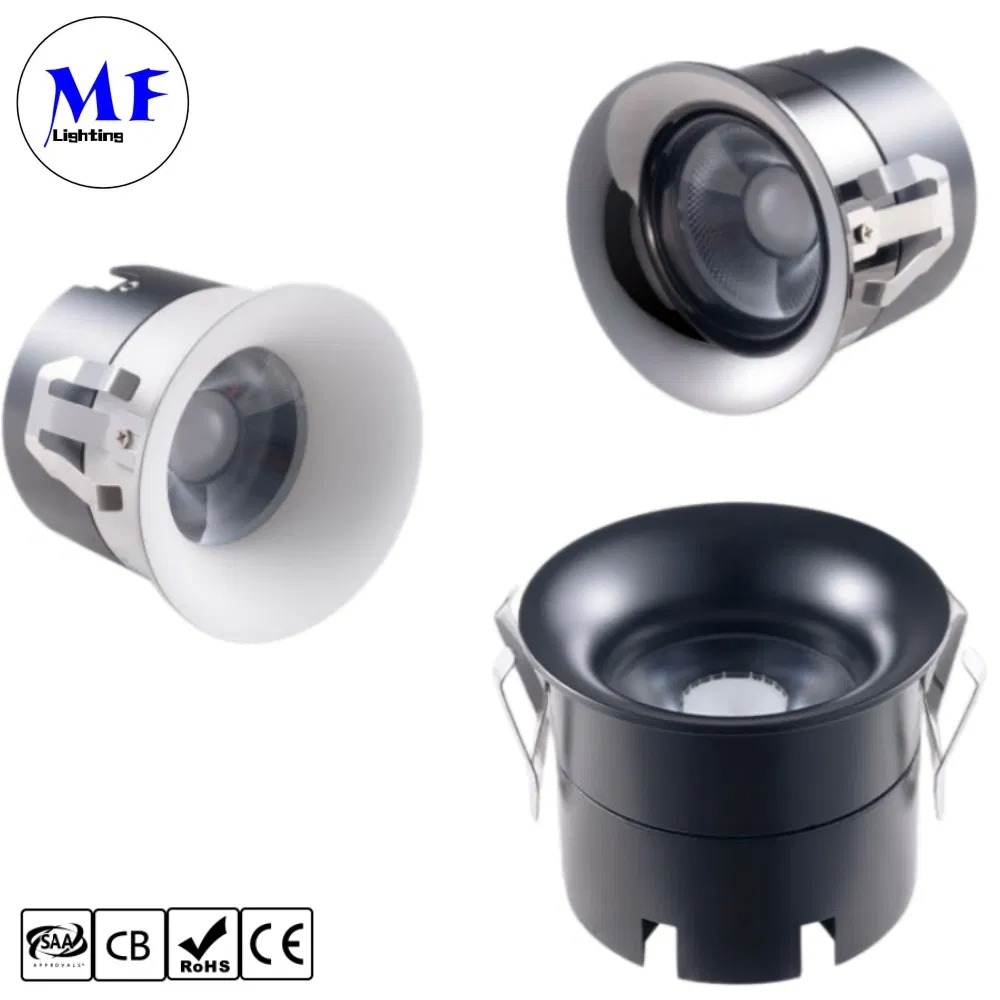

10W CRI90 LED Downlight product overview
Key Features
  • Deep-recessed anti-glare design with UGR<19, flicker-free for eye-friendly lighting
  • High-quality COB LED chip with high CRI Ra80+/Ra90+ for true-to-life color rendering
  • Multiple configuration options: power, CCT (2700K-6000K), beam angles (15°/24°/36°), dimming modes
  • Die-cast aluminum housing with IP44 rating, 50,000-hour lifespan and 3-year warranty
  • Frameless cambered appearance with multiple trim colors for modern interior decoration

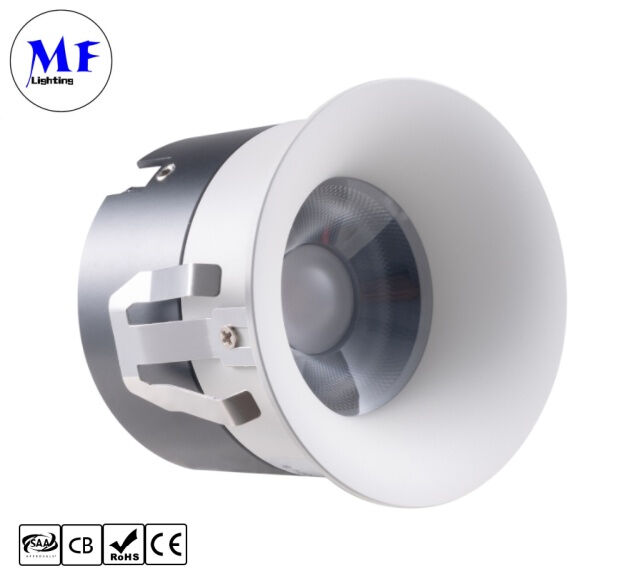

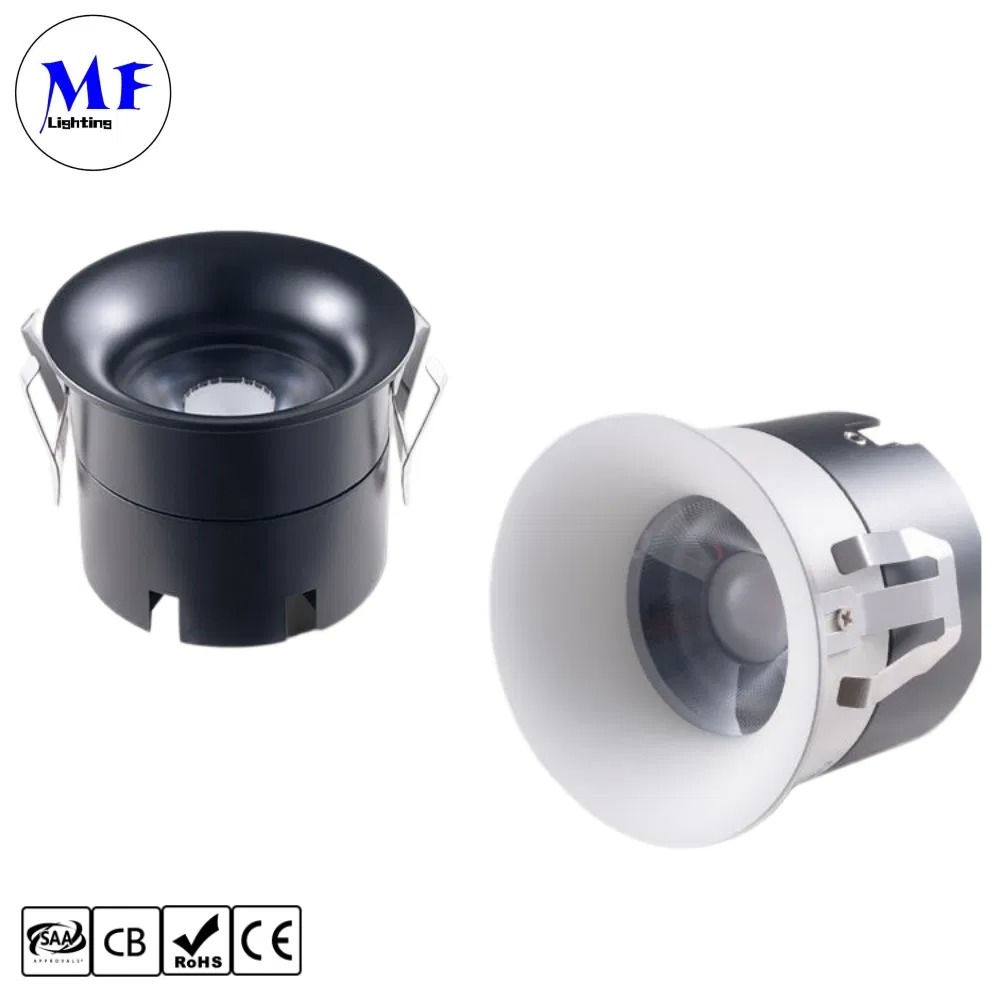

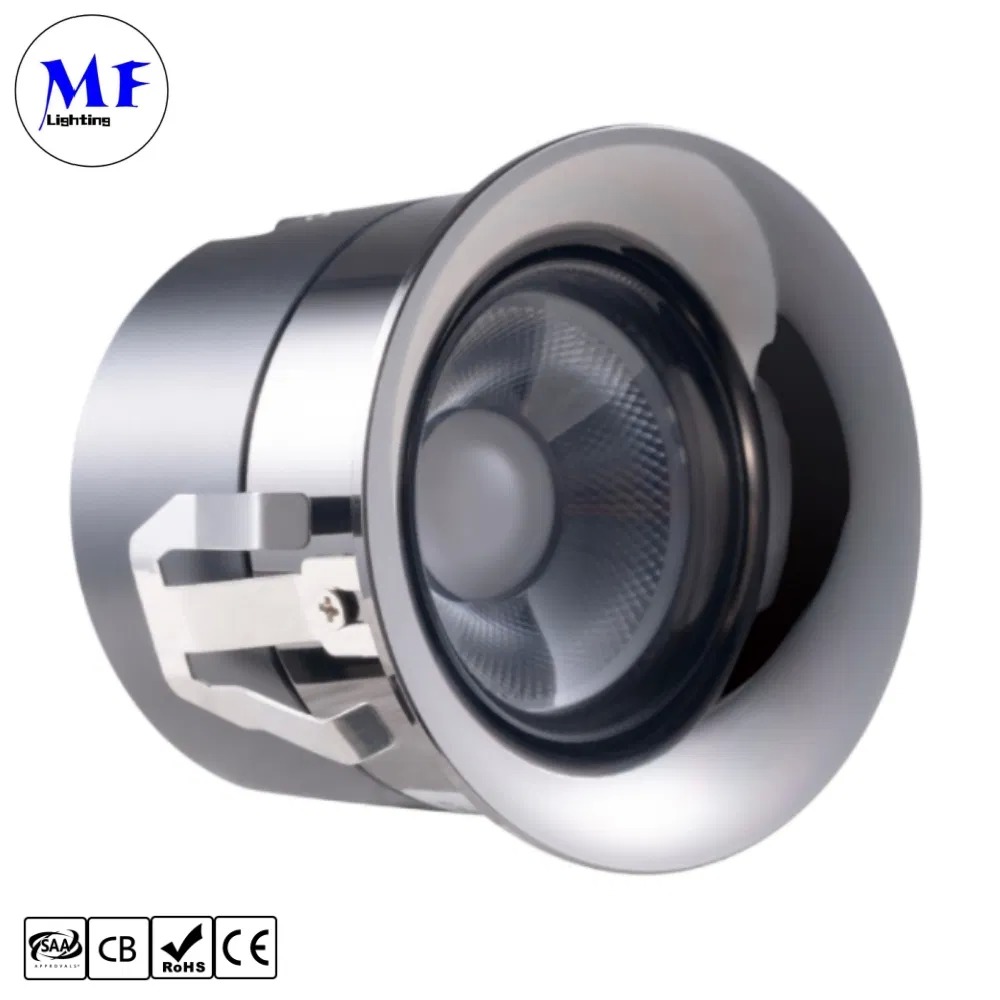

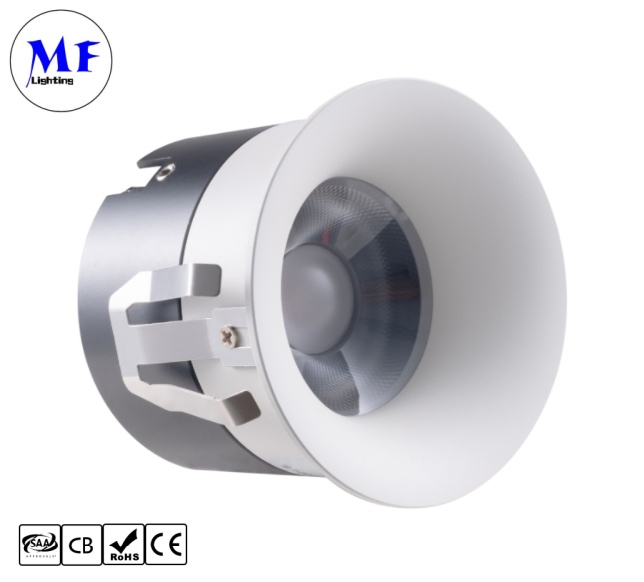

LED Downlight installation view Close-up of LED Downlight design LED Downlight in various settings Anti-glare feature demonstration Multiple beam angle options Color temperature variations Professional lighting application
Technical Specifications
ParameterSpecification
ModelMF-HGS13-3W/5W/7W/10W/12W/15W
Input Voltage100Vac/200-240Vac, 50hz/60hz
Power3W/5W/7W/10W/12W/15W
Color Temperature2700K/3000K/3500K/4000K/5000K/6000K
LED ChipOSRAM/Bridgelux/CREE XP-E
LED DriverLifud/BOKE/Tridonic/Novbo (optional)
Power Factor5-15W≥0.50, 20-80W≥0.95
Housing ColorWhite/Black
Luminous Flux100-110 LM/W
CRI (Ra)Ra80+/Ra90+
Lifespan≥50,000 hours
Beam Angle15°/24°/36°
MaterialDie-casting Aluminum
Operating Temperature-20ºC to 50ºC
DimmableNon-Dim/Triac/0-10V/DALI (optional)
CCT Adjustable2700-6000K Tunable (optional)
IP RatingIP44
UGR< 19
CertificationCE/RoHS (Whole Lamp); CE/RoHS/CB/SAA (Driver)
Warranty Period3 years
Dimensions
LED Downlight dimensional diagram
ModelPowerCut Out (mm)Dimension (mm)Beam Angle
MF-HGS133W2530×4015°/24°/36°
MF-HGS135W3540×4715°/24°/36°
MF-HGS137W3540×6615°/24°/36°
MF-HGS1310W4550×7015°/24°/36°
MF-HGS1312W55/6560×74/70×5515°/24°/36°
MF-HGS1315W7580×5815°/24°/36°
Installation Guide
LED Downlight installation diagram
Installation Steps
  • Drill holes according to the specified cut-out dimensions
  • Connect to 220V household electrical supply
  • Lift the buckle upwards and push forward to secure
  • Conduct lighting test to verify proper installation
Packaging Information
LED Downlight packaging Shipping carton specifications
PowerCarton Size (cm)Gross Weight (kg)Units per Carton
3W49.5×32×2616100
5W49.5×32×2617100
7W49.5×32×2615100
10W47×22×321650
12W47×22×321750
12W52×21×39.51850
15W52×21×39.51950
Applications
LED downlights are versatile lighting solutions suitable for various indoor environments including residential, commercial, public, and industrial spaces. Ideal for living areas, bedrooms, kitchens, offices, retail stores, restaurants, hotels, schools, libraries, hospitals, warehouses, and factories. These energy-efficient fixtures offer customizable light color, brightness, and beam angles to meet diverse lighting requirements.
LED Downlight application examples
Manufacturer Profile
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with proprietary factory facilities. Specializing in design, production, and distribution of high-quality LED lighting products, the company has established a reputation for excellence and innovation in LED lighting technology. With years of industry experience and a dedicated team of professionals, Ming Feng Lighting is committed to delivering superior lighting solutions and customer satisfaction for both residential and commercial applications.
Ming Feng Lighting factory facility Ming Feng Lighting production process
Frequently Asked Questions
What products do you sell?
We provide high-quality floodlights, high bay lights, explosion-proof lights, tri-proof lights, downlights, and other lighting products, along with comprehensive services and reliable after-sales warranty support.
Can I have my logo printed on LED light products?
Yes, we offer ODM and OEM services. Please inform us formally before production and confirm the design based on our provided samples.
How do you handle faulty products?
During the guarantee period, we will send replacement lights with new orders for small quantities. For defective batch products, we will repair and resend them, or discuss appropriate solutions based on the specific situation.
Can I place a sample order for LED lights?
Yes, we welcome sample orders for quality testing and verification. Both single and mixed samples are acceptable.
What is the shipping time after placing an order?
Typically 7 days for samples or small orders, and 15 working days for bulk orders. Exact timing may vary depending on order quantity and specifications.
