Detail Information

Voltage: 100~277V G.W.: 0.2kg
Working Temperature: -20~50°C Model NO.: MF-HGS13-7W
Specification: D105*H68mm/pcs Beam Angle: 15°/24°/36°
Lifetime: 50000h Power: 3W/5W/7W/10W/12W/15W
Frequency Range: 50Hz--60Hz Material: Die-casting Alu.
Light Color: White Protection Level: IP65
CRI: Ra80/90 Light Efficiency: 100lm/W
URG: <19
Highlight:

no glare LED down light

,

recessed LED spotlight

,

cozy mini feet LED light

Product Description

Product Overview

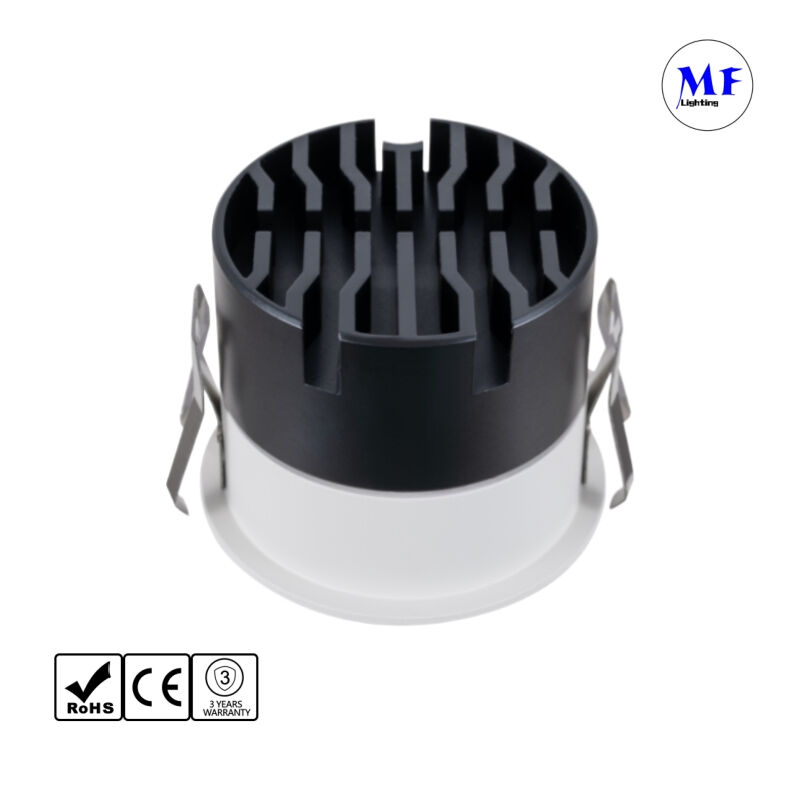

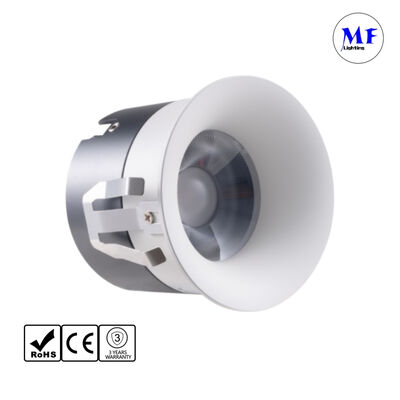

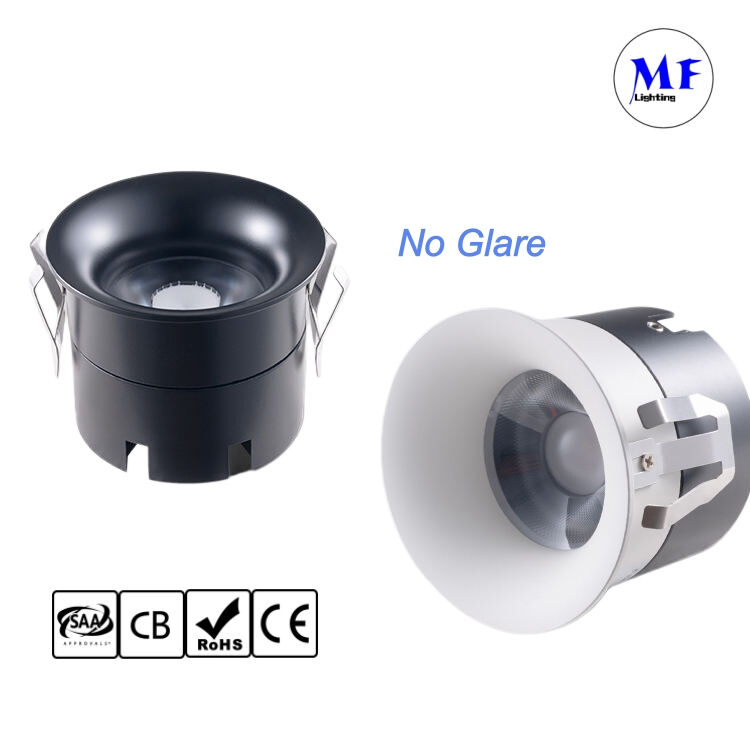

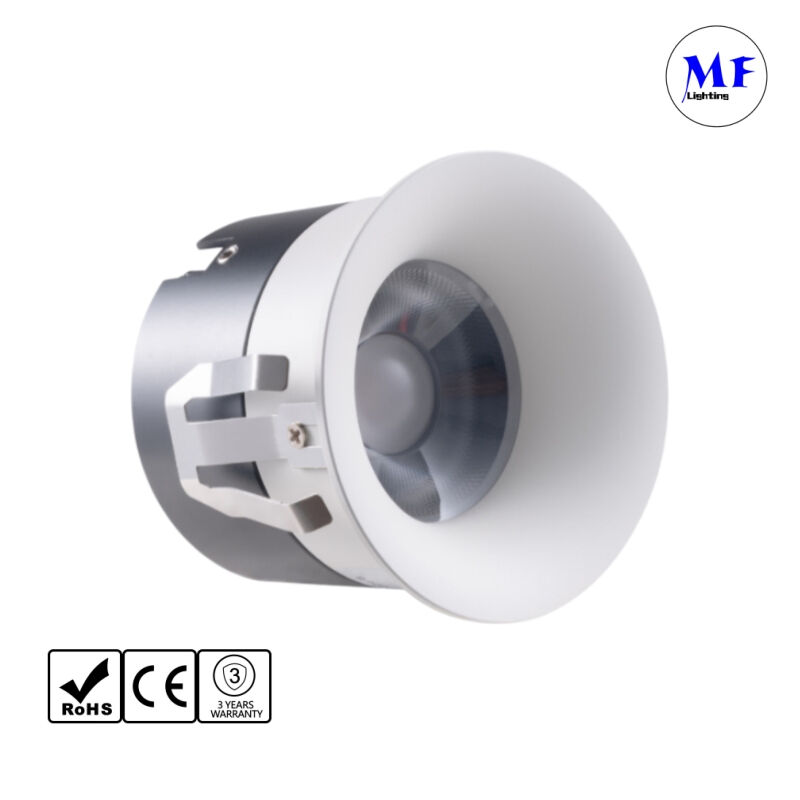

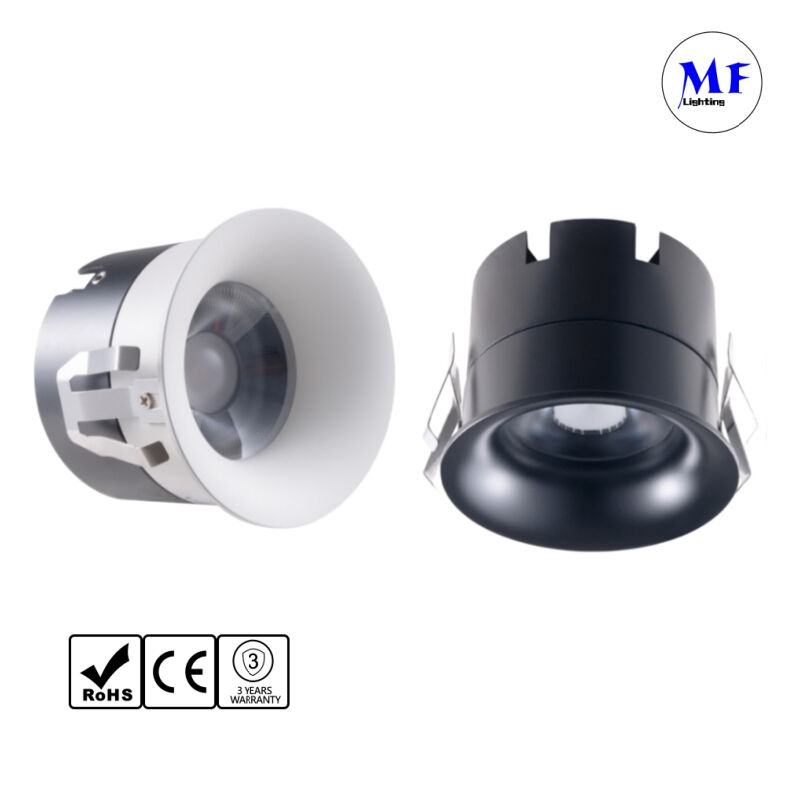

17+ Years Factory No Glare Simple 3W 5W 7W 10W 12W 15W 110lm/W IK07 Cozy Recessed Commercial Residential Home Hotel Spotlight Mini Feet Round LED Down Light
Technical Specifications
Model No.MF-HGS13-3W/5W/7W/10W/12W/15W
Power3W/5W/7W/10W/12W/15W
Frequency Range50Hz-60Hz
Beam Angle15°/24°/36°
Light QualityBright, Soft
VoltageAC100-277V
MaterialDie-casting Aluminum
Working Temperature-20°C to 50°C
Light ColorWhite
CertificatesCE, FC, ROHS, CB etc.
Warranty3 years
URG<19
Life Time50,000 hours
Protection LevelIP65
MF-HGS13 LED Down Light product imageMF-HGS13 LED Down Light close-up viewMF-HGS13 LED Down Light installation viewMF-HGS13 LED Down Light application example
MF-HGS13 Series Features
  • Color Options: Matte White/Black/Silver
  • CCT: 2700/3000/4000/5000/6000K or 2700-6500K Tunable (optional)
  • Light Source: OSRAM/Epistar
  • Power: 3W/5W/7W/10W/12W/15W with 3-step power adjustable option
  • Input: AC100-277V or AC200-240V
  • IP Rating: IP44
  • Material: Die-casting Aluminum
  • Temperature Range: -20°C to 50°C
  • CRI: Ra80/90
  • Efficiency: 100lm/W
  • Warranty: 3 years
MF-HGS13 Series product featuresMF-HGS13 Series technical details
Application Areas
School, hotel, hospital, subway, train station, shopping mall, supermarket, hall, office, basement, public places.
LED Down Light commercial applicationLED Down Light residential application
Detailed Applications
Residential Living Rooms & Bedrooms
Non-waterproof downlights deliver pure, glare-free warmth for ambient illumination or accent walls. Features deeper recessed baffles and broader beam angles for smooth, even light distribution.
Commercial Office Spaces
Grid ceiling installations in open-plan workspaces with UGR<19 anti-glare technology. Lower thermal resistance ensures cooler operation and longer lifespan (>50,000 hours).
Retail & Showroom Displays
Spot-lighting merchandise with zero light loss and 100% raw lumen output. Available with Ra>90 for vivid color accuracy in jewelry, apparel, and product displays.
Dry Warehouses & Storage Facilities
Cost-effective high-bay or low-bay lighting with wide-beam coverage. Simple housing designs for easy maintenance and relamping in climate-controlled environments.
Hospitality Interiors
Slimmer driver compartments for shallow ceiling installations (as low as 60mm depth). Perfect for hotel corridors, lobbies, soffits, and coves in modern architectural designs.
Product Dimensions
MF-HGS13 LED Down Light dimensions diagram
Installation Guide
Easy Spring Clip Installation
  1. Ceiling Hole Cutting: Cut ceiling hole according to luminaire size using appropriate tools
  2. Connect the Wires: Connect wires to luminaire terminals correctly (professional electrician recommended)
  3. Insert into Ceiling: Align spring clips vertically and insert into ceiling hole
  4. Lower Spring Clips: Confirm proper fit and wiring, then lower clips and power on
LED Down Light installation step 1LED Down Light installation step 2
Customization & Support
Q1: If this product exceeds your market demand and affects profitability?
A1: Contact our professional team for more suitable product options tailored to your market.
Q2: Need higher performance products?
A2: We can develop and supply the most suitable products in the shortest time.
Q3: Require different outer design?
A3: We offer complete customization services for private label lighting solutions.
Q4: Can I print my logo on the LED light?
A4: Yes, we provide OEM services including custom labels and packaging.
Q5: What if I receive defective products?
A5: Our defective rate is less than 0.2%. We provide warranty replacements with evidence of defective units.
Q6: Do you have your own factory?
A6: Yes, we specialize in LED lighting R&D and manufacturing since 2009 with ISO quality management.
Q7: Can I order samples for testing?
A7: Yes, we welcome sample orders and accept mixed samples for quality verification.
Ming Feng Lighting factory and facilities
Packaging & Shipping
We support air shipment, marine shipment, and other delivery methods. Strategically located in Dongguan near major ports and airports including Shenzhen Shekou Port, Dongguan Humen Port, Shenzhen Airport, and Guangzhou Baiyun Airport. Our multi-layer packaging includes internal and external protection with sponge padding to prevent transit damage.
LED Down Light packaging and shipping methods
Company Profile
Ming Feng Lighting company overview
Ming Feng Lighting Co., Ltd is a leading LED lighting products manufacturer located in Guangdong Province, China. Established in 2009 with over 15 years of experience in exporting LED lighting products. Our factory produces LED Indoor Lights including Triproof Lights, Vapor Tight Lights, Down Lights, Flat Panels, and LED Outdoor Lights including Flood Lights, High Bay Lighting, Stadium Lights, Landscape Lights, and Aviation Obstruction Lights. Our rapidly expanding R&D team meets growing market demands with partners worldwide.
Ming Feng Lighting product portfolio
