Factory Price 100lm IP20 IP44 7W/10W/12W/15W/20W/25W/30W LED Spot Light LED Down Light Recessed Down Light for Bathroom Kitchen

Contact Now

Factory Price 100lm IP20 IP44 7W/10W/12W/15W/20W/25W/30W LED Spot Light LED Down Light Recessed Down Light for Bathroom Kitchen

Minimum Order Quantity :	1	Price :	7.4

Certification:	CCC, CE, RoHS, SAA

Detail Information
Color Temperature:	2700K/3000K/3500K/4000K/5000K/6000K	Installation Type:	Recessed
Housing Colour:	White Ring	Luminous Flux:	100lm/W
Operating Temperature:	-20°C ~50°C	Dimmable Options:	Non-Dim/Triac/0-10V/Dali-2 Dimmable
Dimensions:	40.516.543CM	IP Rating:	IP20/IP44
Material:	Die-Casting Aluminum	Power:	7W/10W/12W/15W/20W/25W/30W
Power Factor:	7-15W≥0.50, 20W≥0.95	UGR:	<19
LED Chip:	O-Sram/Brid-Gelux	Lifespan:	≥50000hrs
CRI:	Ra80+/Ra90+
Highlight:	IP44 LED down light for bathroom , 7W recessed LED spot light , 30W LED down light kitchen

Product Description

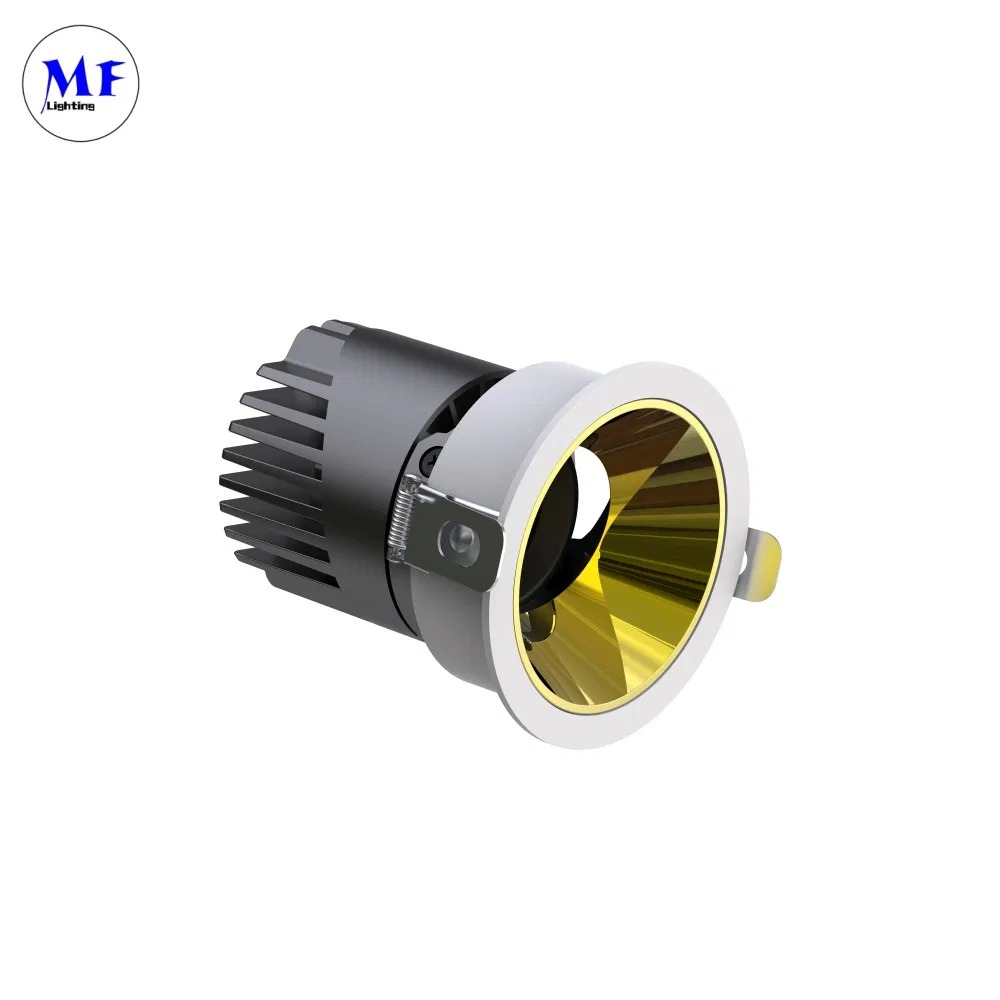

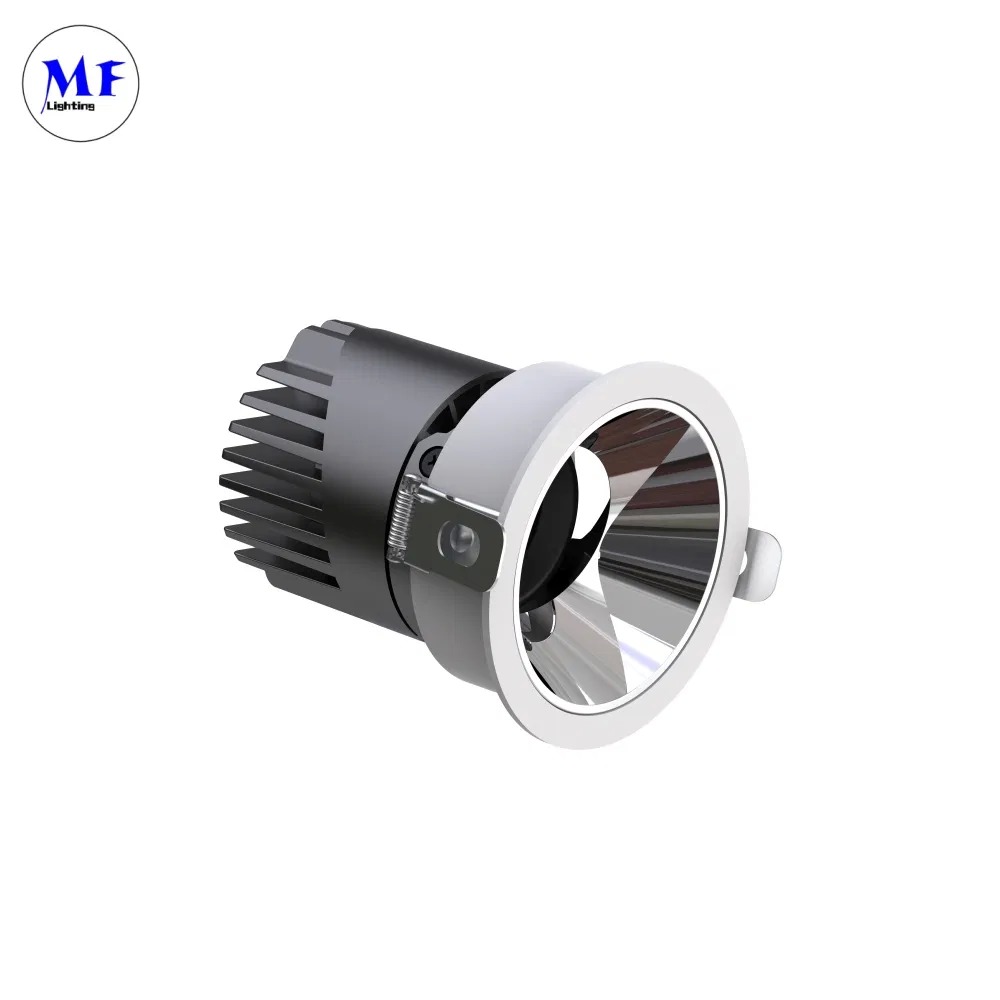

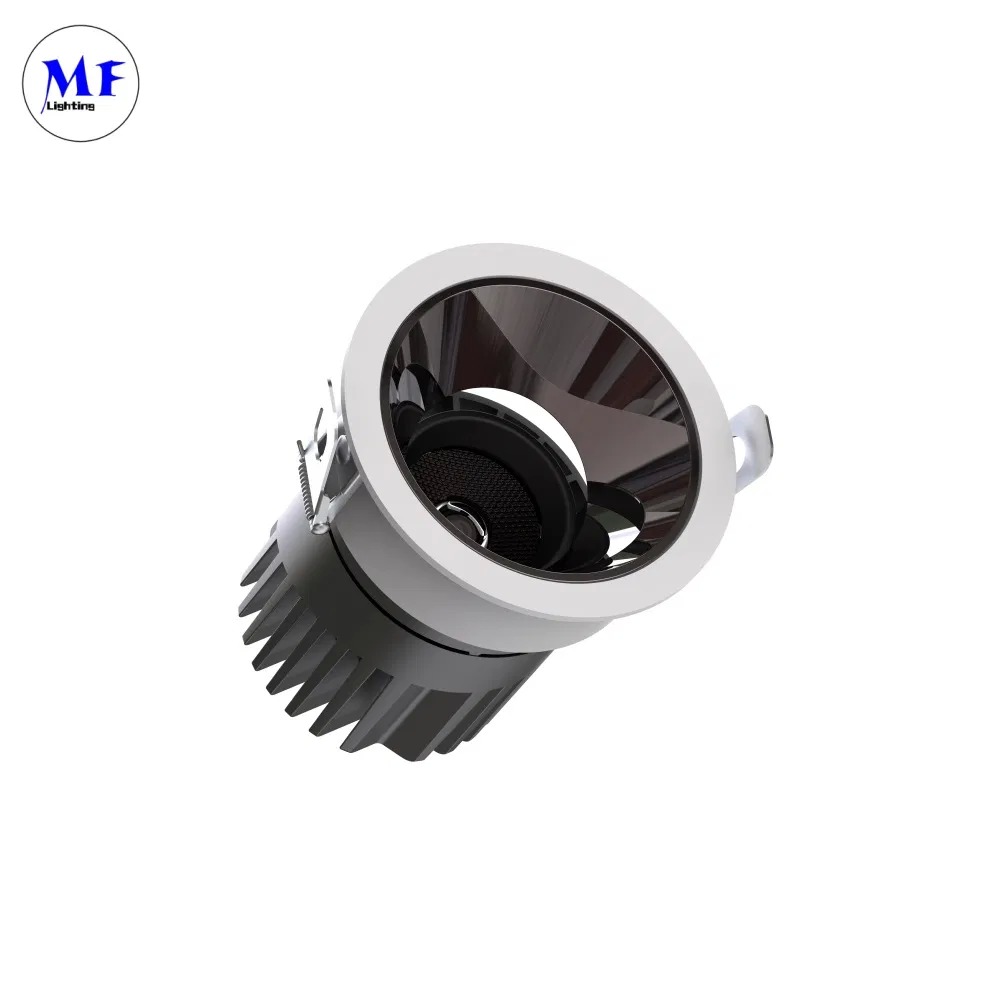

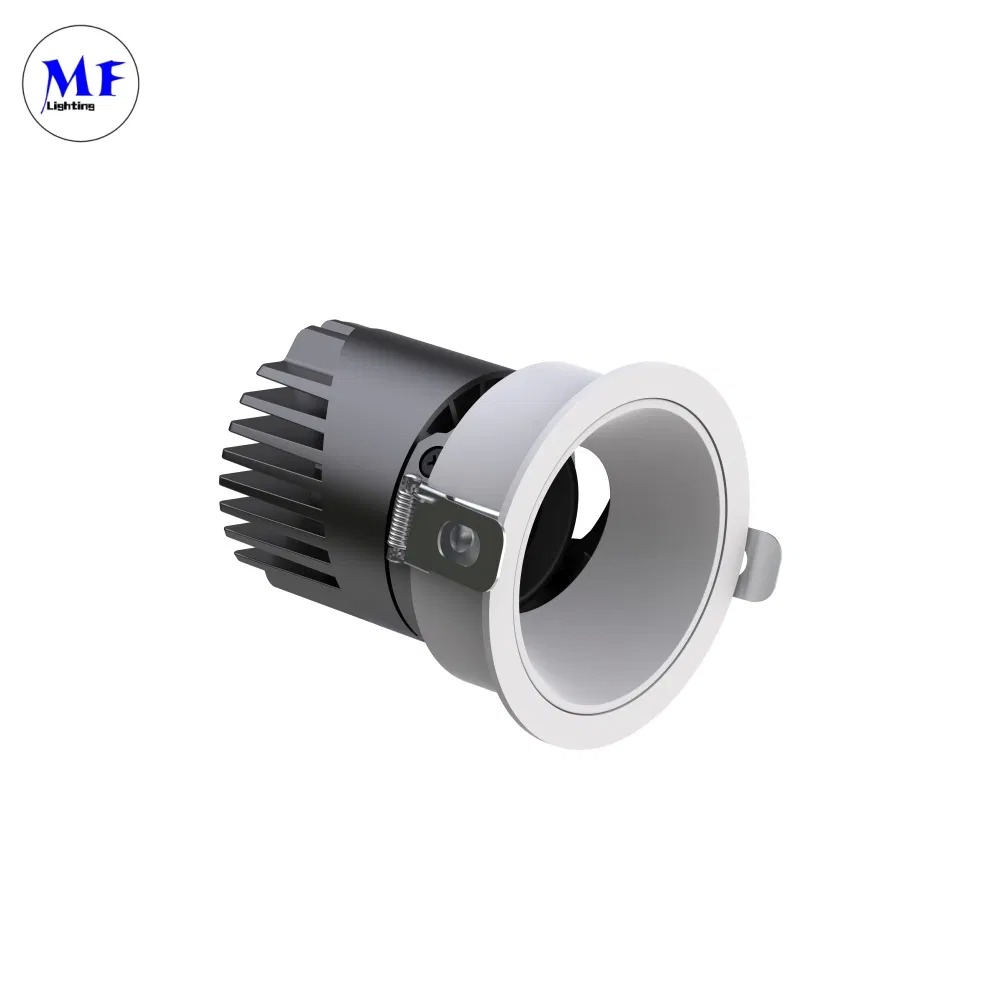

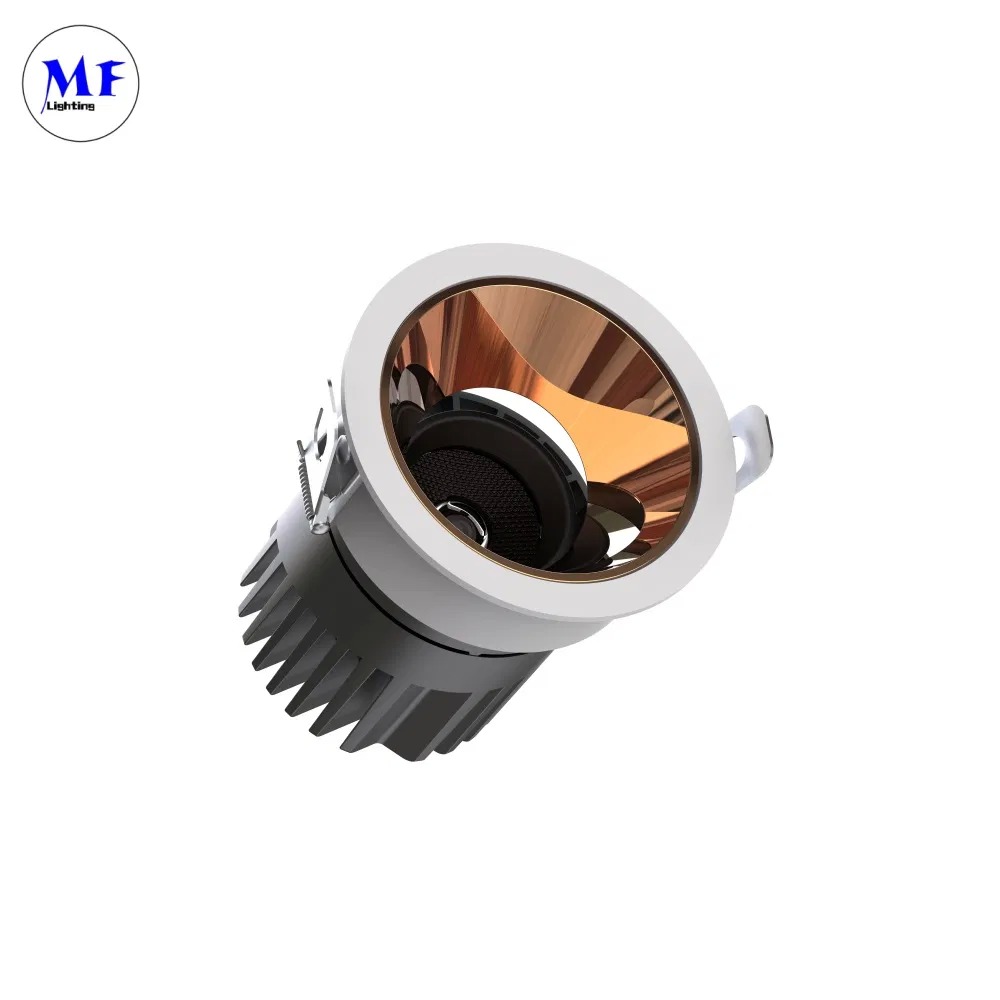

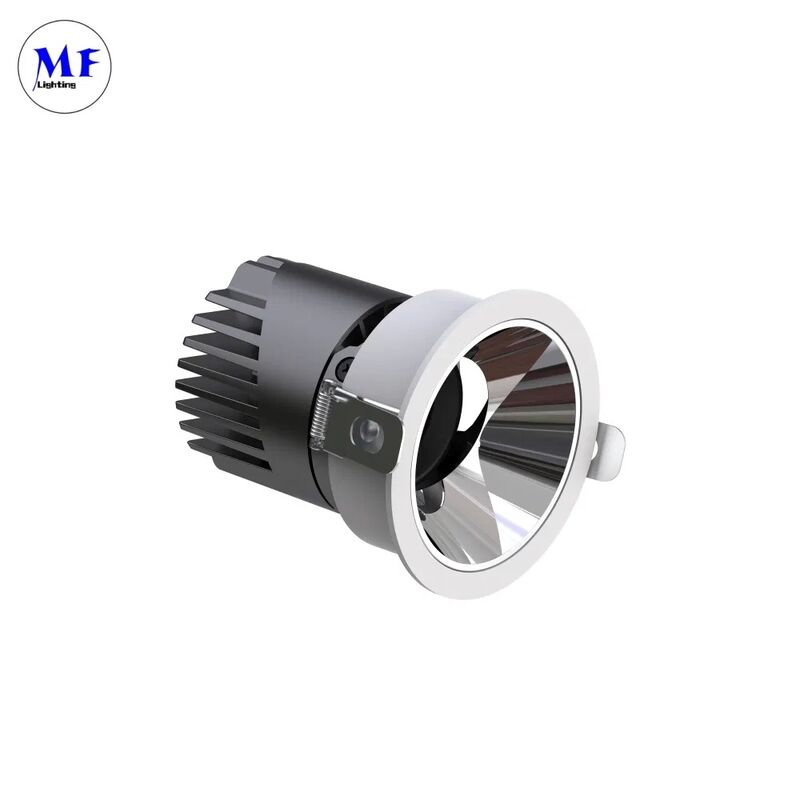

MF-HGS10 Series LED Down Light

Factory price high-efficiency recessed LED spot lights available in multiple wattages with IP44 rating, ideal for bathroom, kitchen, and various commercial applications.

Technical Specifications

Model	MF-HGS10-7W/10W/12W/15W/20W/25W/30W
Input Voltage	100-277Vac or 200-240Vac, 50hz/60hz, DC24V available
Power	7W/10W/12W/15W/20W/25W/30W
Color Temperature	2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable
LED Chip	O-SRAM/Bridgelux
LED Driver	Aohua/Weiye/Lifud/BOKE Brand for different dim versions
Power Factor	7-15W≥0.50, 20W≥0.95
Housing Color	White Ring
Luminous Flux	100-110LM/W
CRI (Ra)	Ra80+/Ra90+
Lifespan	≥50000 hours
Beam Angle	8°/15°/24°/38°/55°
Material	Die-casting Aluminum
Operating Temperature	-20°C ~50°C
Dimmable	Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable	2700-6000K Tunable as optional
IP Rating	IP44
UGR	< 19
Certificate	CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty Period	3 years

Product Details

Key Features

Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more
Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices
Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP
Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes
High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering

Installation Instructions

Easy Spring Clip Installation
1. Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
2. Connect the Wires: Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
3. Insert into the Ceiling: Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
4. Lower the Spring Clips: After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.

Product Dimensions

Product Applications

MF-HGS10 series are designed for recessed installation and are suitable for various applications that require waterproof lighting solutions:

Outdoor Lighting: These waterproof downlights can be used for outdoor applications where exposure to the elements is a concern, such as in outdoor walkways, gardens, or building exteriors.

Bathroom Lighting: Due to their waterproof design, these downlights are suitable for use in bathrooms and other wet areas where moisture resistance is essential.

Kitchen Lighting: In kitchens where steam and cooking splashes are common, waterproof downlights can provide both functional and aesthetic lighting solutions.

Swimming Pool Areas: These lights can be used around swimming pools or in pool houses where water resistance is crucial.

Spa or Wellness Areas: Waterproof downlights are ideal for use in spa environments where high humidity and moisture are present.

Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.

Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.
