Dimmable Power Tunable CCT Smart WiFi Zigbee 2.4G Dali Triac 0-10V Dimming 7W 10W 12W 15W 20W 25W 30W 55mm-95mm Recessed Downlight Aluminum LED Down Light

Minimum Order Quantity : 1 Price : 6.6
Certification: CE, RoHS

Detail Information

Power: 3W/5W/7W/10W/12W/15W Lifespan: 50,000 Hours
Luminous Efficacy: 100-110lm/W Voltage (AC): AC100-277V/AC200-240V
Ugr: <19 Lamp Body Material: Aluminum
IP Rating: IP44 Color Temperature: 2700/3000K/3500K/4000/5000K/6000K
LED Source: COB LED CRI (Ra): Ra80+/Ra90+
Beam Angle: 8°,15°,24°,38°,55° PF: 5-15W≥0.50,20-80W≥0.95
Operating Temperature: -20ºC ~50ºC Input Voltage: AC 200-240V
Dimmable: Non-Dim / Triac Dimmable As Optional
Highlight:

Dimmable WiFi Zigbee LED downlight

,

Smart CCT tunable recessed downlight

,

Aluminum Dali Triac dimming downlight

Product Description

Smart Dimmable LED Downlight with Advanced Control Options
This dimmable power tunable CCT smart downlight features WiFi, Zigbee 2.4G, DALI, Triac, and 0-10V dimming compatibility. Available in 7W to 30W power ratings with 55mm-95mm recessed installation sizes, constructed with premium aluminum housing for optimal thermal performance.
Key Features & Benefits
  • High Efficiency Radiator: Thickened precision aluminum radiator with one-piece construction and optimized airflow design for fast heat dissipation
  • Premium LED Chips: Optional CREE, EPISTAR, CITILED, LUMINUS, or O-SRAM COB series with CRI>90 (CRI 98 available)
  • Color Temperature Options: 2700K, 3000K, 4000K, 5000K, 6500K with tunable CCT capability
  • Advanced Installation: Blade shrapnel buckle design for strong elasticity and secure mounting
  • Premium Finish: High-precision thickened aeronautical aluminum die-casting with ivory white paint
  • Optical Performance: Deep recessed anti-glare structure with IP44 rating for damp locations
LED downlight high efficiency radiator design LED downlight installation and mounting options
Clip Type Options
Model Version Clip Type Features
V Spring Clip V shape spring clip Conventional V shaped spring piece structure
Spring Clip Stainless steel spring clip Made of stainless steel, rust resistant and stable for installation
Spring Leaf Blade type leaf shrapnel clip Blade shaped shrapnel with stronger elasticity, holds ceiling panels tightly
Technical Specifications
Parameter Specifications
Model Series MF-HGS10-7W / 10W / 12W / 15W / 20W / 25W / 30W / 35W
Power Rating 7W, 10W, 12W, 15W, 20W, 25W, 30W, 35W
Input Voltage AC 200-240V
LED Chip Bridgelux / O-SRAM as optional
Color Temperature 2700K, 3000K, 4000K, 5000K, 6000K
CRI (Ra) Ra80+ / Ra90+
Beam Angle 8°, 15°, 24°, 38°, 55°
Material Die-casting Aluminum
Dimmable Non-Dim / Triac dimmable as optional
UGR <19
LED Driver Lifud/BOKE/Tridonic/Novbo as optional, Optional 0-10V/DALI
Power Factor 5-15W≥0.50, 20-80W≥0.95
Lifespan ≥50,000 hours
Operating Temperature -20ºC to 50ºC
CCT Adjustable 2700-6000K Tunable as optional
Certifications CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA(Driver)
Warranty Period 3 years
LED downlight beam angle options and performance LED downlight beam angle diagram and specifications
Product Details & Construction
LED downlight detailed construction view LED downlight internal components and design LED downlight finish and material quality
Comprehensive Product Features
  • Power Options: 7W, 10W, 12W, 15W, 20W, 25W, 30W with 55mm-95mm cutout sizes
  • LED Chip Technology: O-SRAM or Bridgelux COB with 100lm/W efficacy, CRI Ra80+ or Ra90+
  • Optical Performance: Deep recessed anti-glare design with UGR <19, multiple beam angles available
  • Adjustability: 30° tilting adjustment and 360° rotation capability
  • Electrical Data: Input voltage 110-240Vac, DC24V available, high power factor
  • Dimming Options: Non-dimmable, TRIAC, 0-10V, DALI-2 with smart control compatibility
  • Certifications: Complete lamp CE and RoHS, driver with additional CB and SAA certifications
LED downlight dimming and control options
Customization Options
Trim Colors & Finishes
White, Black, Matte Silver, Champagne, Rose Gold, Gun Black, and other custom finishes available.
Installation Types

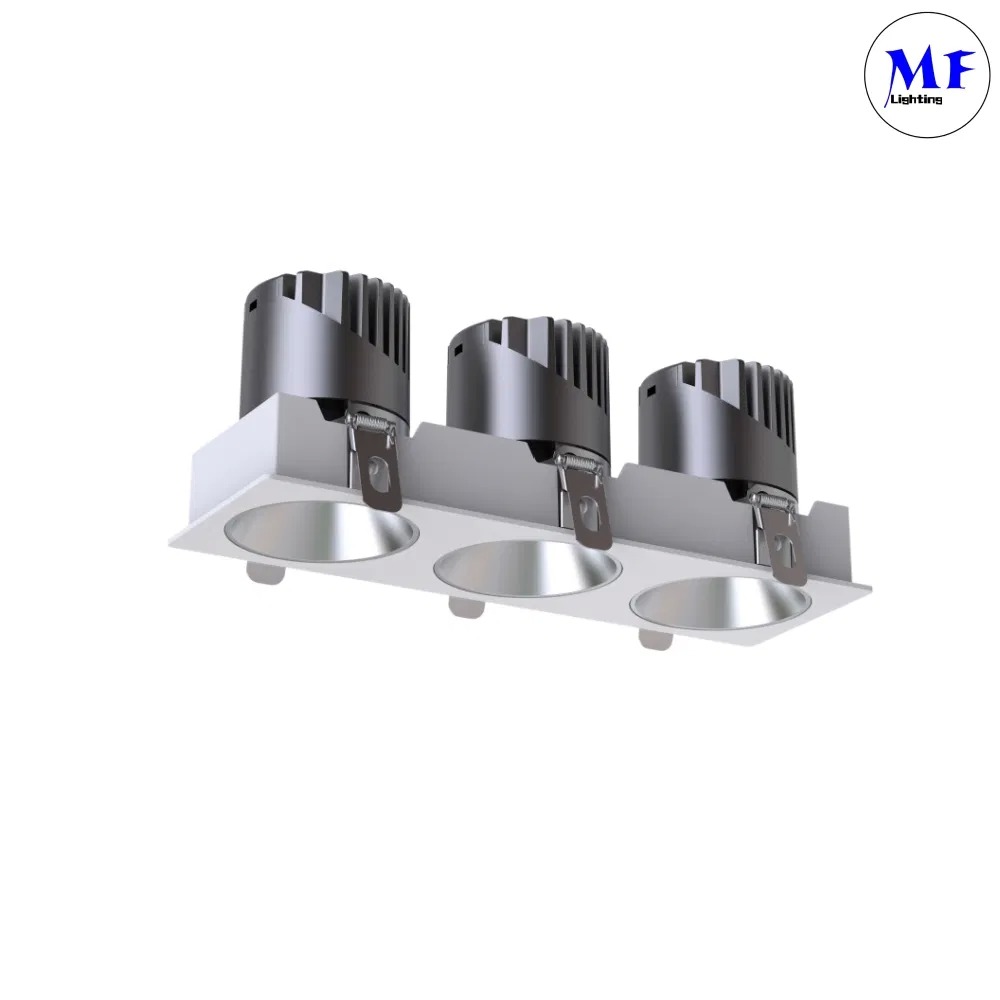

Round/square framed, frameless, single/double/triple multi-head recessed, and surface mounted versions.
Installation System
Spring shrapnel buckle design for quick, tool-free ceiling installation with firm clamping performance.
LED downlight customization options and finishes
Product Dimensions
LED downlight dimensional drawings and specifications
Application Areas
LED downlights are versatile lighting fixtures suitable for residential, commercial, and hospitality environments with energy-efficient performance and modern design.
Residential Applications
Kitchens, living rooms, bedrooms providing ambient or task lighting with warm, inviting atmosphere.
LED downlight residential application in modern kitchen
Commercial Spaces
Offices, retail stores, showrooms with focused uniform light distribution for highlighting products and areas.
Hospitality Venues
Hotels, restaurants, bars creating welcoming ambiance with dimmable feature for mood lighting control.
LED downlight commercial office lighting application
Specialized Applications
Museums, galleries, healthcare facilities, educational institutions, and outdoor spaces with appropriate IP ratings.
LED downlight hospitality and luxury space application LED downlight museum and gallery lighting application LED downlight healthcare and educational facility application
Packaging Information
Power Carton Size (cm) Gross Weight (KG) Pieces per Carton
7W 52×37×24.5CM 11.0KG 50PCS
10W 52×21×52CM 13.5KG 50PCS
12W 52×21×52CM 13.5KG 50PCS
15W 52×21×52CM 13.5KG 50PCS
20W 59.5×36.5×29CM 14.6KG 30PCS
25W 59.5×36.5×29CM 14.6KG 30PCS
30W 59.5×36.5×29CM 14.6KG 30PCS
Packaging & Shipping
LED downlight packaging and carton design LED downlight secure packaging for shipping LED downlight bulk packaging overview LED downlight individual product packaging LED downlight shipping and logistics preparation
