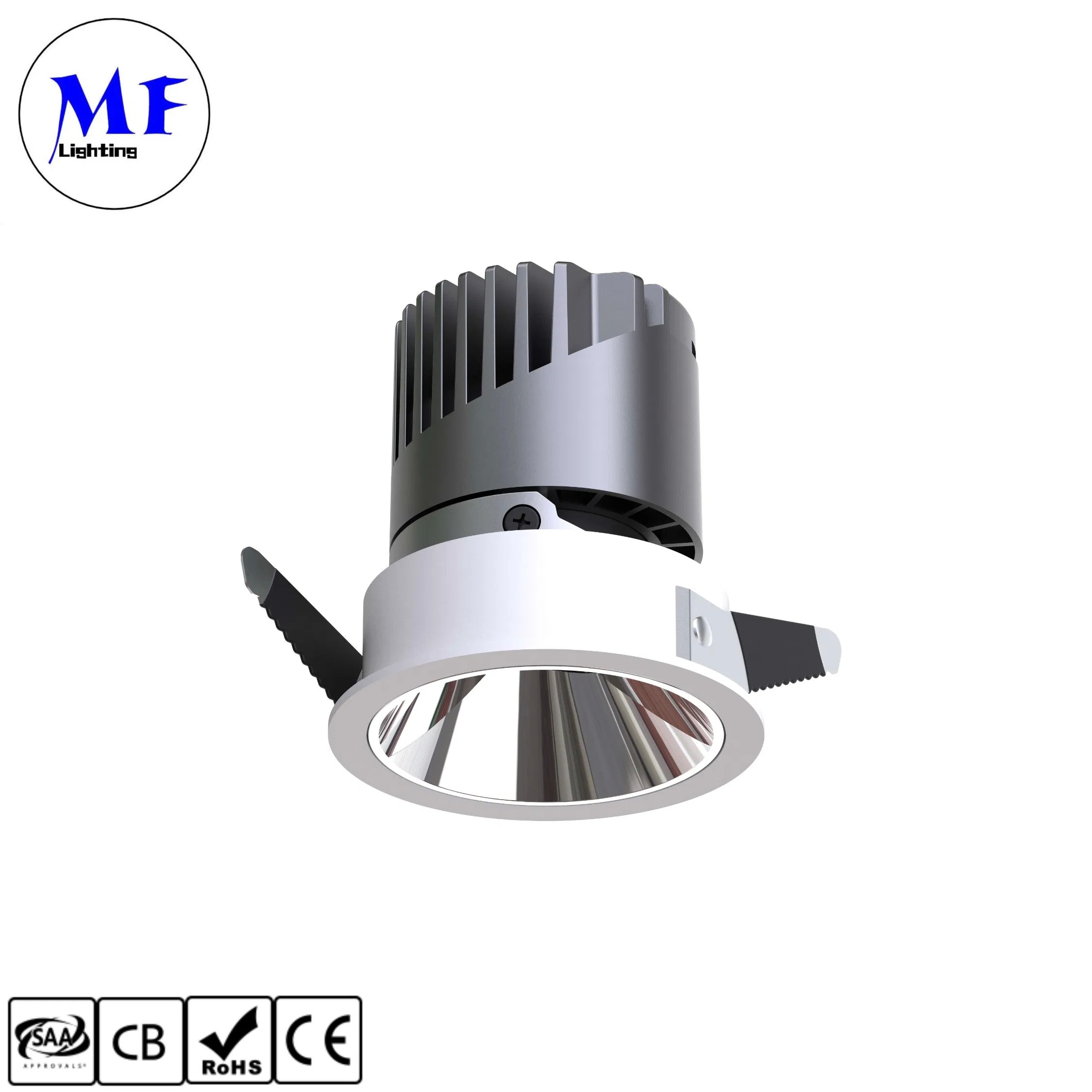

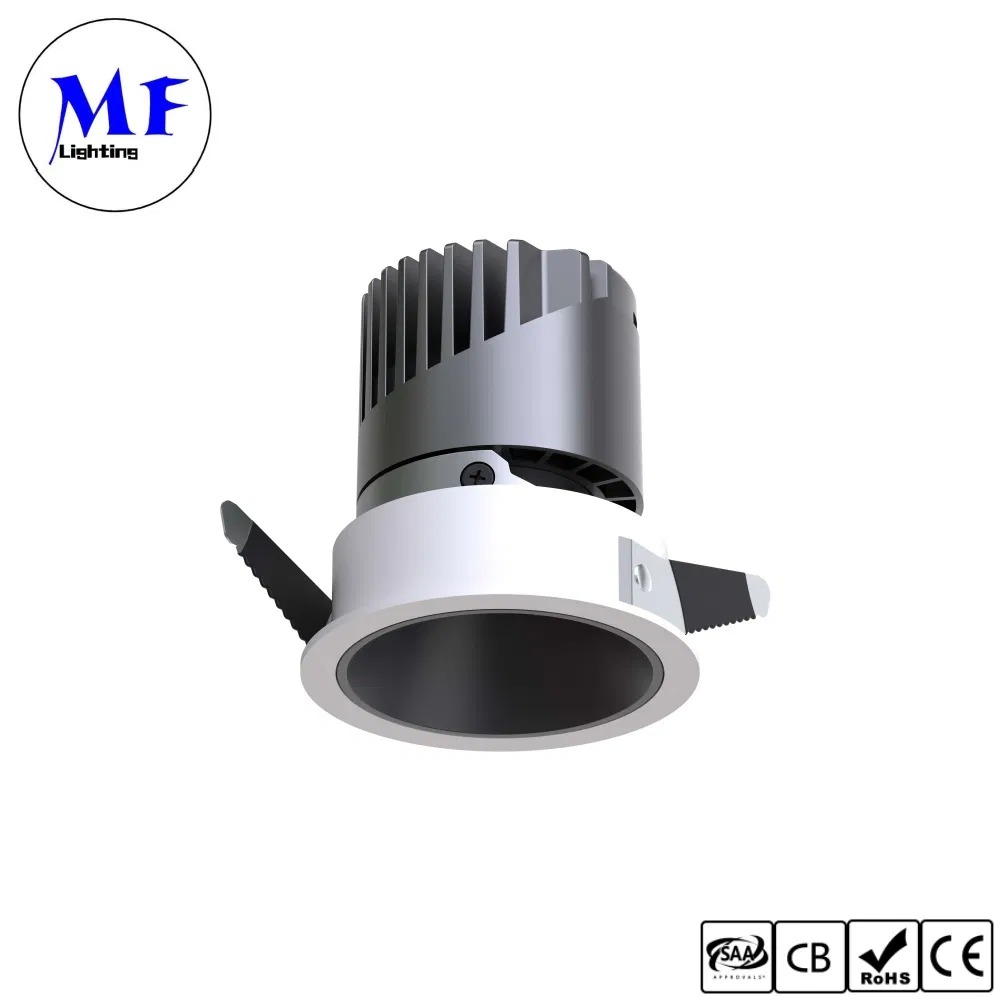

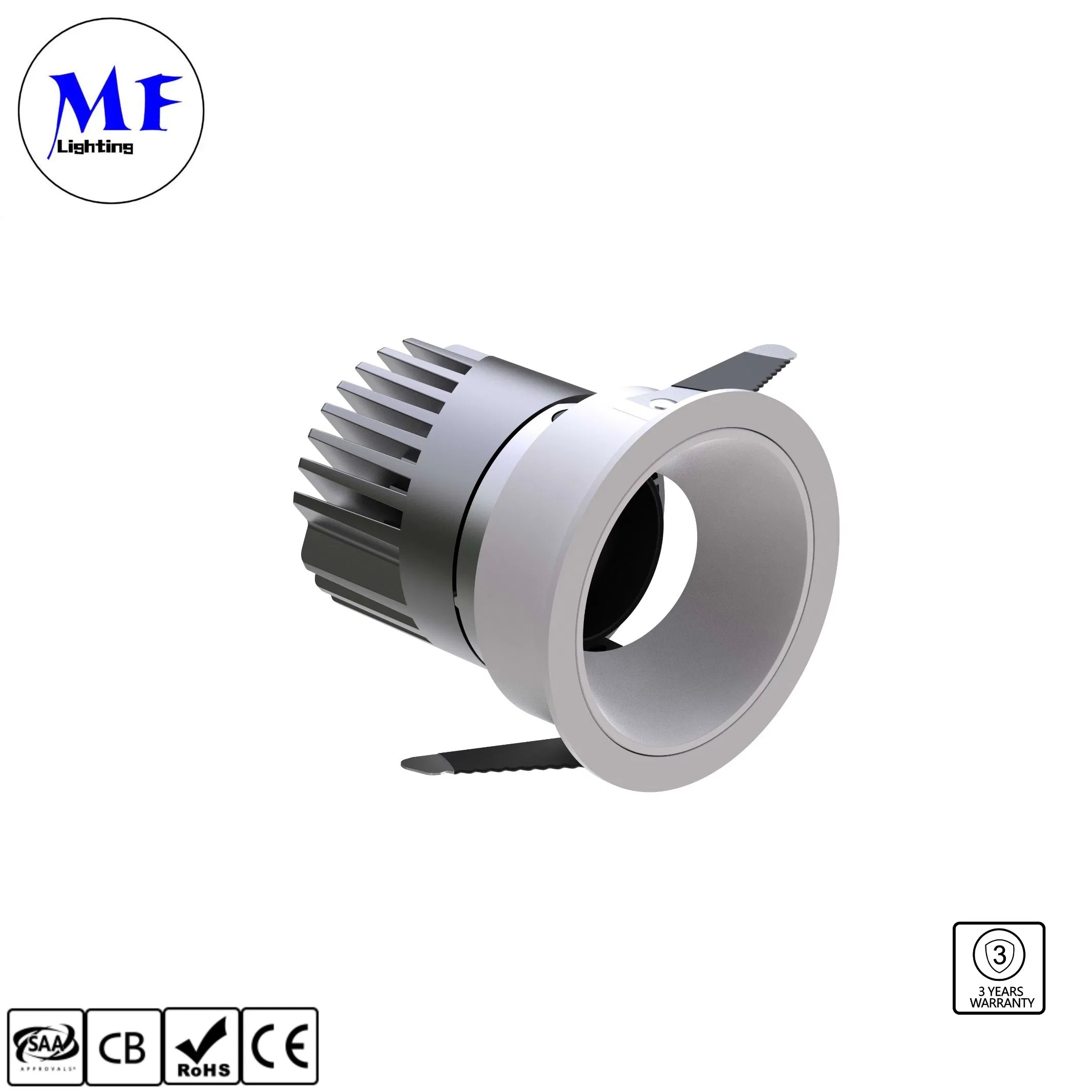

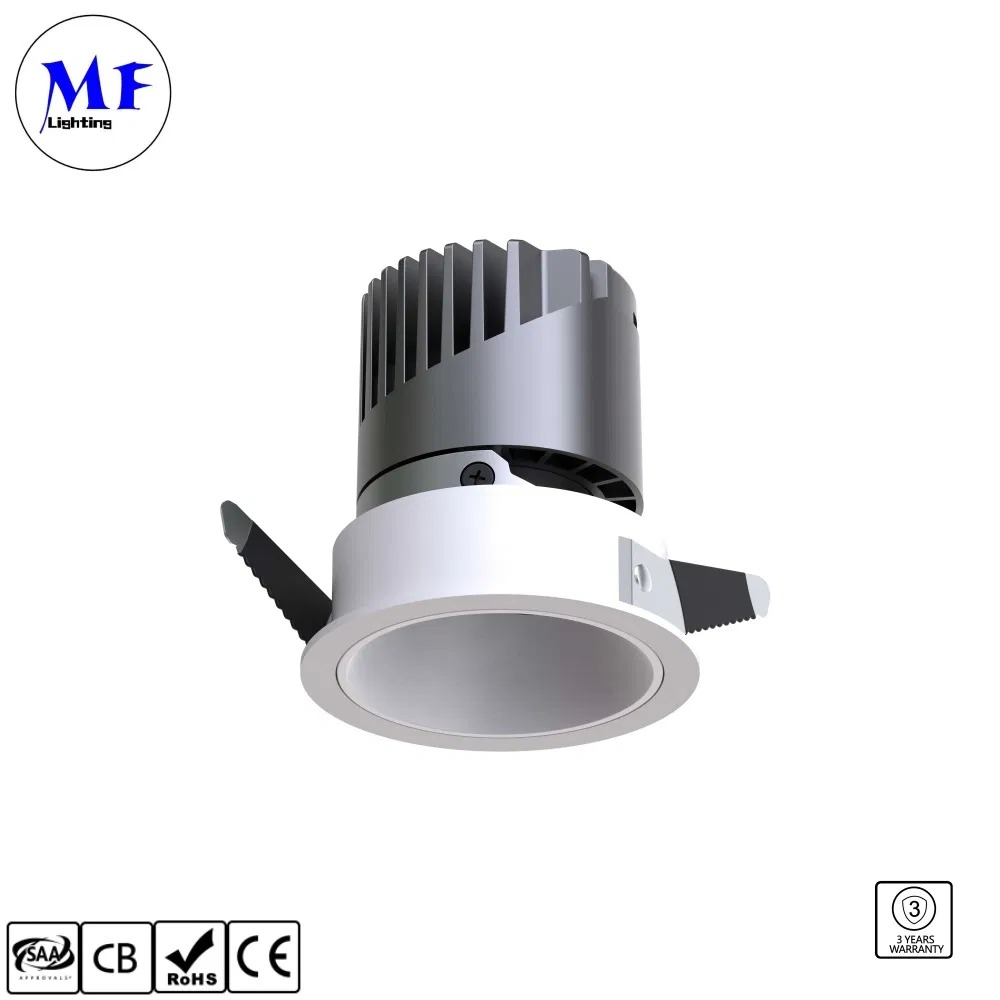

30W Triac /0-10/Dali-2 Dimmable CRI90 100lm/W LED Spot Downlight Beam Angle 8°/15°/24°/38°/55° Optional Recessed Anti-Glare Vspring Clip LED Down Light

Minimum Order Quantity : 1 Price : 19.2
Certification: CCC, CE, RoHS, SAA

Detail Information

Power: 7W/10W/12W/15W/20W/25W/30W Color Temperature: 2700K/3000K/3500K/4000K/5000K/6000K
LED Chip: O.Sram/Brid.Gelux PF: 7-15W≥0.50, 20W≥0.95
Luminous Flux: 100lm/W CRI: Ra80+/Ra90+
Lifespan: ≥50000hrs Beam Angle: 8°/15°/24°/38°/55°
Material: Die-casting Aluminum Operating Temperature: -20℃ ~50℃
Dimmable: Non-Dim/Triac/0-10V/Dali-2 Dimmable As Optional CCT Adjustable: 2700-6000K Tunable As Optional If Need
IP Rating: IP20/IP44 UGR: <19
Input Voltage: 200-240Vac Or 110Vac, 50hz/60hz, DC24V Available
Highlight:

30W Dimmable LED Downlight

,

Triac Dimmable Recessed Downlight

,

CRI90 Anti-Glare LED Spot

Product Description

30W Triac / 0-10V / DALI-2 Dimmable LED Spot Downlight
High-performance recessed LED downlight with CRI90, 100lm/W efficiency, and multiple beam angle options. Ideal for office, hotel, and commercial applications.
MF-HGS10 LED Downlight product overview
Key Features
  • IP20/IP44 Protection: Anti-humid and dustproof design suitable for wet areas like bathrooms
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures 50,000+ hours operation
  • Anti-Glare Design: Deep recessed structure with UGR<19 for eye-friendly lighting
  • Flexible Dimming: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control
  • Wide Color Temperature: Available in 2700K to 6000K with tunable CCT options
  • High Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+)
  • Multiple Colors: Available in Matte White, Matte Silver, Matte Black, Bright Silver, Gun Black, and Rose Gold
LED Downlight close-up view Downlight installation example Downlight beam angle demonstration Multiple downlight colors available Downlight technical details LED Downlight applications Downlight performance features LED Downlight quality construction
Technical Specifications
Parameter Specification
Model MF-HGS10-7W/10W/12W/15W/20W/25W/30W
Input Voltage 200-240Vac or 110Vac, 50Hz/60Hz, DC24V available
Power 7W/10W/12W/15W/20W/25W/30W
Color Temperature 2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable
LED Chip OSRAM/Bridgelux
LED Driver Aohuaweiye/Lifud/BOKE Brand for different dim versions
Power Factor 7-15W≥0.50, 20W≥0.95
Luminous Flux 100LM/W
CRI (Ra) Ra80+/Ra90+
Lifespan ≥50,000 hours
Beam Angle 8°/15°/24°/38°/55°
Material Die-casting Aluminum
Operating Temperature -20°C to 50°C
Dimmable Non-Dim/TRIAC/0-10V/DALI dimmable (optional)
CCT Adjustable 2700-6000K Tunable (optional)
IP Rating IP20/IP44
UGR <19
Certification CE/RoHS (Whole Lamp); CE/RoHS/CB/SAA (Driver)
Warranty 3 years
Dimensions
LED Downlight dimensional drawing
Model Power Cut Out (mm) Dimension (mm) Beam Angle
MF-HGS10 7W 55 65×75 8°/15°/24°/38°/55°
MF-HGS10 10W/12W 75 85×90 8°/15°/24°/38°/55°
MF-HGS10 15W 75 85×100 8°/15°/24°/38°/55°
MF-HGS10 20W/25W 95 105×105 8°/15°/24°/38°/55°
MF-HGS10 30W 120 105×120 8°/15°/24°/38°/55°
Installation Instructions
LED Downlight installation diagram
  1. Drill holes according to the lamp opening size
  2. Connect to 220V household electricity
  3. Lift the buckle upwards and push it forward
  4. Light test, installation completed
Packaging & Shipping
LED Downlight packaging Downlight shipping carton
Power Carton Size (cm) Gross Weight (kg) Pieces per Carton
7W 52×37×24.5 11 50
10W 52×21×52 13.5 50
12W 52×21×52 13.5 50
15W 52×21×52 13.5 50
20W 59.5×36.5×29 14.6 30
25W 59.5×36.5×29 14.6 30
30W 59.5×36.5×29 14.6 30
Applications
MF-HGS10 downlights are designed for recessed installation and suitable for various applications:
  • Bathroom Lighting: Waterproof design suitable for wet areas where moisture resistance is essential
  • Kitchen Lighting: Ideal for kitchens where steam and cooking splashes are common
  • Industrial Settings: Beneficial in environments where dust, moisture, or water exposure can be an issue
  • Retail/Commercial Spaces: Perfect for retail stores, restaurants, and commercial spaces requiring water resistance and durability
LED Downlight application examples
Manufacturer Profile
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology.
Ming Feng Lighting factory facility Ming Feng Lighting production process
Frequently Asked Questions
What products do you sell?
We provide high-quality floodlights, high bay lights, explosion-proof lights, tri-proof lights, downlights, and other lighting products, along with reliable services and after-sales warranty.
Can I have my logo printed on the LED light products?
Yes, we provide ODM and OEM services. Please inform us before production and confirm the design based on our sample.
How do you handle faulty products?
During the guarantee period, we will send replacement lights with new orders for small quantities. For defective batch products, we will repair and resend them or discuss appropriate solutions.
Can I place a sample order for LED lights?
Yes, we welcome sample orders to test and check quality. Both single samples and mixed samples are acceptable.
How long does it take to ship goods after placing an order?
Typically 7 days for samples or small orders, 15 working days for bulk orders, depending on order quantity.
