25W Triac /0-10/Dali-2 Dimmable CRI90 100lm/W LED Spot Downlight Beam Angle Optional 3 Year Warranty Recessed Anti-Glare Spring Clip LED Down Light for Hotel

Minimum Order Quantity : 1 Price : 19.2
Certification: CCC, CE, RoHS, SAA

Detail Information

Input Voltage: 200-240VAC Or 110VAC, 50Hz/60Hz, DC24V Available IP Rating: IP44
Beam Angle: 8°/15°/24°/38°/55° LED Chip: O.Sram/Brid.Gelux
Luminous Flux: 100lm/W Power: 7W/10W/12W/15W/20W/25W/30W
Lifespan: ≥50000hrs Ugr: <19
Lamp Body Material: Die-Casting Aluminum Operating Temperature: -20℃ ~50℃
CRI: Ra80+/Ra90+ PF: 7-15W≥0.50, 20W≥0.95
Color Temperature: 2700K/3000K / 4000K / 5000K /6000K Dimmable: Non-Dim/Triac/0-10V/Dali-2 Dimmable As Optional
CCT Adjustable: 2700-6000K Tunable As Optional If Need
Highlight:

25W Dimmable LED Downlight

,

Triac Dali-2 Recessed Downlight

,

CRI90 Anti-Glare LED Spot

Product Description

25W Triac / 0-10V / DALI-2 Dimmable LED Spot Downlight

High-performance recessed LED downlight featuring CRI90 color rendering, 100lm/W efficiency, and multiple beam angle options. Designed with anti-glare technology and spring clip installation for hotel and commercial applications.

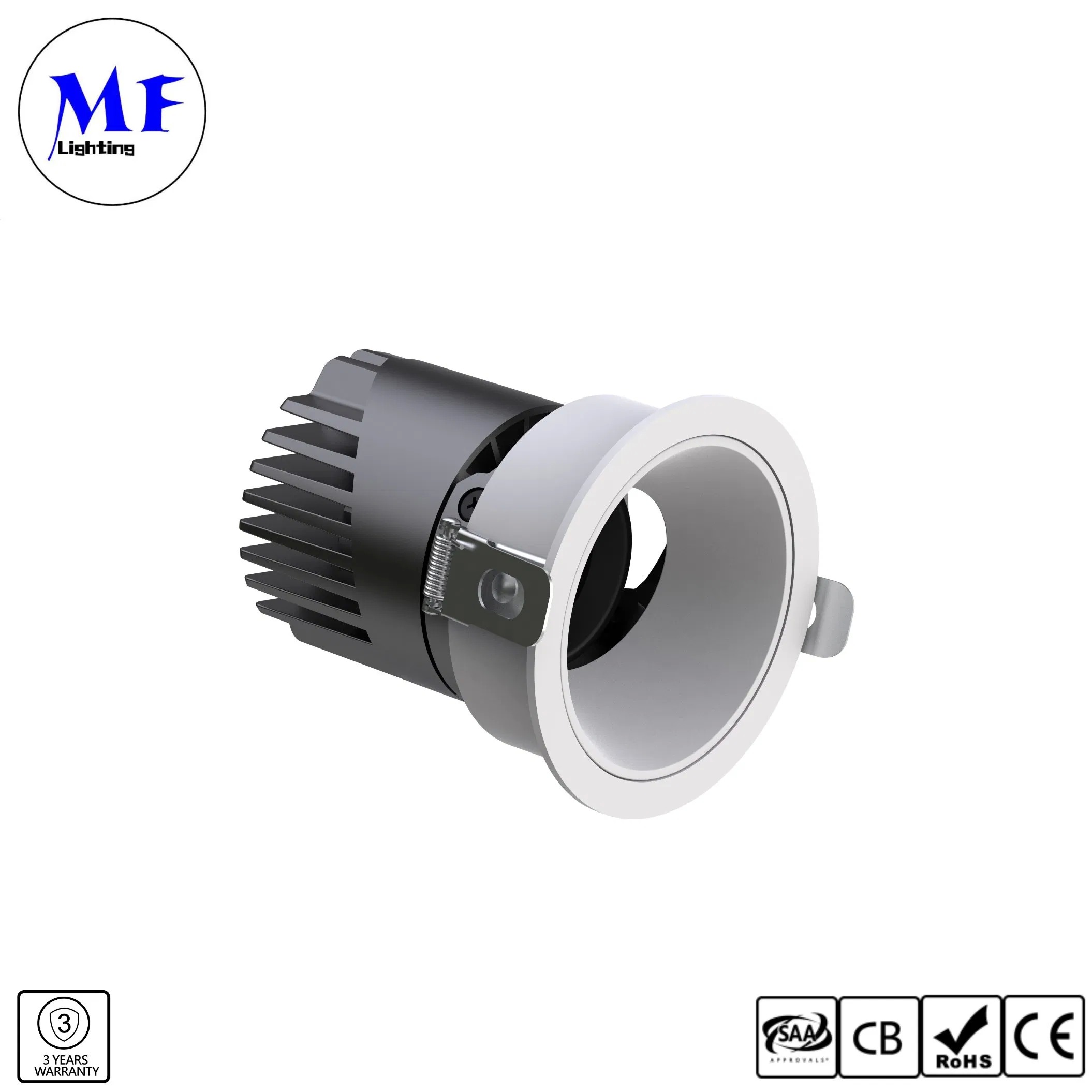

MF-HGS10 LED Downlight product overview showing sleek recessed design
Key Features
  • IP20/IP44 Protection: Anti-humid and dustproof design suitable for wet areas like bathrooms
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures 50,000+ hours operation
  • Anti-Glare Design: Deep recessed structure with UGR<19 for eye-friendly lighting
  • Flexible Dimming: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control
  • Wide Color Temperature: Available from 2700K to 6000K with tunable CCT options
  • High Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+)
  • Multiple Colors: Matte White, Matte Silver, Matte Black, Bright Silver, Gun Black, Rose Gold
Close-up view of downlight showing anti-glare recessed design LED downlight installation in commercial space Multiple housing color options available Detailed view of spring clip mounting mechanism Downlight performance in various lighting conditions Technical components and construction details Quality testing and certification documentation Packaging and shipping preparation
Technical Specifications
Parameter Specification
Model MF-HGS10-7W/10W/12W/15W/20W/25W/30W
Input Voltage 200-240Vac or 110Vac, 50Hz/60Hz, DC24V available
Power 7W/10W/12W/15W/20W/25W/30W
Color Temperature 2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable
LED Chip OSRAM/Bridgelux
LED Driver Aohuaweiye/Lifud/BOKE Brand for different dim versions
Power Factor 7-15W≥0.50, 20W≥0.95
Housing Color White Ring
Reflector Color Matte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold
Luminous Flux 100LM/W
CRI (Ra) Ra80+/Ra90+
Lifespan ≥50,000 hours
Beam Angle 8°/15°/24°/38°/55°
Material Die-casting Aluminum
Operating Temperature -20ºC to 50ºC
Dimmable Non-Dim/TRIAC/0-10V/DALI dimmable (optional)
CCT Adjustable 2700-6000K Tunable (optional)
IP Rating IP20/IP44
UGR < 19
Certification CE/RoHS (Whole Lamp); CE/RoHS/CB/SAA (Driver)
Warranty Period 3 years
Dimensions & Specifications
Detailed dimensional diagram of MF-HGS10 downlight series
Model Power Cut Out (mm) Dimension (mm) Beam Angle
MF-HGS10 7W 55 65×75 8°/15°/24°/38°/55°
MF-HGS10 10W/12W/15W 75 85×95 8°/15°/24°/38°/55°
MF-HGS10 20W/25W 95 105×105 8°/15°/24°/38°/55°
MF-HGS10 30W 95 105×120 8°/15°/24°/38°/55°
Installation Instructions
Step-by-step installation guide for recessed downlight
  1. Drill holes according to the specified lamp opening size
  2. Connect to 220V household electricity supply
  3. Lift the buckle upwards and push it forward to secure
  4. Conduct light test to verify proper installation
Packaging & Shipping
Product packaging design and protection Shipping carton specifications and labeling
Power Carton Size (cm) Gross Weight (kg) Pieces per Carton
7W 52×37×24.5 11 50
10W 52×21×52 13.5 50
12W 52×21×52 13.5 50
15W 52×21×52 13.5 50
20W 59.5×36.5×29 14.6 30
25W 59.5×36.5×29 14.6 30
30W 59.5×36.5×29 14.6 30
Applications

The MF-HGS10 series is designed for recessed installation and suitable for various commercial and residential applications:

  • Bathroom Lighting: Waterproof design ideal for wet areas requiring moisture resistance
  • Kitchen Lighting: Suitable for environments with steam and cooking splashes
  • Industrial Settings: Durable construction for dust, moisture, and water exposure areas
  • Commercial Spaces: Retail stores, restaurants, and hotels requiring water resistance and durability
LED downlight applications in various commercial settings
Manufacturer Profile

Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with our own factory. We specialize in the design, production, and distribution of high-quality LED lighting products. With years of industry experience, we have established a reputation for excellence and innovation in LED lighting technology.

Our skilled professional team is dedicated to providing customers with superior LED lighting products and services. We pride ourselves on our commitment to quality and customer satisfaction for both residential and commercial lighting solutions.

Ming Feng Lighting manufacturing facility and production line Quality control and testing processes at Ming Feng Lighting
Frequently Asked Questions
What products do you sell?
We provide high-quality floodlights, high bay lights, explosion-proof lights, tri-proof lights, downlights, and other lighting products, along with reliable services and comprehensive after-sales warranty.
Can I have my logo printed on the LED light products?
Yes, we provide ODM and OEM services. Please inform us formally before production and confirm the design based on our sample first.
How do you handle faulty products?
During the guarantee period, we will send new lights with new orders for small quantities. For defective batch products, we will repair and resend them, or discuss appropriate solutions based on the specific situation.
Can I place a sample order for LED lights?
Yes, we welcome sample orders for quality testing and verification. Both single samples and mixed samples are acceptable.
What is the shipping time after placing an order?
Typically 7 days for samples or small orders, 15 working days for bulk orders. Exact timing may vary depending on order quantity.
