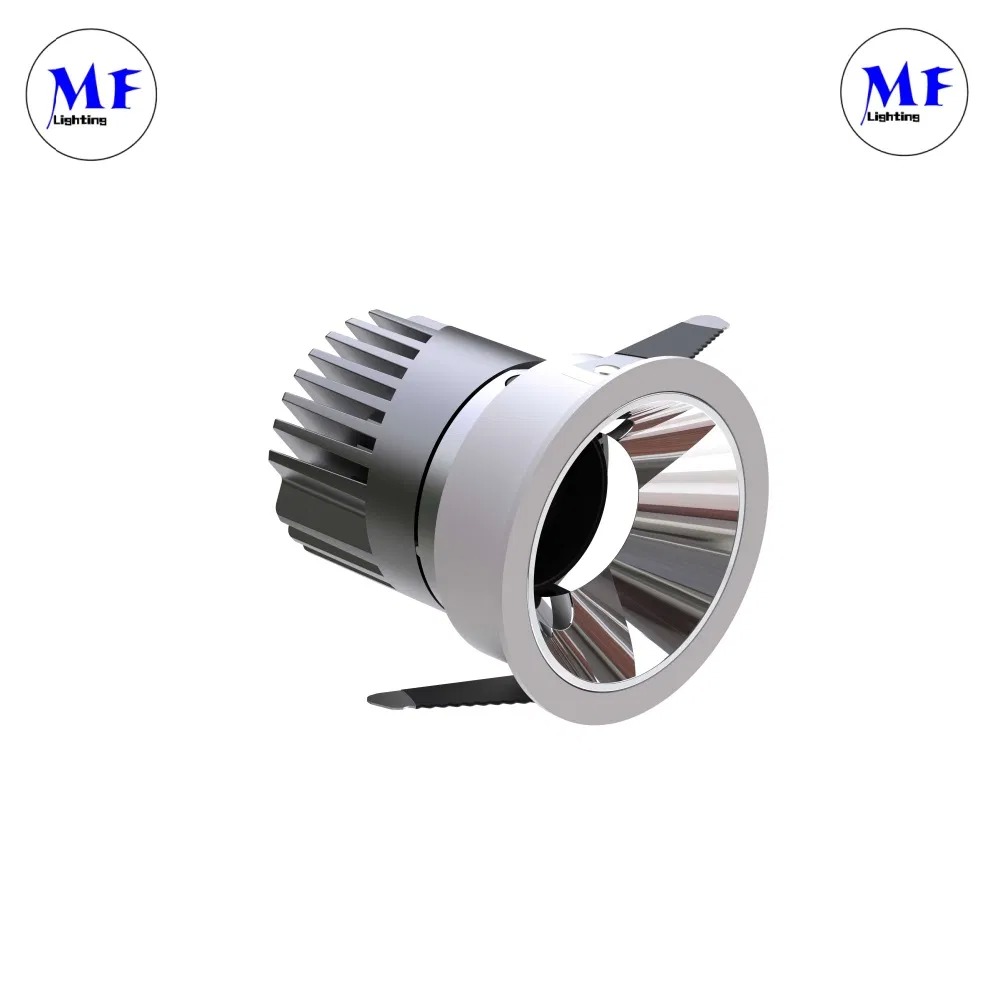

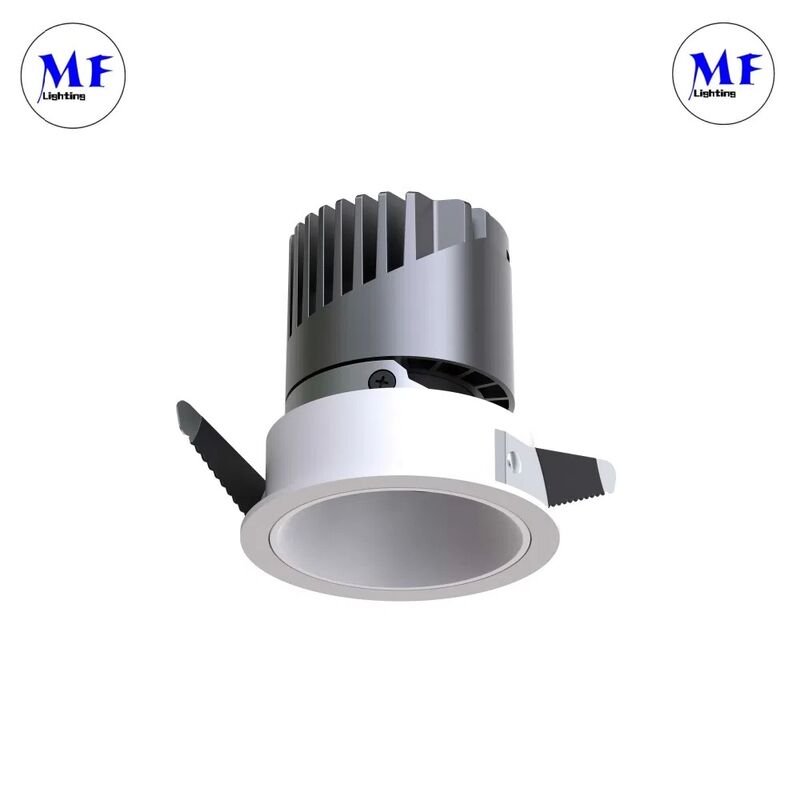

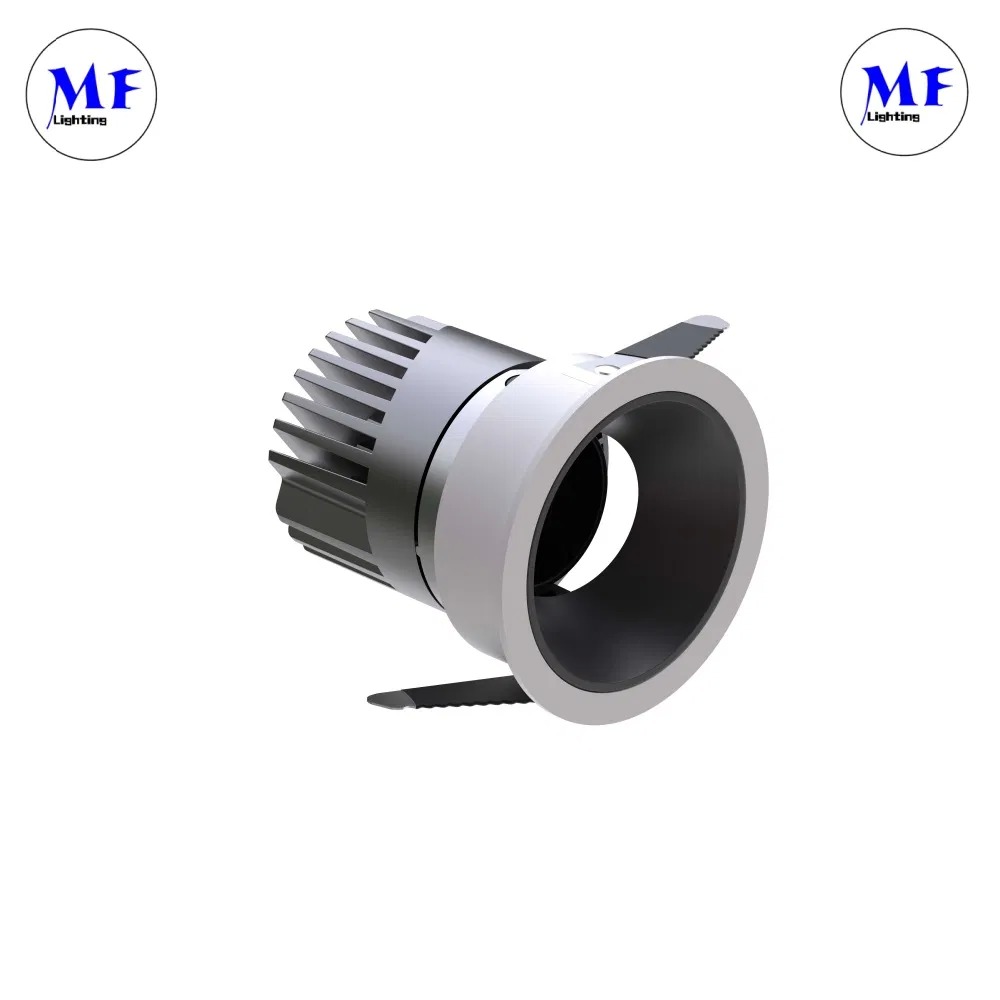

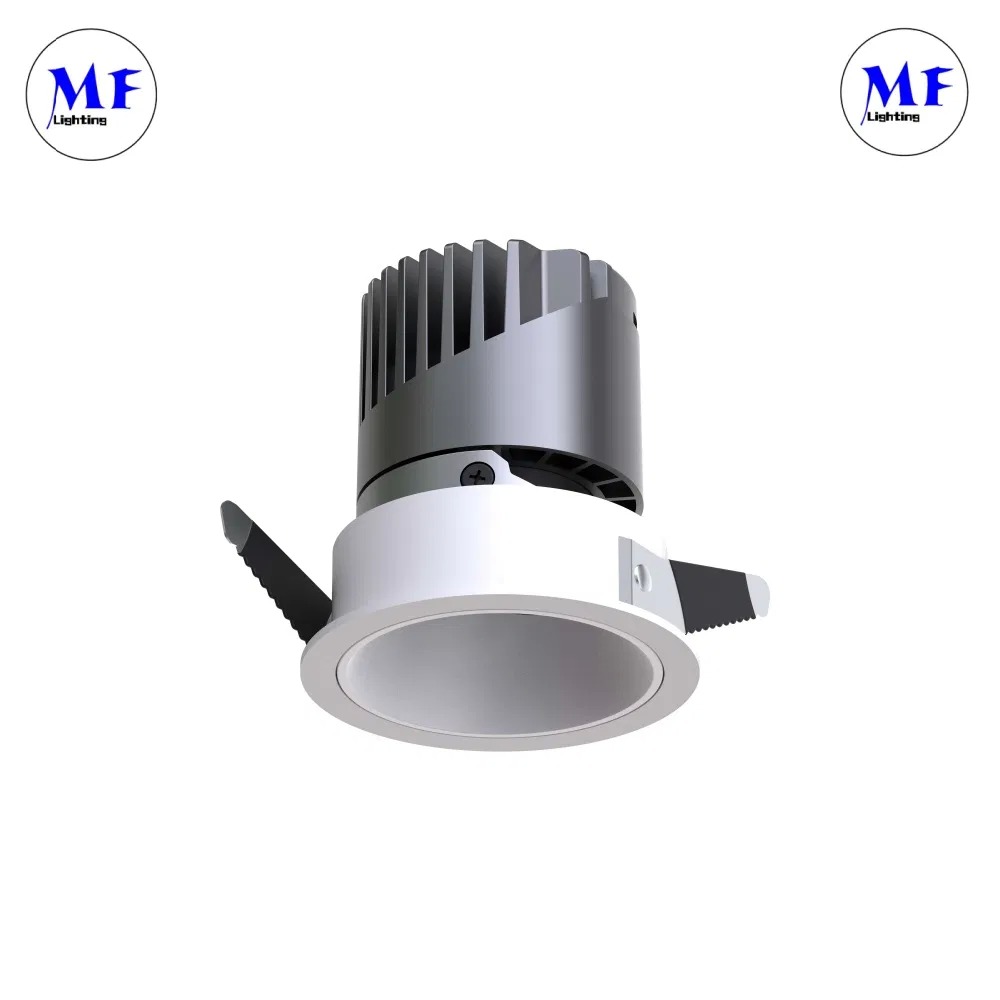

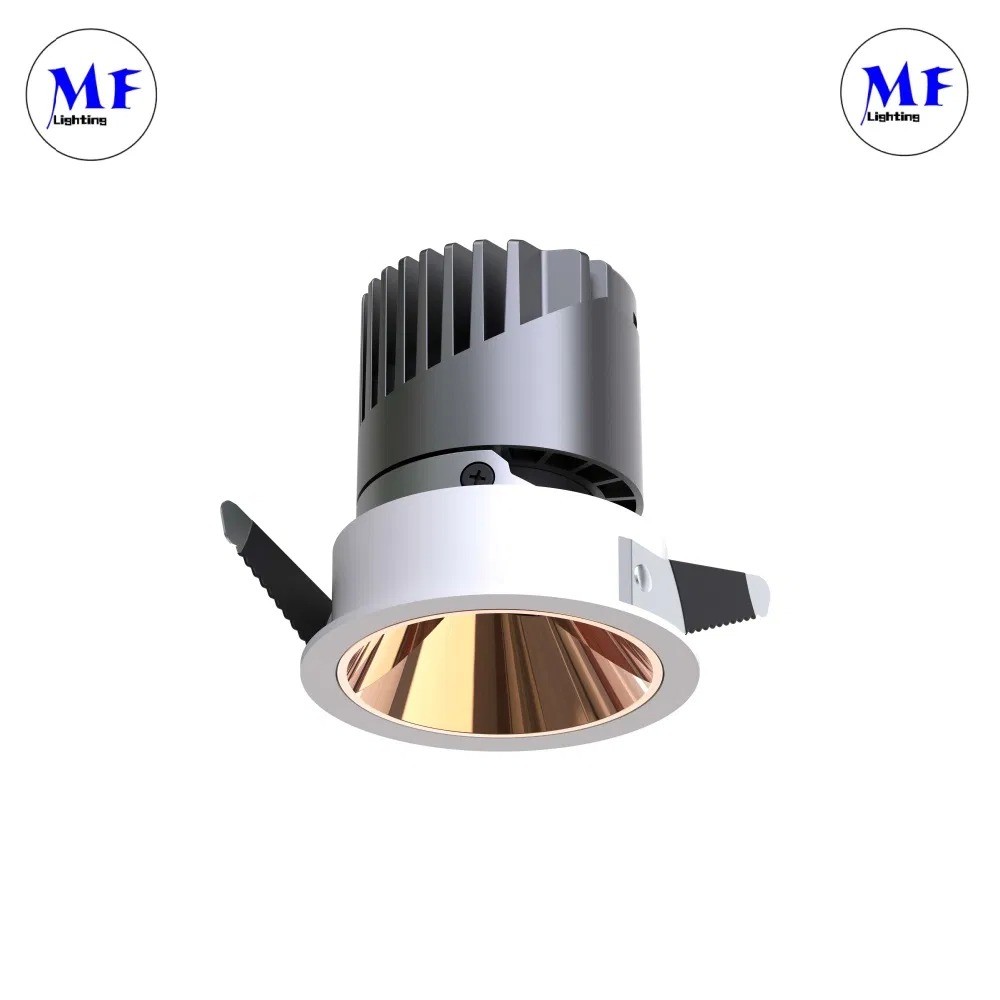

Factory Price V Spring Clip Ra80+ 3 Years 7W/10W/12W/15W/20W/25W/30W LED Spot Light LED Down Light Recessed Down Light for Bathroom Kitchen

Contact Now

Factory Price V Spring Clip Ra80+ 3 Years 7W/10W/12W/15W/20W/25W/30W LED Spot Light LED Down Light Recessed Down Light for Bathroom Kitchen

Minimum Order Quantity :	1	Price :	7.4

Certification:	CCC, CE, RoHS, SAA

Detail Information
Lamp Body Material:	Die-Casting Aluminum	Dimmable:	Non-Dim/Triac/0-10V/Dali-2 Dimmable As Options
Power:	7W/10W/12W/15W/20W/25W/30W	PF:	7-15W≥0.50, 20W≥0.95
LED Chip:	O-Sram/Brid-Gelux	Specification:	40.516.543CM
Lifespan:	≥50000hrs	CCT Adjustable:	2700-6000K Tunable As Optional If Need
Operating Temperature:	-20 0c ~50 0c	Color Temperature:	2700K/3000K /3500K/ 4000K / 5000K /6000K
CRI(Ra):	Ra80+/Ra90+	Ugr:	<19
IP Rating:	IP20/IP44	Luminous Flux:	100lm/W
Beam Angle:	8°/15°/24°/38°/55°
Highlight:	V Spring Clip LED down light , Recessed LED spot light for bathroom , 7W to 30W LED down light

Product Description

Product Overview

Factory Price V Spring Clip LED Spot Light with Ra80+ color rendering, 3-year warranty, and multiple wattage options (7W/10W/12W/15W/20W/25W/30W). Ideal recessed down lighting solution for bathrooms, kitchens, and various commercial applications.

Product Specifications

Model	MF-HGS10-7W/10W/12W/15W/20W/25W/30W
Input Voltage	100-277Vac or 200-240Vac, 50hz/60hz, DC24V available
Power	7W/10W/12W/15W/20W/25W/30W
Color Temperature	2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable
LED Chip	O-SRAM/Bridgelux
LED Driver	Aohua/Weiye/Lifud/BOKE Brand for different dim versions
Power Factor	7-15W≥0.50, 20W≥0.95
Housing Color	White Ring
Luminous Flux	100-110LM/W
CRI (Ra)	Ra80+/Ra90+
Lifespan	≥50000 hours
Beam Angle	8°/15°/24°/38°/55°
Material	Die-casting Aluminum
Operating Temperature	-20°C ~50°C
Dimmable	Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable	2700-6000K Tunable as optional
IP Rating	IP44
UGR	< 19
Certification	CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty Period	3 years

Product Details

Key Features

Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.
Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices.
Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP.
Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes.
High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.

Installation Instructions

Easy Spring Clip Installation

Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
Connect the Wires: Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
Insert into the Ceiling: Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
Lower the Spring Clips: After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.

Product Dimensions

Product Applications

MF-HGS21-TR are designed for recessed installation and are suitable for various applications that require waterproof lighting solutions.

Outdoor Lighting: Outdoor walkways, gardens, or building exteriors
Bathroom Lighting: Wet areas where moisture resistance is essential
Kitchen Lighting: Areas with steam and cooking splashes
Swimming Pool Areas: Pool houses and surrounding areas where water resistance is crucial
Spa or Wellness Areas: Environments with high humidity and moisture
Industrial Settings: Environments where dust, moisture, or water exposure can be an issue
Retail or Commercial Spaces: Stores, restaurants, or commercial spaces where water resistance and durability are needed
