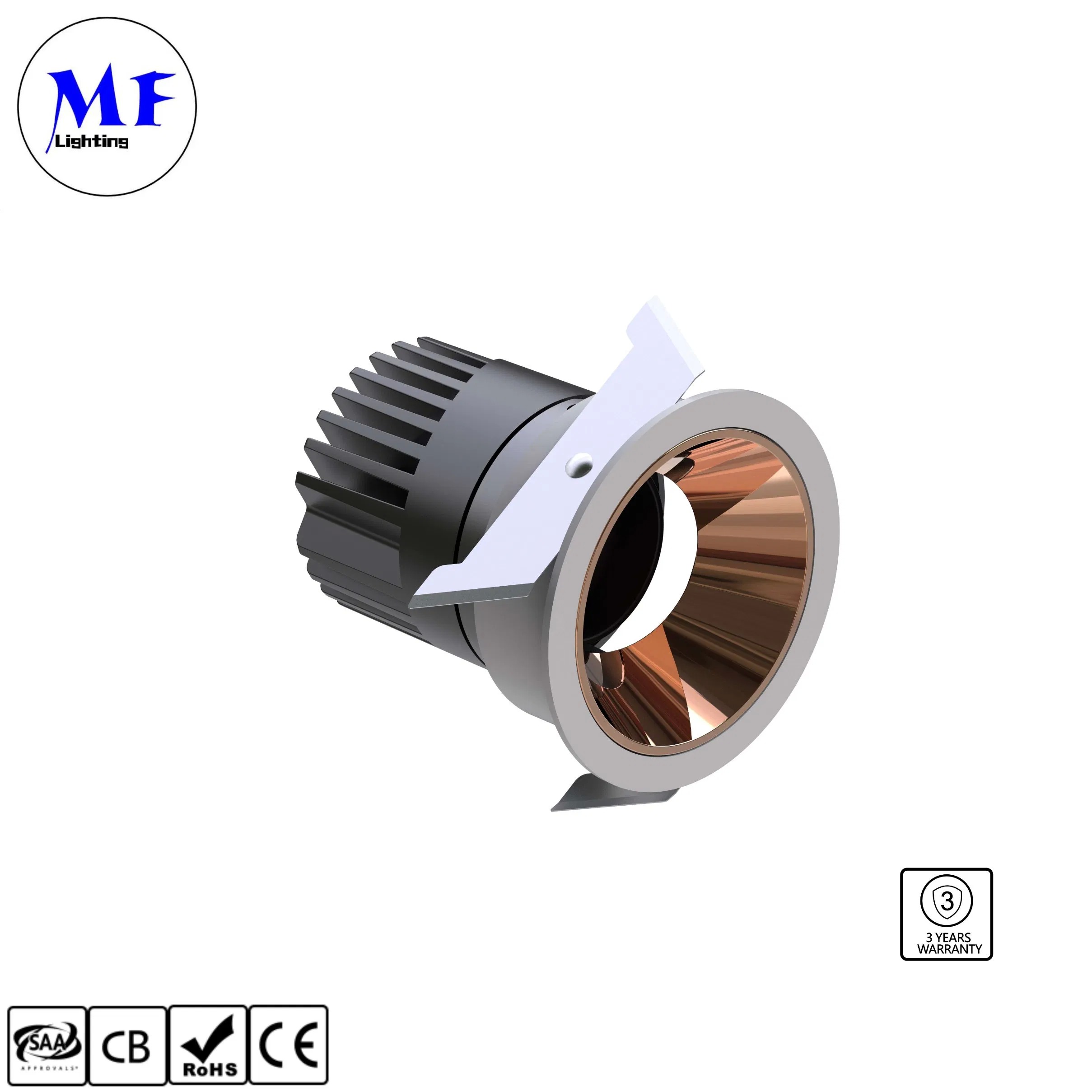

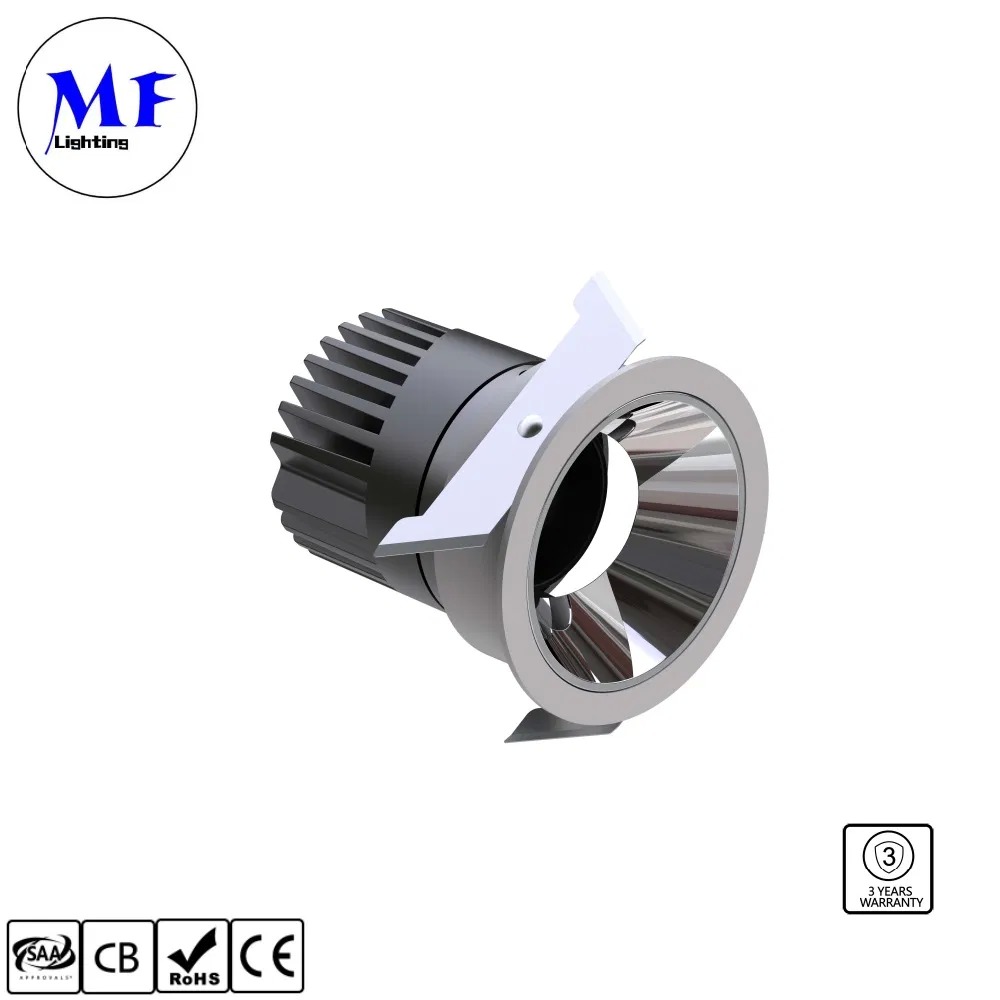

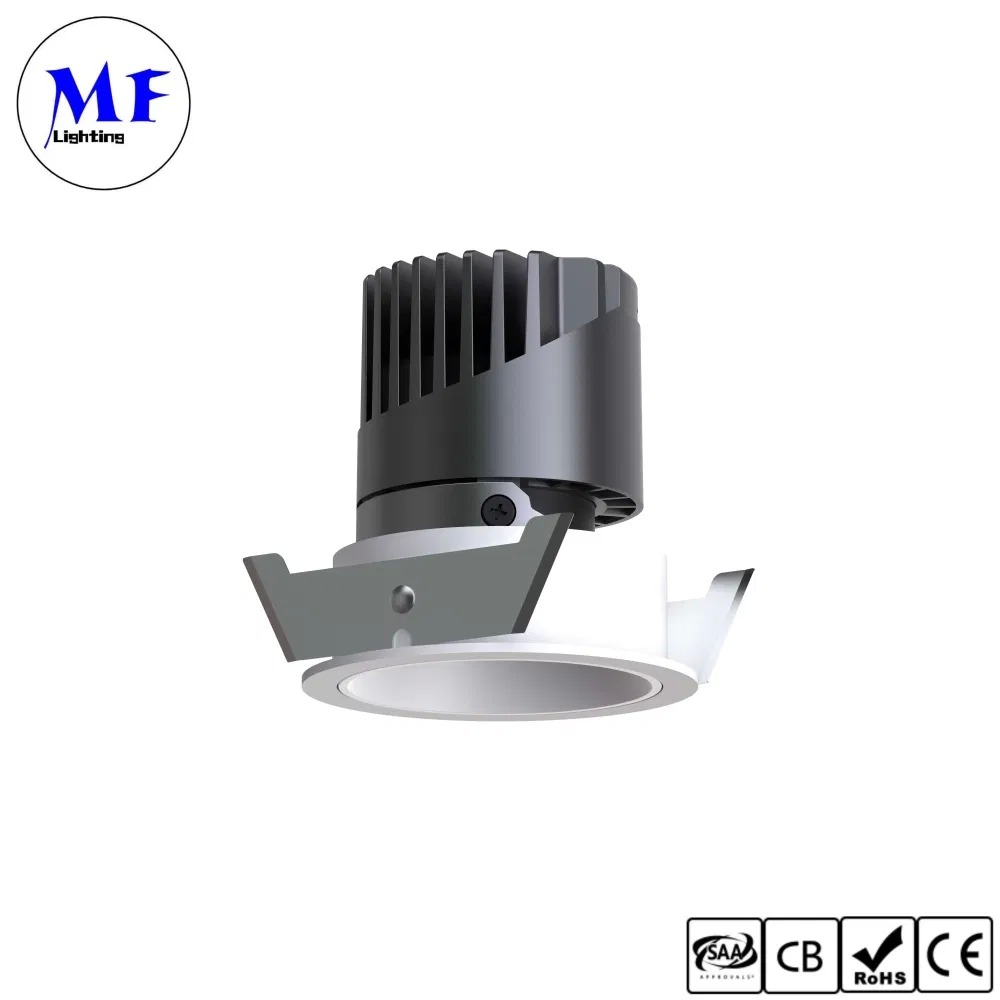

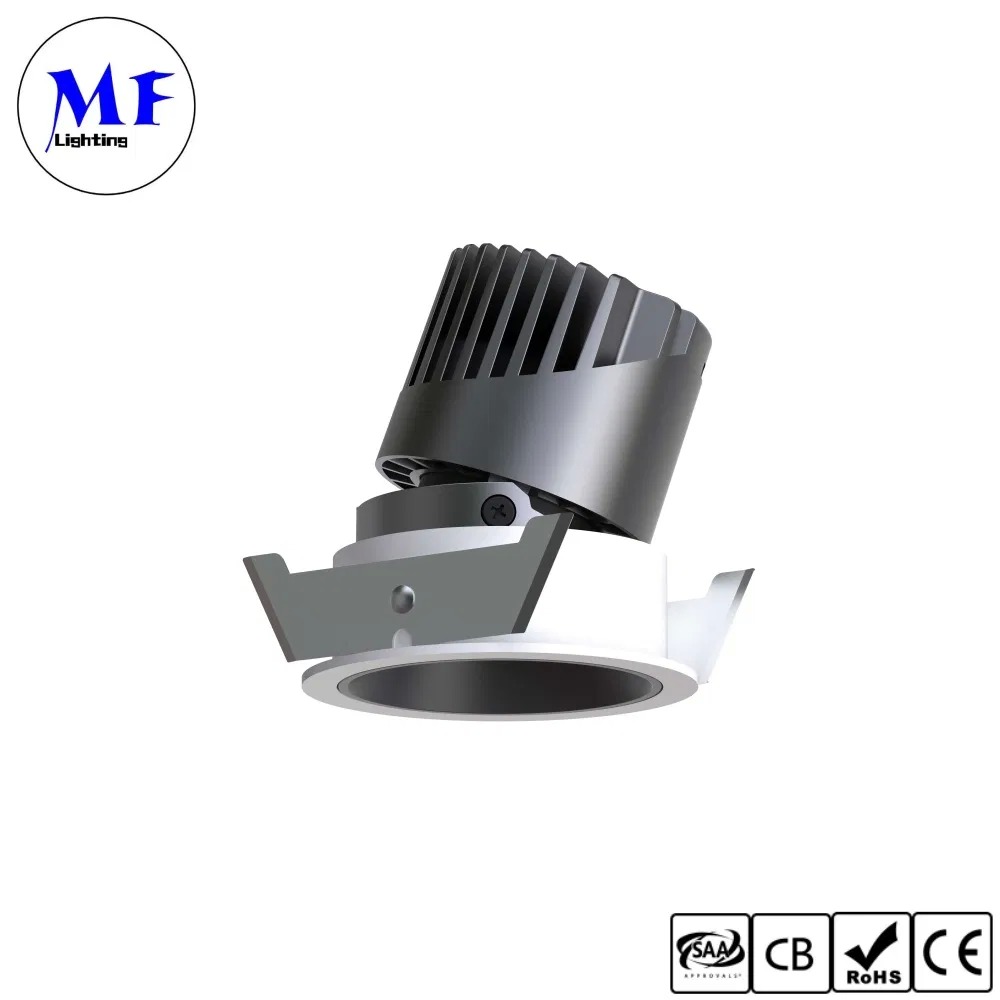

7W Triac /0-10/Dali-2 Dimmable Beam Angle Optional LED Spot Downlight CRI90 100lm/W 3 Year Warranty Recessed Anti-Glare Spring Clip LED Down Light for Hotel

Minimum Order Quantity : 1 Price : 6.6
Certification: CCC, CE, RoHS, SAA

Detail Information

LED Chip: O.Sram/Brid.Gelux Input Voltage: 200-240VAC Or 110VAC, 50Hz/60Hz, DC24V Available
Power: 7W/10W/12W/15W/20W/25W/30W Color Temperature: 2700K/3000K / 4000K / 5000K /6000K
Ugr: <19 PF: 7-15W≥0.50, 20W≥0.95
CRI: Ra80+/Ra90+ Luminous Flux: 100lm/W
Beam Angle: 8°/15°/24°/38°/55° Operating Temperature: -20℃ ~50℃
CCT Adjustable: 2700-6000K Tunable As Optional If Need IP Rating: IP44
Lifespan: ≥50000hrs Lamp Body Material: Die-Casting Aluminum
Cut Out: 55/75/95 MM
Highlight:

Dimmable LED downlight with 3 year warranty

,

Triac Dali-2 recessed LED spot

,

Anti-glare spring clip downlight CRI90

Product Description

7W Triac / 0-10V / DALI-2 Dimmable LED Spot Downlight

High-performance recessed LED downlight with optional beam angles, CRI90 color rendering, 100lm/W efficiency, and 3-year warranty. Features anti-glare design and spring clip installation for hotel and commercial applications.

MF-HGS10 LED Downlight product overview
Product Features
  • IP20/IP44 Protection: Anti-humid and dustproof design suitable for wet areas like bathrooms
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures 50,000+ hours operation
  • Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting
  • Flexible Dimming: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control
  • Wide Color Temperature: Available from 2700K to 6000K with tunable CCT options
  • High Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+)
  • Multiple Colors: Matte White, Matte Silver, Matte Black, Bright Silver, Gun Black, Rose Gold
LED Downlight close-up view Downlight installation example Downlight beam angle demonstration LED chip technology Heat sink design Anti-glare feature Color temperature options Multiple housing colors
Technical Specifications
ParameterSpecification
ModelMF-HGS10-7W/10W/12W/15W/20W/25W/30W
Input Voltage200-240Vac or 110Vac, 50Hz/60Hz, DC24V available
Power7W/10W/12W/15W/20W/25W/30W
Color Temperature2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable
LED ChipOSRAM/Bridgelux
LED DriverAohuaweiye/Lifud/BOKE Brand for different dim versions
Power Factor7-15W≥0.50, 20W≥0.95
Housing ColorWhite Ring
Reflector ColorMatte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold
Luminous Flux100 LM/W
CRI (Ra)Ra80+/Ra90+
Lifespan≥50,000 hours
Beam Angle8°/15°/24°/38°/55°
MaterialDie-casting Aluminum
Operating Temperature-20°C to 50°C
DimmableNon-Dim/TRIAC/0-10V/DALI dimmable (optional)
CCT Adjustable2700-6000K Tunable (optional)
IP RatingIP20/IP44
UGR< 19
CertificationCE/RoHS (Whole Lamp); CE/RoHS/CB/SAA (Driver)
Warranty3 years
Dimensions & Specifications
LED Downlight dimensions diagram
ModelPowerCut Out (mm)Dimension (mm)Beam Angle
MF-HGS107W5565×758°/15°/24°/38°/55°
MF-HGS1010W/12W7585×908°/15°/24°/38°/55°
MF-HGS1015W7585×1008°/15°/24°/38°/55°
MF-HGS1020W/25W95105×1058°/15°/24°/38°/55°
MF-HGS1030W95105×1208°/15°/24°/38°/55°
Installation Guide
LED Downlight installation steps
  1. Drill holes according to the lamp opening size
  2. Connect to 220V household electricity
  3. Lift the buckle upwards and push it forward
  4. Test lighting, installation completed
Packaging & Shipping
LED Downlight packaging Shipping carton details
PowerCarton Size (cm)Gross Weight (kg)Pieces/Carton
7W52×37×24.51150
10W52×21×5213.550
12W52×21×5213.550
15W52×21×5213.550
20W59.5×36.5×2914.630
25W59.5×36.5×2914.630
30W59.5×36.5×2914.630
Applications

MF-HGS10 downlights are designed for recessed installation and suitable for various applications:

  • Bathroom Lighting: Waterproof design for wet areas where moisture resistance is essential
  • Kitchen Lighting: Suitable for spaces with steam and cooking splashes
  • Industrial Settings: Beneficial in environments with dust, moisture, or water exposure
  • Commercial Spaces: Ideal for retail stores, restaurants, and commercial buildings
LED Downlight application examples
Manufacturer Profile

Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. We specialize in the design, production, and distribution of high-quality LED lighting products. With years of industry experience, we have established a reputation for excellence and innovation in LED lighting technology.

Ming Feng Lighting factory facility Ming Feng Lighting production line
Frequently Asked Questions
Q1: What products do you sell?
A1: We provide high-quality floodlights, high bay lights, explosion-proof lights, tri-proof lights, downlights, and other lighting products with reliable after-sales warranty.
Q2: Can I print my logo on the LED light products?
A2: Yes, we provide ODM and OEM services. Please inform us before production and confirm the design based on our sample.
Q3: How do you handle faulty products?
A3: During the guarantee period, we will send replacement lights with new orders for small quantities. For defective batch products, we will repair and resend them or discuss appropriate solutions.
Q4: Can I place a sample order for LED lights?
A4: Yes, we welcome sample orders to test and check quality. Both single samples and mixed samples are acceptable.
Q5: How long does shipping take after placing an order?
A5: Usually 7 days for samples or small orders, 15 working days for bulk orders, depending on order quantity.
