Factory Price Dimmable 3W 5W 7W 10W 12W 15W Various Metallic Color Reflector Bathroom Frameless Recessed Anti-Glare Spot LED Down Light

Minimum Order Quantity : 1 Price : 4.2
Certification: CCC, CE, FCC, RoHS, SAA

Detail Information

Lifespan: ≥50000hrs Power: 3W/5W/7W/10W/12W/15W
Ugr: <19 IP Rating: IP44
PF: 5-15W≥0.50, 20-80W≥0.95 CRI: Ra80+/Ra90+
Operating Temperature: -20 ~50℃ LED Chip: Osr-Am/ Bridgelux/XPE
Dimmable: Non-Dim/Triac/0-10V/Dali Dimmable As Optional Color Temperature: 2700-6000K Tunable As Optional
Luminous Flux: 100-110lm/W Input Voltage: 100Vac/200-240Vac, 50hz/60hz
Beam Angle: 15°, 24°, 36° Material: Die-casting Aluminum
Housing Colour: White/Black
Highlight:

dimmable LED down light

,

metallic reflector recessed light

,

anti-glare bathroom spot light

Product Description

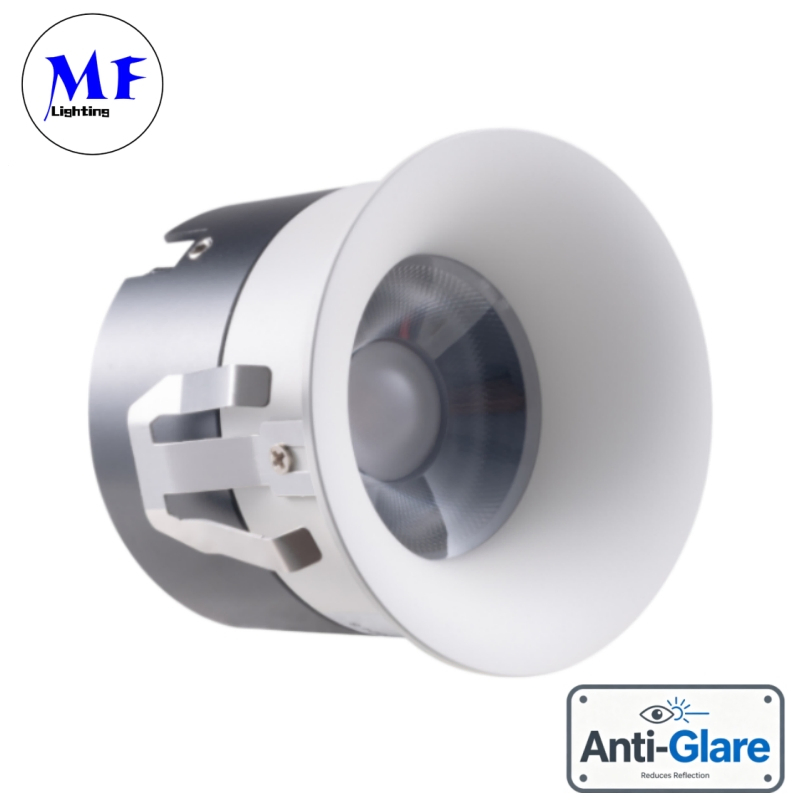

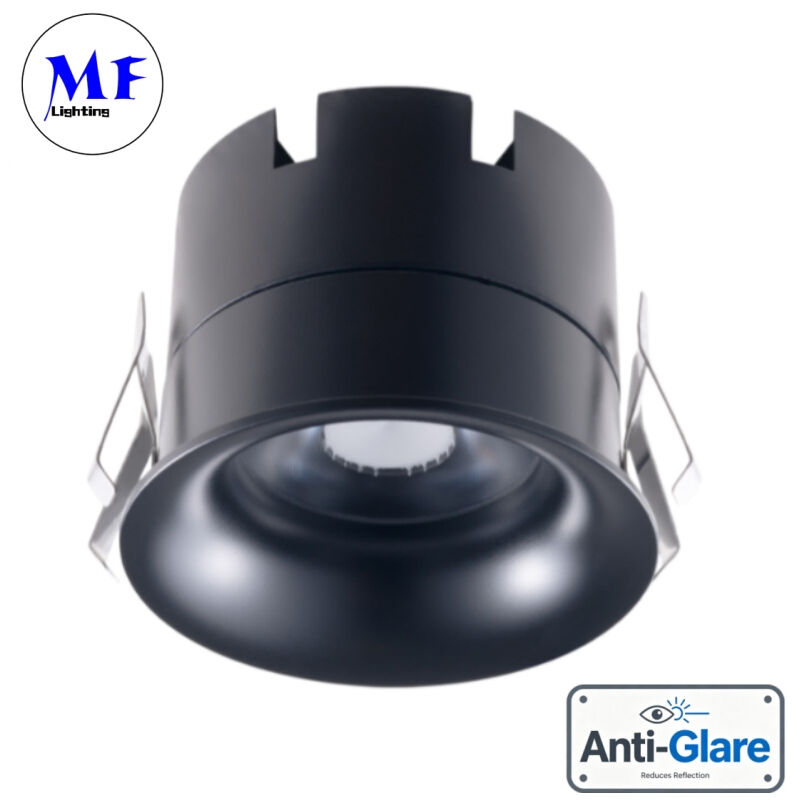

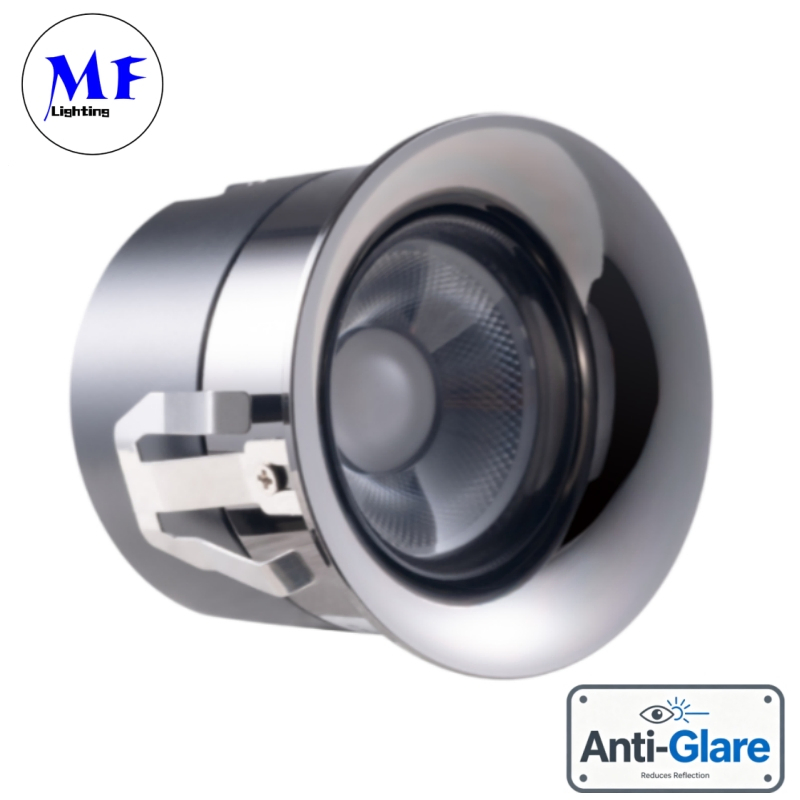

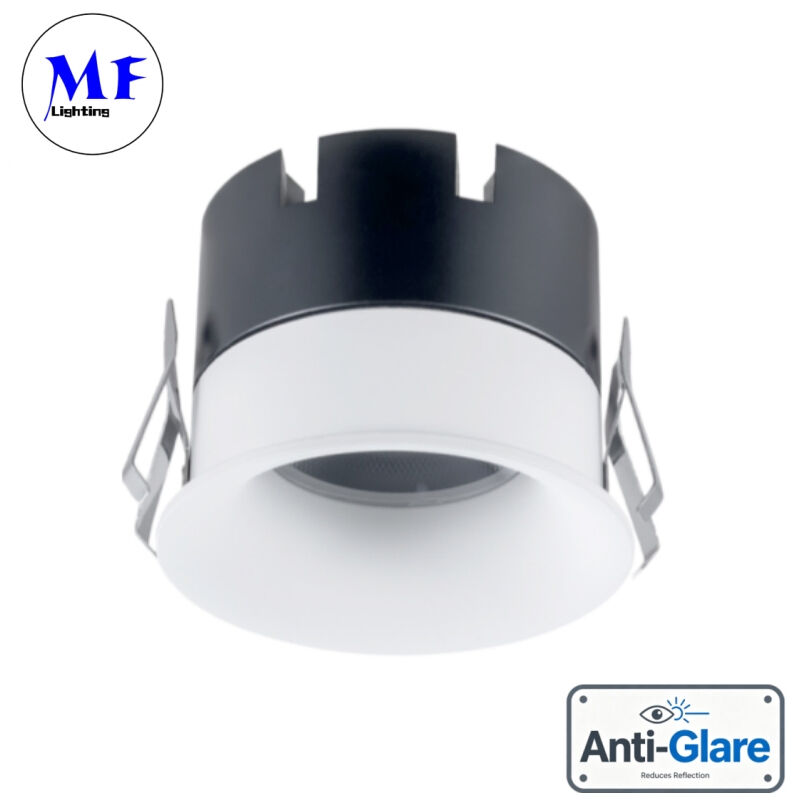

Factory Price Dimmable LED Down Light
Professional recessed anti-glare spot LED down light available in 3W, 5W, 7W, 10W, 12W, and 15W configurations with various metallic color reflector options.
Dimmable LED Down Light product overview
Key Features
  • IP20/IP44 Protection: Anti-humid and dustproof design suitable for wet areas like bathrooms
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000+ hours
  • Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting
  • Flexible Dimming: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control
  • Wide Color Temperature: Available from 2700K to 6000K with tunable CCT options
  • High Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+)
  • Multiple Colors: Available in Matte White, Matte Silver, Matte Black, Bright Silver, Gun Black, and Rose Gold
LED Down Light close-up viewLED Down Light installation exampleLED Down Light color optionsLED Down Light technical details
Technical Specifications
ParameterSpecification
Input Voltage100Vac/200-240Vac, 50hz/60hz
Power (Watt)3W/5W/7W/10W/12W/15W
Color Temperature2700K/3000K/4000K/5000K/6000K
LED ChipOS-RAM/Bridgelux/XPE
LED DriverLifud/BOKE/Tridonic/Novbo (optional)
Power Factor5-15W≥0.50, 20-80W≥0.95
Housing ColorWhite/Black
Luminous Flux100-110 LM/W
CRI (Ra)Ra80+/Ra90+
Lifespan≥50,000 hours
Beam Angle15°, 24°, 36°
MaterialDie-casting Aluminum
Operating Temperature-20°C to 50°C
DimmableNon-Dim/Triac/0-10V/Dali (optional)
CCT Adjustable2700-6000K Tunable (optional)
IP RatingIP44
UGR< 19
CertificationCE/RoHS (Whole Lamp); CE/RoHS/CB/SAA (Driver)
Warranty Period3 years
Dimensions
LED Down Light dimensional drawingLED Down Light size specifications
Applications
MF-HGS13 Series Applications
Designed for recessed installation and suitable for various applications:
  • Bathroom Lighting: Waterproof design ideal for bathrooms and wet areas
  • Kitchen Lighting: Resistant to steam and cooking splashes
  • Industrial Settings: Suitable for environments with dust and moisture exposure
  • Commercial Spaces: Ideal for retail stores, restaurants, and commercial buildings
LED Down Light application examples
Installation Instructions
LED Down Light installation diagram
Easy Spring Clip Installation
  1. Ceiling Hole Cutting: Cut hole in ceiling according to luminaire size
  2. Connect Wires: Connect wires to terminals (professional electrician recommended)
  3. Insert into Ceiling: Align spring clips vertically and insert into ceiling hole
  4. Lower Spring Clips: Confirm proper fit and wiring, then lower clips and power on
Packaging & Shipping
LED Down Light packagingLED Down Light shipping carton
PowerCarton Size (cm)Gross Weight (KG)Pieces per Carton
3W49.5×32×2616100
5W49.5×32×2617100
7W49.5×32×2615100
10W47×22×321650
12W47×22×321750
12W52×21×39.51850
15W52×21×39.51950
LED Down Light packaging detailsLED Down Light shipping preparation
Manufacturer Profile
Mingfeng Lighting factory facilityMingfeng Lighting manufacturing process
Professional LED lighting manufacturer with 16 years of experience specializing in industrial and commercial lighting solutions.
Frequently Asked Questions
Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience. Our products include IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamps, and LED underground lights.
What is your main product?
Our main products include:
  • LED Triproof lights / LED Vapor Tight Lights
  • LED High Bay Lights
  • LED Flood lights
  • LED Explosion Proof Lights
  • LED Down Lights
  • LED underwater lights (swimming pool, fountain, underwater spotlights)
  • LED garden spot/spike lights
  • LED inground lights
What is the minimum order quantity (MOQ)?
For customized models, samples should be prepaid. We offer free customized models if the order quantity exceeds 1000 pieces.
What are the payment options?
We accept T/T, Western Union, PayPal. Payment terms: 50% advanced payment, 50% balance payment. Shipping terms: EXW, FOB, CIF, CNF, and DDP.
What is the delivery time?
Samples: 5-7 working days. Mass production: 20-30 working days (depending on quantity).
How are the products packaged?
Each piece is packed in an individual color box and then placed in a strong master carton.
Why should you choose us?
  • OEM/ODM services available
  • Professional design team
  • High-quality products at reasonable prices
  • No MOQ requirement
  • 12+ years experience in underwater lighting
