Factory Price Dimmable Spring Clip 20W 25W 30W Various Metallic Color Reflector Bathroom Frameless Recessed Anti-Glare Spot LED Down Light

Minimum Order Quantity : 1 Price : 6.6
Certification: CCC, CE, FCC, RoHS, SAA

Detail Information

Lifespan: ≥50000hrs Color Temperature: 2700-6000K Tunable As Optional
Luminous Flux: 100lm/W IP Rating: IP44
Power: 7W/10W/12W/15W/20W/25W/30W PF: 7-15W≥0.50, 20W≥0.95
Reflector Color: Matte White/Matte Silver/Matte Black/Bright Sliver Ugr: <19
Lamp Body Material: Die-Casting Aluminum Operating Temperature: -20 ~50℃
CRI: Ra80+/Ra90+ LED Chip: Osr-Am/ Bridgelux/XPE
Housing Colour: White Ring Dimmable: Non-Dim/Triac/0-10V/Dali Dimmable As Optional
Beam Angle: 8°/15°/24°/38°/55°
Highlight:

dimmable frameless LED down light

,

anti-glare recessed spot LED light

,

metallic color reflector bathroom light

Product Description

Factory Price Dimmable Spring Clip LED Down Light
Waterproof dimmable V spring clip LED down lights available in 20W, 25W, and 30W variants with various metallic color reflectors. Designed for frameless recessed installation with anti-glare technology.

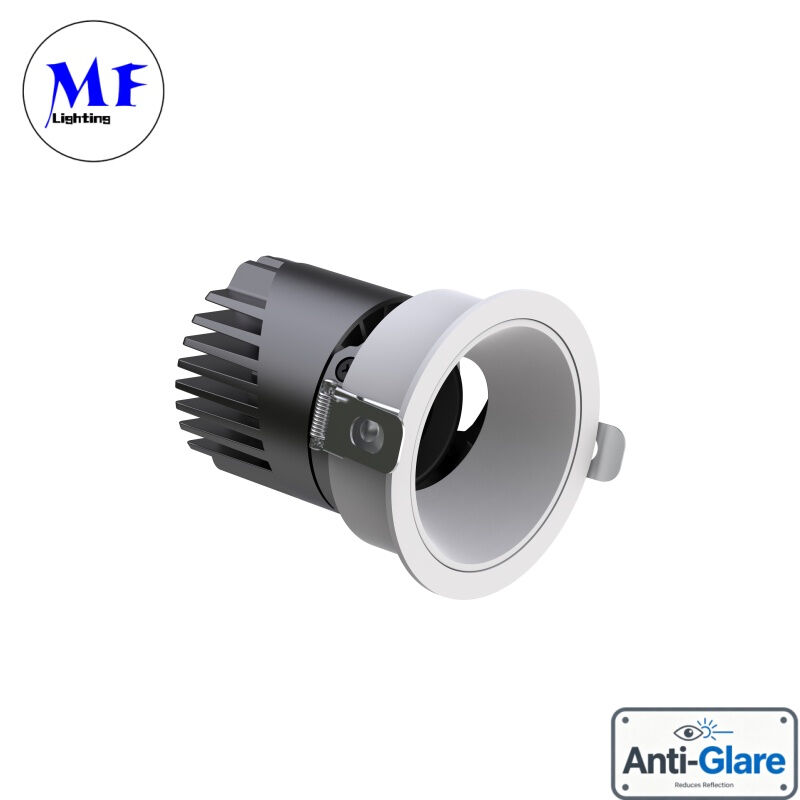

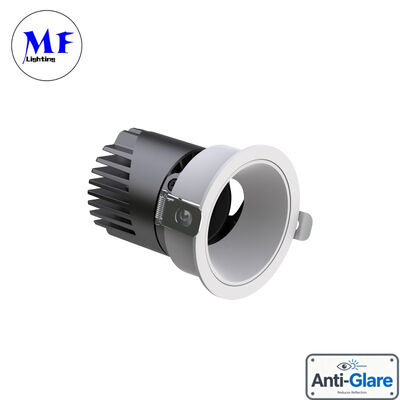

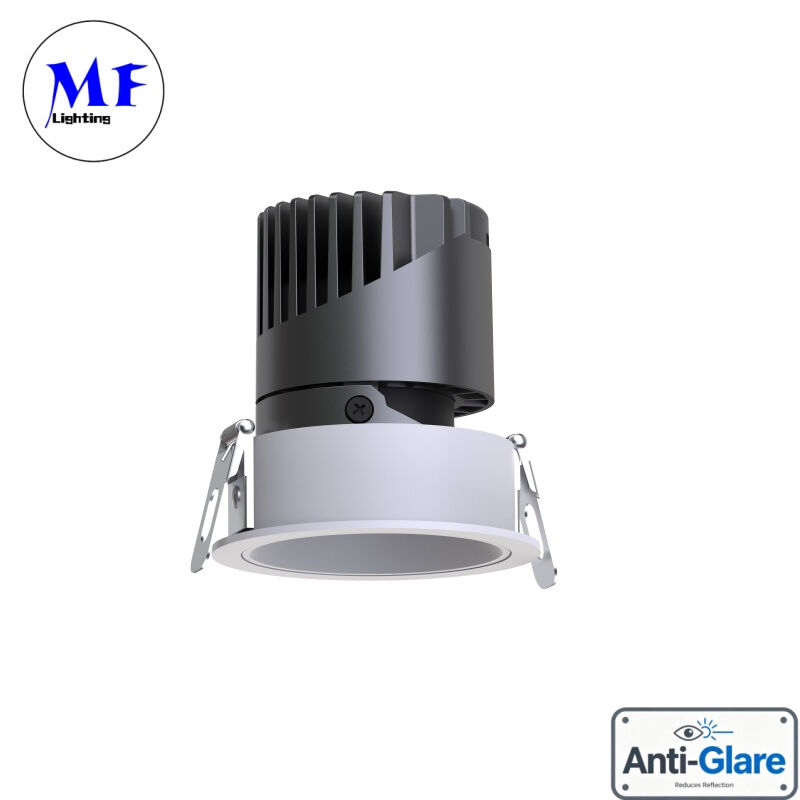

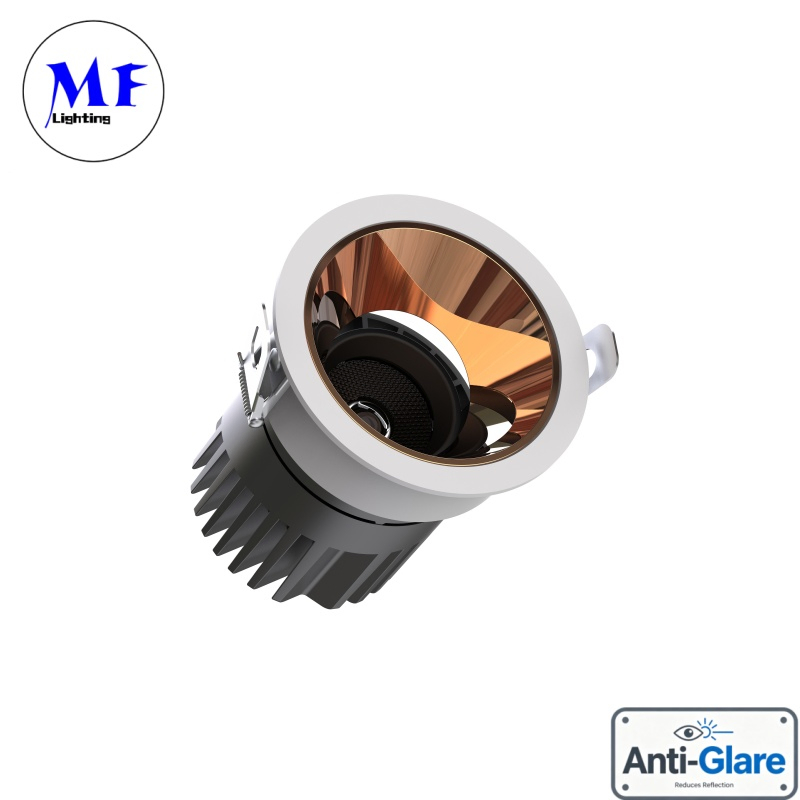

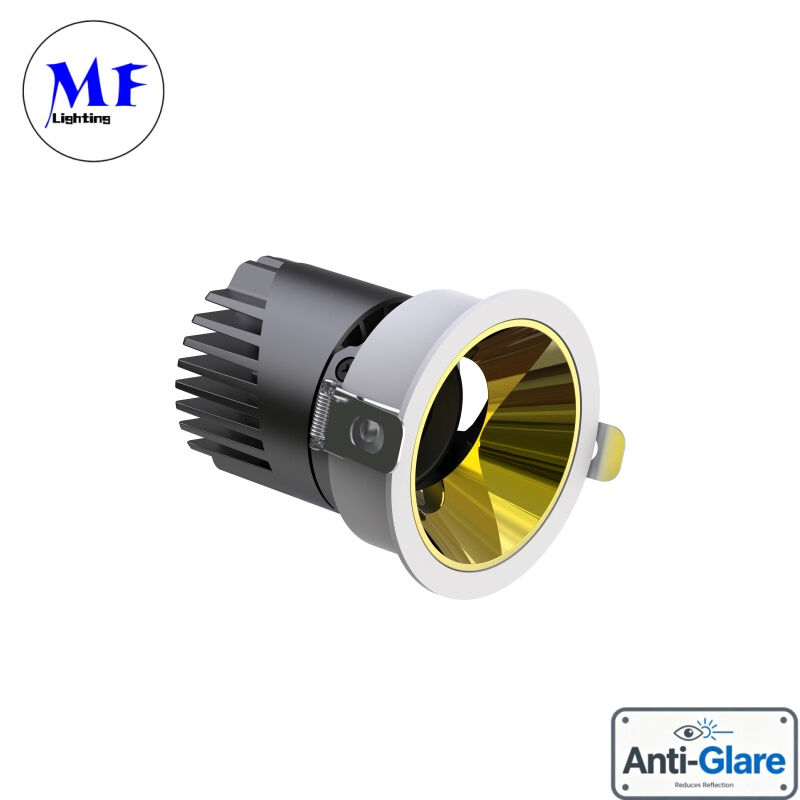

Dimmable Spring Clip LED Down Light product image
Product Features
  • IP20/IP44 Protection Rating: Anti-humid and dustproof design suitable for wet areas like bathrooms
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more
  • Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting
  • Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP
  • Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options
  • High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+)
  • Multiple Housing Colors: Matte White, Matte Silver, Matte Black, Bright Silver, Gun Black, Rose Gold
LED down light features illustration LED down light design details LED down light applications
Technical Specifications
Technical specifications diagram Product technical details
Parameter Specification
Model MF-HGS10-7W/10W/12W/15W/20W/25W/30W
Input Voltage 200-240Vac or 110Vac, 50hz/60hz, DC24V available
Power 7W/10W/12W/15W/20W/25W/30W
Color Temperature 2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable
LED Chip OSR-AM/Bridgelux
LED Driver Aohua/weiye/Lifud/BOKE Brand for different dim version
PF 7-15W≥0.50, 20W≥0.95
Housing Color White Ring
Reflector Color Matte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold
Luminous Flux 100LM/W
CRI (Ra) Ra80+/Ra90+
Lifespan ≥50000hrs
Beam Angle 8°/15°/24°/38°/55°
Material Die-casting Aluminum
Operating Temperature -20°C ~ 50°C
Dimmable Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable 2700-6000K Tunable as optional
IP Rating IP20/IP44
UGR < 19
Certificate CE/ RoHS(Whole Lamp); CE/ROHS/CB/SAA(Driver)
Warranty Period 3 years
Additional technical specifications
Product Dimensions
LED down light dimensional diagram LED down light size specifications
Applications
MF-HGS10 family are designed for recessed installation and are suitable for various applications:
  • Bathroom Lighting: Waterproof design suitable for bathrooms and other wet areas
  • Kitchen Lighting: Ideal for kitchens where steam and cooking splashes are common
  • Industrial Settings: Beneficial in industrial environments with dust, moisture, or water exposure
  • Retail or Commercial Spaces: Perfect for retail stores, restaurants, and commercial spaces requiring water resistance and durability
LED down light application examples
Installation Instructions
Installation instructions diagram
Easy Spring Clip Installation
  1. Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to luminaire size
  2. Connect the Wires: Connect wires to luminaire terminals correctly (professional electrician recommended)
  3. Insert into the Ceiling: Align spring clips vertically and insert into ceiling hole
  4. Lower the Spring Clips: Confirm proper fit and wiring, then lower clips and turn on power
Packaging & Shipping
Packaging details Shipping information
Power Carton Size (cm) Gross Weight (KG) Pieces per Carton
7W 52×37×24.5 11.0 50
10W 52×21×52 13.5 50
12W 52×21×52 13.5 50
15W 52×21×52 13.5 50
20W 59.5×36.5×29 14.6 30
25W 59.5×36.5×29 14.6 30
30W 59.5×36.5×29 14.6 30
Packaging specifications Shipping details
Company Profile
Mingfeng Lighting company overview Manufacturing facilities
Frequently Asked Questions
Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience. Our products include IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamps, and LED underground lights.
What is your main product?
Our main products include:
  • LED Triproof lights / LED Vapor Tight Lights
  • LED High Bay Lights
  • LED Flood lights
  • LED Explosion Proof Lights
  • LED Down Lights
  • LED underwater lights (swimming pool lights, fountain lights, underwater spotlights)
  • LED garden spot/spike lights
  • LED inground lights
What is the minimum order quantity (MOQ)?
For customized models, samples should be prepaid. We offer free customized models if the order quantity is more than 1000 pieces.
What are the payment options?
We accept T/T, Western Union, Paypal. Payment terms are 50% advanced payment and 50% balance payment. Our shipping terms are EXW, FOB, CIF, CNF and DDP.
What is the delivery time?
The delivery time is about 5-7 working days for samples and 20-30 working days for mass production, depending on the quantity.
How are the products packaged?
Each piece is packed in an individual color box and then placed in a strong master carton.
Why should you choose us?
  1. We offer OEM/ODM services
  2. We have our own design team
  3. We offer high-quality products at reasonable prices
  4. We have no MOQ request
  5. Our sales team has 12 years of experience in underwater lighting
