Factory Price Anti-Glare Dimmable V Spring Clip 20W 25W 30W Various Metallic Color Reflector Bathroom Frameless Recessed Anti-Glare Spot LED Down Light

Minimum Order Quantity : 1 Price : 6.6
Certification: CCC, CE, FCC, RoHS, SAA

Detail Information

IP Rating: IP20/IP44 Color Temperature: 2700-6000K Tunable As Optional
Operating Temperature: -20 ~50℃ Ugr: <19
Beam Angle: 8°/15°/24°/38°/55° Dimmable: Non-Dim/Triac/0-10V/Dali Dimmable As Optional
PF: 7-15W≥0.50, 20W≥0.95 Reflector Color: Matte White/Matte Silver/Matte Black/Bright Sliver
Luminous Flux: 100lm/W CRI: Ra80+/Ra90+
Input Voltage: 100VAC/200-240VAC, 50Hz/60Hz Lamp Body Material: Die-Casting Aluminum
Power: 7W/10W/12W/15W/20W/25W/30W LED Chip: Osr-Am/ Bridgelux/XPE
Lifespan: ≥50000hrs
Highlight:

dimmable LED down light

,

anti-glare recessed spot light

,

V spring clip bathroom light

Product Description

Factory Price Anti-Glare Dimmable LED Down Light
Professional recessed LED downlight with anti-glare design, multiple dimming options, and various metallic color reflectors. Ideal for bathroom, kitchen, and commercial applications.

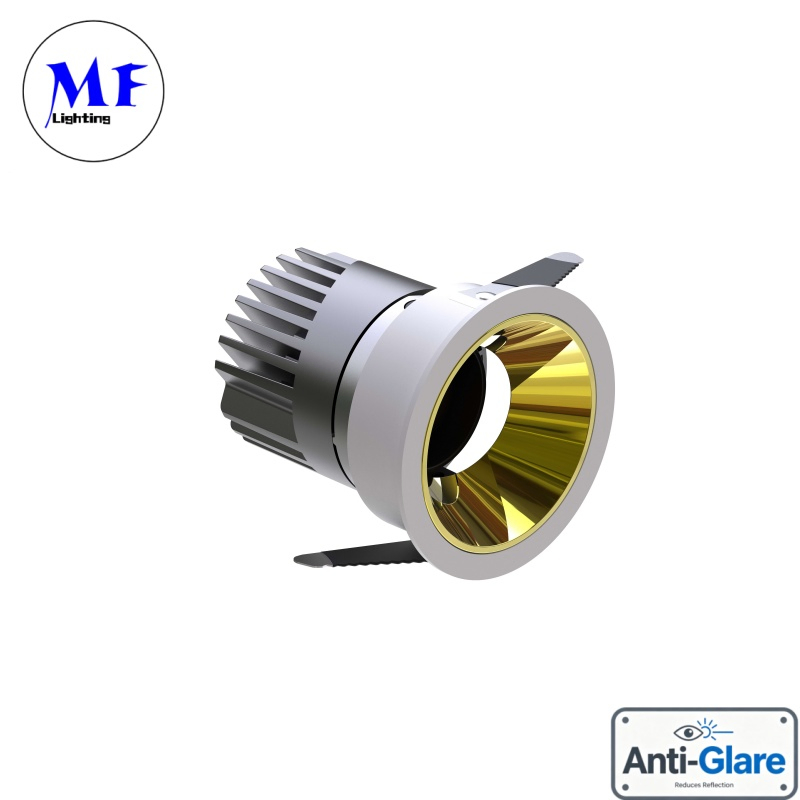

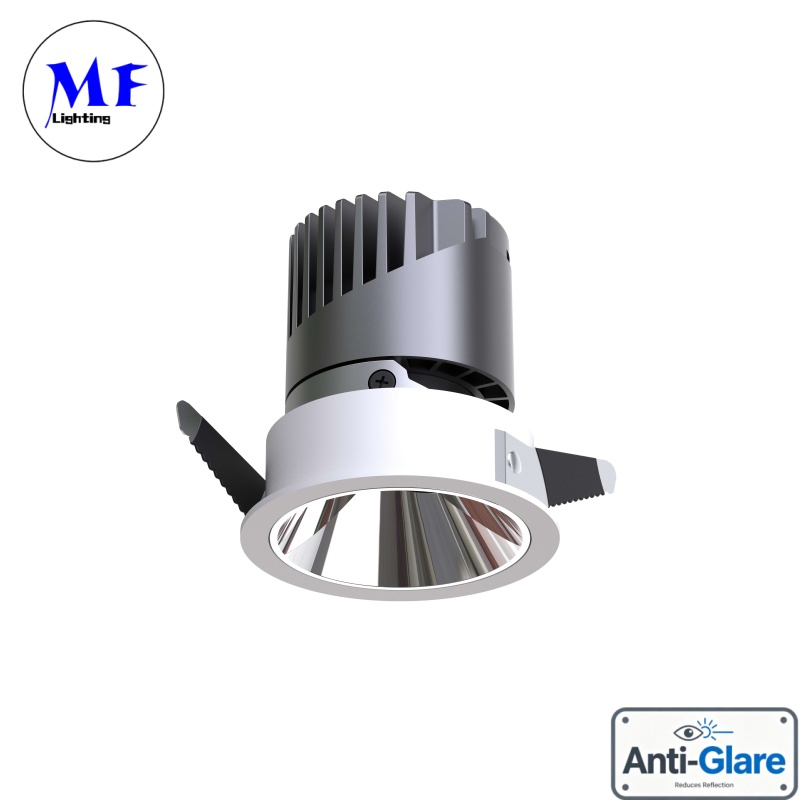

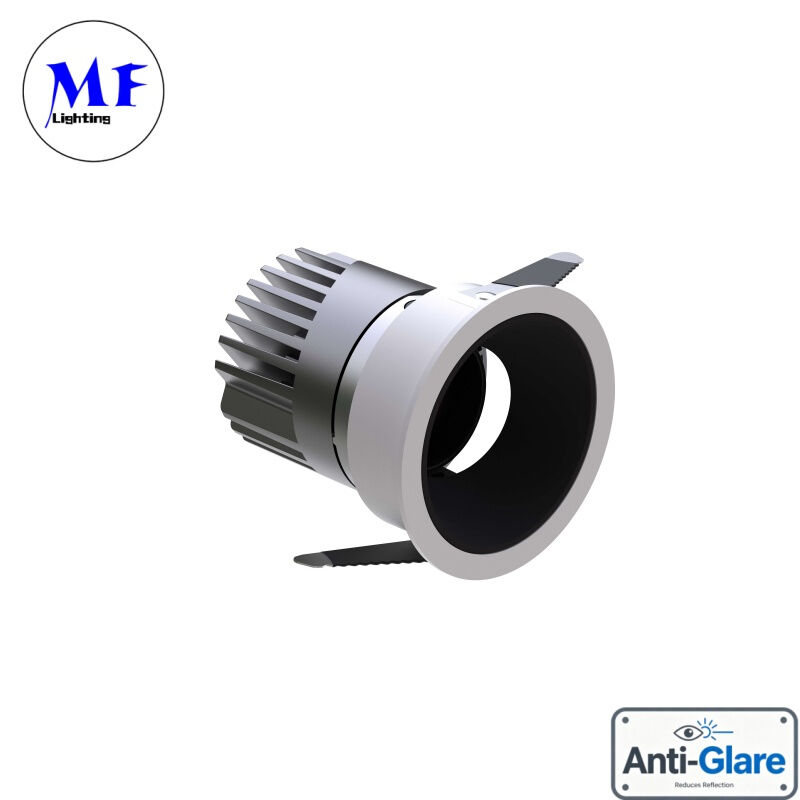

Anti-glare dimmable LED down light product image
Product Features
  • IP20/IP44 Protection Rating: Anti-humid and dustproof design suitable for wet areas like bathrooms
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more
  • Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices
  • Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP
  • Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes
  • High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering
  • Multiple Housing Colors: Available in Matte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold to match various interior styles
LED down light feature demonstration LED down light installation example LED down light color options
Technical Specifications
Technical specifications diagram Technical parameters illustration
Model MF-HGS10-7W/10W/12W/15W/20W/25W/30W
Input Voltage 200-240Vac or 110Vac, 50hz/60hz, DC24V available
Power 7W/10W/12W/15W/20W/25W/30W
Color Temperature 2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable
LED Chip OSR-AM/Bridgelux
LED Driver Aohua/Weiye/Lifud/BOKE Brand for different dim version
Power Factor 7-15W≥0.50, 20W≥0.95
Housing Color White Ring
Reflector Color Matte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold
Luminous Flux 100LM/W
CRI (Ra) Ra80+/Ra90+
Lifespan ≥50000hrs
Beam Angle 8°/15°/24°/38°/55°
Material Die-casting Aluminum
Operating Temperature -20°C~50°C
Dimmable Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable 2700-6000K Tunable as optional if needed
IP Rating IP20/IP44
UGR < 19
Certificate CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty Period 3 years
Dimensions
LED down light dimensions diagram LED down light size specifications
Applications
MF-HGS10 family are designed for recessed installation and are suitable for various applications such as:
  • Bathroom Lighting: Due to their waterproof design, these downlights are suitable for use in bathrooms and other wet areas where moisture resistance is essential
  • Kitchen Lighting: In kitchens where steam and cooking splashes are common, waterproof downlights can provide both functional and aesthetic lighting solutions
  • Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial
  • Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed
LED down light application examples
Installation Instructions
LED down light installation guide
Easy Spring Clip Installation
  1. Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire
  2. Connect the Wires: Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician
  3. Insert into the Ceiling: Align the spring clips on both ends of the product vertically and insert it into the ceiling hole
  4. Lower the Spring Clips: After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use
Packaging & Shipping
LED down light packaging LED down light shipping carton
Power Carton Size (cm) Gross Weight (KG) Pieces per Carton
7W 52×37×24.5CM 11.0KG 50PCS
10W 52×21×52CM 13.5KG 50PCS
12W 52×21×52CM 13.5KG 50PCS
15W 52×21×52CM 13.5KG 50PCS
20W 59.5×36.5×29CM 14.6KG 30PCS
25W 59.5×36.5×29CM 14.6KG 30PCS
30W 59.5×36.5×29CM 14.6KG 30PCS
Packaging details Shipping information
Company Profile
Mingfeng Lighting company overview Mingfeng Lighting facilities
Frequently Asked Questions
Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience. Our products include IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamp, and LED underground lights.
What is your main product?
Our main products are as follows: LED Triproof lights/ LED Vapor Tight Lights, LED High Bay Lights, LED Flood lights, LED Explosion Proof Lights, LED Down Lights, LED underwater lights (swimming pool lights, fountain lights, underwater spotlights), LED garden spot/spike lights, LED inground lights.
What is the minimum order quantity (MOQ)?
For customized models, samples should be prepaid. We offer free customized models if the order quantity is more than 1000 pieces.
What are the payment options?
We accept T/T, Western Union, Paypal. Payment terms are 50% advanced payment and 50% balance payment. Our shipping terms are EXW, FOB, and CIF, CNF and DDP.
What is the delivery time?
The delivery time is about 5-7 working days for samples and 20-30 working days for mass production, depending on the quantity.
How are the products packaged?
Each piece is packed in an individual color box and then placed in a strong master carton.
Why should you choose us?
1). We offer OEM/ODM services.
2). We have our own design team.
3). We offer high-quality products at reasonable prices.
4). We have no MOQ request.
5). Our sales team has 12 years of experience in underwater lighting.
