IP20 IP44 7W/10W/12W/15W/20W 2700-6500K CCT Tunable Smart Power Dimmable Triac/0-10V/Dali-2 Recessed Square Downlight Spot Anti Glare LED Down Light

Minimum Order Quantity :	1	Price :	6.6

Certification:	CE, RoHS

Detail Information
Power:	7W / 10W / 12W / 15W / 20W	Color Temperature:	2700K / 3000K / 3500K / 4000K / 5000K / 6000K; 2700-6500K Tunable
LED Chip:	O-SRAM / Bridgelux	Power Factor:	7-15W ≥0.50; 20W ≥0.95
Luminous Flux:	100 Lm/W	CRI (Ra):	Ra80+ / Ra90+
Lifespan:	≥50,000 Hrs	Beam Angle:	8° / 15° / 24° / 38° / 55°
Material:	Die-casting Aluminum	Operating Temperature:	-20°C ~ 50°C
Dimming:	Non-Dim / TRIAC / 0-10V / DALI-2 (optional)	IP Rating:	IP20 / IP44
UGR:	<19	Cut-out Size:	75 × 75 Mm (uniform)
Outer Trim Size:	85 × 85 Mm
Highlight:	IP20 IP44 dimmable LED downlight , smart recessed square downlight spot , Triac 0-10V Dali-2 LED light

Product Description

Product Overview

MF-HGS10F series square recessed downlights offer professional-grade lighting with anti-glare design, multiple dimming options, and versatile color temperature control for residential and commercial applications.

Key Features

Square Recessed Design: Deep recessed anti-glare structure with UGR<19 for eye-comfort lighting
Dual IP Protection: IP20 and IP44 rated options suitable for humid environments like bathrooms and kitchens
Extended Lifespan: Integrated die-cast aluminum heat sink ensures ≥50,000 hours operating life
Advanced Dimming: Supports Non-Dim, TRIAC, 0-10V and DALI-2 dimming with smart APP control
Color Temperature Range: 2700K-6500K with tunable CCT options for customized lighting scenes
High Efficiency: 100 lm/W luminous efficacy with Ra80+ / Ra90+ color rendering options
Multiple Finishes: Matte White, Matte Silver, Matte Black, Bright Silver, Gun Black, and Rose Gold
Beam Angle Options: 8°, 15°, 24°, 38°, 55° for targeted accent or general lighting

Technical Specifications

Parameter	Details
Model	MF-HGS10F-7W / 10W / 12W / 15W / 20W
Input Voltage	200-240Vac or 110Vac, 50/60Hz; DC24V available
Power	7W / 10W / 12W / 15W / 20W
Color Temperature	2700K / 3000K / 3500K / 4000K / 5000K / 6000K; 2700-6500K Tunable
LED Chip	O-SRAM / Bridgelux
LED Driver	Aohuaweiye / Lifud / BOKE (by dimming version)
Power Factor	7-15W ≥0.50; 20W ≥0.95
Housing Color	White Ring
Reflector Color	Matte White / Matte Silver / Matte Black / Bright Silver / Gun Black / Rose Gold
Luminous Flux	100 lm/W
CRI (Ra)	Ra80+ / Ra90+
Lifespan	≥50,000 hrs
Beam Angle	8° / 15° / 24° / 38° / 55°
Material	Die-casting Aluminum
Operating Temperature	-20°C ~ 50°C
Dimming	Non-Dim / TRIAC / 0-10V / DALI-2 (optional)
CCT Adjustable	2700-6000K Tunable (optional)
IP Rating	IP20 / IP44
UGR	<19
Certificate	CE / RoHS (Whole Lamp); CE / RoHS / CB / SAA (Driver)
Warranty	3 years
Cut-out Size	75 × 75 mm (uniform)
Outer Trim Size	85 × 85 mm

Product Details

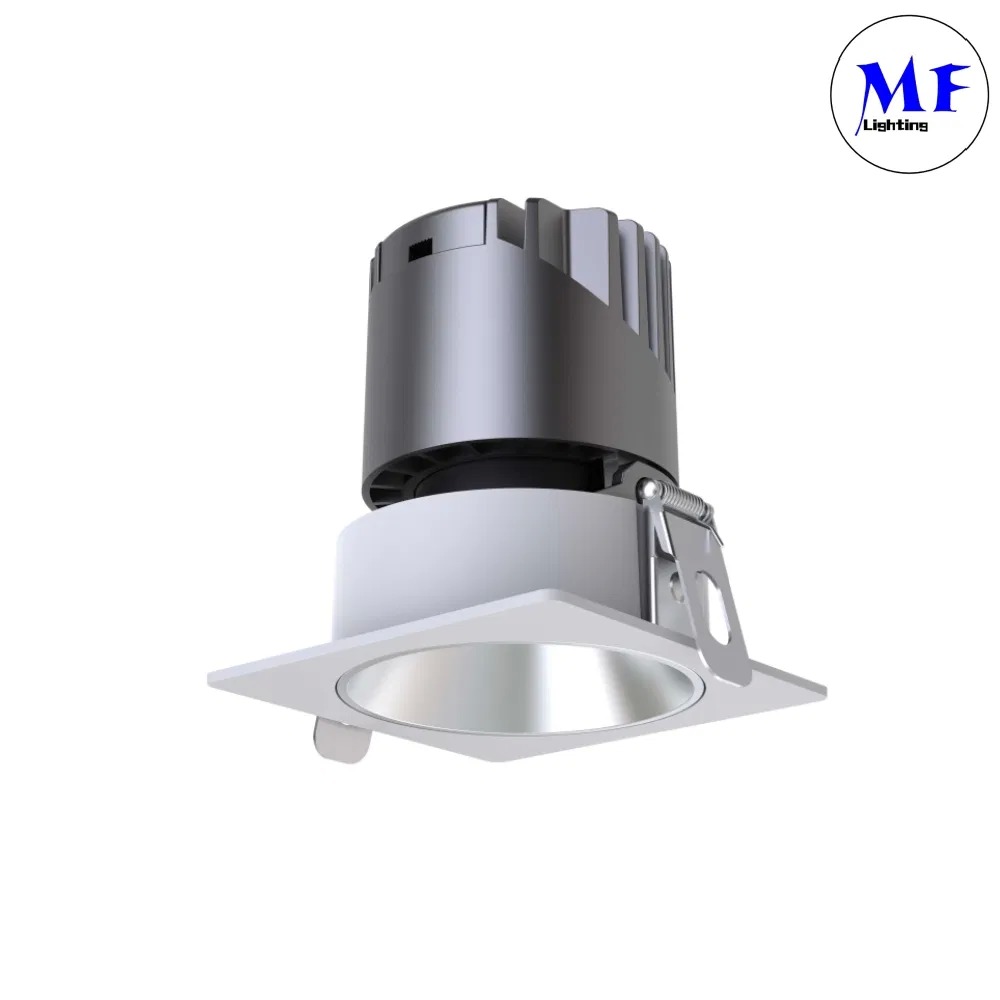

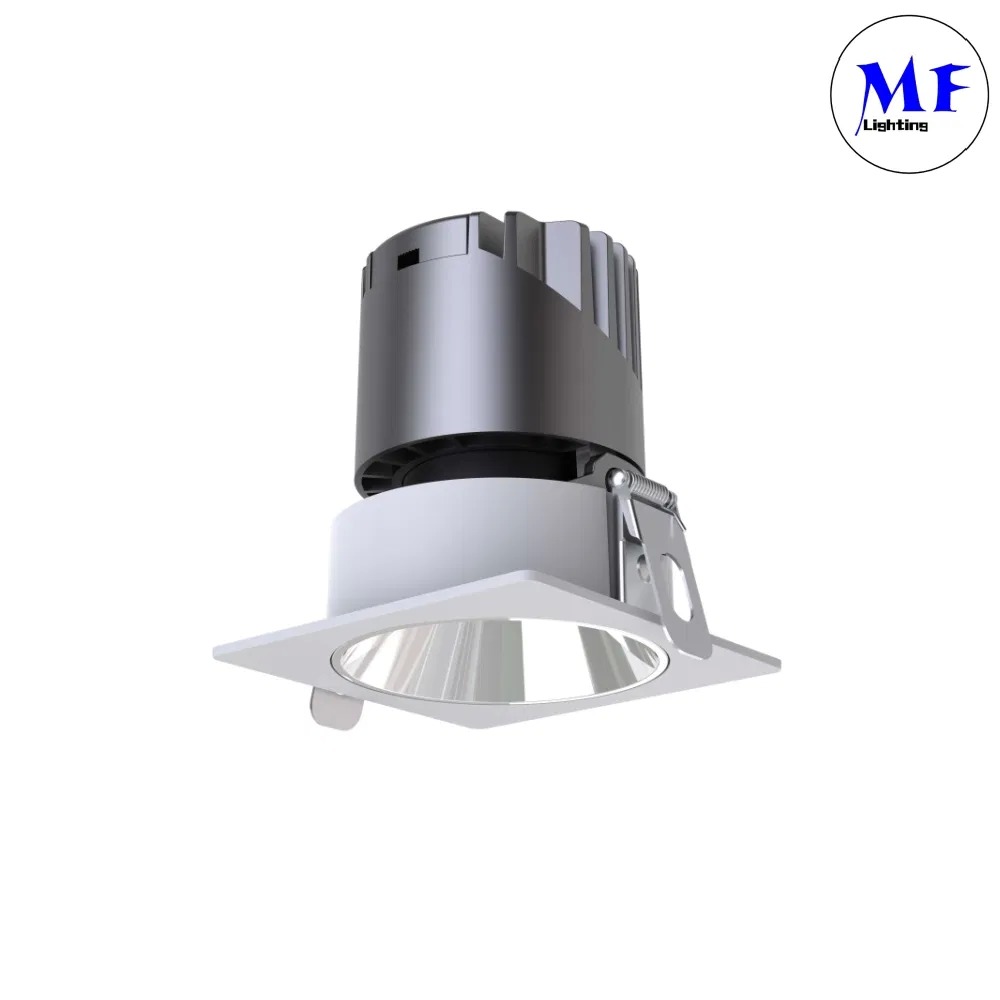

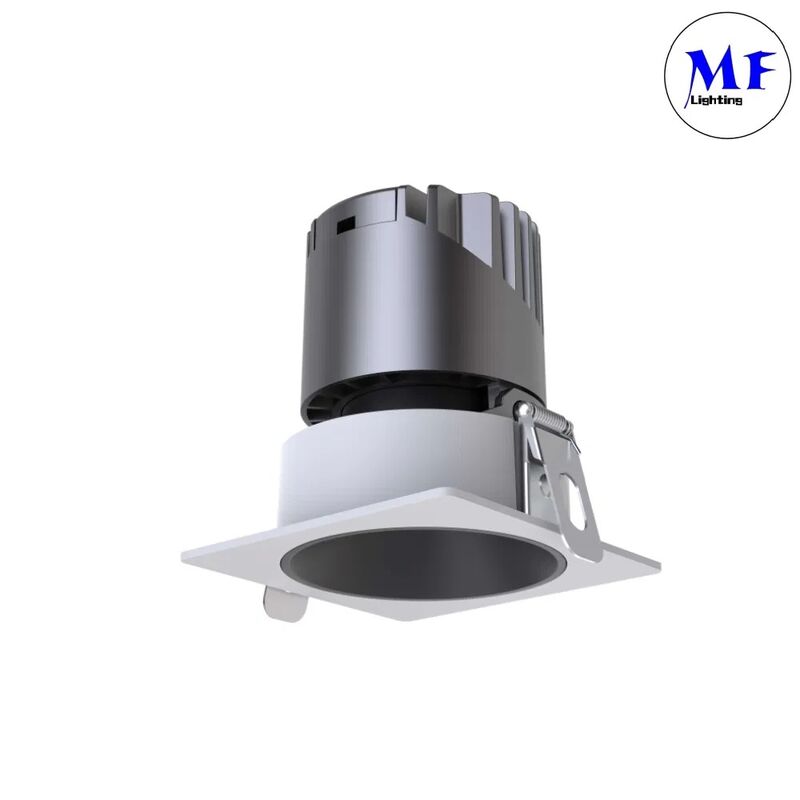

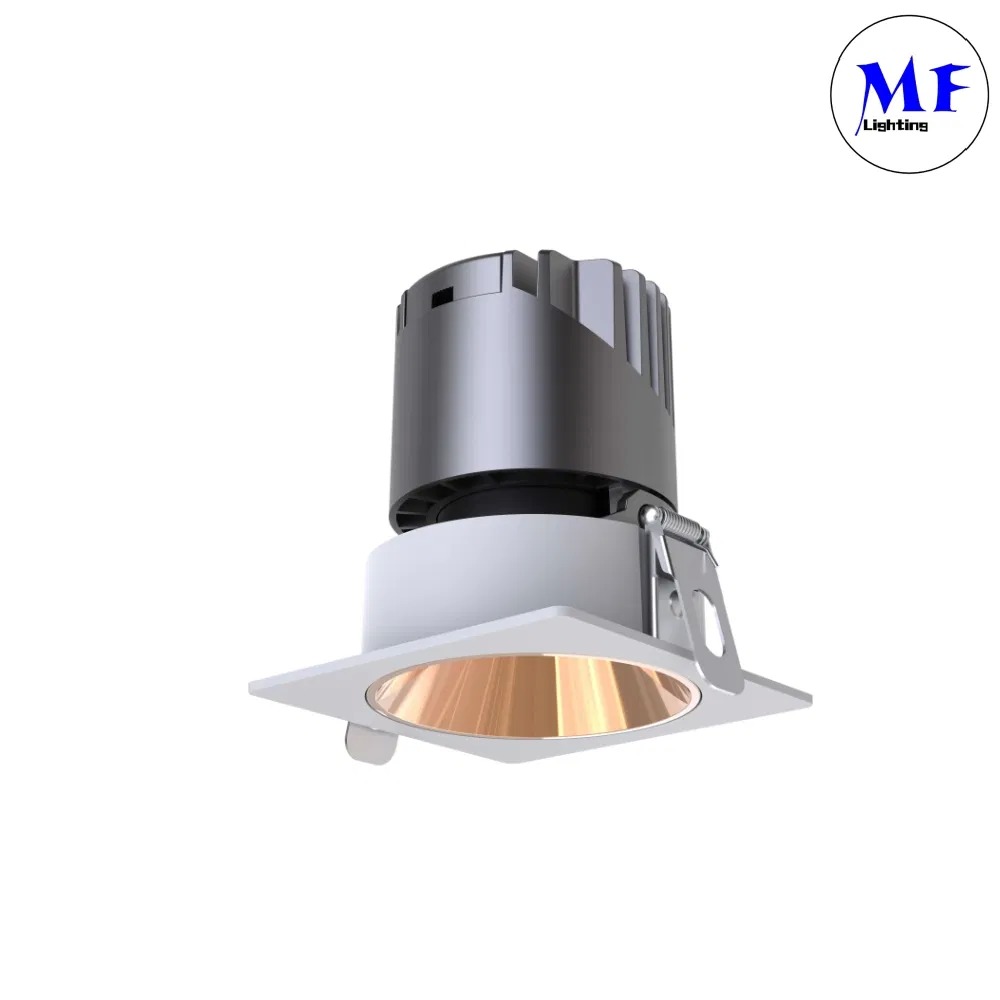

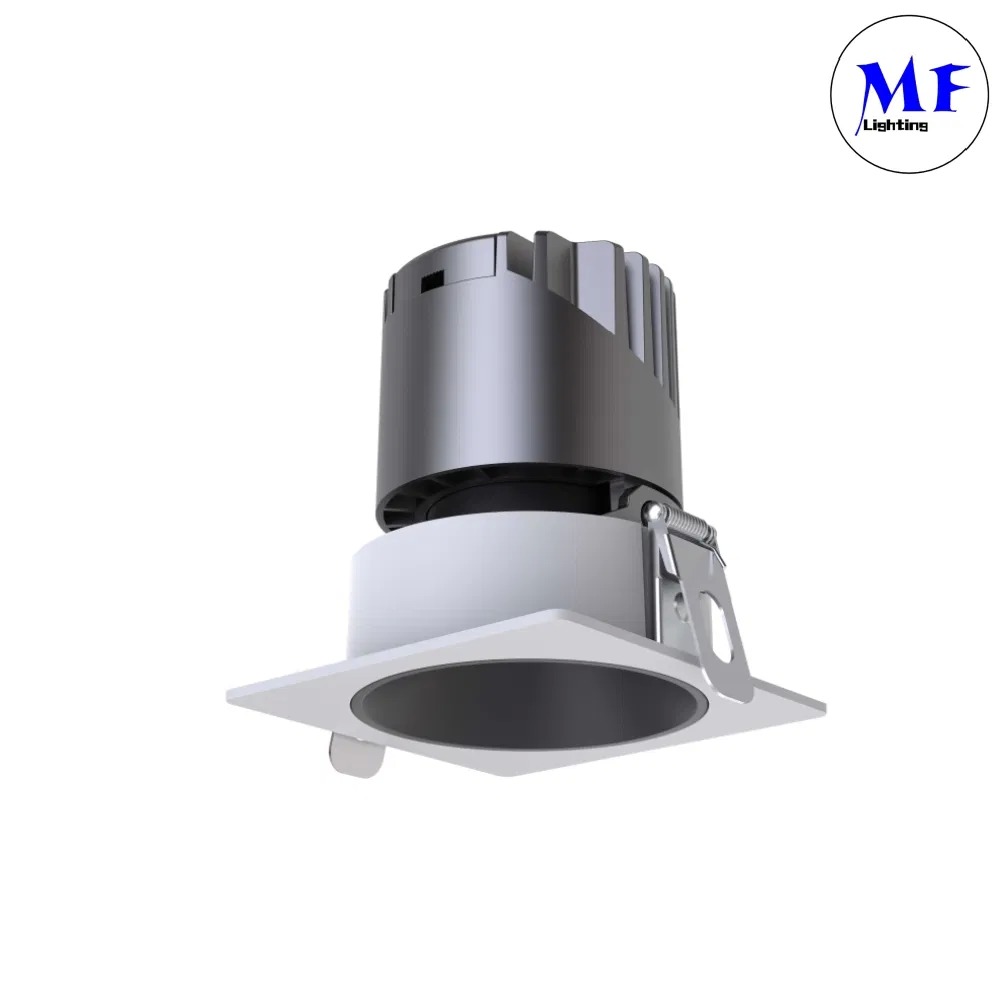

The MF-HGS10 Square is a single-head anti-glare LED recessed spot downlight with a compact square form factor. It features a deep-recessed optical chamber that keeps UGR below 19, making it comfortable for bedrooms, offices and retail spaces. The die-cast aluminum body provides robust thermal management, while the IP44 option allows installation in humid environments. With power ratings from 7W to 20W and a uniform 75×75 mm cut-out, this model fits standard ceiling openings and is ideal for both residential and commercial recessed lighting projects.

Applications

LED downlights are versatile lighting fixtures that find wide application in various settings. With their sleek design and energy-efficient performance, LED downlights are commonly used in residential, commercial, and hospitality environments.

Residential Applications

LED downlights are often installed in kitchens, living rooms, and bedrooms to provide ambient or task lighting. They offer a modern and stylish lighting solution while consuming less energy compared to traditional lighting options.

Commercial Applications

In commercial spaces such as offices, retail stores, and showrooms, LED downlights are utilized to illuminate the area effectively. These downlights offer focused and uniform light distribution, making them ideal for highlighting specific areas or products.

Hospitality Applications

Hotels, restaurants, and bars benefit from LED downlights to create welcoming and visually appealing ambiance. The dimmable feature allows for flexible lighting control, enabling adjustment of light levels to create different moods and atmospheres.
