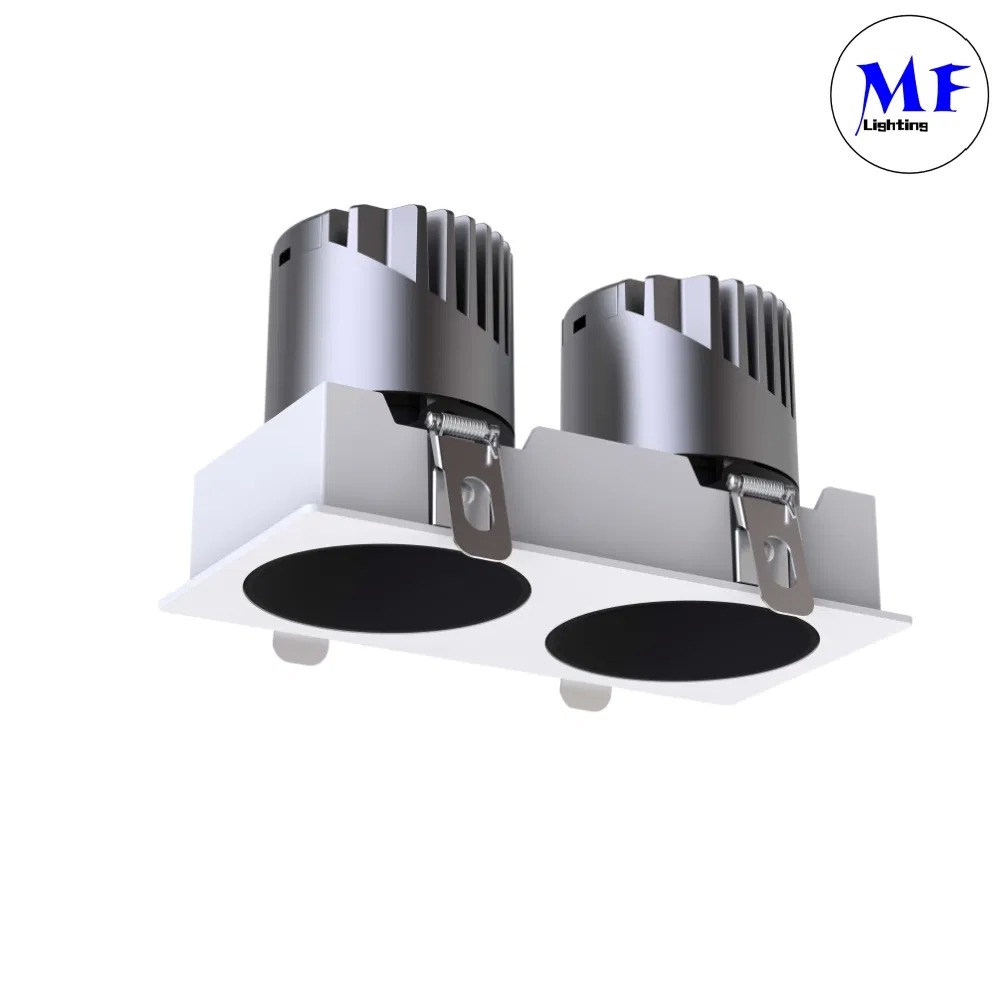

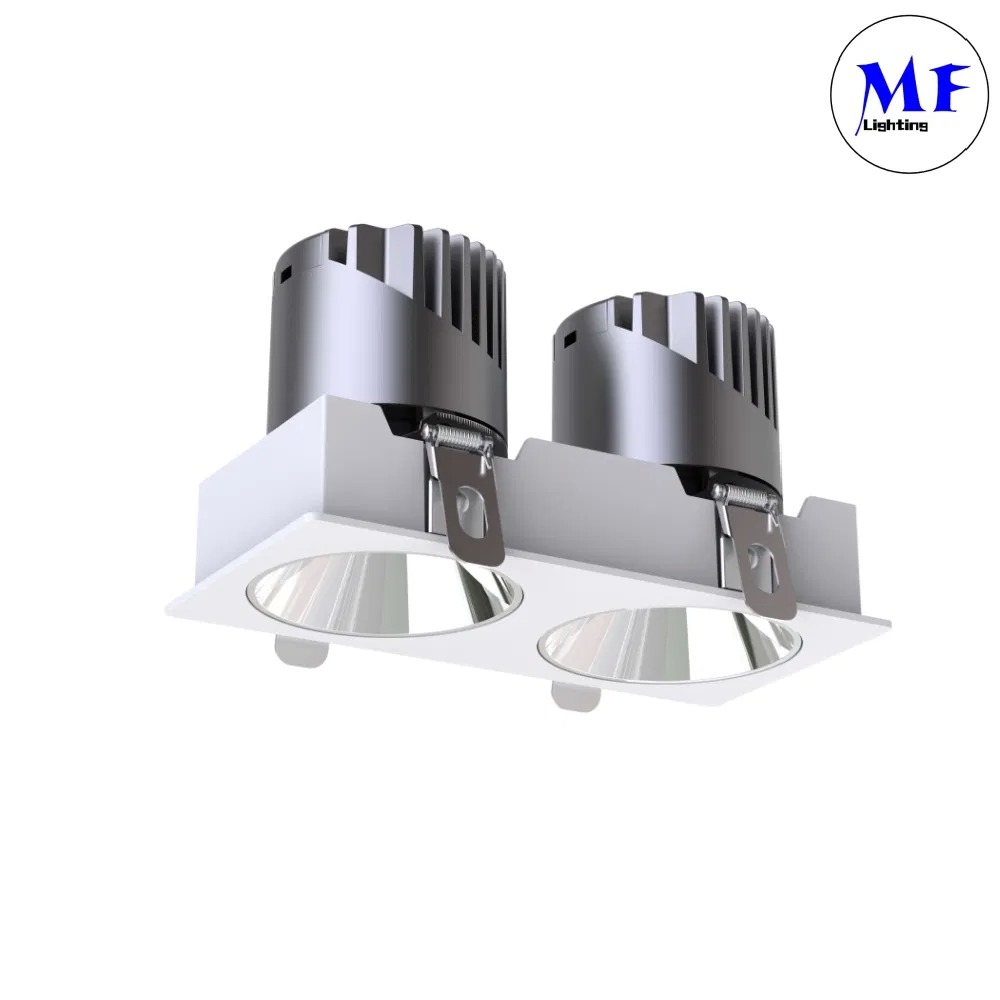

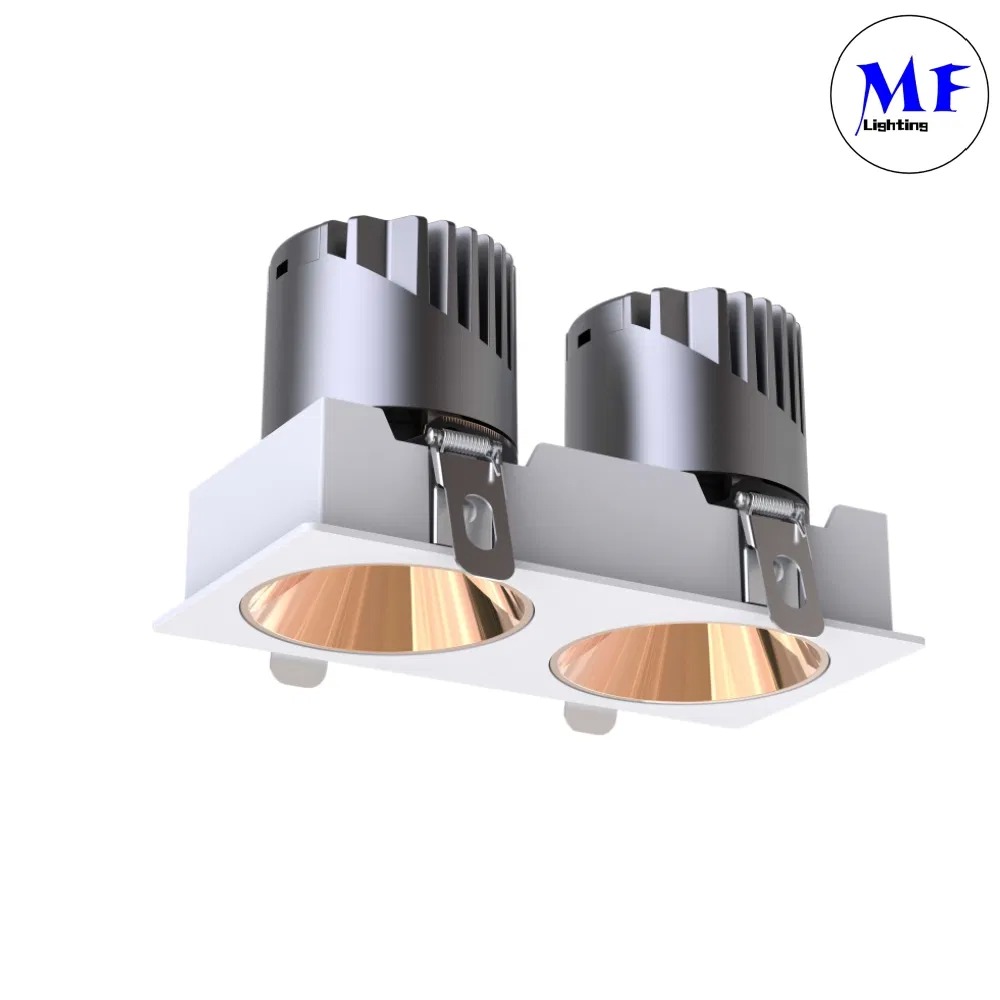

Smart Power Dimmable Triac/0-10V/Dali-2 IP20 IP44 14W/20W/24W/30W/40W CCT Tunable Recessed Square 2 Double Head Downlight Spot Anti Glare LED Down Light

Minimum Order Quantity : 1 Price : 6.6
Certification: CE, RoHS

Detail Information

Color Temperature: 2700/3000K/3500K/4000/5000K/6000K LED Source: COB LED
Lifespan: 50,000 Hours Luminous Efficacy: 100-110lm/W
Anti-Glare: Ugr<19 Power: 14W/20W/24W/30W/40W
Voltage (AC): AC100-277V/AC200-240V IP Rating: IP44
Function: Non-Dim / Triac / 0-10V / Dali CCT Tunable: 2700-6000K Optional
Lamp Body Material: Aluminum Input Voltage: 200-240Vac Or 110Vac, 50/60Hz; DC24V Available
Power Factor: 7-15W Per Head ≥0.50; 20W Per Head ≥0.95 CRI (Ra): Ra80+ / Ra90+
Beam Angle: 8° / 15° / 24° / 38° / 55° (per Head)
Highlight:

Smart Power Dimmable LED Down Light

,

CCT Tunable Recessed Square Downlight

,

Anti Glare Double Head Spot Light

Product Description

Smart Power Dimmable LED Downlight
Dual-head square recessed downlight with anti-glare design, offering flexible dimming options and high-efficiency performance for commercial and residential applications.
Key Features
  • Dual-Head Square Design - Two independent light sources in one square recessed trim for higher output and flexible directional lighting
  • IP20 / IP44 Protection - Anti-humid and dustproof housing suitable for bathrooms, kitchens, and commercial wet areas
  • Long Lifespan - Integrated die-cast aluminum heat sink ensures ≥50,000 hours operating life
  • Flexible Dimming - Supports Non-Dim, TRIAC, 0-10V and DALI-2 dimming with smart APP control
  • Wide CCT Range - 2700K / 3000K / 3500K / 4000K / 5000K / 6000K, with 2700-6500K tunable CCT option
  • High Efficiency & CRI - 100 lm/W per head, Ra80+ / Ra90+ for accurate color rendering
  • Multiple Reflector Finishes - Matte White / Matte Silver / Matte Black / Bright Silver / Gun Black / Rose Gold
  • Multiple Beam Angles - 8° / 15° / 24° / 38° / 55° per head for precise accent lighting
  • Anti-Glare Design - Deep recessed structure with UGR<19 for eye-friendly lighting
Single Head and Double Head LED Downlight ComparisonLED Downlight Close-up View
Technical Specifications
ParameterDetails
ModelMF-HGS10F-2×7W / 2×10W / 2×12W / 2×15W / 2×20W
Input Voltage200-240Vac or 110Vac, 50/60Hz; DC24V available
Total Power14W / 20W / 24W / 30W / 40W
Color Temperature2700K / 3000K / 3500K / 4000K / 5000K / 6000K; 2700-6500K Tunable
LED ChipO-SRAM / Bridgelux
LED DriverAohuaweiye / Lifud / BOKE (by dimming version)
Power Factor7-15W per head ≥0.50; 20W per head ≥0.95
Housing ColorWhite Ring
Reflector ColorMatte White / Matte Silver / Matte Black / Bright Silver / Gun Black / Rose Gold
Luminous Flux100 lm/W (per head)
CRI (Ra)Ra80+ / Ra90+
Lifespan≥50,000 hrs
Beam Angle8° / 15° / 24° / 38° / 55° (per head)
MaterialDie-casting Aluminum
Operating Temperature-20°C ~ 50°C
DimmingNon-Dim / TRIAC / 0-10V / DALI-2 (optional)
CCT Adjustable2700-6000K Tunable (optional)
IP RatingIP20 / IP44
UGR<19
CertificateCE / RoHS (Whole Lamp); CE / RoHS / CB / SAA (Driver)
Warranty3 years
Cut-out Size165 × 75 mm
Outer Trim Size170 × 85 mm
Carton Size44.5 × 34 × 40.5 cm
PCS / CTN30 PCS
G.W / CTN14.0 kg (all wattages)
LED Downlight Technical DiagramLED Downlight Detailed View
Product Overview
The MF-HGS10 Square Two Heads is a dual-light-source anti-glare LED recessed spot downlight housed in a single square trim. Each head operates independently, allowing combined wattages from 14W (2×7W) up to 40W (2×20W), making it suitable for larger areas or spaces requiring higher illuminance. The deep-recessed structure maintains UGR<19 across both heads, while the die-cast aluminum body ensures efficient heat dissipation. With a 165×75 mm cut-out, this model is commonly used in retail showrooms, corridors, kitchens and commercial spaces where two adjustable beams from one fitting are preferred over two separate downlights.
MF-HGS10 LED Downlight Installation View
Dimensions
LED Downlight Dimension DiagramLED Downlight Size Specifications
Installation Instructions
LED Downlight Installation Guide
Applications
LED downlights are versatile lighting fixtures that find wide application in various settings. With their sleek design and energy-efficient performance, LED downlights are commonly used in residential, commercial, and hospitality environments.
Residential Applications
LED downlights are often installed in kitchens, living rooms, and bedrooms to provide ambient or task lighting. They offer a modern and stylish lighting solution while consuming less energy compared to traditional lighting options.
LED Downlight in Residential Setting
Commercial Applications
In commercial spaces such as offices, retail stores, and showrooms, LED downlights are utilized to illuminate the area effectively. These downlights offer focused and uniform light distribution, making them ideal for highlighting specific areas or products.
LED Downlight in Commercial Office
Hospitality Applications
LED downlights are commonly used in hotels, resorts, and spas to create a soothing and luxurious atmosphere in lobbies, corridors, guest rooms, and common areas. They provide soft, warm illumination that enhances the guest experience.
LED Downlight in Hospitality Setting
Specialized Applications
Museums and galleries use LED downlights to illuminate exhibits with precision and accuracy. Their directional lighting helps highlight details and colors while minimizing heat and UV emissions that could damage artwork.
LED Downlight in Museum Application
Educational institutions, healthcare facilities, and outdoor spaces also benefit from LED downlights for their energy efficiency, long lifespan, and versatile lighting performance.
LED Downlight in Educational Setting
Packaging Information
PowerCarton Size (cm)G.W (KG)PCS/CTN
2×7W44.5×34×40.514.030
2×10W44.5×34×40.514.030
2×12W44.5×34×40.514.030
2×15W44.5×34×40.514.030
2×20W44.5×34×40.514.030
LED Downlight Packaging View 1LED Downlight Packaging View 2LED Downlight Packaging View 3LED Downlight Packaging View 4LED Downlight Packaging View 5
