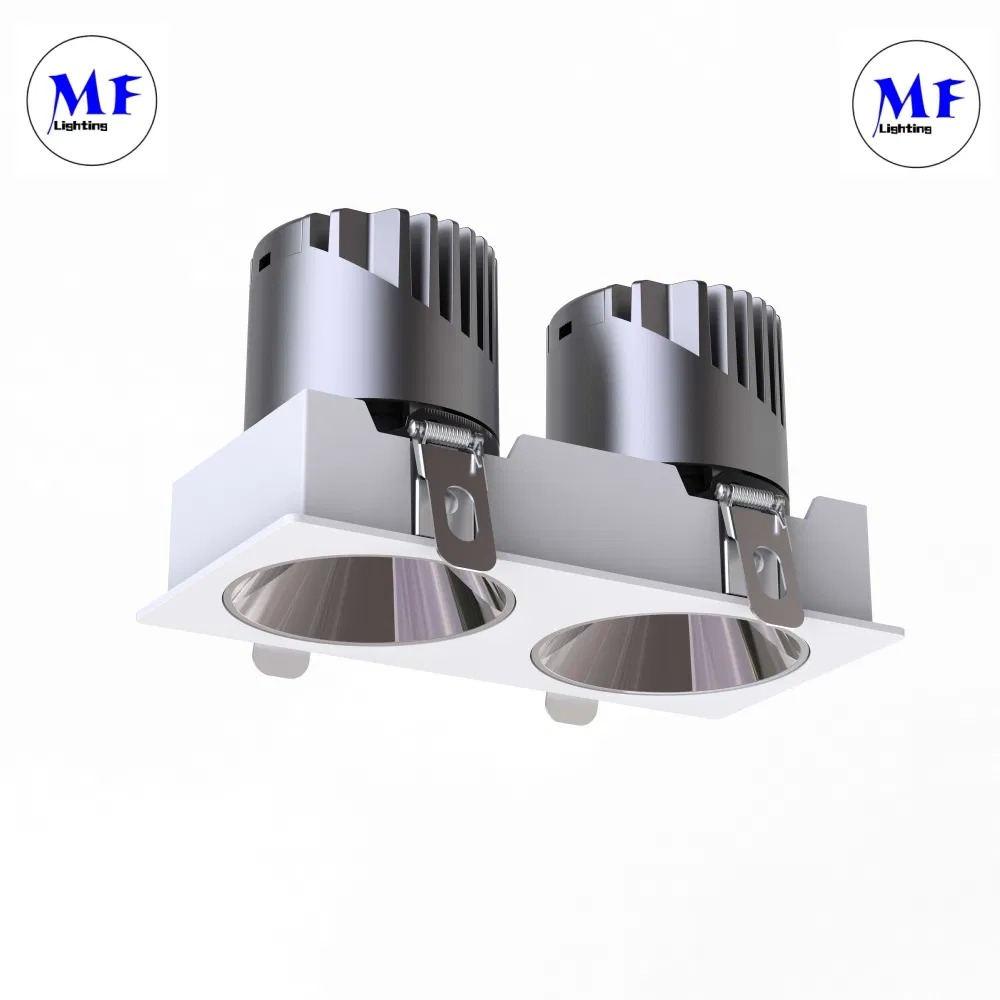

Factory Price Anti-Glare Multiple Housing Colors IP20/IP44 Two Heads 14W/20W/24W/30W/40W LED Spot Light LED Down Light Recessed Down Light

Contact Now

Factory Price Anti-Glare Multiple Housing Colors IP20/IP44 Two Heads 14W/20W/24W/30W/40W LED Spot Light LED Down Light Recessed Down Light

Minimum Order Quantity :	1	Price :	22.6

Certification:	CCC, CE, RoHS, SAA

Detail Information
Color Temperature:	2700K/3000K/3500K/4000K/5000K/6000K	Power:	14W/20W/24W/30W/40W
Lamp Material:	Die-Casting Aluminum	LED Chip:	O-Sram/Brid-Gelux
Luminous Flux:	100lm/W	Dimensions:	40.516.543CM
Lifespan:	≥50000hrs	CRI:	Ra80+/Ra90+
LED Driver:	Aohuaweiye/Lifud/Boke Brand	UGR:	<19
Operating Temperature:	-20°C ~50°C	PF:	7-15W≥0.50, 20W≥0.95
Input Voltage:	100-277Vac Or 200-240Vac, 50hz/60hz, DC24V	Beam Angle:	8°/15°/24°/38°/55°
IP Rating:	IP20/IP44
Highlight:	anti-glare LED down light , IP44 recessed down light , multiple housing colors LED spot light

Product Description

Factory Price Anti-Glare LED Down Light

Multiple housing colors, IP20/IP44 rated, two-head design available in 14W/20W/24W/30W/40W power options

Technical Specifications

Model	MF-HGS10F-27W/210W/212W/215W/2*20W
Input Voltage	100-277Vac or 200-240Vac, 50hz/60hz, DC24V available
Power (Watt)	14W/20W/24W/30W/40W
Color Temperature	2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable
LED Chip	O-SRAM/Bridgelux
LED Driver	Aohua weiye/Lifud/BOKE Brand for different dim version
PF	7-15W≥0.50, 20W≥0.95
Housing Colour	White Ring
Luminous Flux	100-110 LM/W
CRI (Ra)	Ra80+/Ra90+
Lifespan	≥50,000 hours
Beam Angle	8°/15°/24°/38°/55°
Material	Die-casting Aluminum
Operating Temperature	-20°C ~50°C
Dimmable	Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable	2700-6000K Tunable as optional if needed
IP Rating	IP44
UGR	< 19
Certificate	CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty Period	3 years

Product Details

Product Features

Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more
Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices
Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP
Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes
High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering

Installation Instructions

Easy Spring Clip Installation

Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire
Connect the Wires: Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician
Insert into the Ceiling: Align the spring clips on both ends of the product vertically and insert it into the ceiling hole
Lower the Spring Clips: After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use

Product Dimensions

Product Applications

Outdoor Lighting: Waterproof downlights for outdoor applications where exposure to elements is a concern, such as outdoor walkways, gardens, or building exteriors
Bathroom Lighting: Suitable for use in bathrooms and other wet areas where moisture resistance is essential
Kitchen Lighting: Ideal for kitchens where steam and cooking splashes are common, providing both functional and aesthetic lighting solutions
Swimming Pool Areas: Can be used around swimming pools or in pool houses where water resistance is crucial
Spa or Wellness Areas: Perfect for spa environments where high humidity and moisture are present
Industrial Settings: Beneficial in industrial environments where dust, moisture, or water exposure can be an issue
Retail or Commercial Spaces: Suitable for retail stores, restaurants, or other commercial spaces where water resistance and durability are needed
