Die-Cast Aluminum Double Heads LED Spot Downlight IP44 Ugr<19 Anti-Glare Dali-2 Dali Dt8 Dimmable Square Recessed Ceiling Down Light 2×12W

Minimum Order Quantity : 1 Price : 19.3
Certification: CCC, CE, EMC, ETL, FCC, LVD, PSE, RoHS, SAA

Detail Information

Power: 2*12W Input Voltage: AC100-277V
Lamp Body Material: Die-Cast Aluminum Color Temperature: 2700/3000K/3500K/4000/5000K/6000K
Installation: Recessed Beam Angle: 8°/15°/24°/38°/55
Model NO.: MF-HGS10-2*12W Specification: 52*37*24.5CM
IP Rating: IP44 UGR: <19
Dimming Compatibility: Triac, 0-10V, DALI DT6 DT8 Luminous Efficiency: 100LM/W
CRI: 80-90 Lifespan: 50,000 Hours
Housing Colors: Matte White/Matte Silver/Matte Black/Bright Sliver/Gun Black/Rose Gold
Highlight:

die-cast aluminum LED downlight

,

DALI dimmable recessed ceiling light

,

IP44 anti-glare spot downlight

Product Description

Product Overview
Die-cast Aluminum Double Heads LED Spot Downlight IP44 UGR <19 Anti-Glare Dali-2 DALI DT8 Dimmable Square Recessed Ceiling Down Light 2×12W
Key Features
  • Die-cast aluminum housing with multi-color reflectors, IP44 rated for damp-area installation
  • Anti-glare design with UGR <19 for comfortable lighting in various environments
  • Multi-protocol dimming compatibility: Triac, 0-10V, DALI DT6 & DT8
  • High-quality Os-ram & Bridgelux LED chips with CRI 80-90
  • Wide AC100-277V voltage range for global compatibility
  • 2×12W power configuration with 100LM/W high luminous efficiency
  • 3-year warranty for reliable performance
Product Images

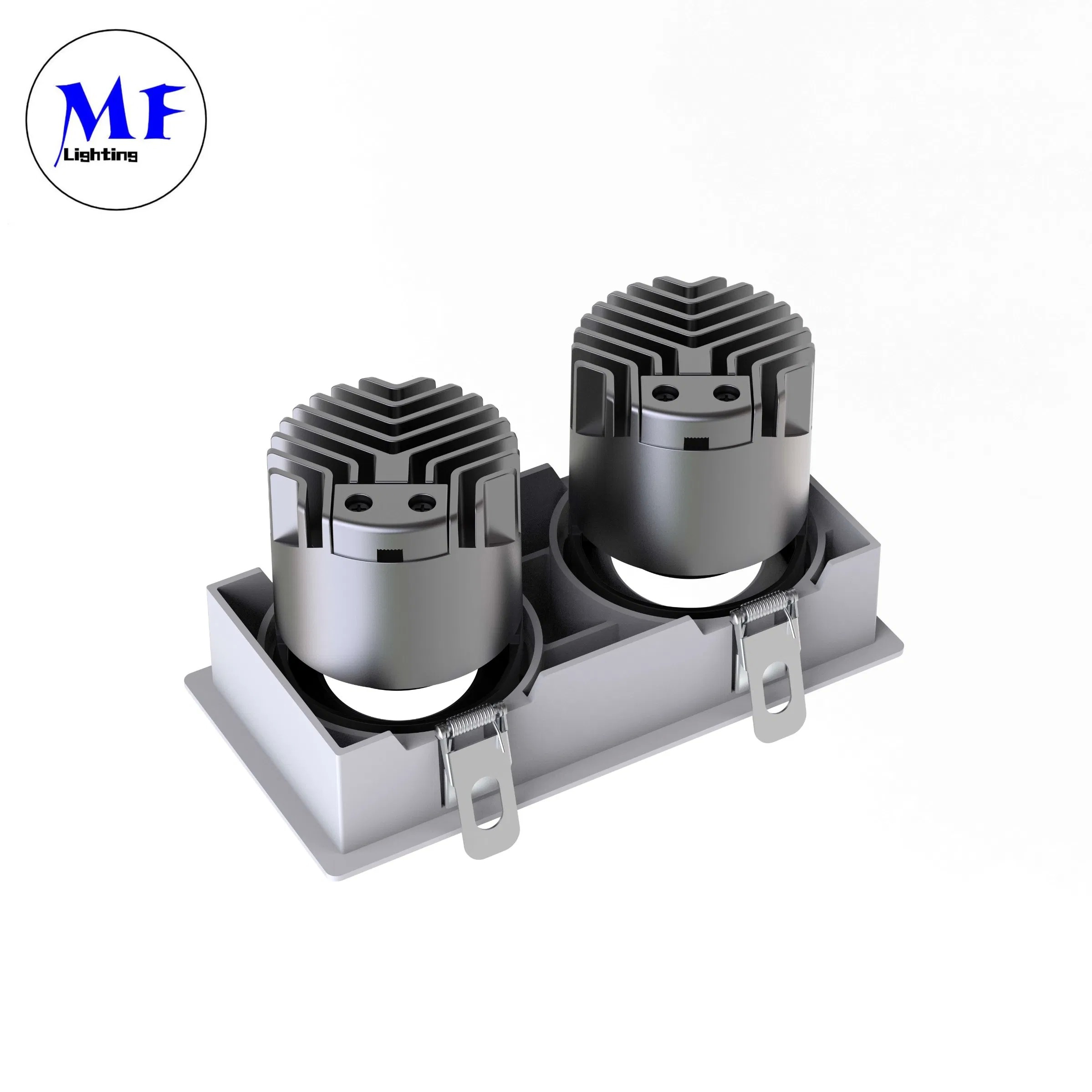

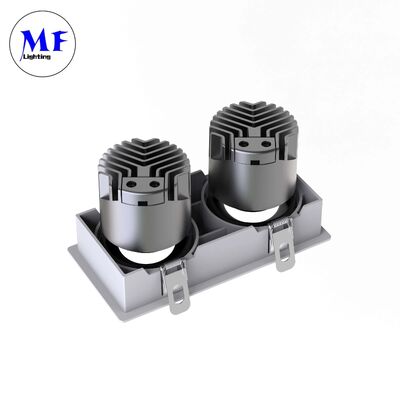

Double Heads LED Spot Downlight front view Double Heads LED Spot Downlight side view
Technical Specifications
Construction & Design
Premium die-cast aluminum housing ensures excellent heat dissipation with multiple reflector finishes available to match various project decoration styles.
Dimming & Control
Multi-protocol dimming compatibility with Triac, 0-10V, DALI DT6 & DT8, powered by Os-ram and Bridgelux chips for stable and high-quality light output.
Performance & Protection
IP44 Anti-Glare supports damp-location use, wide AC100-277V universal voltage, 10-30W power options, 100LM/W high efficiency and reliable 5-year warranty.
Product Gallery

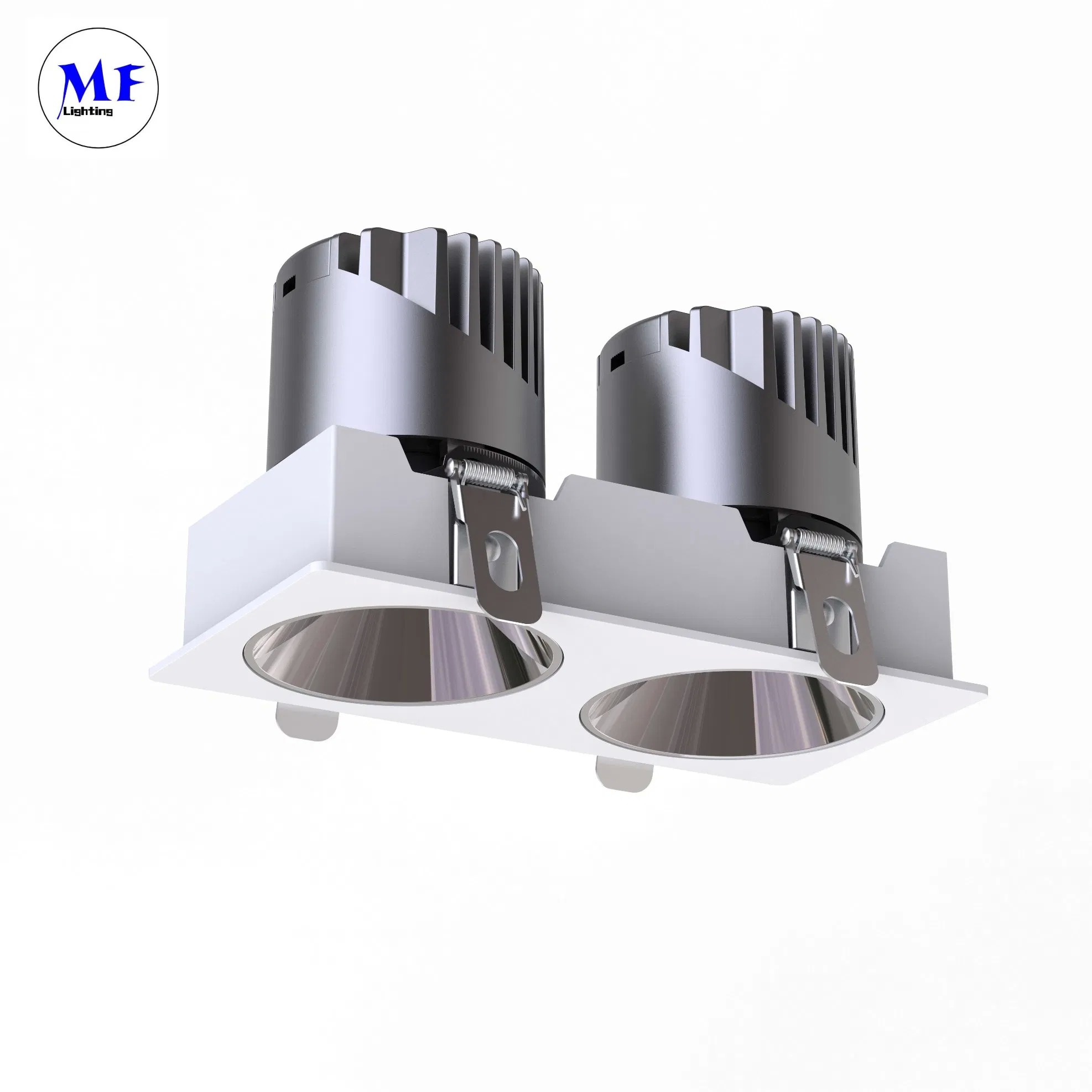

LED Downlight product gallery view
Dimensions
LED Downlight dimensional drawing
Detailed Product Views

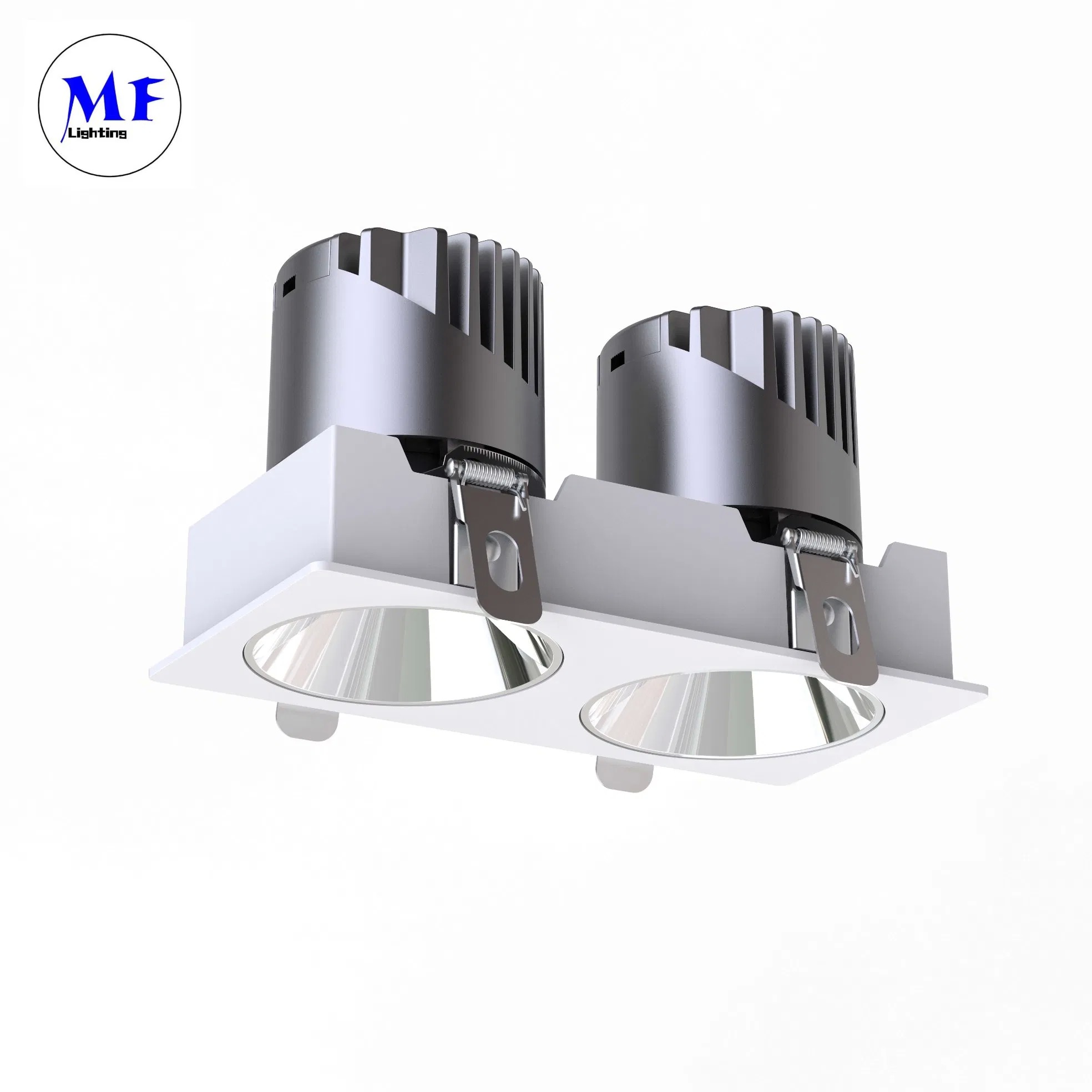

LED Downlight detailed view 1 LED Downlight detailed view 2 LED Downlight detailed view 3 LED Downlight detailed view 4 LED Downlight detailed view 5 LED Downlight detailed view 6
Product Benefits
  • IP20/IP44 Protection Rating: Anti-humid and dustproof design suitable for wet areas like bathroom spaces
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more
  • Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices
  • Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP
  • Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes
  • High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering
  • Multiple Housing Colors: Available in Matte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold to match various interior styles

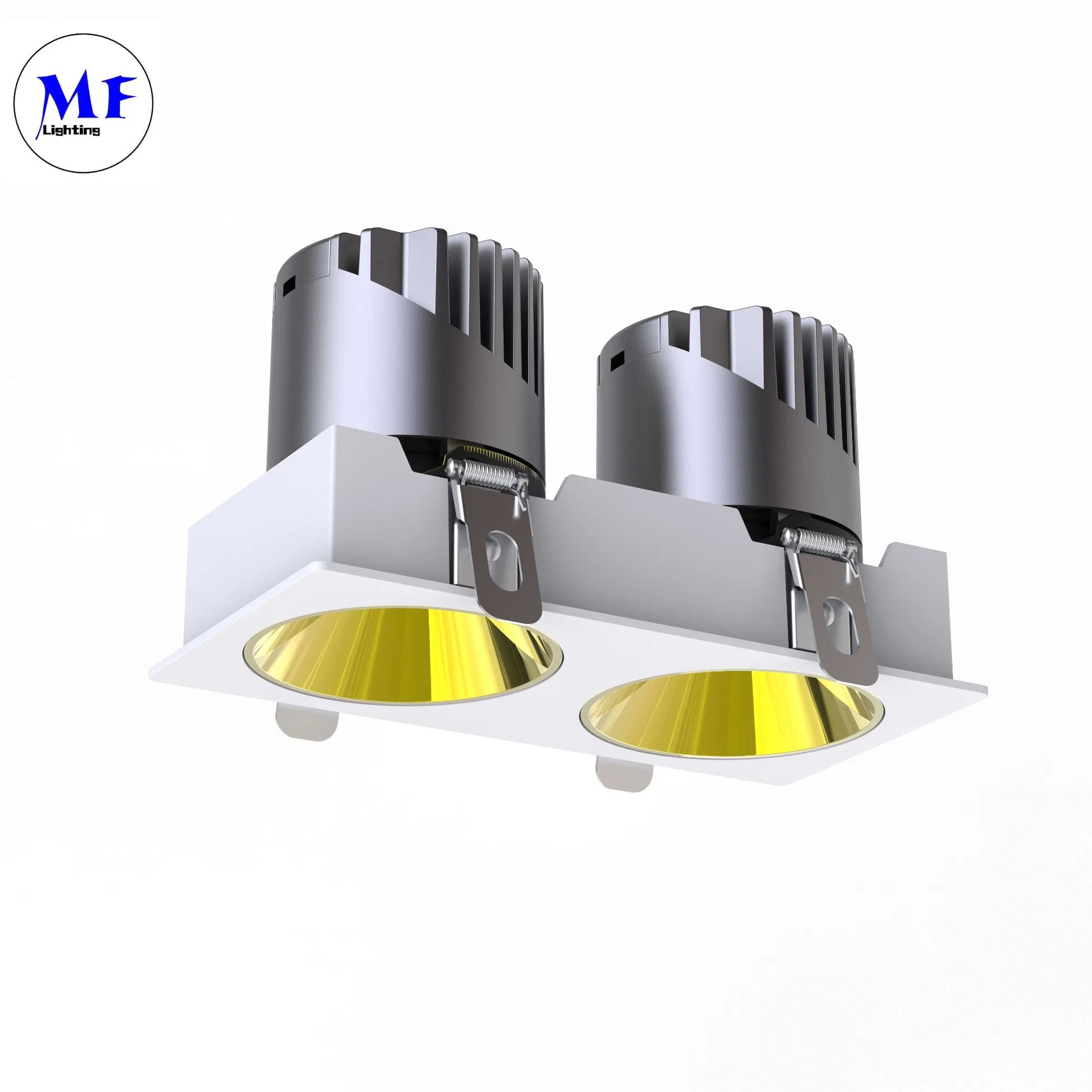

LED Downlight color options
Technical Parameters
LED Downlight technical parameters table
Installation Guide
LED Downlight installation instructions
Packaging & Shipping
LED Downlight packaging view 1 LED Downlight packaging view 2 LED Downlight shipping packaging
Applications
MF-HGS10 family is designed for recessed installation and is suitable for various applications that require waterproof lighting solutions:
  • Outdoor Lighting: Outdoor walkways, gardens, or building exteriors
  • Bathroom Lighting: Wet areas where moisture resistance is essential
  • Kitchen Lighting: Areas with steam and cooking splashes
  • Swimming Pool Areas: Pool houses where water resistance is crucial
  • Spa or Wellness Areas: Environments with high humidity and moisture
  • Industrial Settings: Environments with dust, moisture, or water exposure
  • Retail or Commercial Spaces: Restaurants, stores requiring water resistance and durability
LED Downlight application examples
Company Profile
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. At Ming Feng Lighting Co., Ltd., we pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs.
Ming Feng Lighting factory and facilities
Frequently Asked Questions
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
