Factory pice Smart Zigbee Tuya Zigbee Tuya Wifi SMD series 5W/7W /9W/10W/ 12W/15W/ 20W /25W/30W35W/40W/45W LED Spot Light Recessed Down Light LED Down Light

Minimum Order Quantity : 1 Price : 4.1
Certification: CCC, CE, RoHS, SAA

Detail Information

Color Temperature: 2700K/3000K/3500K/4000K/5000K/6000K LED Chip: O-SRAM/Epi-star As Options
CRI(Ra): Ra80+/Ra90+ Cover: PC Milky
Lifespan: ≥50000hrs Dimmable: Non-Dim/Triac/0-10V/Dali-2 Dimmable As Options
CCT Adjustable: 2700-6000K Tunable As Optional If Need PF: 5-20W≥0.50, 20W≥0.95
Lamp Body Material: Die-Casting Aluminum Specification: 40.5*16.5*43CM
IP: IP20 Reflector Color: White/Black/Matt Silver/Shiny Silver/matt Black
Operating Temperature: -20℃ ~50℃ LED Driver: DONE/Aohua/Lifud/Eaglerise Brand For Different Dim
Luminous Flux: 100lm/W
Highlight:

Zigbee Tuya LED down light

,

Wifi SMD LED spot light

,

Recessed LED down light with warranty

Product Description

Smart Zigbee Tuya LED Spot Light - Recessed Down Light
Factory price SMD series available in 5W to 45W power options with smart control capabilities via Zigbee Tuya and WiFi connectivity.
Technical Specifications
Model MF-DLT10-5W/7W/9W/10W/12W/15W/20W/25W/30W/35W/40W/45W
Input Voltage 110Vac or 200-240Vac, 50hz/60hz
Power (Watt) 5W/7W/9W/10W/12W/15W/20W/25W/30W/35W/40W/45W
Color Temperature 2700K/3000K/3500K/4000K/5000K/6000K
LED Chip O-SRAM/Epistar as options
LED Driver DONE/Aohua/Lifud/Eaglerise Brand for different dim version
Power Factor 5-20W≥0.50, 20W≥0.95
Housing Colour White/black/Rose Gold/Bronze/Silver as options
Reflector Color White/Black/Matt Silver/Shiny silver/matt Black/Gun Black/Rose gold/Champagne gold
Luminous Flux 100LM/W
CRI (Ra) Ra80+/Ra90+
Lifespan ≥50000hrs
Beam Angle 15°/24°/36°/60°
Material Die-casting Aluminum
Operating Temperature -20ºC~50ºC
Dimmable Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable 2700-6000K Tunable as optional if needed
IP Rating IP20
UGR < 19
Certificate CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty Period 3 years
Product Images

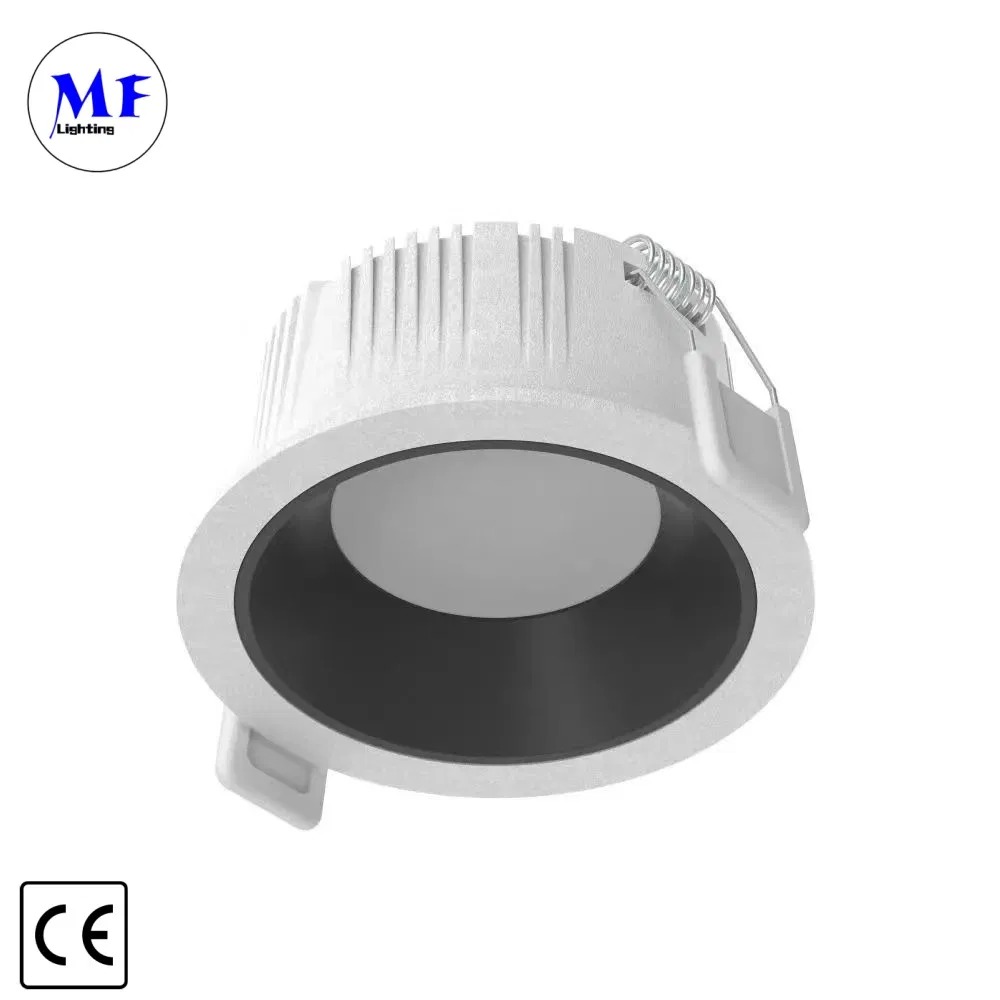

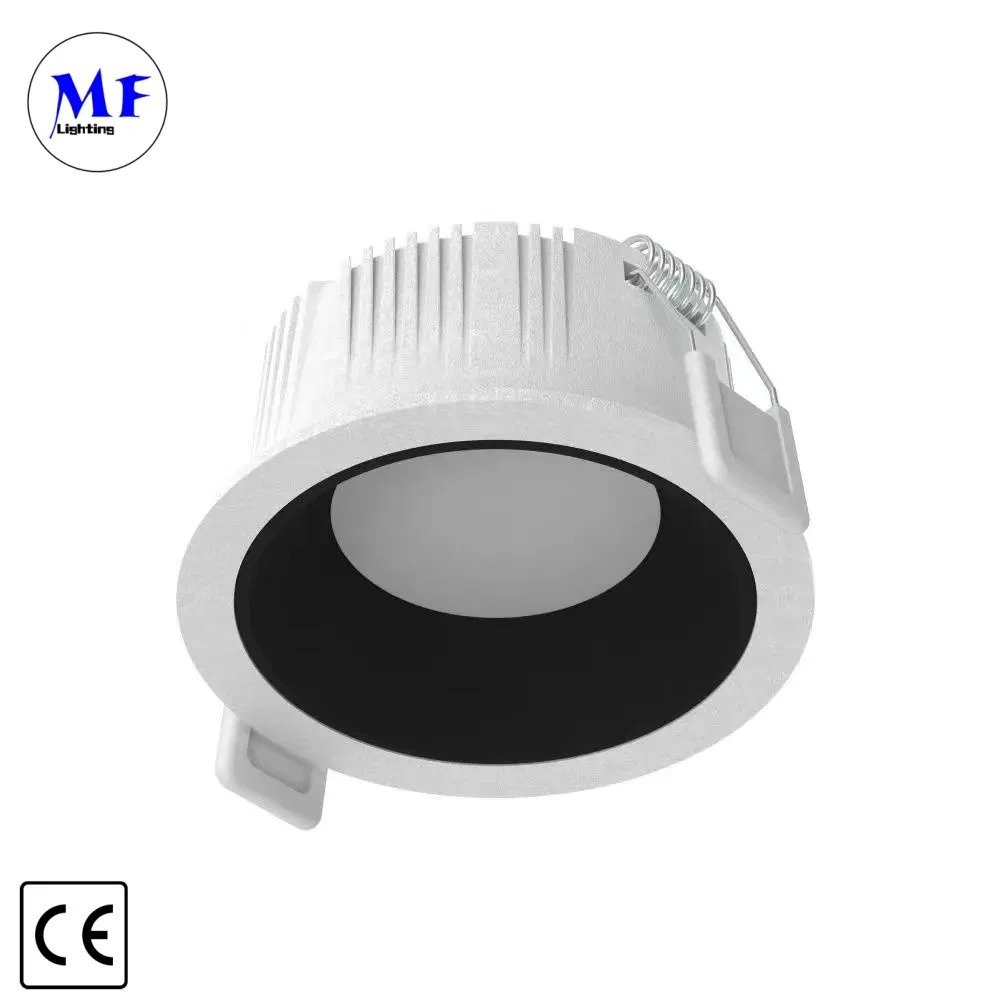

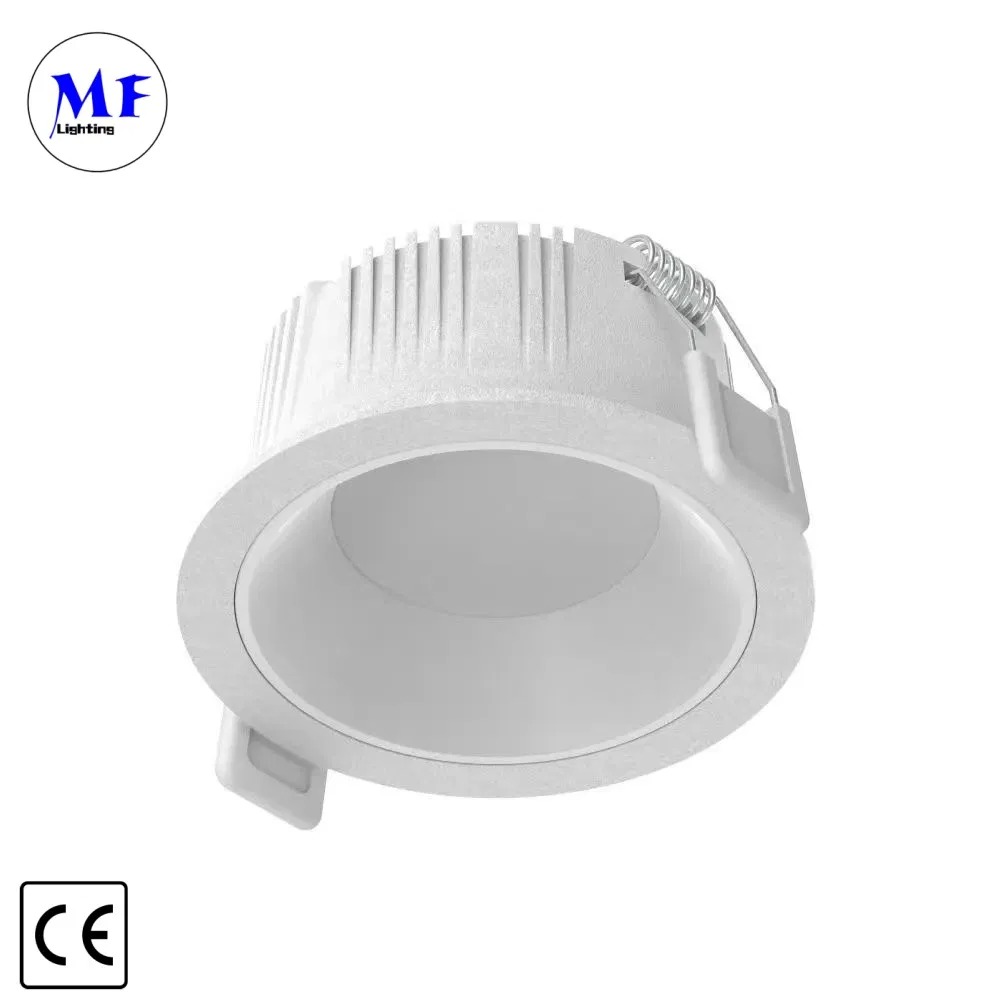

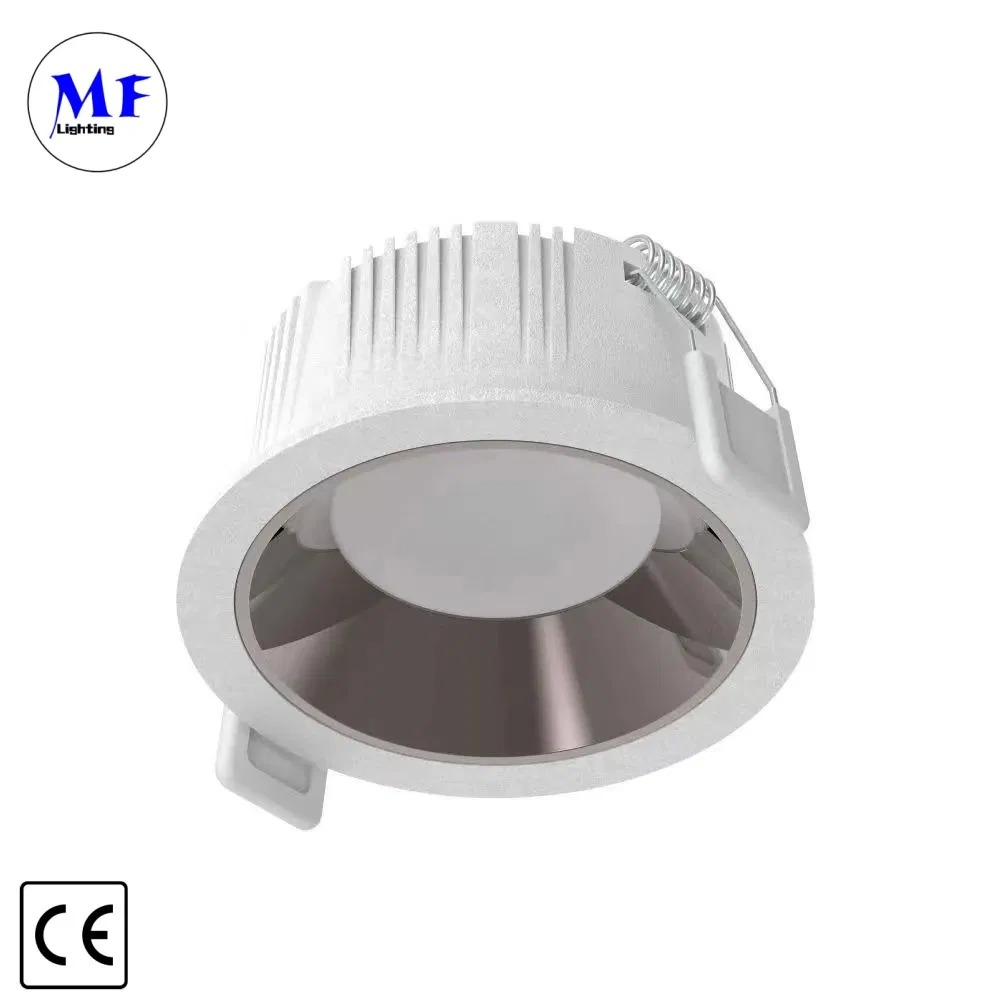

Smart Zigbee Tuya LED Spot Light front view Smart Zigbee Tuya LED Spot Light side view Smart Zigbee Tuya LED Spot Light installation view Smart Zigbee Tuya LED Spot Light close-up detail
Key Features
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more
  • Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices
  • Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP
  • Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes
  • High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering
LED Spot Light feature demonstration
Installation Instructions
Easy Spring Clip Installation diagram
Easy Spring Clip Installation
1. Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
2. Connect the Wires: Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
3. Insert into the Ceiling: Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
4. Lower the Spring Clips: After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.
Product Dimensions
LED Spot Light dimensional diagram
Applications
Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.

Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.
LED Spot Light in industrial application LED Spot Light in commercial space application
