Factory Price Smart Dimming Triac 0-10V Dali-2 Dali Dt6 Dt8 Control 5-50W Anti-Glare PC Diffuser Die Cast LED Recessed Downlight for Indoor Ceiling Light

Minimum Order Quantity : 1 Price : 11.4
Certification: CE, RoHS

Detail Information

Lamp Body Material: Die-Casting Aluminum Ugr: <19
Luminous Flux: 100lm/W IP Rating: IP40
Dimmable: Non-Dim/Triac/0-10V/Dali-2 Dimmable/Tuya Zigbee Power: 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Color Temperature: 2700K/3000K/3500K/4000K/5000K/6000K CRI: Ra90+/Ra80+
LED Chip: 0sram/Epistar COB Input Voltage: 110Vac Or 200-240Vac, 50hz/60hz
Beam Angle: 120° Operating Temperature: -20°C ~50°C
CCT Adjustable: 2700-6000K Tunable PF: 5-20W≥0.50, 20W≥0.95
Lifespan: ≥50000hrs
Highlight:

Smart Dimming LED Downlight

,

Triac 0-10V Dali-2 Recessed Light

,

Anti-Glare PC Diffuser Downlight

Product Description

MF-DLT15 CMD Series LED Recessed Downlight
This indoor IP40 recessed LED downlight from Ming Feng Lighting features advanced dimming capabilities including TRIAC, 0-10V, DALI-2, and Tuya Zigbee smart control. With power options ranging from 5W to 50W, it delivers high-performance lighting for various commercial and residential applications.

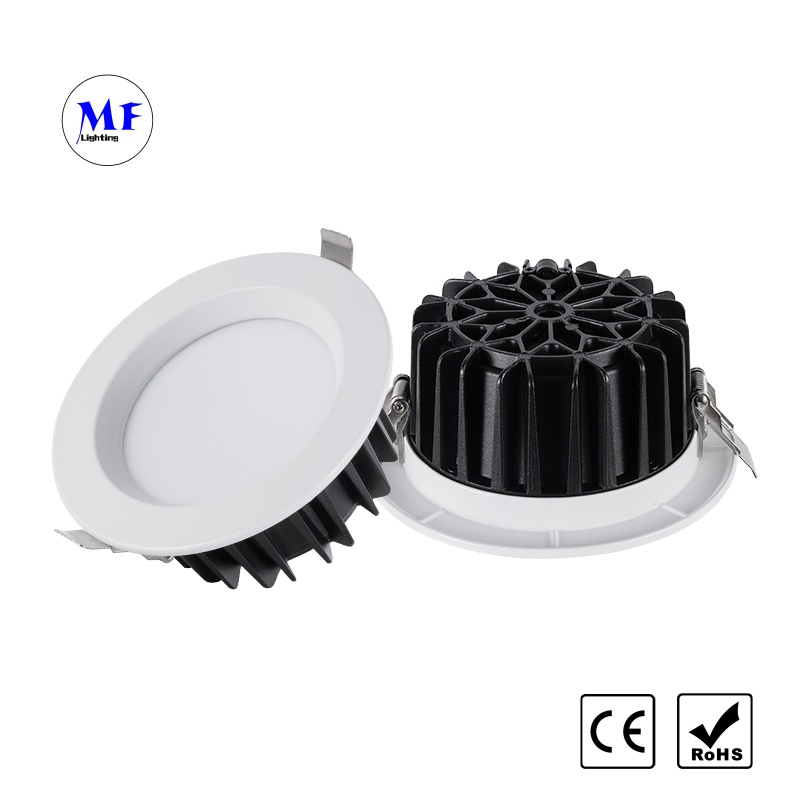

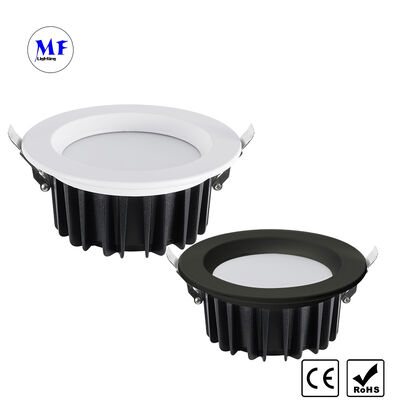

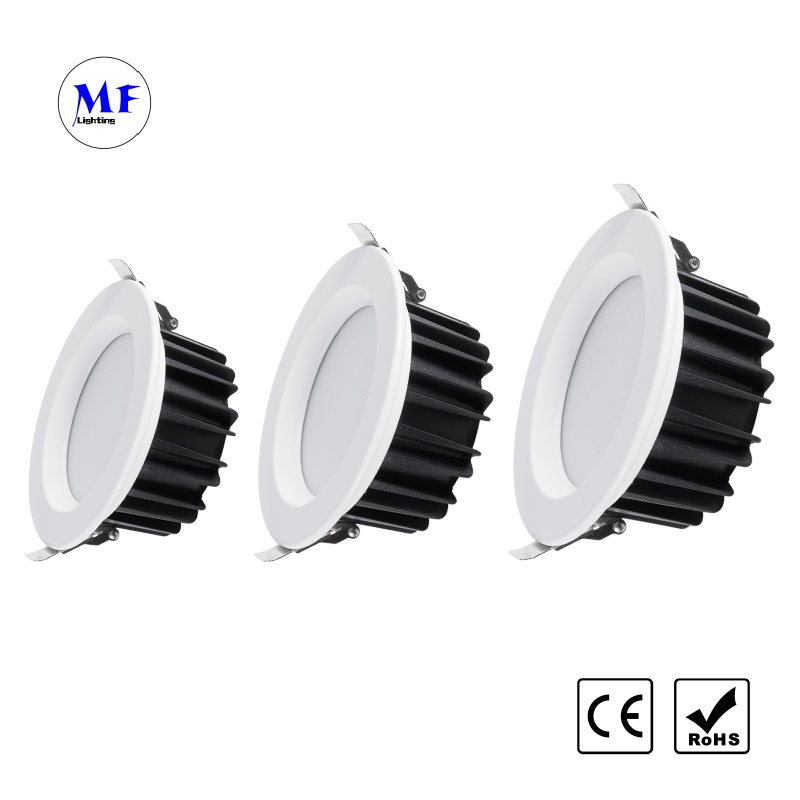

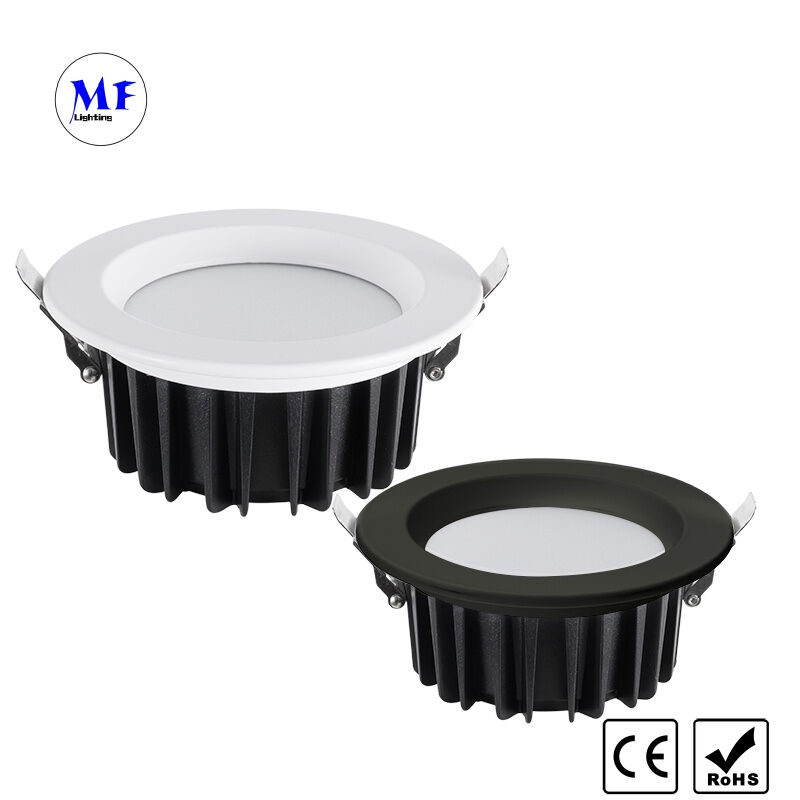

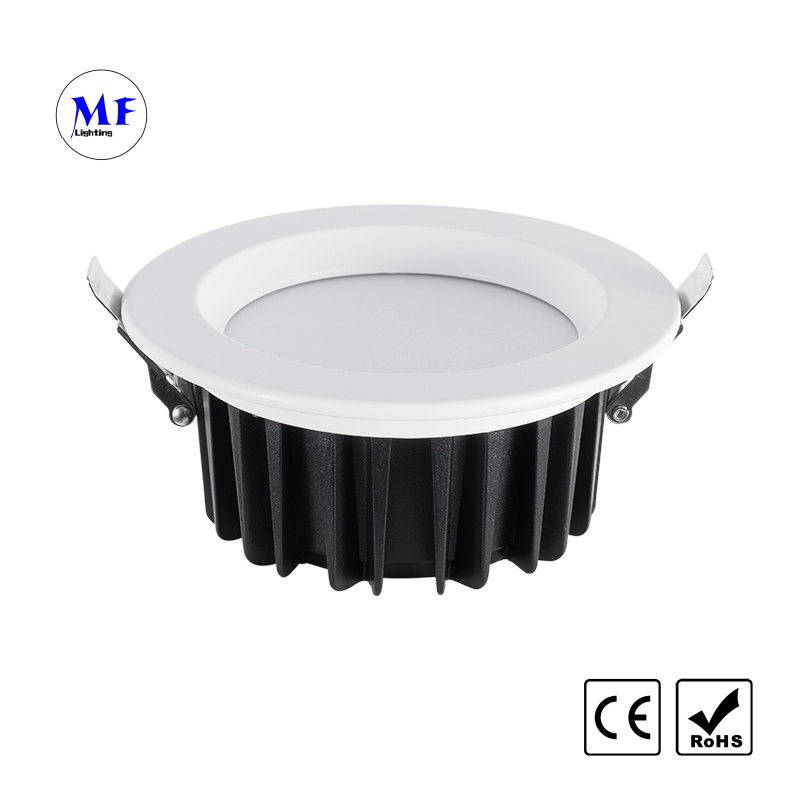

MF-DLT15 CMD Series LED Recessed Downlight product overview Close-up view of LED downlight design LED downlight installation example
Key Features
  • Die-cast aluminum heat sink for extended 50,000-hour lifespan
  • Milky PC diffuser with UGR<19 for glare-free, comfortable lighting
  • Multiple dimming options: Non-Dim, TRIAC, 0-10V, DALI-2, Tuya Zigbee
  • Tunable CCT from 2700K to 6000K for customizable lighting scenes
  • High efficiency of 100lm/W with CRI options Ra80+ or Ra90+
  • White or black housing options available
  • Easy spring clip installation system
  • IP40 rated for indoor applications
Technical Specifications
ModelMF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Input Voltage110Vac or 200-240Vac, 50Hz/60Hz
Power Range5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Color Temperature2700K/3000K/3500K/4000K/5000K/6000K
LED ChipOSRAM/Epistar COB as options
LED DriverLifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim versions
Power Factor5-20W≥0.50, 20W≥0.95
Housing ColorWhite/Black as options
Cover MaterialPC Milky
Luminous Efficacy100LM/W
CRI (Ra)Ra90+/Ra80+ as options
Lifespan≥50,000 hours
Beam Angle120°
MaterialDie-casting Aluminum
Operating Temperature-20°C to 50°C
Dimmable OptionsNon-Dim/TRIAC/0-10V/DALI-2/Tuya Zigbee
CCT Adjustable2700-6000K Tunable (optional)
IP RatingIP40
UGR<19
CertificatesCE/RoHS (Whole Lamp); CE/RoHS/CB/SAA (Driver)
Warranty Period3 years
LED downlight technical specifications diagram LED downlight dimensions diagram
Installation Instructions
Easy Spring Clip Installation Process:
  1. Ceiling Hole Cutting: Use appropriate tools to cut a hole according to luminaire size
  2. Connect Wires: Connect wires to terminals correctly (professional electrician recommended)
  3. Insert into Ceiling: Align spring clips vertically and insert into ceiling hole
  4. Lower Spring Clips: Confirm proper fit and wiring, then lower clips and power on
LED downlight installation step 1 LED downlight installation step 2 LED downlight installation step 3 LED downlight installation step 4
Additional Features
  • Multiple cover options: white PC or transparent glass
  • Excellent color consistency with uniform output
  • High-performance BridgeLux chips for superior brightness
  • Flicker-free design for eye protection
  • Ideal for retail shops, boutiques, offices, and commercial projects
Packaging & Shipping Information
LED downlight packaging LED downlight shipping packaging LED downlight carton packaging LED downlight bulk packaging
Power Carton Size (cm) Gross Weight (KG) Pieces per Carton
5W/7W/10W/12W 64×27×56 22.5 100
15W/20W 77×32×34 19.5 50
25W/30W/35W 62×41×43.5 25.0 40
40W/45W/50W 51×37×51.5 22.0 40
Frequently Asked Questions
Q1: Are you a manufacturer?
Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development and manufacturing, operating based on ISO quality management since 2009.
Q2: Can I order a sample of the LED Light?
Yes, we welcome sample orders to test and check product quality. Mixed samples are also acceptable.
Q3: What is the lead time for the LED Light?
Sample orders: 3-7 days; Mass production orders: 15-25 days (depending on order quantities).
Q4: How do you ship the finished products?
We offer optional shipping methods: SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).
Q5: Can I print my logo on the LED Light?
Yes, we provide OEM service including custom labels and color boxes according to your requirements.
Q6: How do I proceed with an order for the LED Light?
Provide your detailed requirements → We recommend suitable products → Confirm details → Issue purchase order and payment → Production and shipment arrangement.
Q7: How do you handle defective products?
Our quality control ensures defective rate <0.2%. During the 5-year warranty, provide pictures/videos of defective lights and we'll ship replacements promptly.
