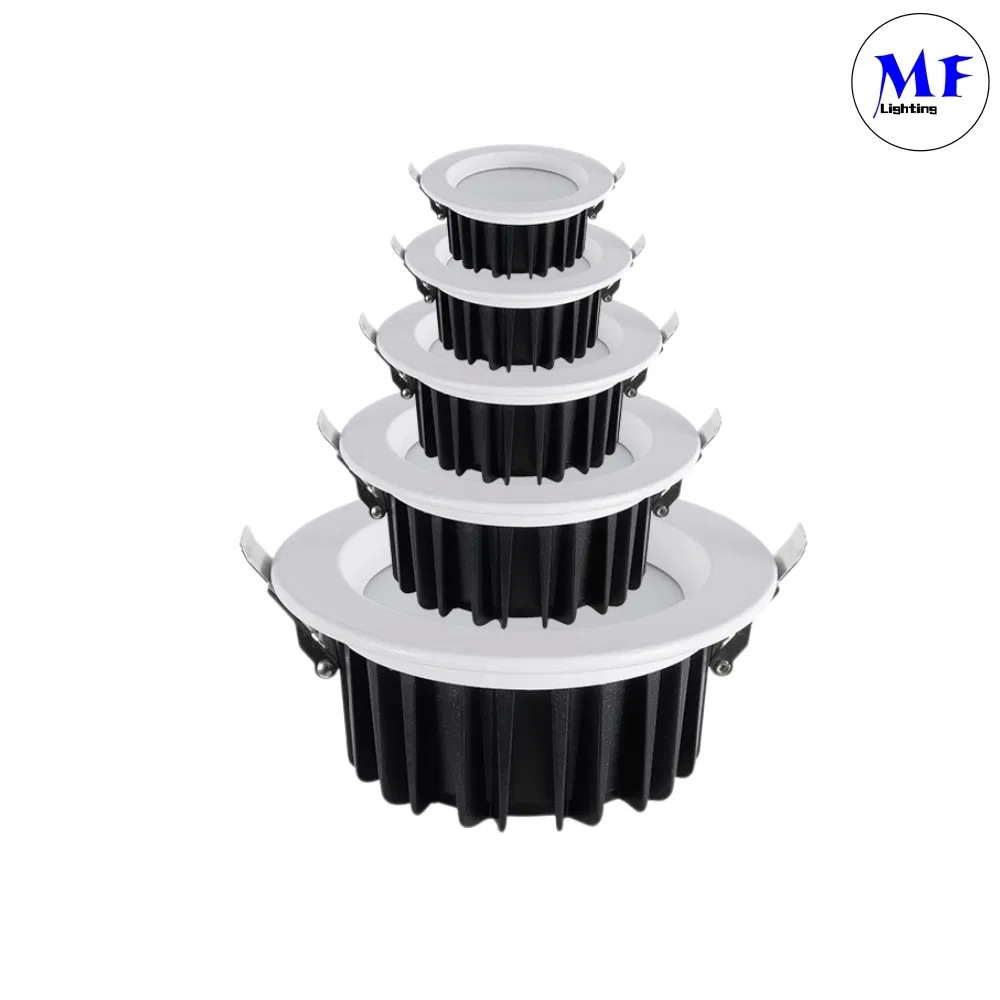

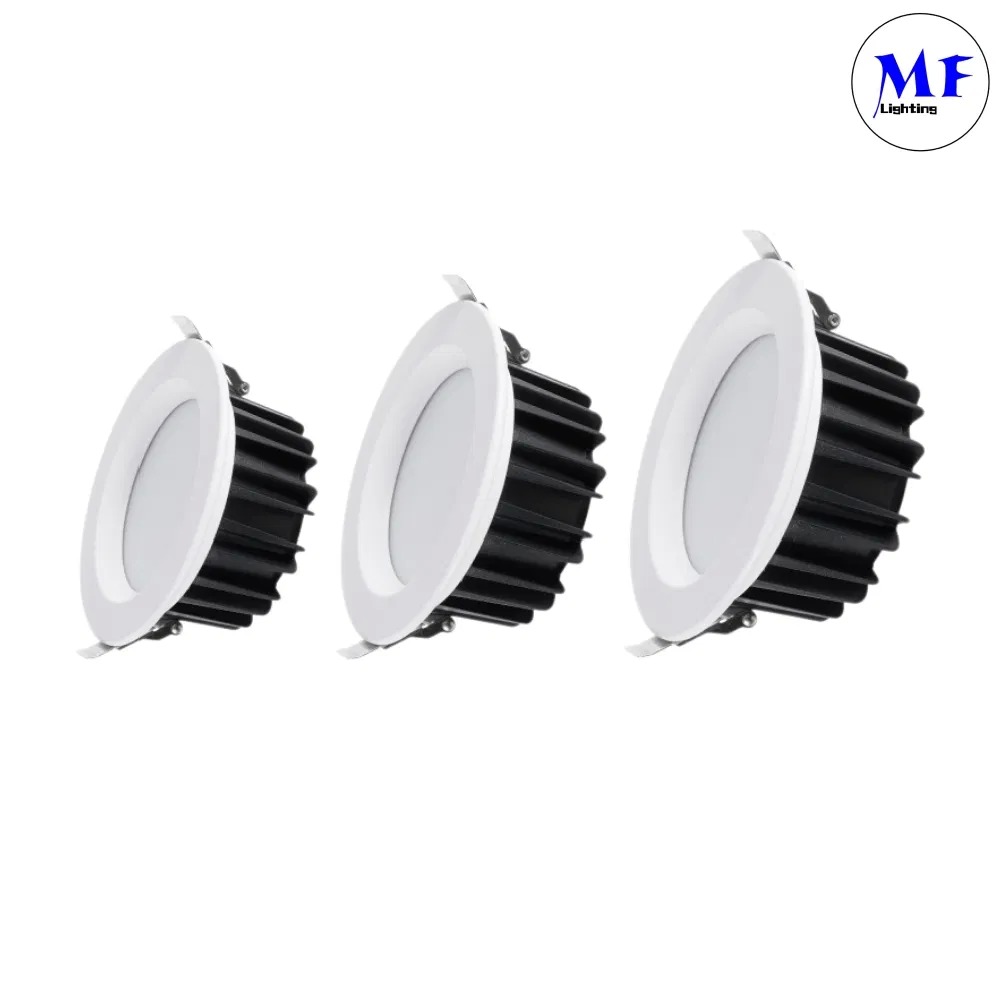

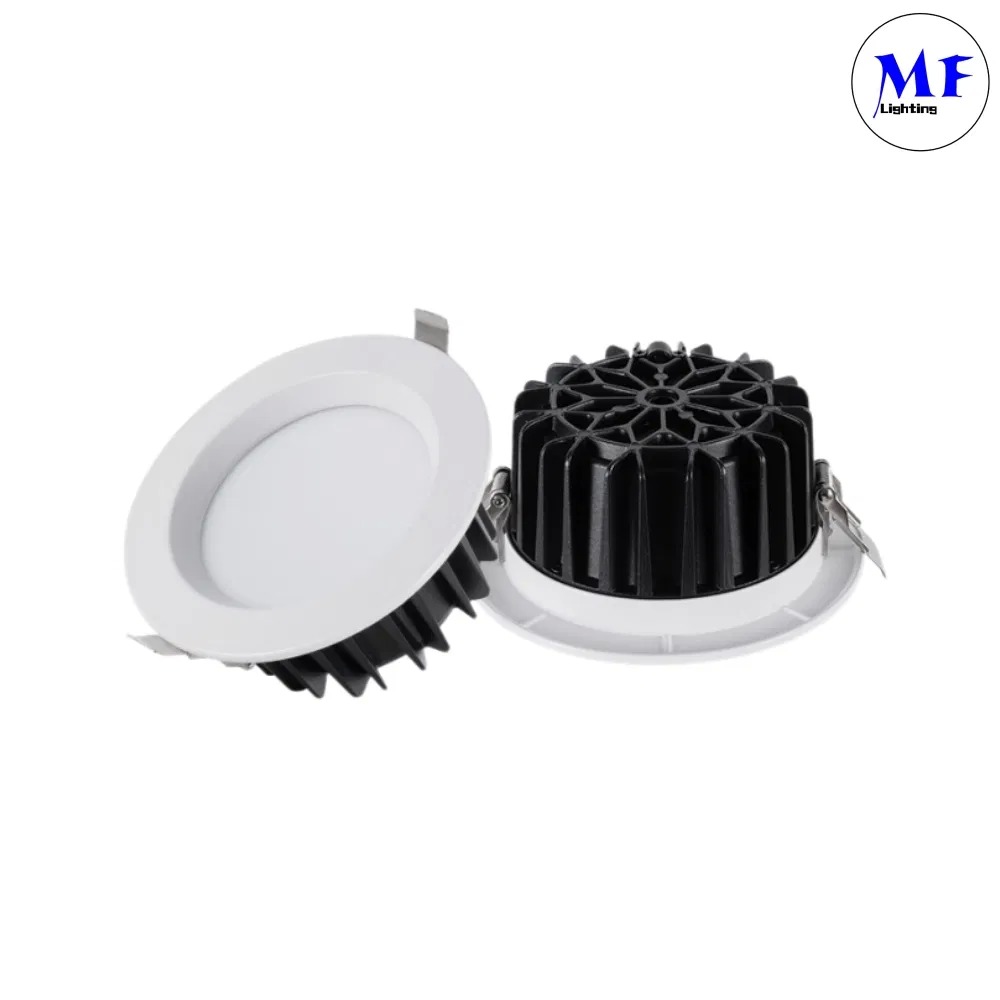

Aluminum High Power 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W Dimming CCT Adjustable Dimmable Smart Recessed Indoor Downlight Spot IP40 Hotel LED Down Light

Minimum Order Quantity : 1 Price : 6.4
Certification: CE, RoHS

Detail Information

Power: 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W Luminous Flux: 100LM/W
Dimmable: Non-Dim/Triac/0-10V/Dali-2 Dimmable/Tuya Zigbee Lamp Body Material: Aluminum
Lifespan: ≥50000hrs IP Rating: IP40
Power Factor: 5-20W≥0.50, 20W≥0.95 CRI: Ra90+/ Ra80+
CCT Adjustable: 2700-6000K Tunable UGR: <19
Cover Material: PC Milky Operating Temperature: -20°C ~50°C
Color Temperature: 2700/3000K/ 3500K/4000/ 5000K/6000K LED Chip: O-SRAM/Epistar SMD
Beam Angle: 120°
Highlight:

Aluminum dimmable LED downlight

,

Smart recessed CCT adjustable downlight

,

High power IP40 LED spot light

Product Description

Product Overview
High-performance aluminum LED downlight with smart dimming and CCT adjustment capabilities, designed for professional indoor lighting applications.
Key Features
  • IP40 rated for indoor applications
  • Long service life: ≥50,000 hours with integrated die-cast aluminum heat sink
  • Glare-free performance with milky PC diffuser (UGR<19)
  • Multiple dimming modes: Non-Dim, TRIAC, 0-10V, DALI, Tuya Zigbee with APP control
  • Color temperature options: fixed CCT 2700K-6000K or tunable CCT 2700-6000K
  • High luminous efficiency: 100 lm/W with Ra80+ / Ra90+ color rendering

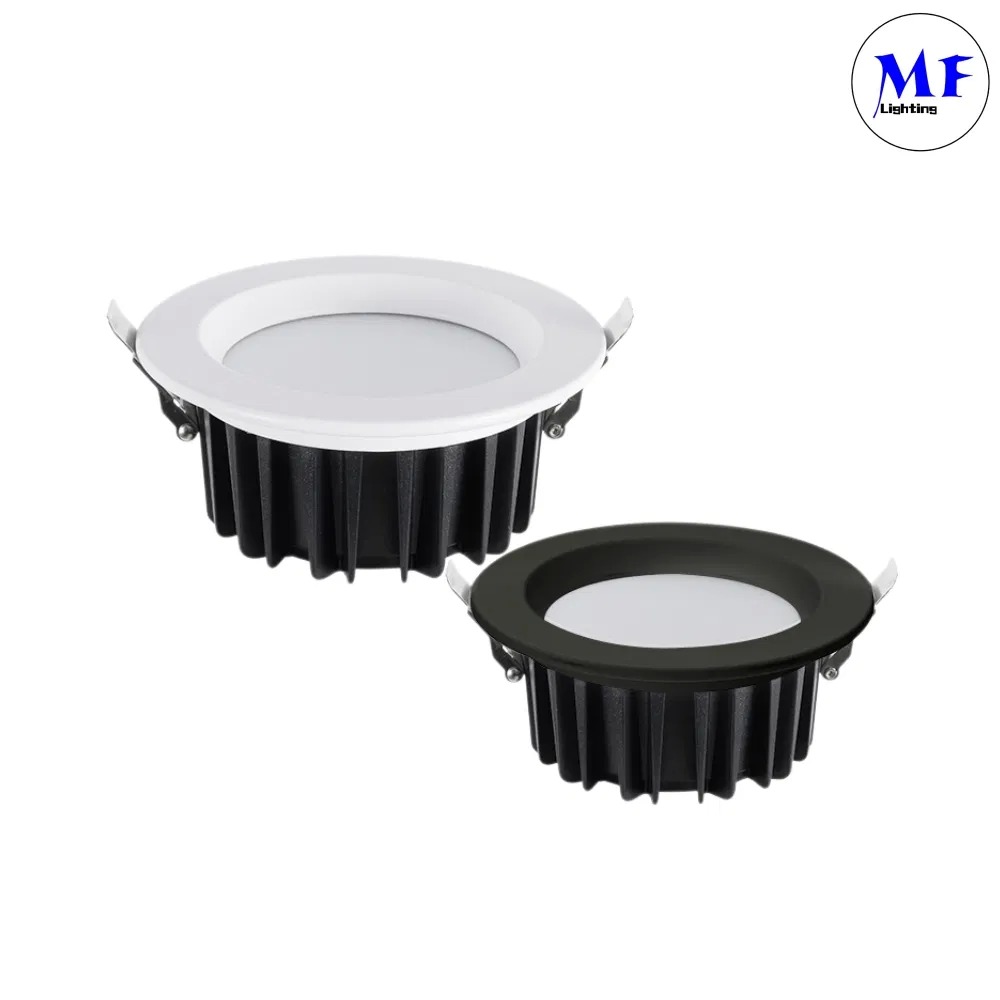

  • White or black housing options
  • 120° beam angle with SDCM<3
  • Easy spring-clip installation for embedded ceilings
Technical Specifications
Parameter Specification Remarks
Model Series MF-DLT15-5W ~ MF-DLT15-50W
Power Range 5W - 50W Multiple wattage versions
Light Source COB LED O-SRAM / Epistar chip optional
Luminous Efficiency 100 lm/W
Color Rendering Index Ra80+ / Ra90+ Optional
Color Temperature 2700K - 6000K Fixed CCT; tunable CCT optional
Beam Angle 60°
SDCM < 3
Glare Control UGR < 19 Anti-glare, eye-protecting
IP Rating IP20 / IP40 Indoor application
Lifespan >= 50000 hours Die-cast aluminum heat sink
Warranty 3 years
Input Voltage 110Vac / 200-240Vac 50/60Hz
Power Factor >=0.50 (5-20W); >=0.95 (>20W)
Dimming Mode Non-Dim / TRIAC / 0-10V / DALI / Tuya Zigbee Tuya supports APP smart control
Driver Brand Lifud / Aohuaweiye / Eaglerise / BOKE Optional for dimming versions
Housing Material Die-cast aluminum Good heat dissipation
Diffuser Cover Transparent / milky PC Milky PC for anti-glare
Housing Color White / Black
Installation Embedded ceiling (spring clip) Strength spring buckle
Lamp Certification CE, RoHS
Driver Certification CE, RoHS, CB, SAA
Working Temperature -20°C ~ 50°C
Product Design & Features
Aluminum LED downlight design showing housing and diffuser Close-up view of LED downlight components LED downlight design schematic LED downlight installation view LED downlight beam angle demonstration COB and SMD LED type comparison
Advanced Performance Features
  • Anti-glare lighting (UGR<19) for eye-protecting indoor illumination
  • Dimming function: single-color brightness adjustment via TRIAC / 0-10V / DALI / Tuya Zigbee
  • CCT tuning function (optional): adjust color temperature from 2700K-6000K
  • Superior heat dissipation with die-cast aluminum heat sink for extended lifespan
  • IP40 dust-proof performance for commercial, retail, restaurant and residential lighting
  • Quick embedded ceiling mounting with strength spring buckle clips
Detailed Construction
Cover: transparent / milky PC diffuser cover for optimal light distribution
Structure components: high-quality die-cast aluminum body, transparent glass / PC cover, strength spring buckle
Housing color: White / Black options available
Beam angle: 60 degree for focused illumination
Detailed view of downlight construction and components
Dimensions
LED downlight dimensional drawing and specifications
Installation Instructions
Easy Spring Clip Installation
  1. Cut ceiling opening according to required cut-out dimension
  2. Complete wiring by a qualified electrician
  3. Compress spring clips and insert fixture into ceiling hole
  4. Release spring clips to secure the luminaire, power on and test
Step-by-step installation diagram for LED downlight
Applications
LED downlights are versatile lighting fixtures that find wide application in various settings. With their sleek design and energy-efficient performance, LED downlights are commonly used in residential, commercial, and hospitality environments.
LED downlight application in commercial space LED downlight in residential setting LED downlight in hospitality environment LED downlight in hotel application LED downlight in outdoor commercial application
Primary Application Areas
  • Residential: Kitchens, living rooms, bedrooms for ambient or task lighting
  • Commercial: Offices, retail stores, showrooms for effective illumination
  • Hospitality: Hotels, restaurants, bars for welcoming ambiance
  • Museums & Galleries: Precise artwork illumination with minimal heat/UV emissions
  • Educational: Schools, universities, libraries for conducive learning environments
  • Healthcare: Hospitals, clinics for clean, bright lighting in patient areas
  • Outdoor: Building facades, pathways, gardens with suitable IP ratings
Packaging Information
Power Carton Size (cm) Gross Weight (KG) Pieces per Carton
5W/7W/10W/12W 64×27×56 22.5 100
15W/20W 77×32×34 19.5 50
25W/30W/35W 62×41×43.5 25.0 40
40W/45W/50W 51×37×51.5 22.0 40
LED downlight packaging overview Packaged LED downlights in carton Individual downlight packaging Shipping carton labeling and details Packaged product ready for shipment
