Product Overview
Spot SMD Recessed Smart CCT Power Adjustable Dimming DALI 0-10V Triac 120° White IP40 Downlight available in 5W-50W power range for versatile indoor lighting applications.
Key Features
- IP40 rating for indoor applications only
- Long service life ≥50,000 hours with integrated die-cast aluminum heat sink
- Glare-free performance with milky PC diffuser; UGR<19 for comfortable bedroom and office lighting
- Multiple dimming modes: Non-Dim, TRIAC, 0-10V, DALI, Tuya Zigbee with APP smart control
- Rich color temperature options: fixed CCT 2700K-6000K; optional tunable CCT 2700-6000K
- High luminous efficiency: 100 lm/W with Ra80+ / Ra90+ color rendering optional
- Two housing color choices: White, Black
- 120° beam angle with SDCM<3
- Spring-clip structure for easy embedded ceiling installation
Technical Specifications

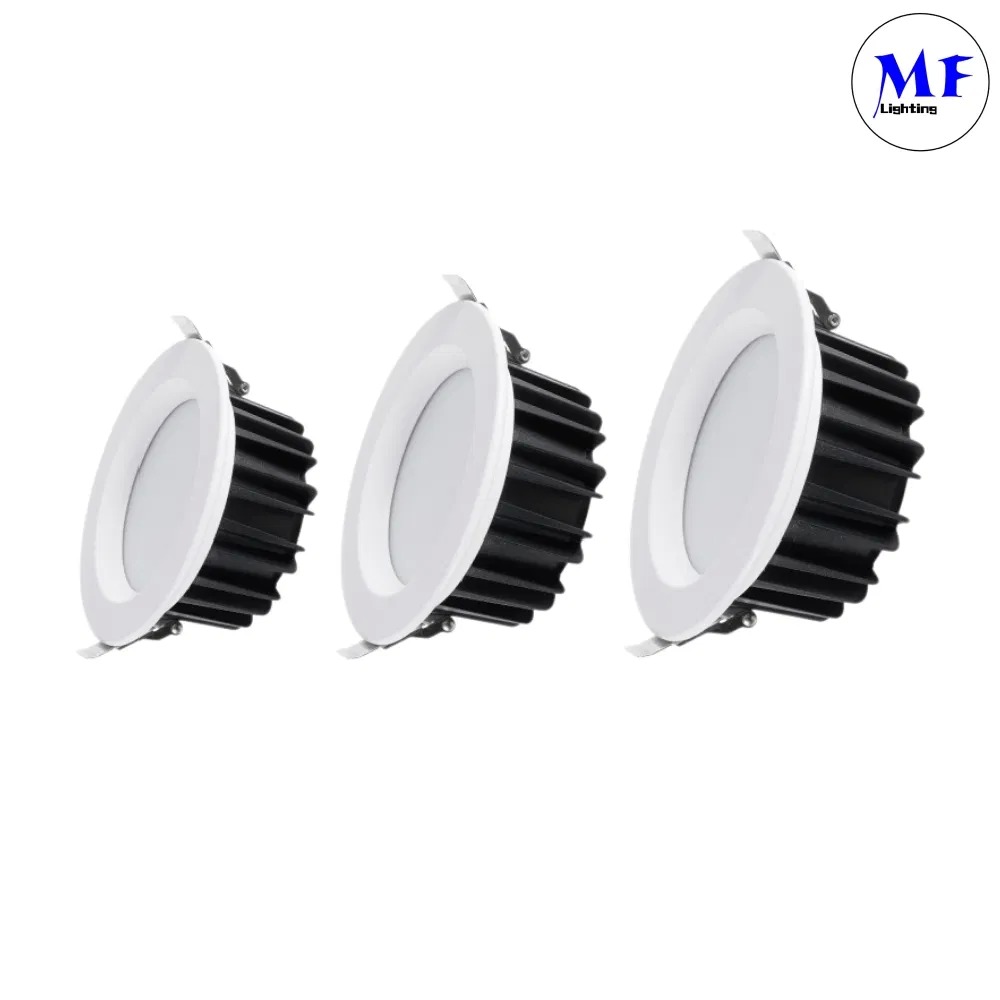

- Power range: 5W-50W multiple wattage versions
- Housing material: die-casting aluminum for optimal heat dissipation
- Light source: O-SRAM / Epistar SMD LED chip optional
- Driver brands optional: Lifud, Aohuaweiye, Eaglerise, BOKE for different dimming versions
- Input voltage: 110Vac or 200-240Vac, 50Hz/60Hz
- Power factor: ≥0.50 for 5-20W; ≥0.95 for power above 20W
- Working ambient temperature: -20ºC ~ 50ºC
- Certifications: CE, RoHS for complete lamp; Driver supports CE, RoHS, CB, SAA
- 3-year warranty period
- Multiple physical dimensions & ceiling cut-out sizes available
Product Design

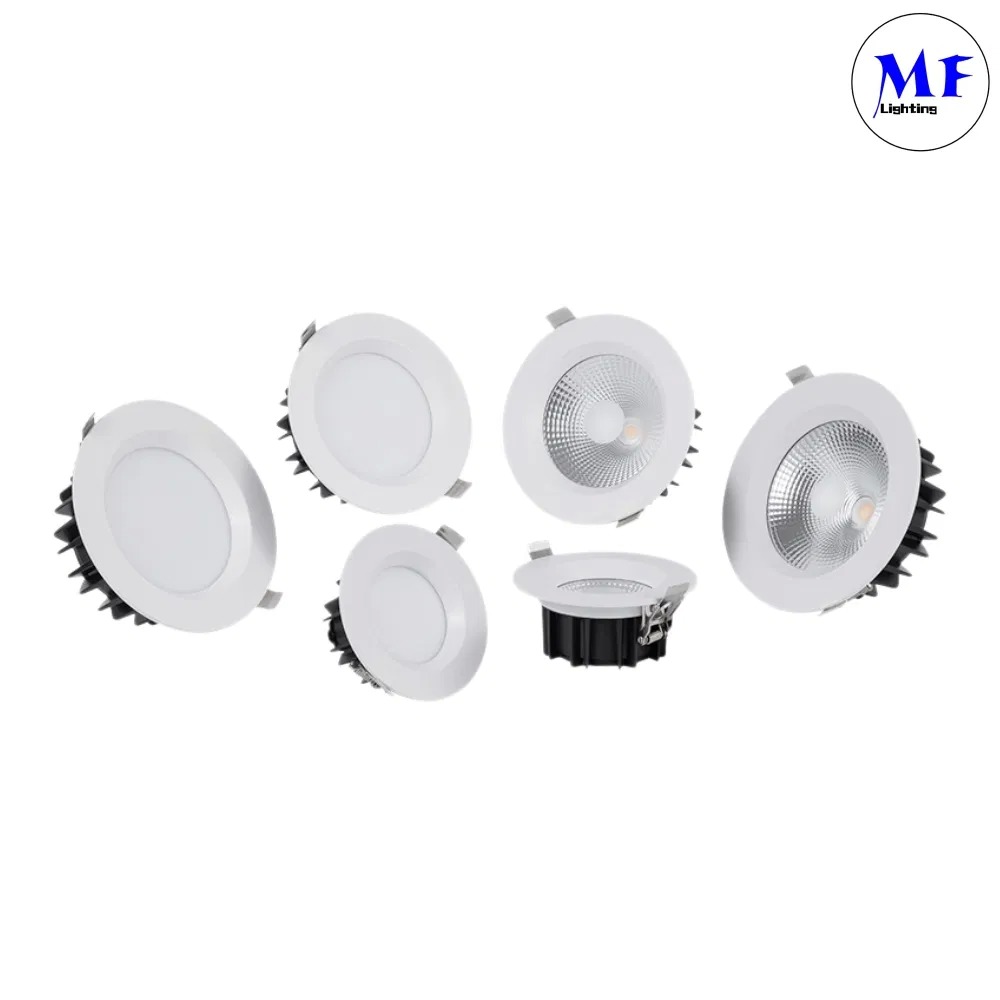

COB & SMD Type Design
Detailed Specifications
| Parameter |
Specification |
Remarks |
| Model Series |
MF-DLT15-5W ~ MF-DLT15-50W |
|
| Power Range |
5W - 50W |
Multiple wattage versions |
| Light Source |
COB LED |
O-SRAM / Epistar chip optional |
| Luminous Efficiency |
100 lm/W |
|
| Color Rendering Index |
Ra80+ / Ra90+ |
Optional |
| Color Temperature |
2700K - 6000K |
Fixed CCT; tunable CCT optional |
| Beam Angle |
60° |
|
| SDCM |
< 3 |
|
| Glare Control |
UGR < 19 |
Anti-glare, eye-protecting |
| IP Rating |
IP20 / IP40 |
Indoor application |
| Lifespan |
>= 50000 hours |
Die-cast aluminum heat sink |
| Warranty |
3 years |
|
| Input Voltage |
110Vac / 200-240Vac |
50/60Hz |
| Power Factor |
>=0.50 (5-20W); >=0.95 (>20W) |
|
| Dimming Mode |
Non-Dim / TRIAC / 0-10V / DALI / Tuya Zigbee |
Tuya supports APP smart control |
| Driver Brand |
Lifud / Aohuaweiye / Eaglerise / BOKE |
Optional for dimming versions |
| Housing Material |
Die-cast aluminum |
Good heat dissipation |
| Diffuser Cover |
Transparent / milky PC |
Milky PC for anti-glare |
| Housing Color |
White / Black |
|
| Installation |
Embedded ceiling (spring clip) |
Strength spring buckle |
| Lamp Certification |
CE, RoHS |
|
| Driver Certification |
CE, RoHS, CB, SAA |
|
| Working Temperature |
-20°C ~ 50°C |
|
Advanced Features
- Anti-glare lighting (UGR<19) for eye-protecting indoor illumination
- Dimming function: single-color brightness adjustment via TRIAC / 0-10V / DALI / Tuya Zigbee
- CCT tuning function (optional): adjust color temperature from 2700K-6000K
- Optimal heat dissipation with die-cast aluminum heat sink to extend lamp working life
- IP40 dust-proof performance for indoor commercial, retail, restaurant and residential lighting
- Quick embedded ceiling mounting by strength spring buckle clips
Detailed Photos

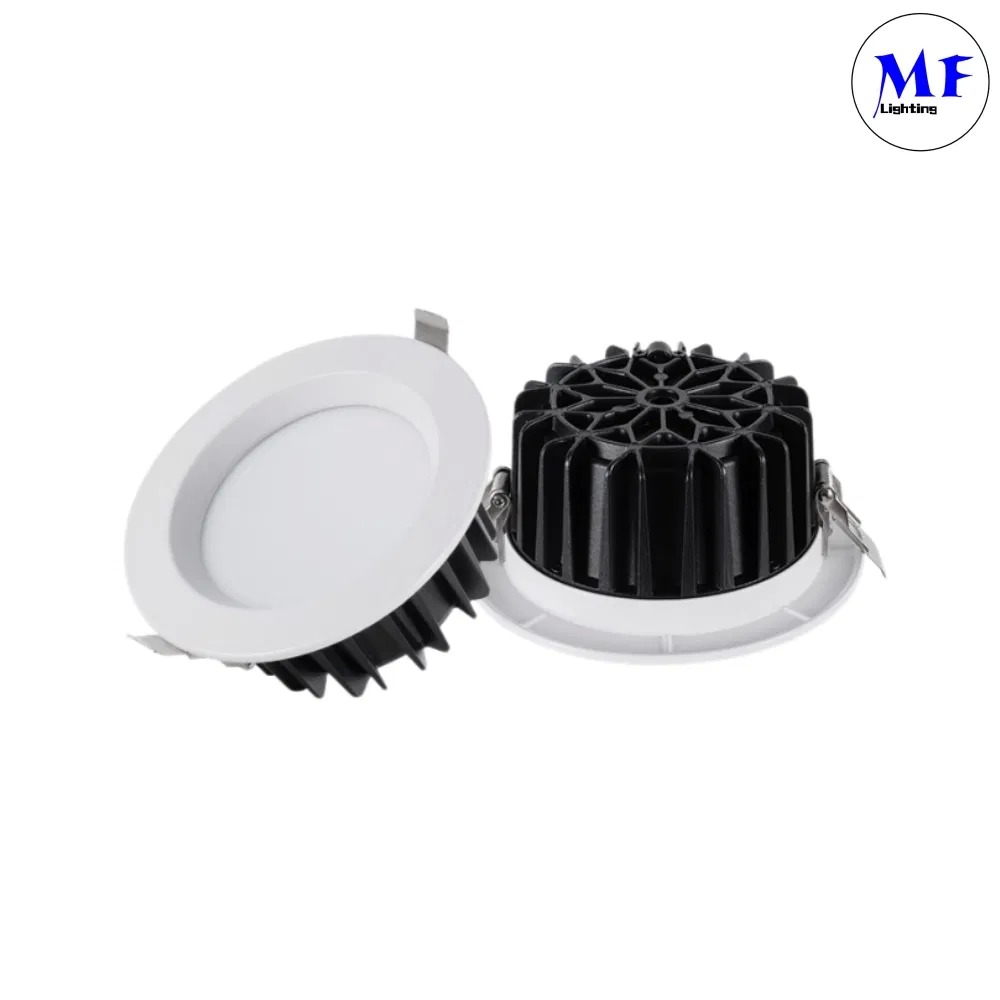

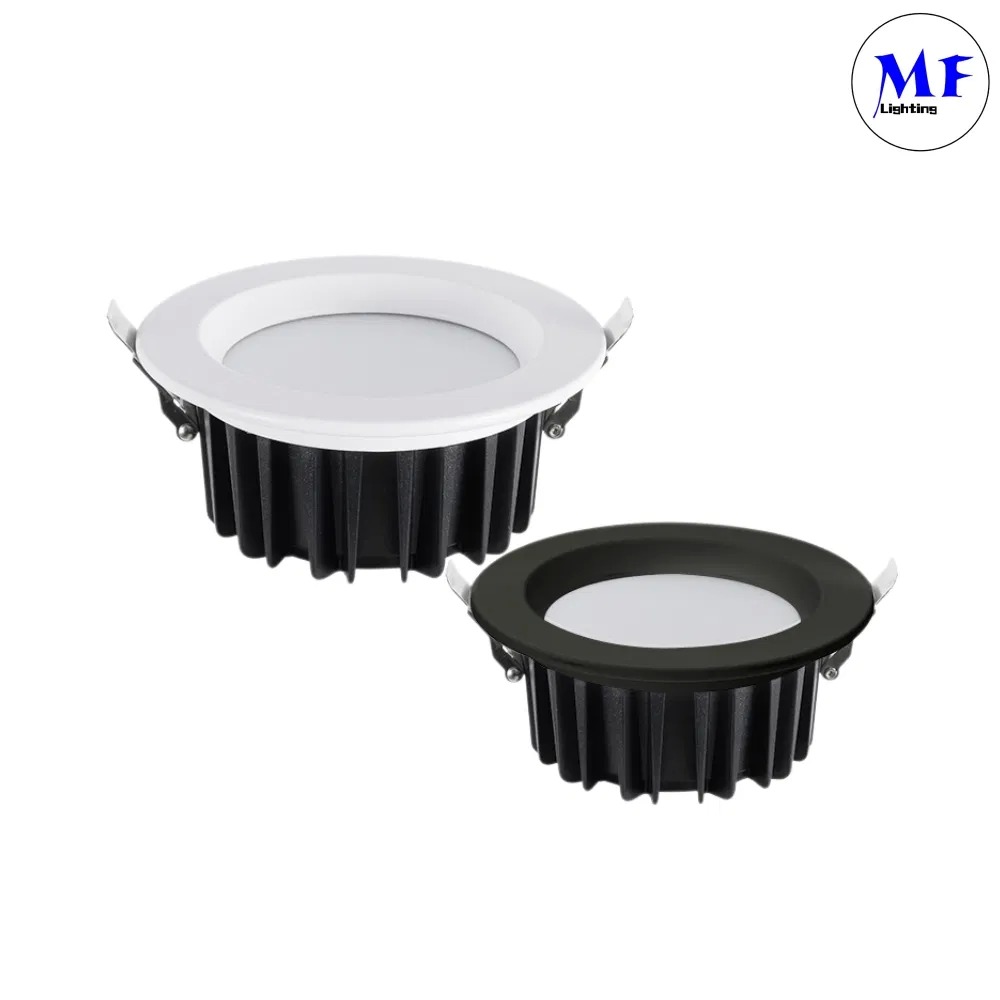

Cover: transparent / milky PC diffuser cover. Structure components: high-quality die-cast aluminum body, transparent glass / PC cover, strength spring buckle. Housing color: White / Black. Beam angle: 60 degree.
Dimensions
Installation Instructions
Easy Spring Clip Installation
- Cut ceiling opening according to required cut-out dimension
- Complete wiring by a qualified electrician
- Compress spring clips and insert fixture into ceiling hole
- Release spring clips to secure the luminaire, power on and test
Applications
LED downlights are versatile lighting fixtures that find wide application in various settings. With their sleek design and energy-efficient performance, LED downlights are commonly used in residential, commercial, and hospitality environments.
Residential Applications
In residential settings, LED downlights are often installed in kitchens, living rooms, and bedrooms to provide ambient or task lighting. They offer a modern and stylish lighting solution while consuming less energy compared to traditional lighting options.
Commercial Applications
In commercial spaces such as offices, retail stores, and showrooms, LED downlights are utilized to illuminate the area effectively. These downlights offer focused and uniform light distribution, making them ideal for highlighting specific areas or products.
Hospitality Applications
Hospitality venues, including hotels, restaurants, and bars, benefit from LED downlights to create welcoming and visually appealing ambiance. The dimmable feature allows for flexible lighting control to create different moods and atmospheres.
Additional applications include museums and galleries for precise artwork illumination, showrooms for product highlighting, educational institutions for conducive learning environments, healthcare facilities for clean bright lighting, and outdoor spaces with suitable IP ratings.
Packaging Information
| Power |
Carton Size (cm) |
Gross Weight (KG) |
Pieces per Carton |
| 5W/7W/10W/12W |
64×27×56 |
22.5 |
100 |
| 15W/20W |
77×32×34 |
19.5 |
50 |
| 25W/30W/35W |
62×41×43.5 |
25.0 |
40 |
| 40W/45W/50W |
51×37×51.5 |
22.0 |
40 |
