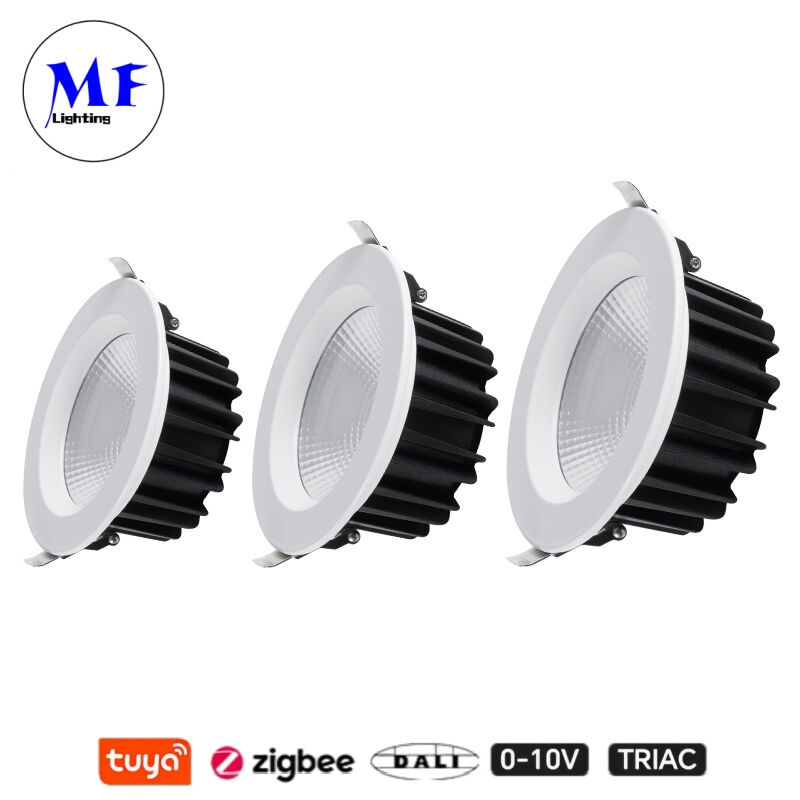

Factory Price IP40 CCT Adjustable Smart LED Recessed Spot Light
Professional-grade recessed downlight featuring advanced dimming technology and superior lighting performance for commercial, industrial, and retail applications.
Key Features
- IP40 Rated Design: Suitable for indoor applications with protection against dust and moisture

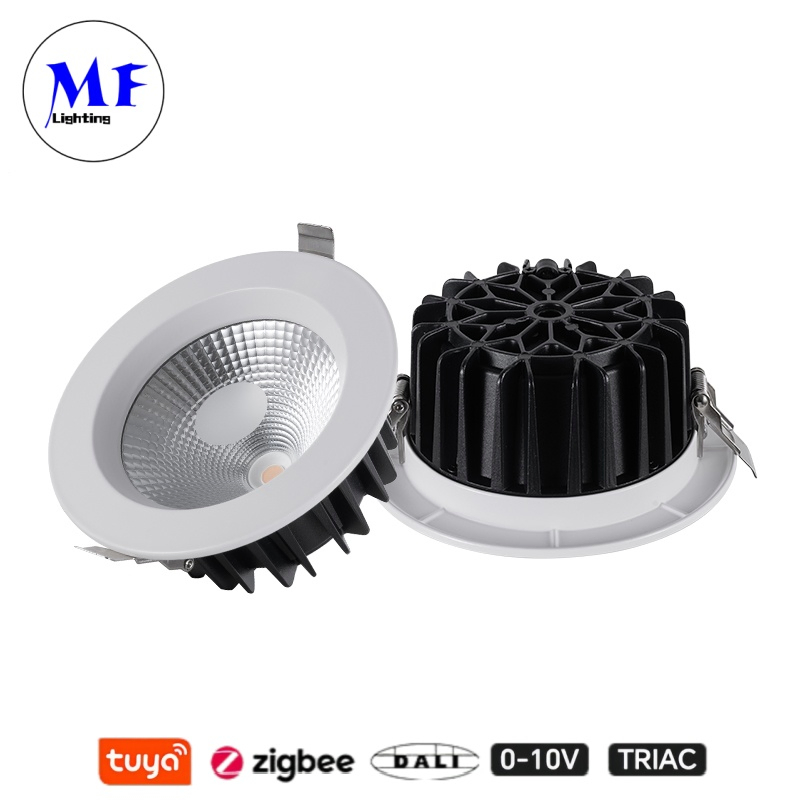

- Long Lifespan: Integrated die-cast aluminum heat sink ensures 50,000+ hours of operation
- Glare-free Design: Milky PC diffuser with UGR <19 provides comfortable, eye-friendly lighting
- Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya Zigbee, and DALI dimming with smart app control
- Wide Color Temperature Range: Available in 2700K to 6000K with tunable CCT 2700-6000K options
- High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+)

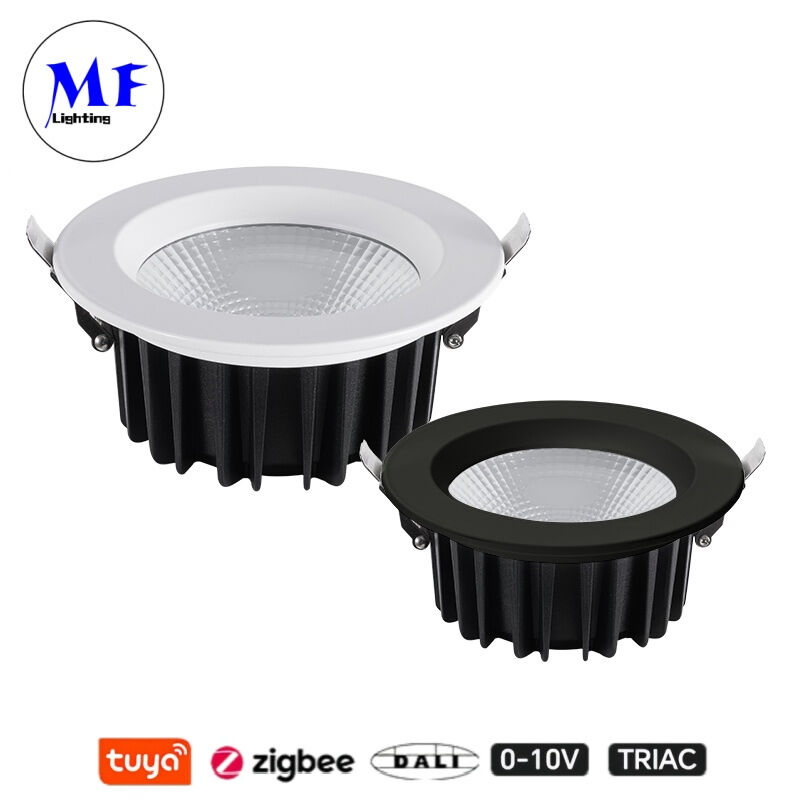

- Multiple Housing Colors: Available in White and Black options
Technical Specifications
| Parameter | Specification |
|---|
| Model | MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Input Voltage | 110Vac or 200-240Vac, 50Hz/60Hz |
| Power | 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Color Temperature | 2700K/3000K/3500K/4000K/5000K/6000K |
| LED Chip | OSR-AM/Epi-star COB as options |
| LED Driver | Lifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim versions |
| Power Factor | 5-20W ≥0.50, 20W ≥0.95 |
| Housing Color | White/Black as options |
| Cover | PC Milky |
| Luminous Flux | 100 LM/W |
| CRI (Ra) | Ra90+/Ra80+ as options |
| Lifespan | ≥50,000 hours |
| Beam Angle | 120° |
| Material | Die-casting Aluminum |
| Operating Temperature | -20°C to 50°C |
| Dimmable | Non-Dim/TRIAC/0-10V/DALI-2/Tuya Zigbee as options |
| CCT Adjustable | 2700-6000K Tunable as optional |
| IP Rating | IP40 |
| UGR | <19 |
| Certification | CE/RoHS (Whole Lamp); CE/RoHS/CB/SAA (Driver) |
| Warranty Period | 3 years |
Applications
Industrial Settings: Ideal for industrial environments where dust, moisture, or water exposure can be an issue, providing reliable waterproof lighting solutions.
Retail & Commercial Spaces: Perfect for retail stores, restaurants, and commercial spaces requiring water resistance, durability, and superior lighting quality.
Installation Instructions
- Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the luminaire size specifications
- Connect the Wires: Connect wires to luminaire terminals correctly according to installation manual (professional electrician recommended)
- Insert into Ceiling: Align spring clips vertically and insert into ceiling hole
- Lower Spring Clips: After confirming proper fit and wiring, lower clips and turn on power
Packaging & Shipping
| Power | Carton Size (cm) | Gross Weight (KG) | Pieces per Carton |
|---|
| 5W/7W/10W/12W | 64×27×56 CM | 22.5 KG | 100 PCS |
| 15W/20W | 77×32×34 CM | 19.5 KG | 50 PCS |
| 25W/30W/35W | 62×41×43.5 CM | 25.0 KG | 40 PCS |
| 40W/45W/50W | 51×37×51.5 CM | 22.0 KG | 40 PCS |
Company Profile
Frequently Asked Questions
Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience. Our products include IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamps, and LED underground lights.
What is your main product?
Our main products include: LED Triproof lights/Vapor Tight Lights, LED High Bay Lights, LED Flood lights, LED Explosion Proof Lights, LED Down Lights, LED underwater lights (swimming pool, fountain, underwater spotlights), LED garden spot/spike lights, and LED inground lights.
What is the minimum order quantity (MOQ)?
For customized models, samples should be prepaid. We offer free customized models if the order quantity exceeds 1000 pieces.
What are the payment options?
We accept T/T, Western Union, and PayPal. Payment terms are 50% advanced payment and 50% balance payment. Shipping terms include EXW, FOB, CIF, CNF, and DDP.
What is the delivery time?
Delivery time is approximately 5-7 working days for samples and 20-30 working days for mass production, depending on quantity.
How are the products packaged?
Each piece is packed in an individual color box and then placed in a strong master carton for secure shipping.
Why should you choose us?
1) We offer OEM/ODM services. 2) We have our own design team. 3) We provide high-quality products at reasonable prices. 4) We have no MOQ requirement. 5) Our sales team has 12 years of experience in underwater lighting.
