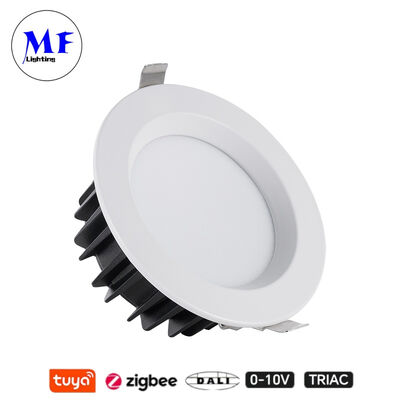

Factory Price IP40 CCT Adjustable Triac Dali Tuya Dimmable Smart Zigbee 15W SMD LED Recessed Spot Down Light for Kitchen Industrial Retail Commercial Spaces

Minimum Order Quantity : 1 Price : 6.4
Certification: CCC, CE, FCC, RoHS, SAA

Detail Information

Beam Angle: 120° LED Chip: OS-RAM/Epi-Star SMD As Options
Power: 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W LED Driver: Aohuaweiye/Lifud/Eaglerise /Boke Brand
CRI: Ra80+/Ra90+ CCT Adjustable: 2700-6000K Tunable As Optional If Need
Ugr: <19 IP Rating: IP40
Lamp Body Material: Die-Casting Aluminum Input Voltage: 110VAC Or 200-240VAC, 50Hz/60Hz
PF: 5-20W≥0.50, 20W≥0.95 Luminous Flux: 100lm/W
Operating Temperature: -20 ~50℃ Color Temperature: 2700K/3000K /3500K/ 4000K / 5000K /6000K
Dimmable: Non-Dim/Triac/0-10V/Dali-2 Dimmable/Tuya Zigbee
Highlight:

IP40 CCT adjustable LED down light

,

Dimmable Zigbee smart recessed spot light

,

15W SMD LED commercial down light

Product Description

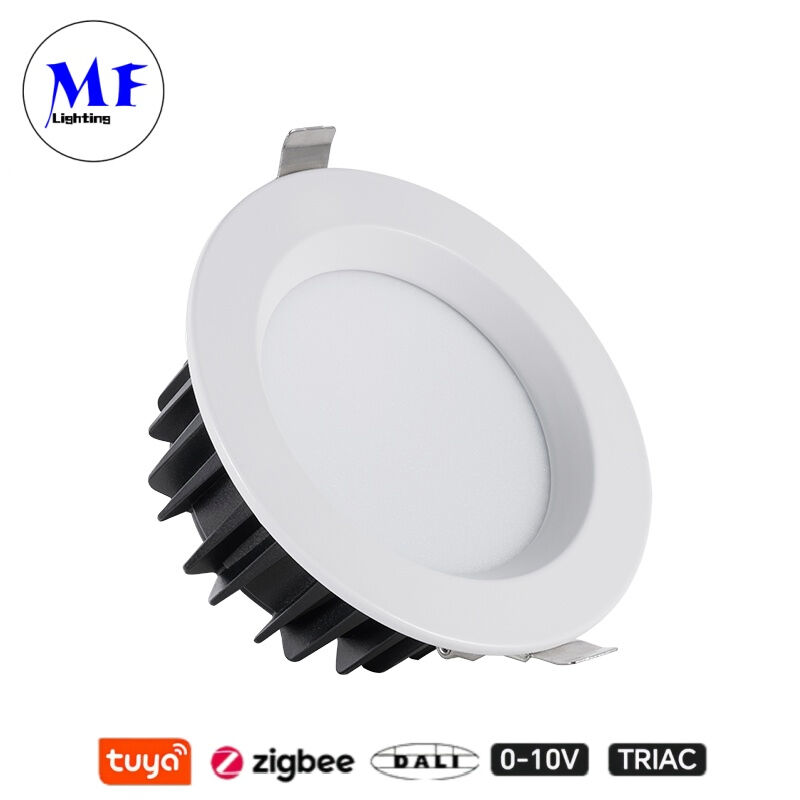

Smart Dimmable LED Recessed Spot Down Light
Factory Price IP40 CCT Adjustable Triac Dali Tuya Dimmable Smart Zigbee 15W SMD LED Recessed Spot Down Light for Kitchen Industrial Retail Commercial Spaces
Smart LED recessed down light product overview
Product Features
  • IP40 Rated Design: Suitable for indoor applications only
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more
  • Glare-free Design: Milky PC diffuser with UGR<19 provides eye-friendly lighting for bedrooms and offices
  • Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya Zigbee and DALI dimming with smart control via APP
  • Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT 2700-6000K options for customized lighting scenes
  • High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering
  • Multiple Housing Colors: Available in White and Black options

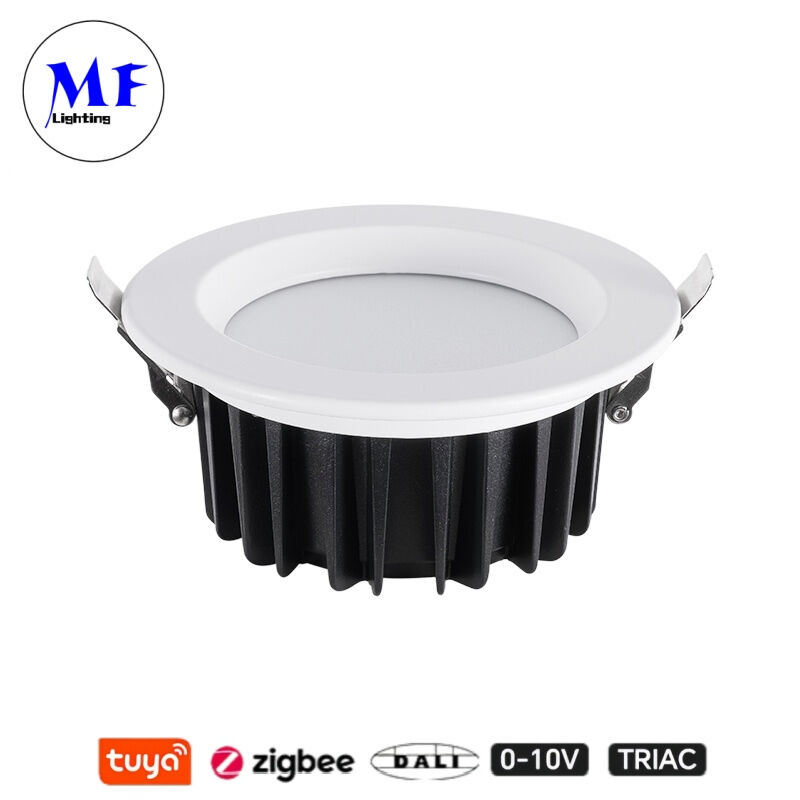

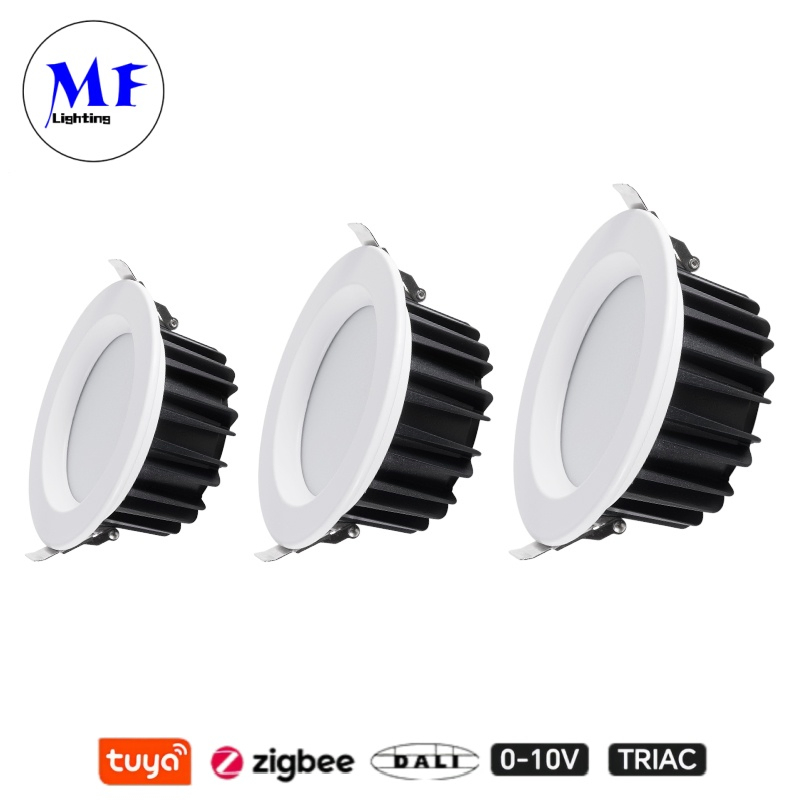

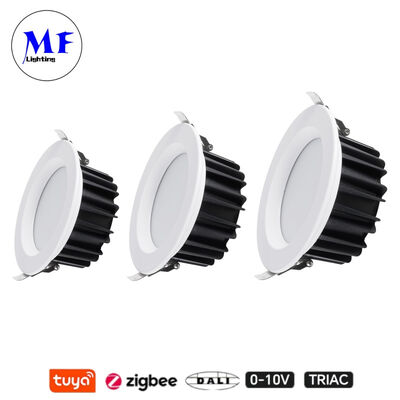

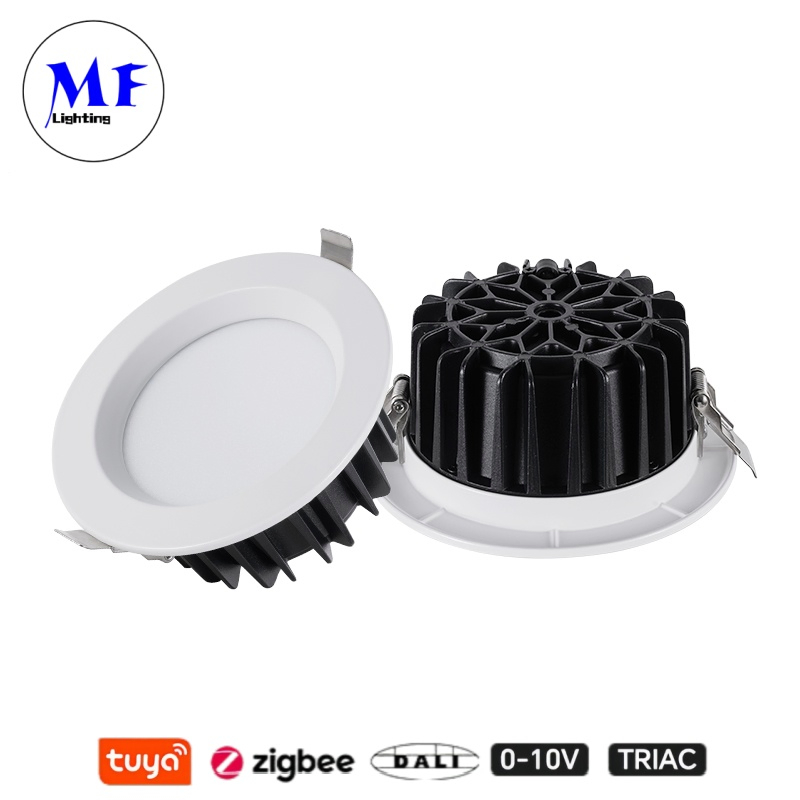

LED down light close-up view LED down light installation example LED down light in commercial setting LED down light technical details LED down light beam angle demonstration LED down light color temperature options
Technical Specifications
Technical specifications diagram Detailed technical parameters
Model MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Input Voltage 110Vac or 200-240Vac, 50hz/60hz
Power 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Color Temperature 2700K/3000K/3500K/4000K/5000K/6000K
LED Chip OSR-AM/Epi-star SMD as options
LED Driver Lifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim version
PF 5-20W≥0.50, 20W≥0.95
Housing Color White/Black as options
Cover PC Milky
Luminous Flux 100LM/W
CRI (Ra) Ra90+/Ra80+ As options
Lifespan ≥50000hrs
Beam Angle 120°
Material Die-casting Aluminum
Operating Temperature -20°C ~ 50°C
Dimmable Non-Dim/Triac/0-10V/Dali-2 dimmable/Tuya Zigbee as options
CCT Adjustable 2700-6000K Tunable as optional if needed
IP Rating IP40
UGR < 19
Certificate CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty Period 3 years
Applications
Industrial Settings
In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces
These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.
LED down light in commercial application
Installation Instructions
Easy spring clip installation diagram
Easy Spring Clip Installation
  1. Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
  2. Connect the Wires: Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
  3. Insert into the Ceiling: Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
  4. Lower the Spring Clips: After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.
Packaging & Shipping
Product packaging overview Shipping carton specifications
Power Carton Size (cm) Gross Weight (KG) Pieces per Carton
5W/7W/10W/12W 64×27×56 CM 22.5 KG 100 PCS
15W/20W 77×32×34 CM 19.5 KG 50 PCS
25W/30W/35W 62×41×43.5 CM 25.0 KG 40 PCS
40W/45W/50W 51×37×51.5 CM 22.0 KG 40 PCS
Packaging quality assurance Shipping and logistics
