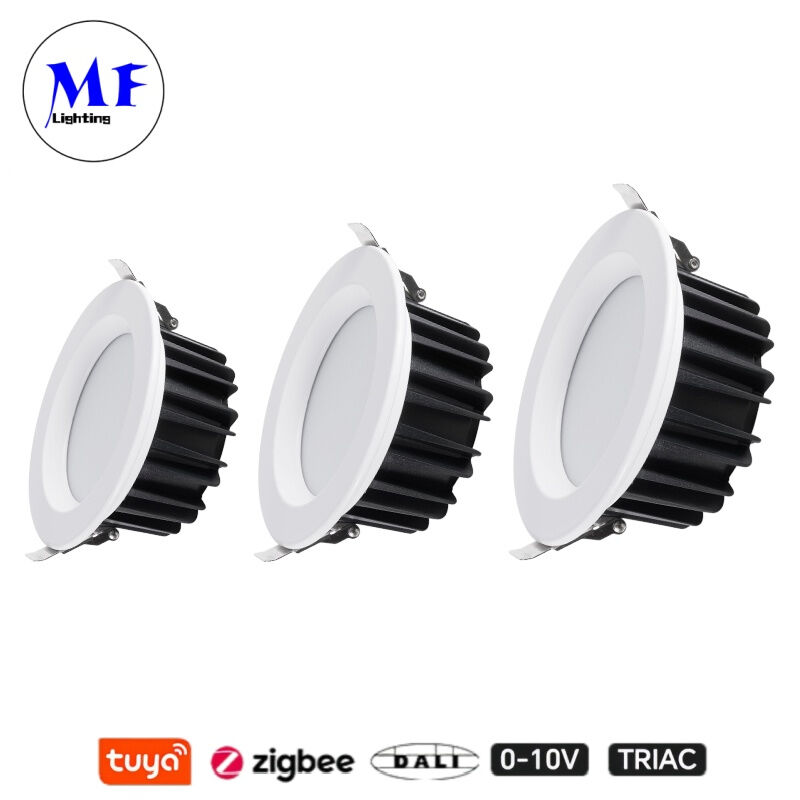

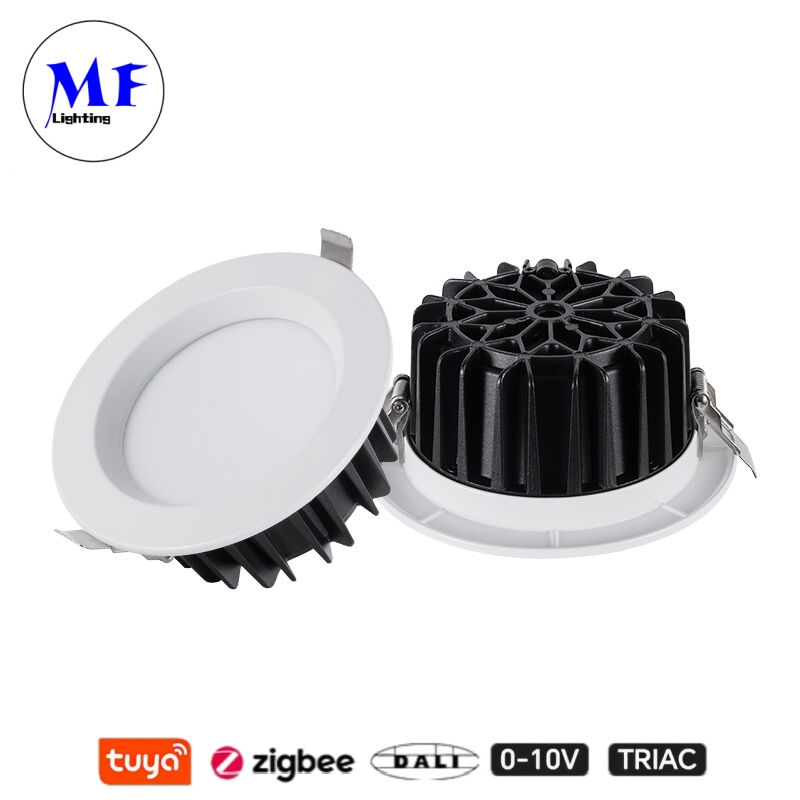

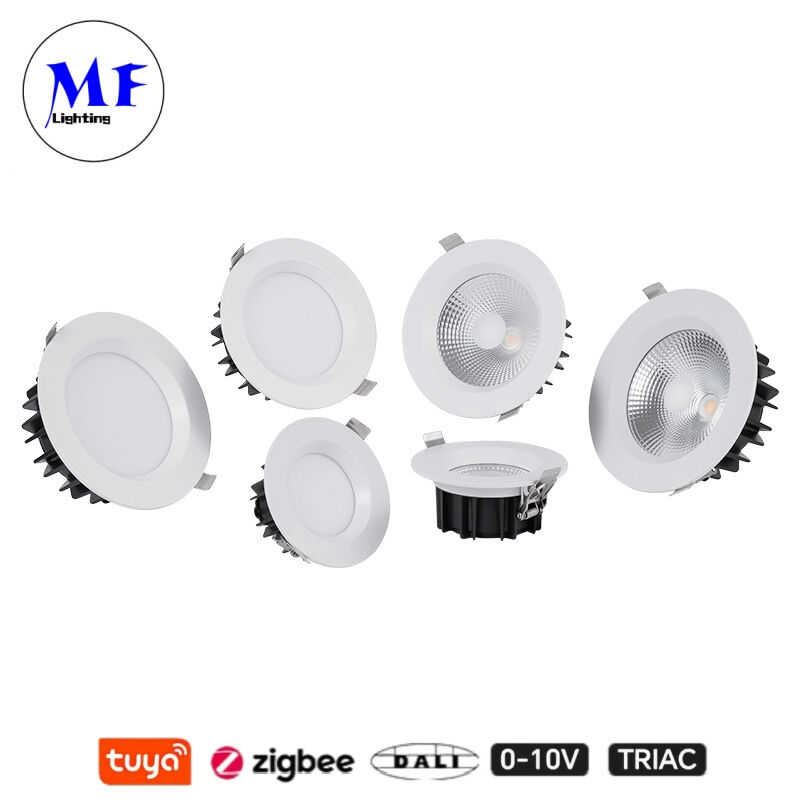

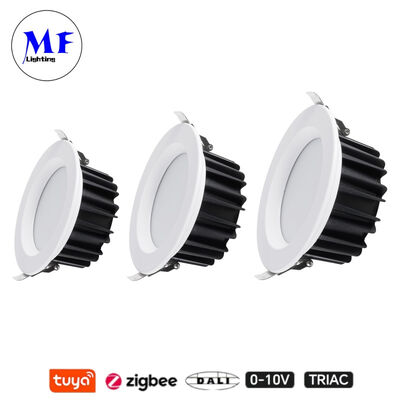

Smart Dimmable LED Recessed Spot Down Light
Factory Price IP40 Anti-Glare Triac Dali Tuya Dimmable Smart Zigbee 7W 15W SMD LED Recessed Spot Down Light for Kitchen Industrial Retail Commercial Spaces
Product Features
- IP40 Rated Design: Suitable for indoor applications only
- Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more
- Glare-free Design: Milky PC diffuser with UGR<19 provides eye-friendly lighting for bedrooms and offices
- Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya Zigbee and DALI dimming with smart control via APP
- Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT 2700-6000K options for customized lighting scenes
- High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering

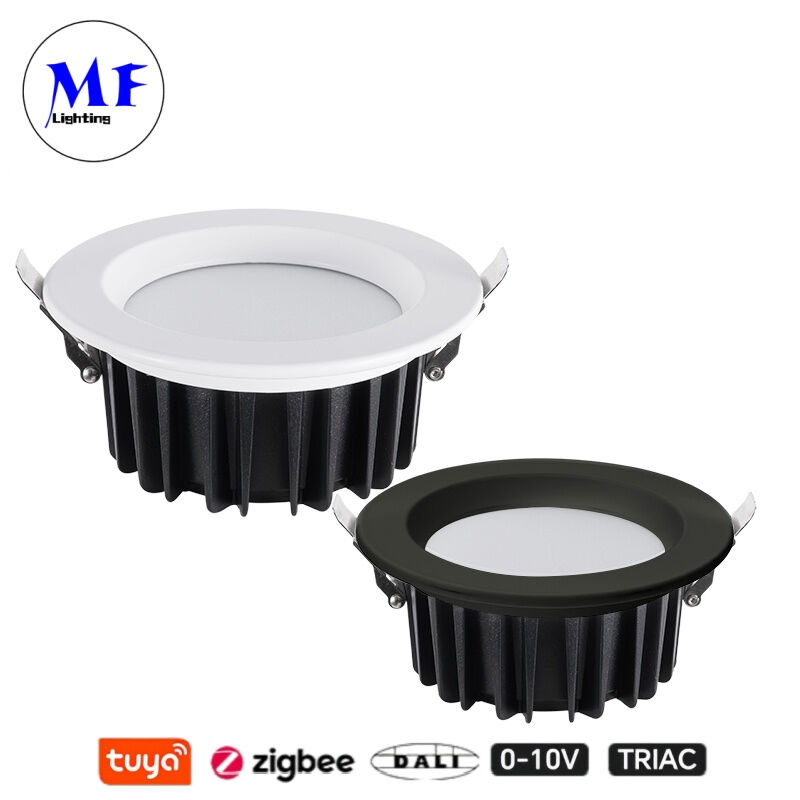

- Multiple Housing Colors: Available in White and Black options
Technical Specifications
| Model | MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
|---|
| Input Voltage | 110Vac or 200-240Vac, 50Hz/60Hz |
|---|
| Power (Watt) | 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
|---|
| Color Temperature | 2700K/3000K/3500K/4000K/5000K/6000K |
|---|
| LED Chip | OSR-AM/Epi-star SMD as options |
|---|
| LED Driver | Lifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim version |
|---|
| Power Factor | 5-20W≥0.50, 20W≥0.95 |
|---|
| Housing Color | White/Black as options |
|---|
| Cover | PC Milky |
|---|
| Luminous Flux | 100 LM/W |
|---|
| CRI (Ra) | Ra90+/Ra80+ as options |
|---|
| Lifespan | ≥50,000 hours |
|---|
| Beam Angle | 120° |
|---|
| Material | Die-casting Aluminum |
|---|
| Operating Temperature | -20°C to 50°C |
|---|
| Dimmable | Non-Dim/Triac/0-10V/Dali-2 dimmable/Tuya Zigbee as options |
|---|
| CCT Adjustable | 2700-6000K Tunable as optional |
|---|
| IP Rating | IP40 |
|---|
| UGR | <19 |
|---|
| Certificate | CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver) |
|---|
| Warranty Period | 3 years |
|---|
Applications
Industrial Settings
In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces
These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.
Installation Instructions
Easy Spring Clip Installation
- Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
- Connect the Wires: Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
- Insert into the Ceiling: Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
- Lower the Spring Clips: After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.
Packaging & Shipping
| Power | Carton Size (cm) | Gross Weight (KG) | Pieces per Carton |
|---|
| 5W/7W/10W/12W | 64×27×56 CM | 22.5 KG | 100 PCS |
| 15W/20W | 77×32×34 CM | 19.5 KG | 50 PCS |
| 25W/30W/35W | 62×41×43.5 CM | 25.0 KG | 40 PCS |
| 40W/45W/50W | 51×37×51.5 CM | 22.0 KG | 40 PCS |
Company Profile
Frequently Asked Questions
Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience. Our products include IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamp, and LED underground lights.
What is your main product?
Our main products are as follows: LED Triproof lights/ LED Vapor Tight Lights, LED High Bay Lights, LED Flood lights, LED Explosion Proof Lights, LED Down Lights, LED underwater lights (swimming pool lights, fountain lights, underwater spotlights), LED garden spot/spike lights, LED inground lights.
What is the minimum order quantity (MOQ)?
For customized models, samples should be prepaid. We offer free customized models if the order quantity is more than 1000 pieces.
What are the payment options?
We accept T/T, Western Union, Paypal. Payment terms are 50% advanced payment and 50% balance payment. Our shipping terms are EXW, FOB, and CIF, CNF and DDP.
What is the delivery time?
The delivery time is about 5-7 working days for samples and 20-30 working days for mass production, depending on the quantity.
How are the products packaged?
Each piece is packed in an individual color box and then placed in a strong master carton.
Why should you choose us?
1). We offer OEM/ODM services.
2). We have our own design team.
3). We offer high-quality products at reasonable prices.
4). We have no MOQ request.
5). Our sales team has 12 years of experience in underwater lighting.
