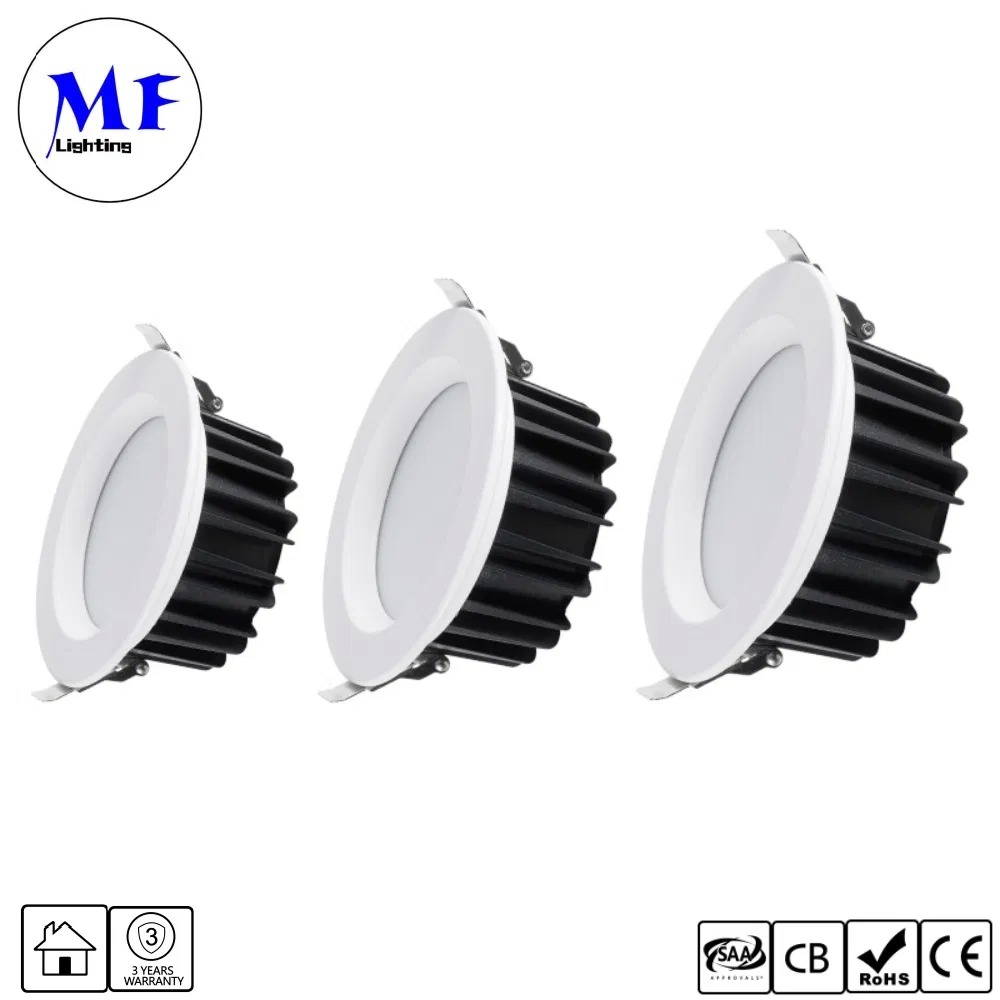

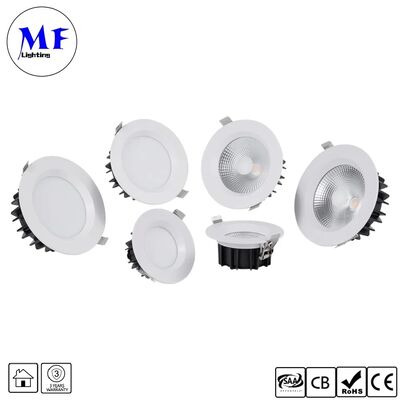

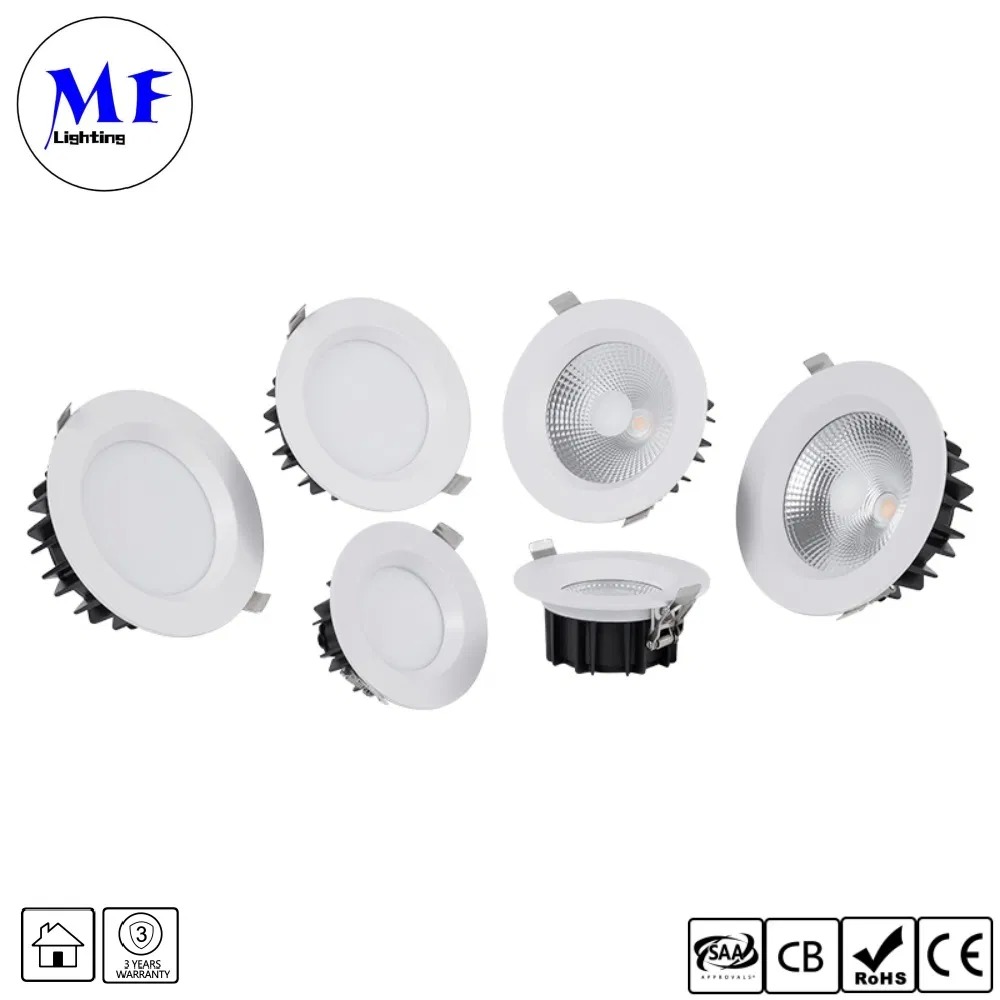

5W CRI90 100lm/W Wide Beam Angle 120° Dimmable LED Spot Downlight
High-performance recessed anti-glare SMD LED downlight with multiple dimming options, designed for commercial and residential applications.
Key Features
- IP20/IP40 Rating: Suitable for indoor applications
- Long Lifespan: 50,000+ hours with integrated die-cast aluminum heat sink
- Glare-free Design: Milky PC diffuser with UGR <19 for eye-friendly lighting
- Flexible Dimming: Supports Non-Dim, TRIAC, 0-10V, Tuya Zigbee, and DALI-2 protocols
- Wide Color Temperature: 2700K to 6000K with tunable CCT options
- High Efficiency: 100 lumens per watt with CRI options (Ra80+/Ra90+)

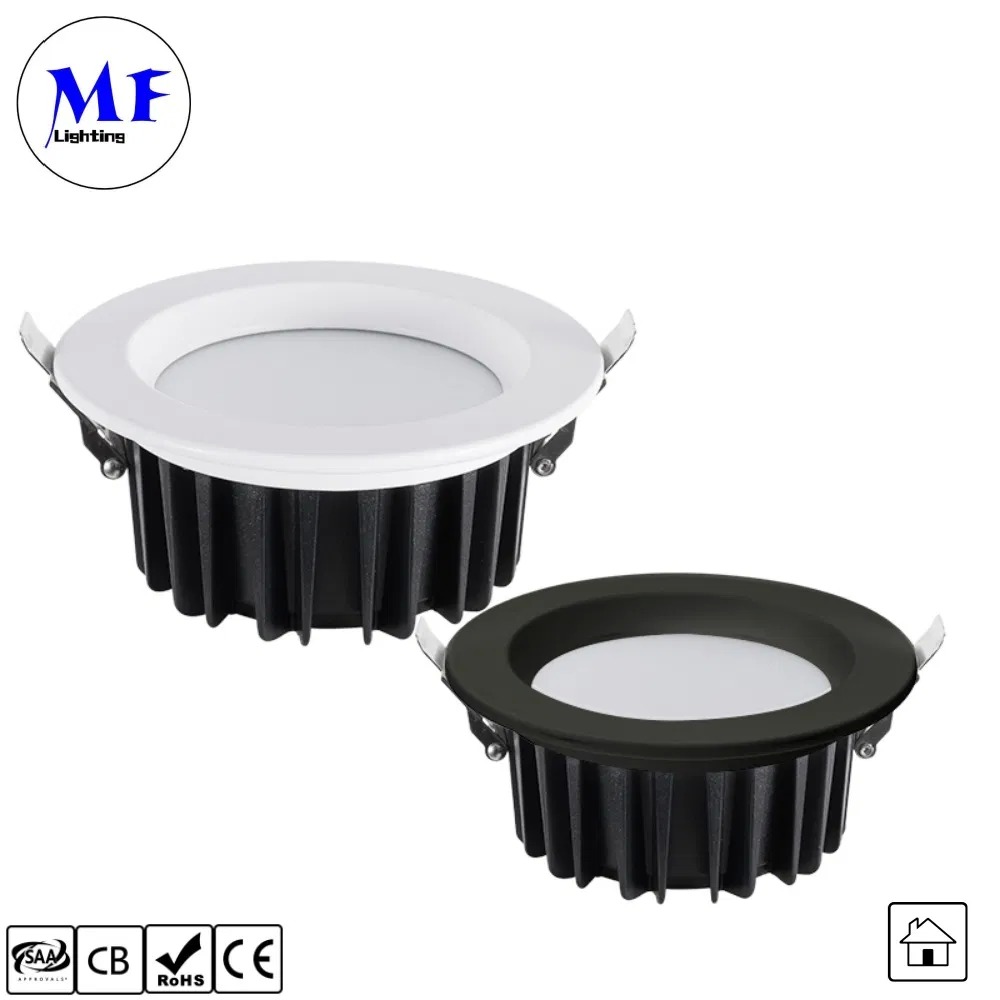

- Multiple Colors: Available in white and black housing options
Product Details

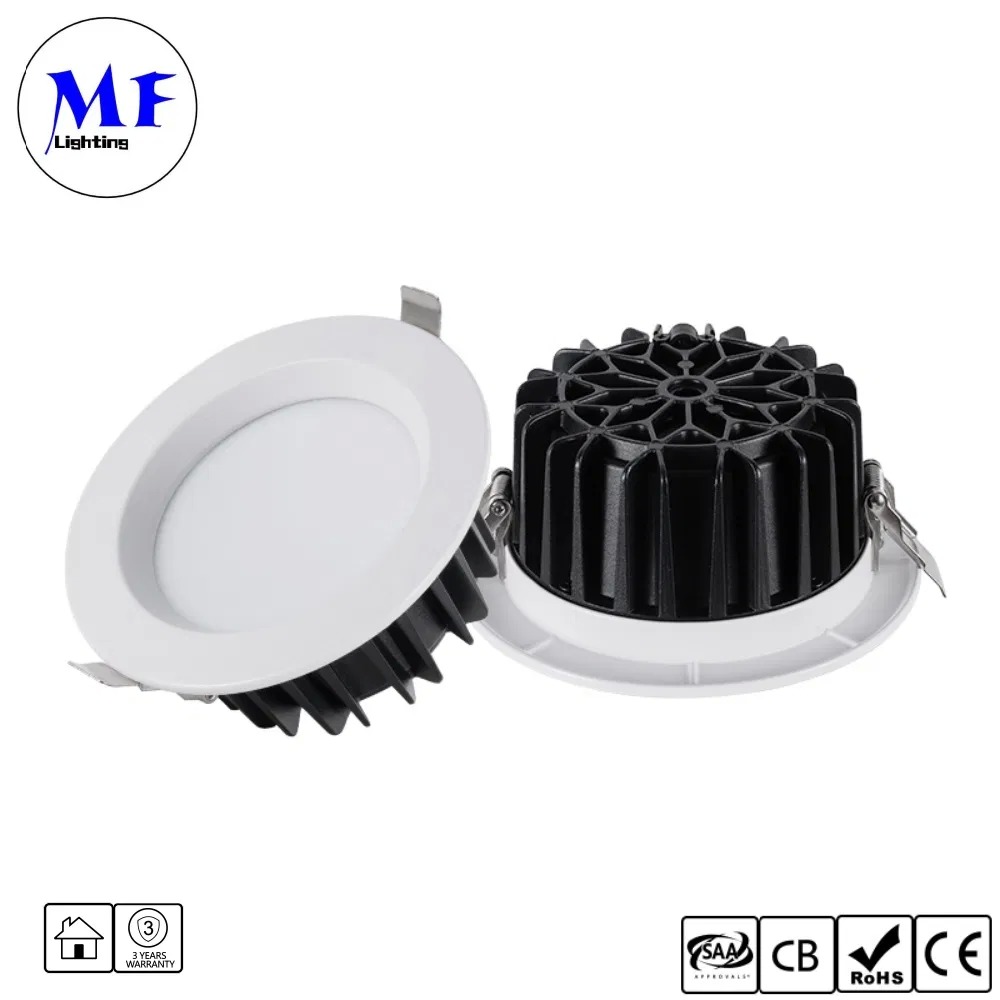

MF-DLT15 family downlight features multi-layer refractive optical lens for strong stereoscopic lighting effect with 120° beam angle. Constructed from high-quality die-cast aluminum for superior heat dissipation. Includes transparent glass cover and spring buckles for simple, stable ceiling installation.
Flicker-free operation protects eyesight while delivering uniform, soft light for comfortable illumination. Aerodynamic heat dissipation design with guide fins accelerates heat removal, reducing operating temperature and extending service life.
Intelligent Dimming & CCT Control
Seamlessly adjust brightness and color temperature from 2700K warm white to 6000K cool white. Multiple control protocols supported: DALI, 0-10V, Tuya/Zigbee, TRIAC. Switch between warm white, natural white, and cool white to create customized lighting atmospheres for commercial and residential applications.
Technical Specifications
| Parameter | Specification |
|---|
| Model | MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Input Voltage | 110Vac or 200-240Vac, 50Hz/60Hz |
| Power | 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Color Temperature | 2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable |
| LED Chip | O.SRAM/E.pistar SMD as options |
| LED Driver | Lifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim versions |
| Power Factor | 5-20W≥0.50, 20W≥0.95 |
| Housing Color | White/Black as options |
| Cover | PC Milky |
| Luminous Flux | 100LM/W |
| CRI (Ra) | Ra80+/Ra90+ |
| Lifespan | ≥50,000 hours |
| Beam Angle | 120° |
| Material | Die-casting Aluminum |
| Operating Temperature | -20°C to 50°C |
| Dimmable | Non-Dim/Triac/0-10V/Dali-2/Tuya Zigbee as options |
| CCT Adjustable | 2700-6000K Tunable as optional |
| IP Rating | IP40 |
| UGR | <19 |
| Certification | CE/RoHS (Whole Lamp); CE/RoHS/CB/SAA (Driver) |
| Warranty Period | 3 years |
Dimensions
| Model | Power | Cut Out (mm) | Dimension (mm) | Beam Angle |
|---|
| MF-DLT15 | 5W/7W/10W/12W | 95 | 115×50 | 120° |
| MF-DLT15 | 15W/20W | 120 | 145×62 | 120° |
| MF-DLT15 | 25W/30W | 145 | 165×65 | 120° |
| MF-DLT15 | 30W/35W | 170 | 190×75 | 120° |
| MF-DLT15 | 40W/45W | 170 | 225×75 | 120° |
| MF-DLT15 | 50W | 230 | 250×75 | 120° |
Installation Guide
- Ceiling Hole Cutting: Cut ceiling hole according to luminaire size using appropriate tools
- Connect Wires: Connect wires to luminaire terminals following installation manual (professional electrician recommended)
- Insert into Ceiling: Align spring clips vertically and insert into ceiling hole
- Lower Spring Clips: Confirm proper fit and wiring, then lower clips and power on
Packaging & Shipping
| Power | Carton Size (cm) | Gross Weight (kg) | Pieces per Carton |
|---|
| 5W/7W/10W/12W | 64×27×56 | 22.5 | 100 |
| 15W/20W | 77×32×34 | 19.5 | 50 |
| 25W/30W/35W | 62×41×43.5 | 25.0 | 40 |
| 40W/45W/50W | 51×37×51.5 | 22.0 | 40 |
Applications
Industrial Settings: Ideal for industrial environments where dust, moisture, or water exposure may occur.
Retail & Commercial Spaces: Perfect for retail stores, restaurants, and commercial spaces requiring water resistance and durability.
About Ming Feng Lighting
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer specializing in design, production, and distribution of high-quality LED lighting products. With years of industry experience, we maintain a reputation for excellence and innovation in LED lighting technology. Our skilled professionals are dedicated to providing superior LED lighting solutions and services for both residential and commercial applications.
Frequently Asked Questions
Q1: What products do you sell?
A1: We provide high-quality floodlights, high bay lights, explosion-proof lights, tri-proof lights, downlights, and other lighting products with reliable services and comprehensive after-sales warranty.
Q2: Can you print my logo on LED light products?
A2: Yes, we provide ODM and OEM services. Please inform us before production and confirm the design based on our sample.
Q3: How do you handle faulty products?
A3: During the guarantee period, we will send replacement lights with new orders for small quantities. For defective batch products, we will repair and resend them or discuss appropriate solutions based on the situation.
Q4: Can I place a sample order for LED lights?
A4: Yes, we welcome sample orders for quality testing. Both single samples and mixed samples are acceptable.
Q5: What is the shipping time after placing an order?
A5: Typically 7 days for samples or small orders, 15 working days for bulk orders, depending on order quantity.
