IP40 SMD Downlight 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W Smart CCT Power Dimming Adjustable Smart Triac Dali 0-10V Recessed Aluminum LED Down Light

Minimum Order Quantity : 1 Price : 6.4
Certification: CE, RoHS

Detail Information

Power: 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W Material: Die-casting Aluminum
Color Temperature: 2700/3000K/3500K/4000/5000K/6000K Lifespan: ≥50000hrs
Beam Angle: 120° Luminous Flux: 100LM/W
CRI: Ra90+/Ra80+ As Options IP Rating: IP40
Input Voltage: 110Vac Or 200-240Vac, 50hz/60hz Operating Temperature: -20°C ~50°C
Power Factor: 5-20W≥0.50, 20W≥0.95 UGR: <19
Dimming Mode: Non-Dim/Triac/0-10V/Dali-2 Dimmable/Tuya Zigbee LED Chip: O-SRAM/Epistar SMD As Options
Driver Brand: Done / Aohua / Lifud / Eaglerise For Different Dim
Highlight:

IP40 SMD LED downlight

,

smart CCT dimming downlight

,

recessed aluminum LED downlight

Product Description

IP40 SMD Downlight Series

Professional recessed LED downlights available in 5W-50W power range with multiple dimming options and smart control capabilities.

Key Features
  • IP40 rated for indoor applications with dust protection
  • Long service life ≥50,000 hours with die-cast aluminum heat sink
  • Glare-free performance with UGR<19, ideal for offices and bedrooms
  • Multiple dimming modes: Non-Dim, TRIAC, 0-10V, DALI, Tuya Zigbee with APP control
  • Color temperature options: fixed 2700K-6000K or tunable CCT
  • High luminous efficiency: 100 lm/W with Ra80+ or Ra90+ CRI options

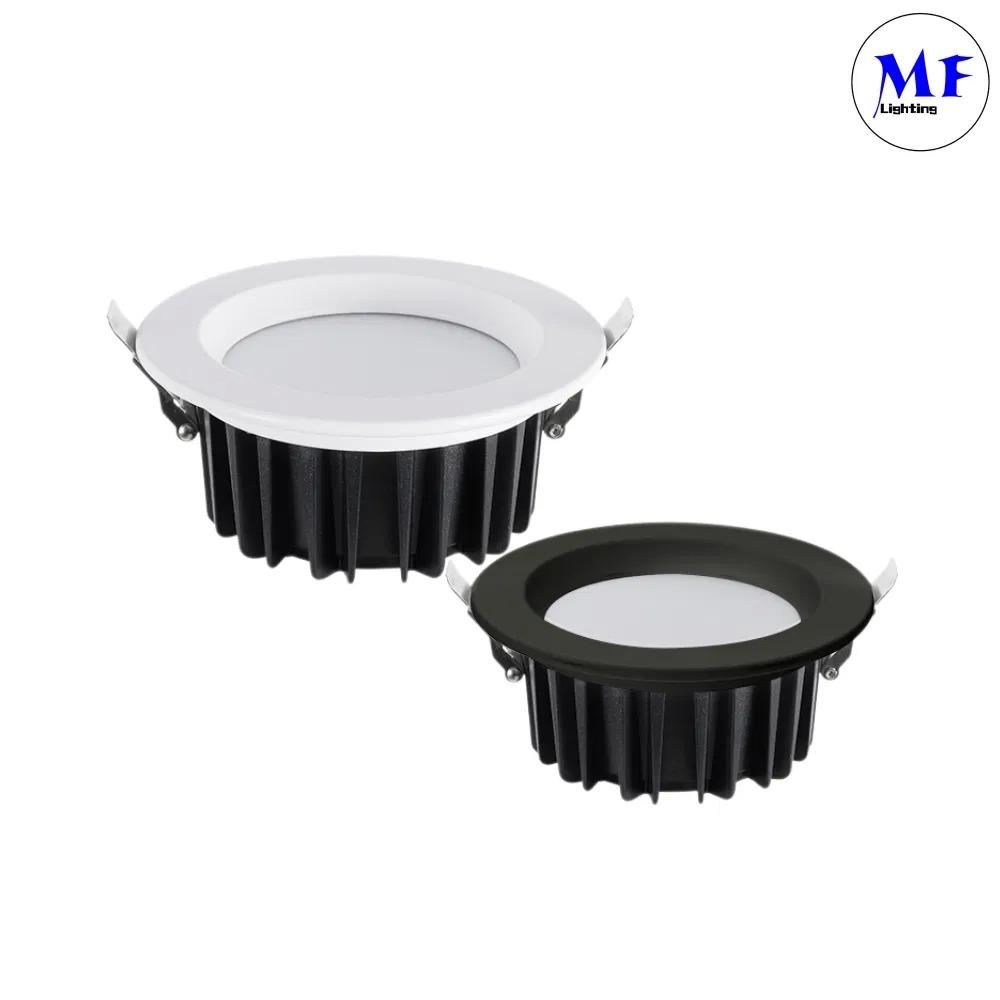

  • White or black housing color choices
  • 120° beam angle with SDCM<3 color consistency
  • Easy spring-clip installation for embedded ceiling mounting

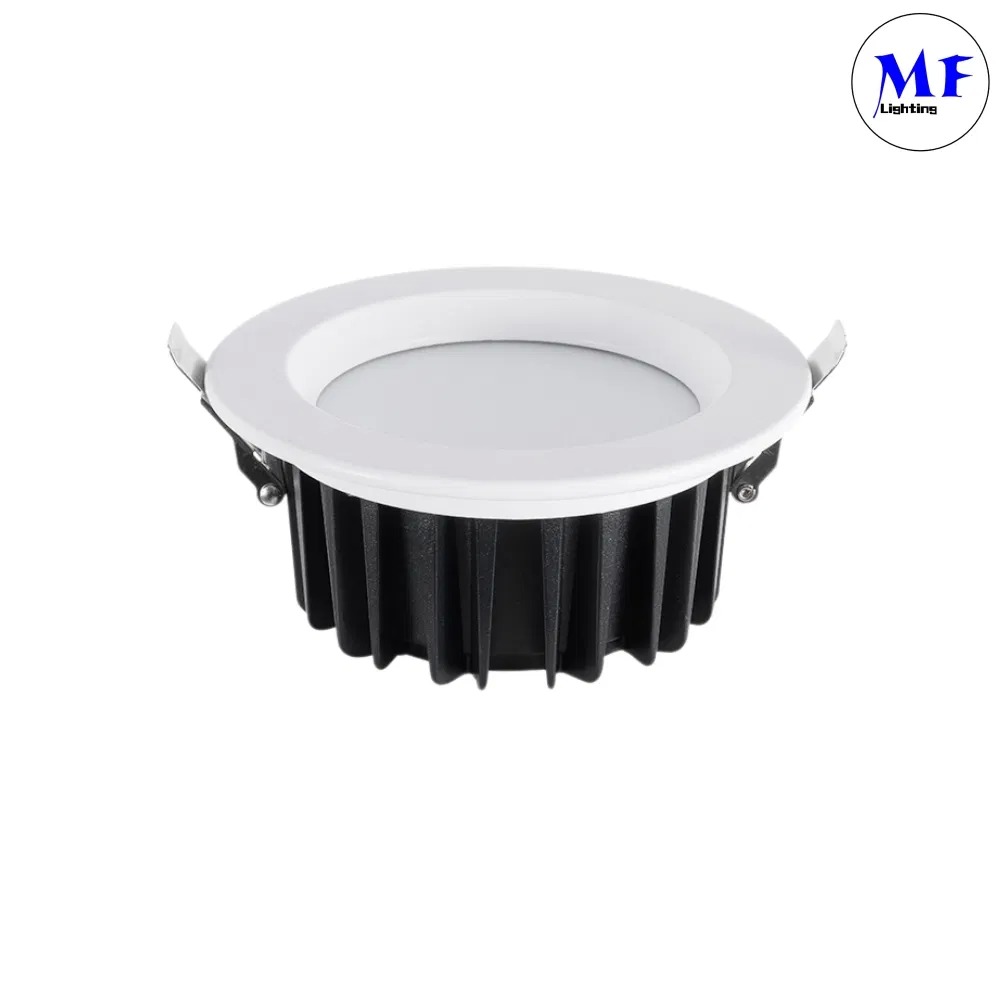

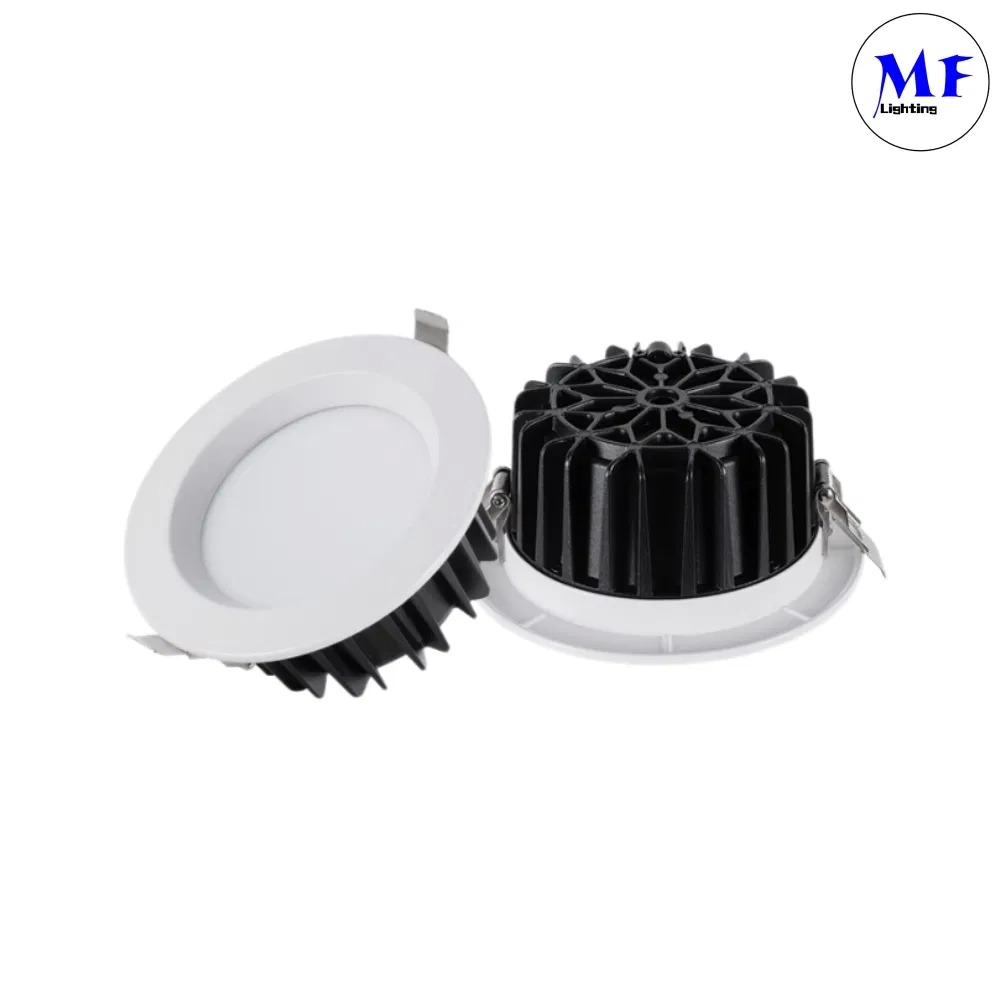

IP40 SMD Downlight front view IP40 SMD Downlight side view
Technical Specifications
Parameter Specification Remarks
Model Series MF-DLT15-5W ~ MF-DLT15-50W
Power Range 5W - 50W Multiple wattage versions
Light Source COB LED O-SRAM / Epistar chip optional
Luminous Efficiency 100 lm/W
Color Rendering Index Ra80+ / Ra90+ Optional
Color Temperature 2700K - 6000K Fixed CCT; tunable CCT optional
Beam Angle 60°
SDCM < 3
Glare Control UGR < 19 Anti-glare, eye-protecting
IP Rating IP20 / IP40 Indoor application
Lifespan >= 50000 hours Die-cast aluminum heat sink
Warranty 3 years
Input Voltage 110Vac / 200-240Vac 50/60Hz
Power Factor >=0.50 (5-20W); >=0.95 (>20W)
Dimming Mode Non-Dim / TRIAC / 0-10V / DALI / Tuya Zigbee Tuya supports APP smart control
Driver Brand Lifud / Aohuaweiye / Eaglerise / BOKE Optional for dimming versions
Housing Material Die-cast aluminum Good heat dissipation
Diffuser Cover Transparent / milky PC Milky PC for anti-glare
Housing Color White / Black
Installation Embedded ceiling (spring clip) Strength spring buckle
Lamp Certification CE, RoHS
Driver Certification CE, RoHS, CB, SAA
Working Temperature -20°C ~ 50°C
Product Design
Downlight design overview Downlight internal components Downlight assembly details
COB & SMD Type Design
COB and SMD LED type comparison Downlight technical diagram Downlight performance chart
Product Benefits
  • Anti-glare lighting (UGR<19) for eye-protecting indoor illumination
  • Dimming function with single-color brightness adjustment via multiple protocols
  • CCT tuning function (optional) for adjustable color temperature from 2700K-6000K
  • Superior heat dissipation with die-cast aluminum heat sink for extended lifespan
  • IP40 dust-proof performance for commercial, retail, restaurant and residential lighting
  • Quick embedded ceiling mounting with strength spring buckle clips
Detailed Construction
  • Cover: transparent or milky PC diffuser cover options
  • Structure: high-quality die-cast aluminum body with transparent glass or PC cover
  • Mounting: strength spring buckle system for secure installation
  • Housing color: White or Black finish options
  • Beam angle: 60 degree focused illumination
Downlight construction details
Dimensions
Downlight dimensional drawing
Installation Instructions
  1. Cut ceiling opening according to required cut-out dimension
  2. Complete wiring by a qualified electrician
  3. Compress spring clips and insert fixture into ceiling hole
  4. Release spring clips to secure the luminaire, power on and test
Downlight installation diagram
Applications
LED downlight application examples

LED downlights are versatile lighting fixtures that find wide application in various settings. With their sleek design and energy-efficient performance, LED downlights are commonly used in residential, commercial, and hospitality environments.

Residential Applications

LED downlights are often installed in kitchens, living rooms, and bedrooms to provide ambient or task lighting. They offer a modern and stylish lighting solution while consuming less energy compared to traditional lighting options.

Residential downlight installation
Commercial Applications

In commercial spaces such as offices, retail stores, and showrooms, LED downlights are utilized to illuminate the area effectively. These downlights offer focused and uniform light distribution, making them ideal for highlighting specific areas or products.

Hospitality Applications

Hotels, restaurants, and bars benefit from LED downlights to create welcoming and visually appealing ambiance. The dimmable feature allows for flexible lighting control, enabling adjustment of light levels to create different moods.

Hospitality lighting application
Specialized Applications

Museums and galleries use LED downlights to illuminate exhibits with precision while minimizing heat and UV emissions. Educational institutions employ them in classrooms and libraries for conducive learning environments.

Museum lighting application

Healthcare facilities utilize LED downlights for general lighting in corridors, waiting areas, and patient rooms. Outdoor spaces with suitable IP ratings can use downlights for building facades, pathways, and parking areas.

Healthcare and outdoor lighting applications
Packaging Information
Power Carton Size (cm) Gross Weight (KG) PCS/CTN
5W/7W/10W/12W 64×27×56 22.5 100
15W/20W 77×32×34 19.5 50
25W/30W/35W 62×41×43.5 25.0 40
40W/45W/50W 51×37×51.5 22.0 40
Downlight packaging example 1 Downlight packaging example 2 Downlight packaging example 3 Downlight packaging example 4 Downlight packaging example 5
