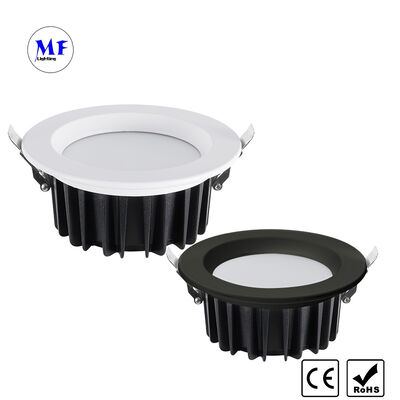

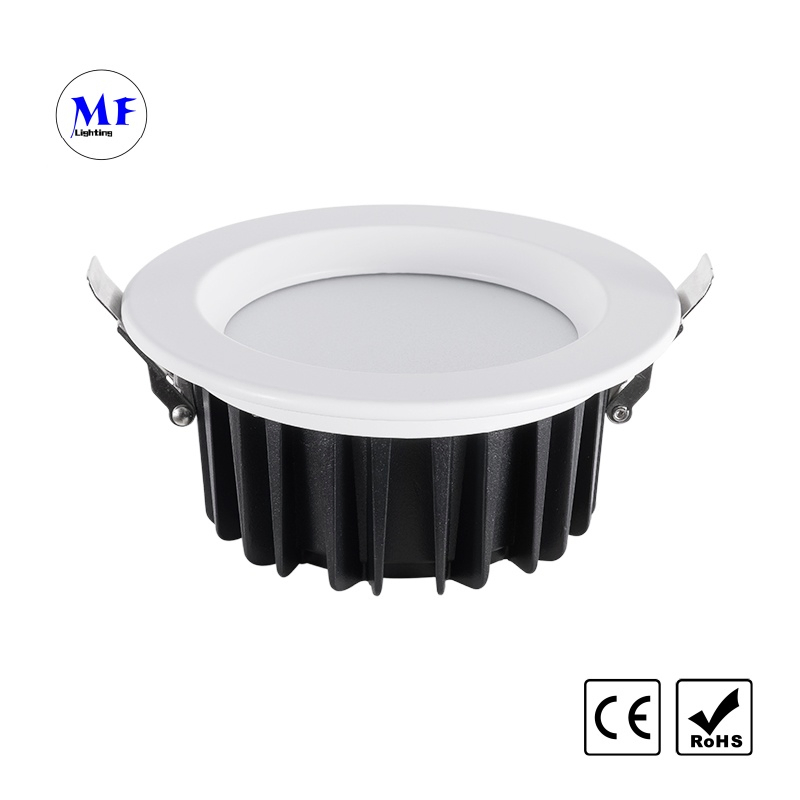

The MF-DLT15 CMD Series is an indoor IP40 recessed LED downlight from Ming Feng Lighting, featuring advanced CMD chips for superior performance.
This professional lighting solution utilizes die-cast aluminum heat sink technology for extended service life up to 50,000 hours. The milky PC diffuser ensures UGR<19, providing comfortable, glare-free illumination. Available in multiple power options from 5W to 50W, it supports fixed or tunable CCT (2700K-6000K), high CRI Ra80+/Ra90+, and delivers 100lm/W high efficiency. Various dimming versions include Non-Dim, TRIAC, 0-10V, DALI-2 and Tuya Zigbee smart control. Choose between white or black housing options. Easy installation with spring clips makes it ideal for offices, bedrooms, retail shops and commercial spaces. Certified with CE & RoHS and backed by a 3-year warranty.
Product Specifications
Dimensions
Key Features
- IP20/40 Rating Design: Suitable for indoor applications

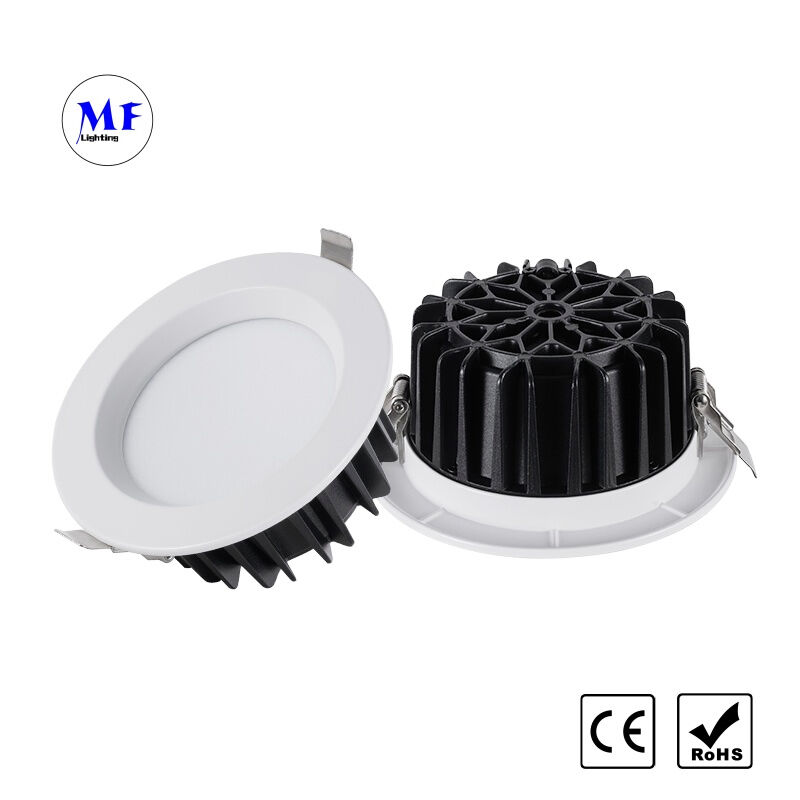

- Long Lifespan: Die-cast aluminum heat sink ensures 50,000+ hours of operation
- Glare-free Design: Milky PC diffuser with UGR<19 for eye-friendly lighting
- Flexible Dimming Options: Non-Dim, TRIAC, 0-10V, Tuya Zigbee and DALI dimming with smart app control
- Wide Color Temperature Range: 2700K to 6000K with tunable CCT options
- High Luminous Efficiency: 100 lumens per watt with high CRI options (Ra80+/Ra90+)

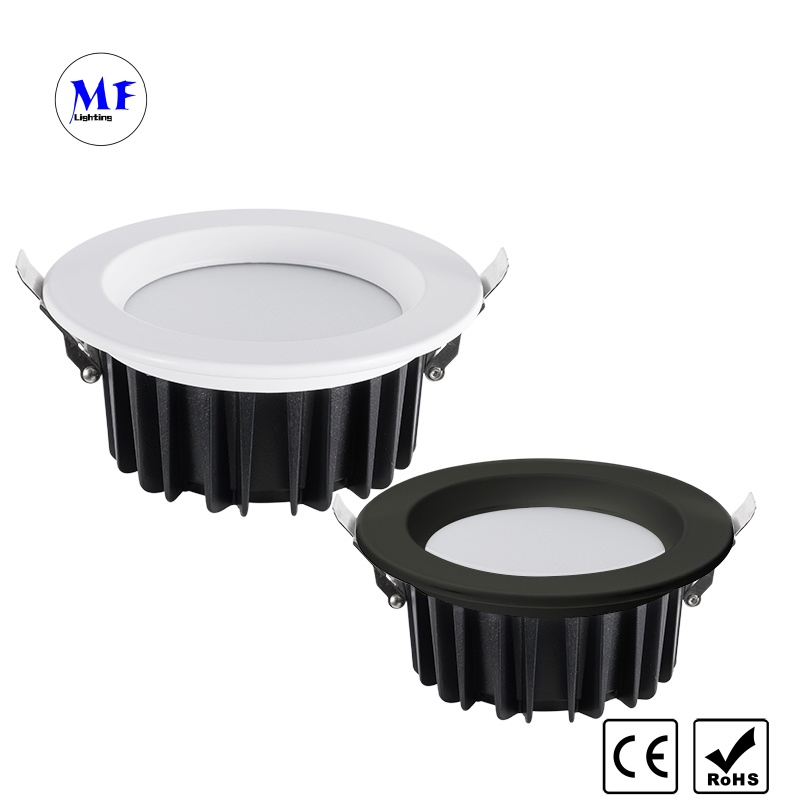

- Multiple Housing Colors: White and Black options available

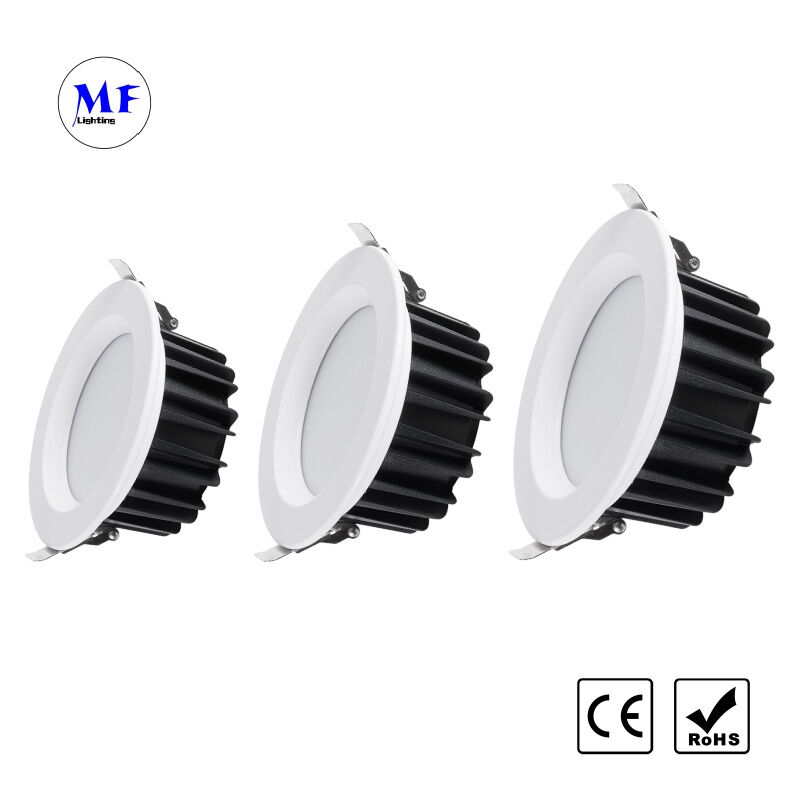

- Power Range: 7W–50W with multiple sizes for various applications
- Optical Performance: SDCM<3 for consistent color rendering
Technical Specifications
| Model |
MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Input Voltage |
110Vac or 200-240Vac, 50Hz/60Hz |
| Power |
5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Color Temperature |
2700K/3000K/3500K/4000K/5000K/6000K |
| LED Chip |
OSRAM/Epistar COB as options |
| LED Driver |
Lifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim versions |
| Power Factor |
5-20W≥0.50, 20W≥0.95 |
| Housing Color |
White/Black as options |
| Cover |
PC Milky |
| Luminous Flux |
100 LM/W |
| CRI (Ra) |
Ra90+/Ra80+ as options |
| Lifespan |
≥50,000 hours |
| Beam Angle |
120° |
| Material |
Die-casting Aluminum |
| Operating Temperature |
-20°C ~50°C |
| Dimmable |
Non-Dim/Triac/0-10V/Dali-2 dimmable/Tuya Zigbee as options |
| CCT Adjustable |
2700-6000K Tunable as optional |
| IP Rating |
IP40 |
| UGR |
<19 |
| Certificate |
CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver) |
| Warranty Period |
3 years |
Installation Instructions
Easy Spring Clip Installation:
- Ceiling Hole Cutting: Use appropriate tools to cut a hole according to luminaire size
- Connect the Wires: Connect wires to luminaire terminals correctly (professional electrician recommended)
- Insert into Ceiling: Align spring clips vertically and insert into ceiling hole
- Lower Spring Clips: Confirm proper fit and wiring, then lower clips and power on
Additional Features
- Multiple Cover Options: White PC cover or transparent glass cover available
- Wide CCT Selection: 3000K / 3500K / 4000K / 6000K options
- Excellent Color Consistency: Uniform color output with premium color tolerance
- High-performance BridgeLux Chips: Superior brightness and comfortable illumination
- Flicker-free Lighting: Stroboflash-free design protects eyesight
- Commercial Applications: Retail shops, boutiques, offices and indoor commercial projects
Packaging & Shipping
Packaging Specifications
| Power |
Carton Size (cm) |
Gross Weight (KG) |
Pieces per Carton |
| 5W/7W/10W/12W |
64×27×56 |
22.5 |
100 |
| 15W/20W |
77×32×34 |
19.5 |
50 |
| 25W/30W/35W |
62×41×43.5 |
25.0 |
40 |
| 40W/45W/50W |
51×37×51.5 |
22.0 |
40 |
Company Profile
Frequently Asked Questions
Q1: Are you a manufacturer?
Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development and manufacturing, operating based on ISO quality management since 2009.
Q2: Can I order a sample of the LED Light?
Yes, we welcome sample orders to test and check product quality. Mixed samples are also acceptable.
Q3: What is the lead time for the LED Light?
Sample orders: 3-7 days. Mass production orders: 15-25 days. Exact lead time depends on order quantities.
Q4: How do you ship the finished products?
We offer optional shipping methods: SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).
Q5: Can I print my logo on the LED Light?
Yes, we provide OEM service. We can create labels and color boxes according to your requirements.
Q6: How do I proceed with an order for the LED Light?
Provide your detailed requirements and application environment. We'll recommend suitable products and solutions. After confirming details, issue a purchase order and make payment to confirm. We'll then start production and arrange shipment.
Q7: How do you handle defective products?
All products undergo strict quality control with a defective rate less than 0.2%. We offer a 5-year warranty. During warranty, provide pictures/videos of defective lights in working situations, and we'll ship replacements within days or with your next order.
