Factory Price IP40 SMD LED Recessed Ceiling Downlight, Triac 0-10V Dali Dali-2 Dt6 Dt8 Dimmable, Smart Zigbee Tuya WiFi Control, Indoor Down Light for Office

Contact Now

Factory Price IP40 SMD LED Recessed Ceiling Downlight, Triac 0-10V Dali Dali-2 Dt6 Dt8 Dimmable, Smart Zigbee Tuya WiFi Control, Indoor Down Light for Office

Minimum Order Quantity :	1	Price :	11.4

Certification:	CE, RoHS

Detail Information
Color Temperature:	2700K/3000K/3500K/4000K/5000K/6000K	LED Chip:	0sram/Epistar COB As Options
CRI (Ra):	Ra90+/Ra80+ As Options	IP Rating:	IP40
Luminous Flux:	100lm/W	Beam Angle:	120°
Input Voltage:	AC 200-240V	Lamp Body Material:	Die-Casting Aluminum
Power:	5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W	Lifespan:	≥50000hrs
UGR:	<19	Operating Temperature:	-20°C ~50°C
PF:	5-20W≥0.50, 20W≥0.95	Cover Material:	PC Milky
SDCM:	<3
Highlight:	IP40 SMD LED recessed downlight , Triac dimmable LED ceiling light , Zigbee Tuya WiFi smart downlight

Product Description

MF-DLT15 CMD Series LED Recessed Downlight

This IP40 rated indoor recessed LED downlight from Ming Feng Lighting features a die-cast aluminum heat sink for extended service life up to 50,000 hours. The milky PC diffuser ensures UGR<19 for comfortable, glare-free lighting suitable for various commercial and residential applications.

Product Features

IP40 Rating: Designed for indoor applications only
Long Lifespan: Die-cast aluminum heat sink ensures 50,000+ hours of operation
Glare-free Design: Milky PC diffuser provides UGR<19 for eye-friendly lighting
Flexible Dimming: Supports Non-Dim, TRIAC, 0-10V, DALI-2, and Tuya Zigbee smart control
Wide CCT Range: Available from 2700K to 6000K with tunable CCT options
High Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+)
Multiple Colors: White or black housing options available
Power Range: 5W to 50W for various application scenarios
Optical Performance: SDCM<3 for consistent color rendering

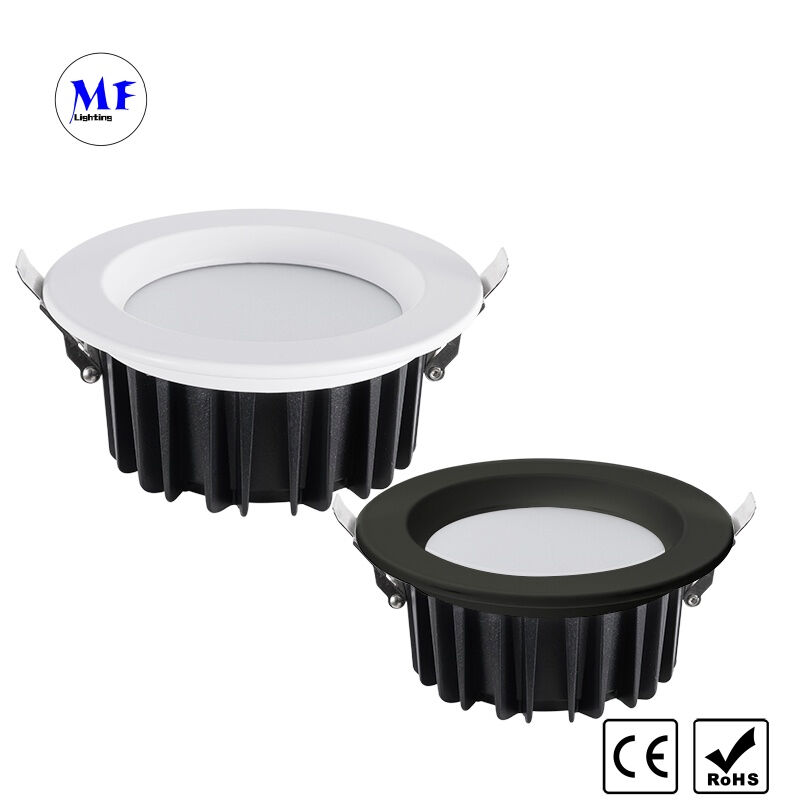

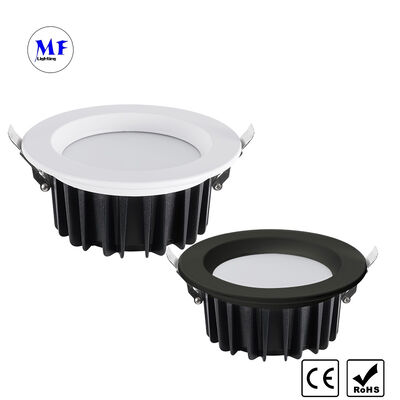

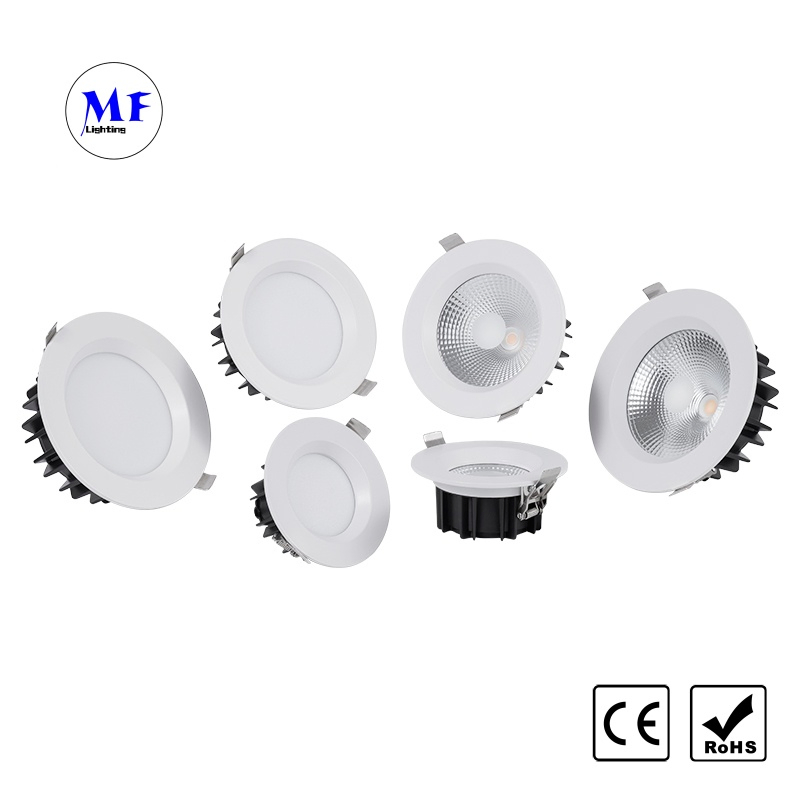

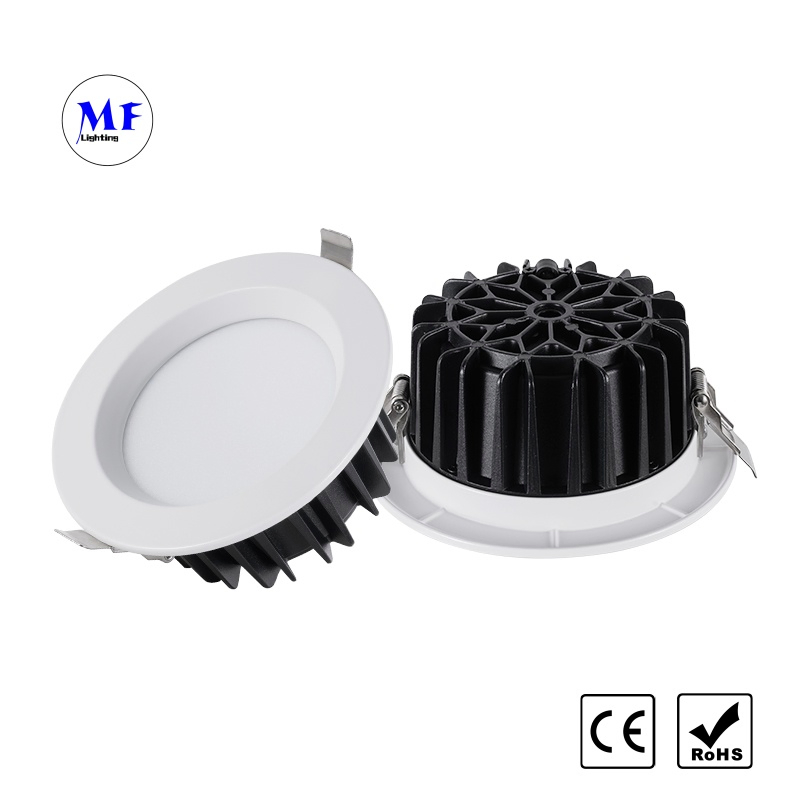

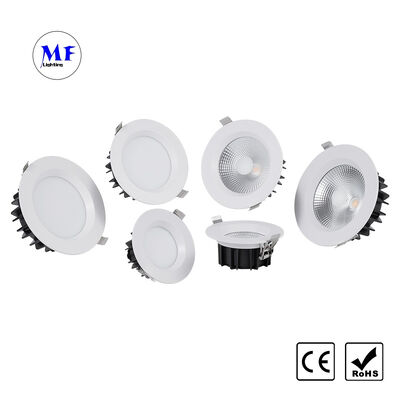

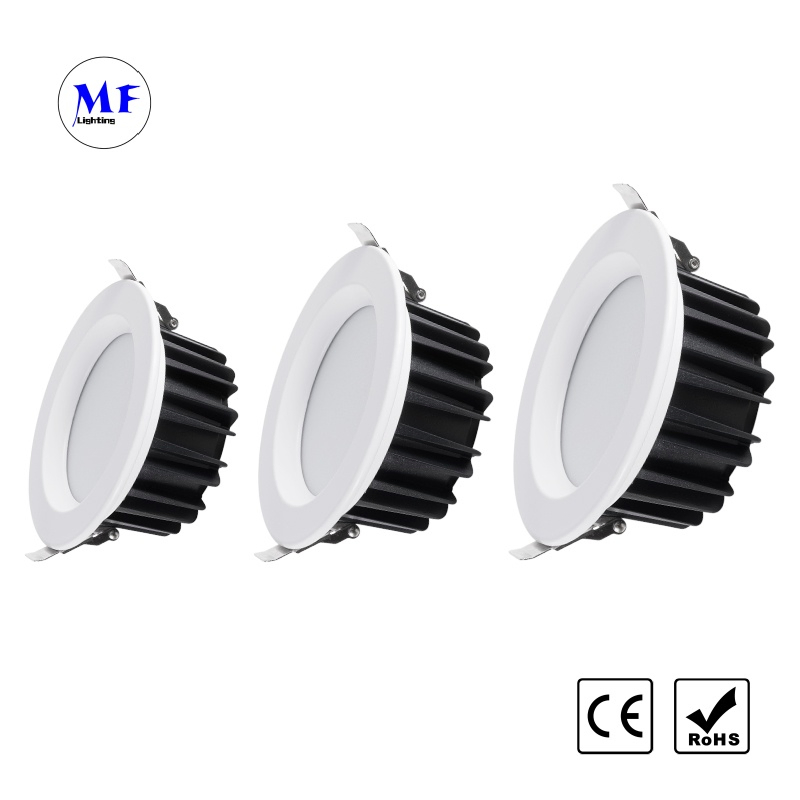

Product Images

Technical Specifications

Parameter	Specification
Model	MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Input Voltage	110Vac or 200-240Vac, 50Hz/60Hz
Power	5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Color Temperature	2700K/3000K/3500K/4000K/5000K/6000K
LED Chip	OSRAM/Epistar COB as options
Power Factor	5-20W≥0.50, 20W≥0.95
Luminous Flux	100LM/W
CRI (Ra)	Ra90+/Ra80+ as options
Beam Angle	120°
Material	Die-casting Aluminum
Operating Temperature	-20°C to 50°C
IP Rating	IP40
UGR	<19
Certificates	CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty	3 years

Dimensions

Installation Instructions

Ceiling Hole Cutting: Cut appropriate hole in ceiling according to luminaire size
Connect Wires: Connect wires to luminaire terminals following installation manual (professional electrician recommended)
Insert into Ceiling: Align spring clips vertically and insert into ceiling hole
Lower Spring Clips: Confirm proper fit and wiring, then lower clips and power on

Additional Features

Multiple Cover Options: Available with white PC cover or transparent glass cover

Wide CCT Selection: 3000K / 3500K / 4000K / 6000K options from warm to cool white

Excellent Color Consistency: Uniform color output with premium color tolerance

High-performance Chips: BridgeLux chips deliver higher brightness and comfortable illumination

Flicker-free Lighting: Stroboflash-free design protects eyesight, ideal for commercial use

Applications: Retail shops, boutiques, offices, and other indoor commercial projects

Packaging & Shipping

Power	Carton Size (cm)	Gross Weight (KG)	Pieces/Carton
5W/7W/10W/12W	64×27×56	22.5	100
15W/20W	77×32×34	19.5	50
25W/30W/35W	62×41×43.5	25.0	40
40W/45W/50W	51×37×51.5	22.0	40

Frequently Asked Questions

Q1: Are you a manufacturer?

Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development and manufacturing, operating based on ISO quality management since 2009.

Q2: Can I order a sample of the LED Light?

Yes, we welcome sample orders to test and check product quality. Mixed samples are also acceptable.

Q3: What is the lead time for the LED Light?

Sample orders: 3-7 days; Mass production orders: 15-25 days (depending on order quantities).

Q4: How do you ship the finished products?

We offer optional shipping methods including SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED Light?

Yes, we provide OEM services including custom labels and color boxes according to your requirements.

Q6: How do I proceed with an order for the LED Light?

Please provide your detailed requirements and application environment. We will recommend suitable products and solutions. After confirming details, issue a purchase order and make payment to confirm production.

Q7: How do you handle defective products?

Our products undergo strict quality control with less than 0.2% defective rate. We offer a 3-year warranty. During warranty, provide pictures/videos of defective lights and we will ship replacements.
