Factory Price 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W SMD Series Recessed Down Light LED Down Light LED Spot Light

Contact Now

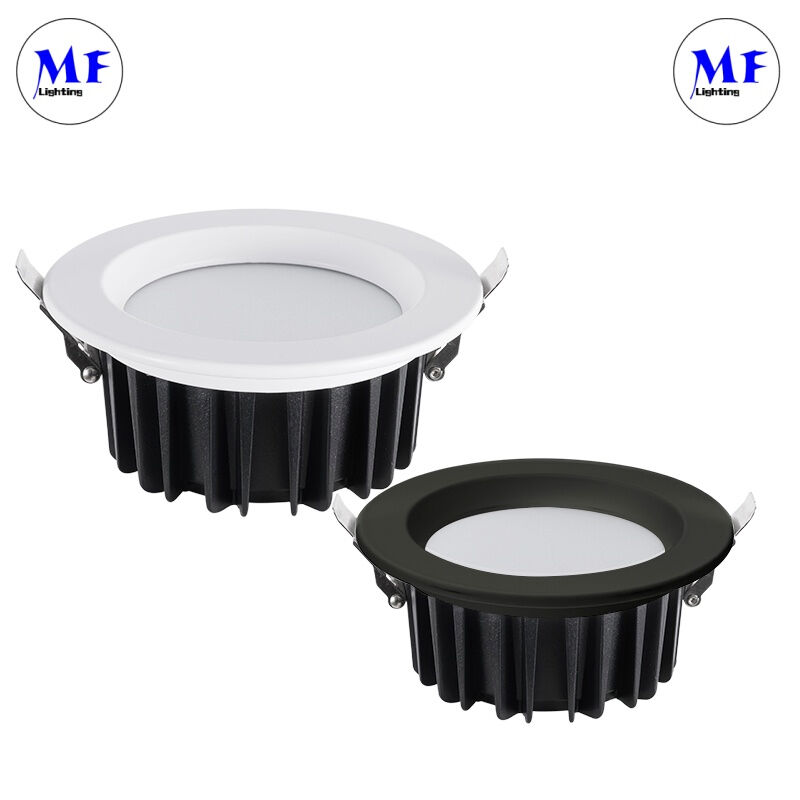

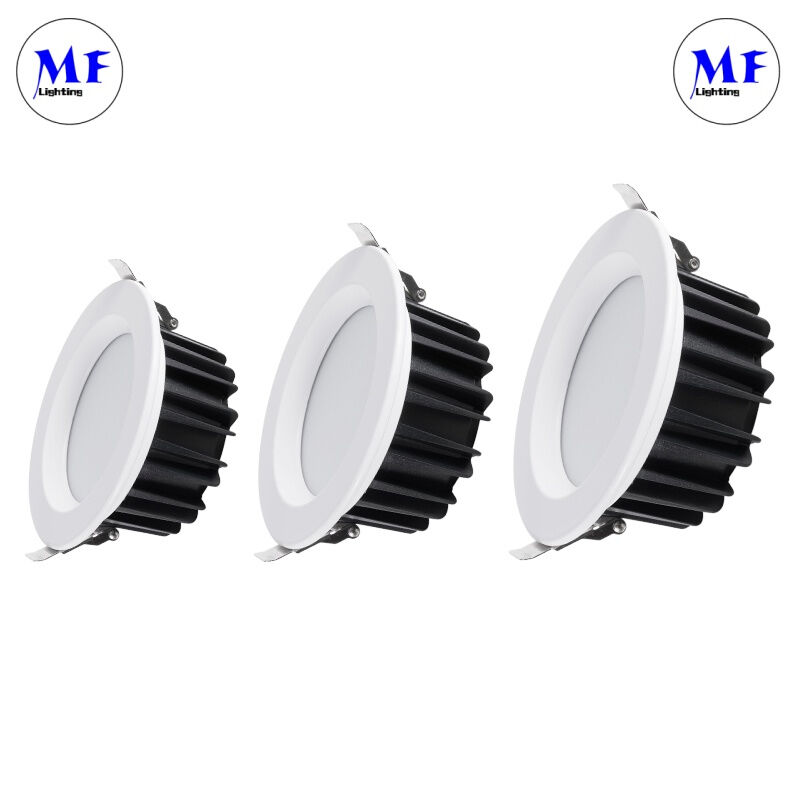

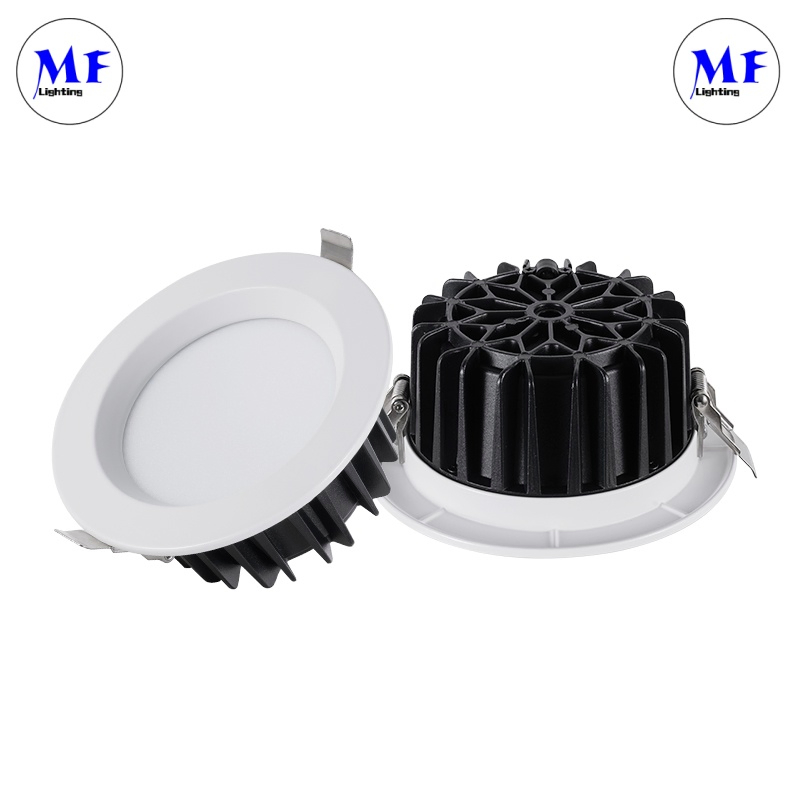

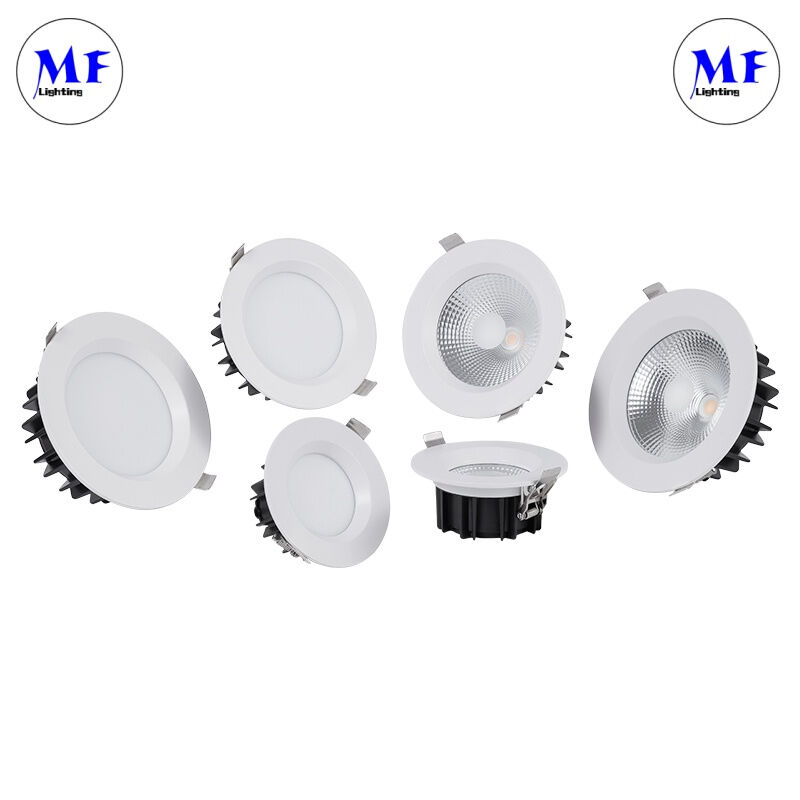

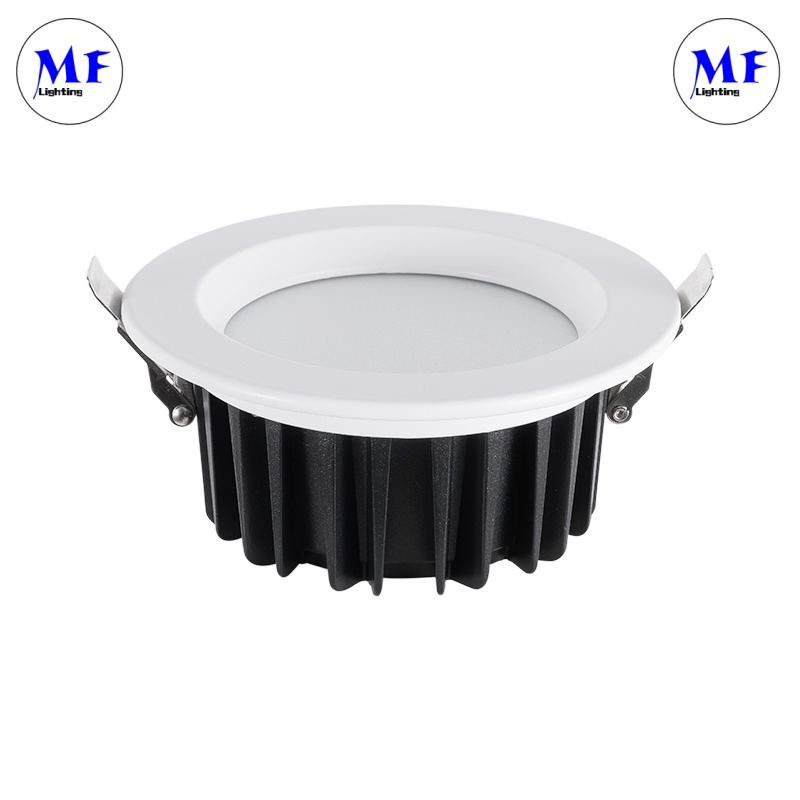

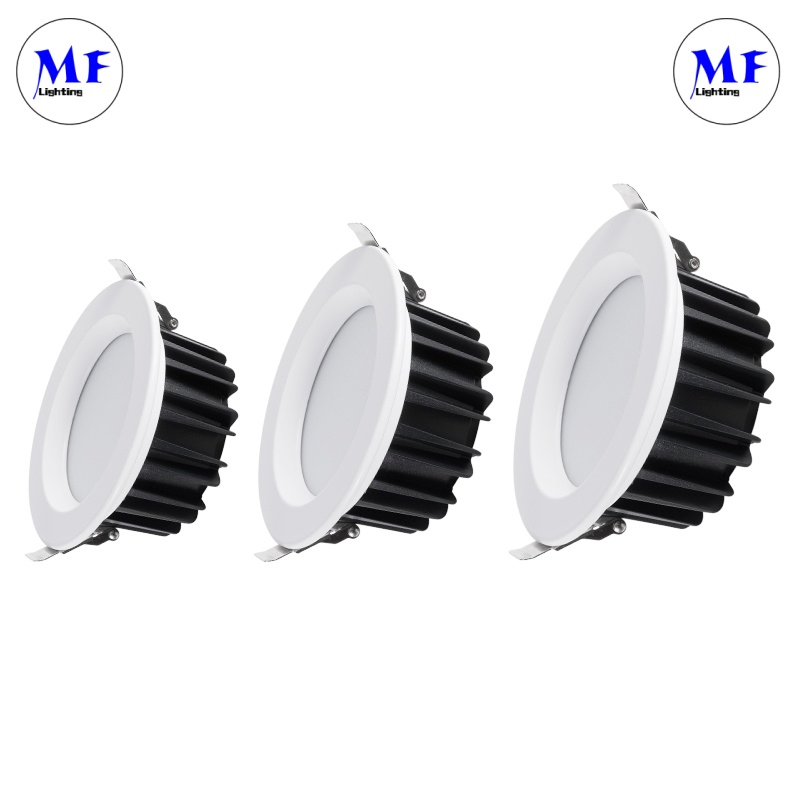

Factory Price 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W SMD Series Recessed Down Light LED Down Light LED Spot Light

Minimum Order Quantity :	1	Price :	6.6

Certification:	CCC, CE, RoHS, SAA

Detail Information
Power:	5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W	Lamp Body Material:	Die-Casting Aluminum
CRI(Ra):	Ra80+/Ra90+	Specification:	40.516.543CM
Ugr:	<19	LED Chip:	Osr-Am/Epis-Tar SMD As Options
Installation:	Recessed	Color Temperature:	2700K/3000K /3500K/ 4000K / 5000K /6000K
CCT Adjustable:	2700-6000K Tunable As Optional If Need	Cover:	PC Milky
Lifespan:	≥50000hrs	LED Driver:	Aohuaweiye/Lifud/Boke Brand For Different Dim Vers
IP Rating:	IP40	Housing Colour:	White /Black
Luminous Flux:	100lm/W
Highlight:	SMD recessed LED down light , high wattage LED spot light , factory price LED down light

Product Description

Factory Price SMD Series Recessed Down Light

Available in 5W to 50W power options with high-efficiency LED technology for superior lighting performance.

Technical Specifications

Model	MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Input Voltage	110Vac or 200-240Vac, 50hz/60hz
Power	5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Color Temperature	2700K/3000K/3500K/4000K/5000K/6000K
LED Chip	O-SRAM/Epis-tar SMD as options
LED Driver	Aohuaweiye/Lifud/BOKE Brand for different dim version
PF	5-20W≥0.50, 20W≥0.95
Housing Colour	White/Black
Luminous Flux	100LM/W
CRI (Ra)	Ra80+/Ra90+
Lifespan	≥50000hrs
Beam Angle	60°
Material	Die-casting Aluminum
Operating Temperature	-20ºC~50ºC
Dimmable	Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable	2700-6000K Tunable as optional if needed
IP Rating	IP40
UGR	< 19
Certificate	CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty Period	3 years

Product Details

Key Features

Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more
Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices
Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP
Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes
High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering

Installation Instructions

Easy Spring Clip Installation

Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire
Connect the Wires: Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician
Insert into the Ceiling: Align the spring clips on both ends of the product vertically and insert it into the ceiling hole
Lower the Spring Clips: After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use

Product Dimensions

Product Applications

Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial

Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed
