Product Overview

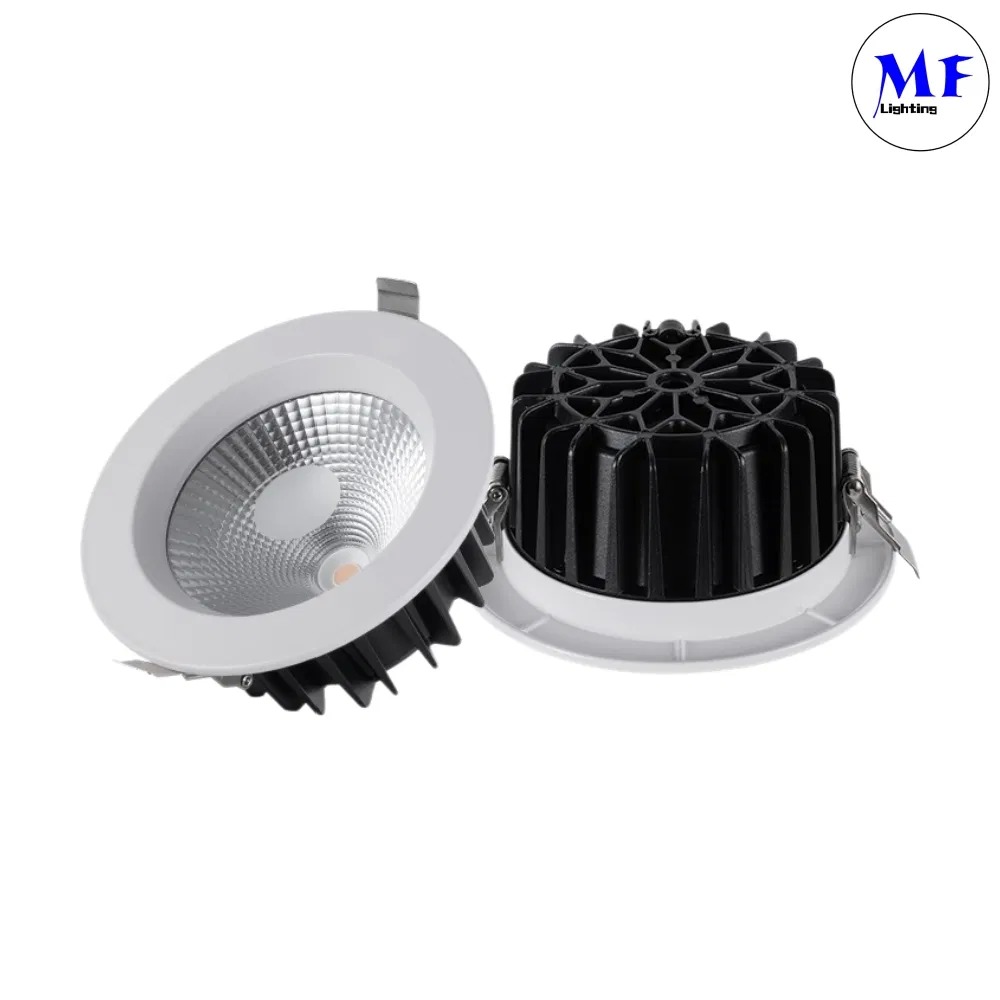

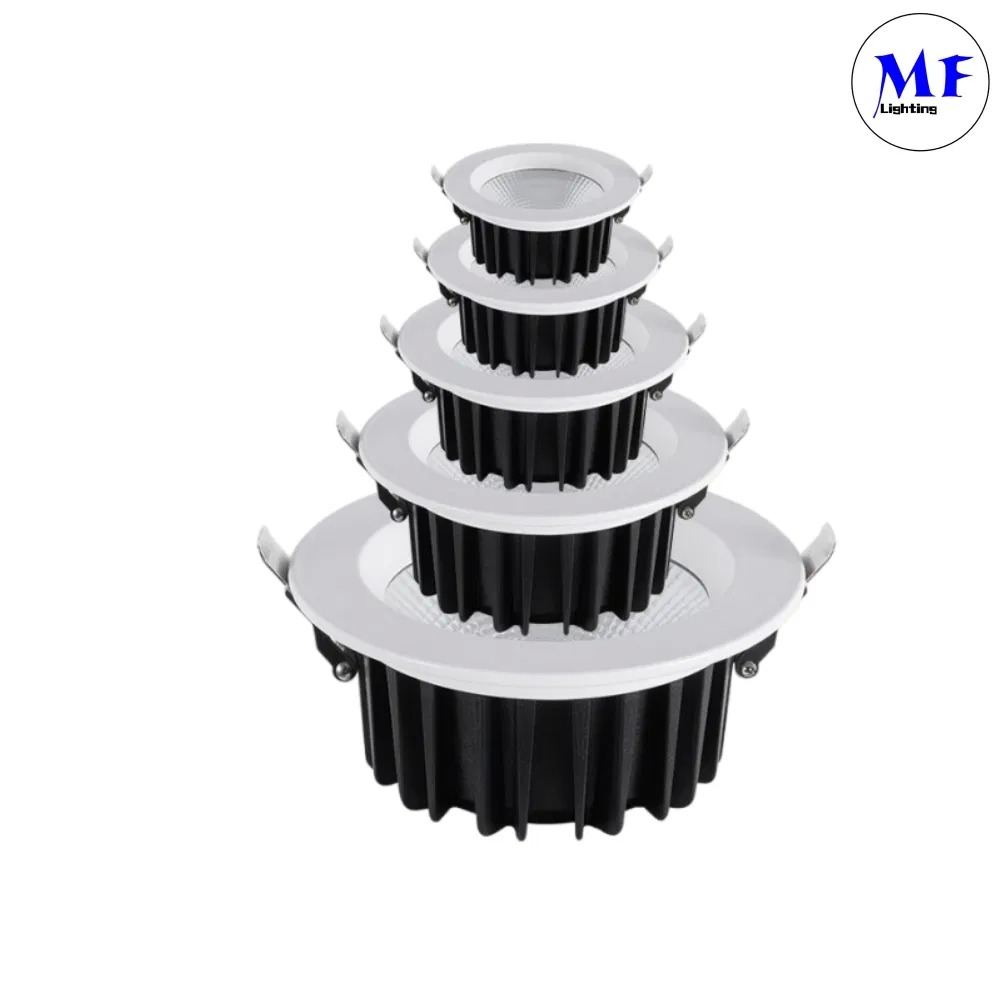

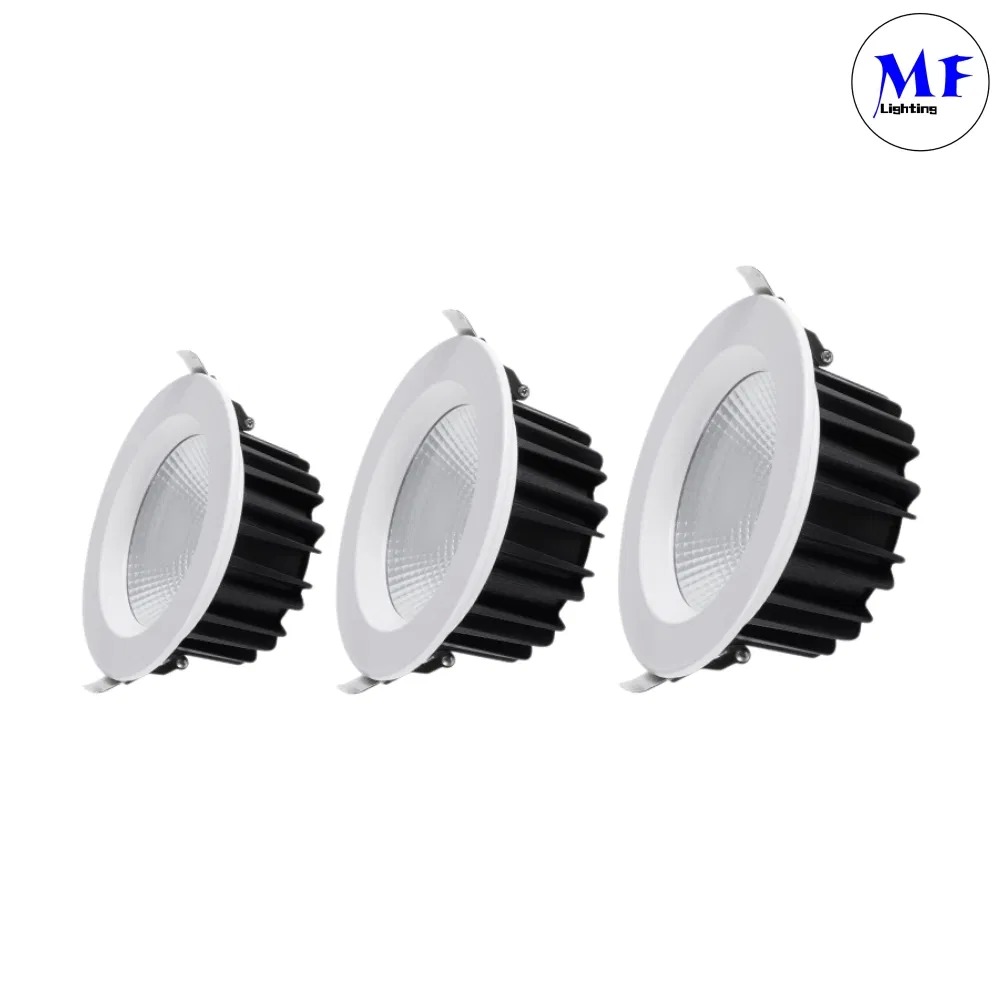

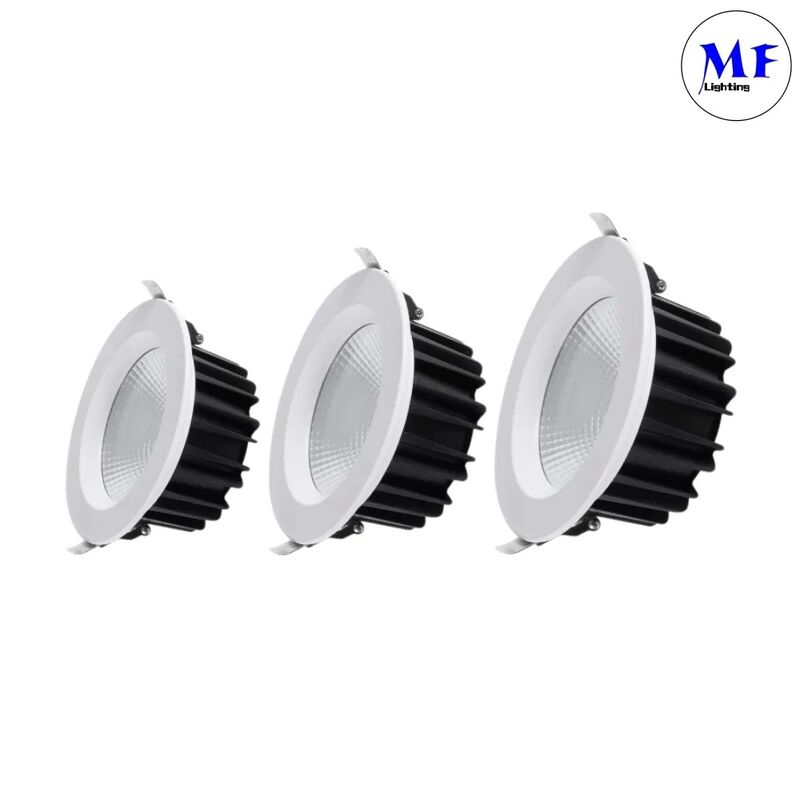

Aluminum 60° Triac 0-10V Dali Smart Dimming Dimmable CCT Adjustable Downlight Recessed COB LED Down Light with multiple wattage options from 5W to 50W.
Key Features
- IP20 / IP40 rating for indoor applications only
- Long service life: ≥50,000 hours with integrated die-cast aluminum heat sink
- Glare-free performance with milky PC diffuser; UGR<19 for comfortable bedroom and office lighting
- Multiple dimming modes: Non-Dim, TRIAC, 0-10V, DALI, Tuya Zigbee with APP smart control
- Rich color temperature options: fixed CCT 2700K-6000K; optional tunable CCT 2700-6000K
- High luminous efficiency: 100 lm/W with Ra80+ / Ra90+ color rendering optional
- Two housing color choices: White, Black
- 60° beam angle with SDCM<3
- Spring clip structure for easy embedded ceiling installation
Technical Specifications
| Parameter |
Specification |
Remarks |
| Model Series |
MF-DLT15-5W ~ MF-DLT15-50W |
|
| Power Range |
5W - 50W |
Multiple wattage versions |
| Light Source |
COB LED |
O-SRAM / Epistar chip optional |
| Luminous Efficiency |
100 lm/W |
|
| Color Rendering Index |
Ra80+ / Ra90+ |
Optional |
| Color Temperature |
2700K - 6000K |
Fixed CCT; tunable CCT optional |
| Beam Angle |
60° |
|
| SDCM |
< 3 |
|
| Glare Control |
UGR < 19 |
Anti-glare, eye-protecting |
| IP Rating |
IP20 / IP40 |
Indoor application |
| Lifespan |
>= 50000 hours |
Die-cast aluminum heat sink |
| Warranty |
3 years |
|
| Input Voltage |
110Vac / 200-240Vac |
50/60Hz |
| Power Factor |
>=0.50 (5-20W); >=0.95 (>20W) |
|
| Dimming Mode |
Non-Dim / TRIAC / 0-10V / DALI / Tuya Zigbee |
Tuya supports APP smart control |
| Driver Brand |
Lifud / Aohuaweiye / Eaglerise / BOKE |
Optional for dimming versions |
| Housing Material |
Die-cast aluminum |
Good heat dissipation |
| Diffuser Cover |
Transparent / milky PC |
Milky PC for anti-glare |
| Housing Color |
White / Black |
|
| Installation |
Embedded ceiling (spring clip) |
Strength spring buckle |
| Lamp Certification |
CE, RoHS |
|
| Driver Certification |
CE, RoHS, CB, SAA |
|
| Working Temperature |
-20°C ~ 50°C |
|
Product Design
COB & SMD Type Design
Product Benefits
- Anti-glare lighting (UGR<19), eye-protecting indoor illumination
- Dimming function: single-color brightness adjustment via TRIAC / 0-10V / DALI / Tuya Zigbee
- CCT tuning function (optional): adjust color temperature from 2700K-6000K
- Good heat dissipation relying on die-cast aluminum heat sink to extend lamp working life
- IP40 dust-proof performance for indoor commercial, retail, restaurant and residential lighting
- Quick embedded ceiling mounting by strength spring buckle clips
Detailed Photos
Cover: transparent / milky PC diffuser cover.
Structure components: high-quality die-cast aluminum body, transparent glass / PC cover, strength spring buckle.

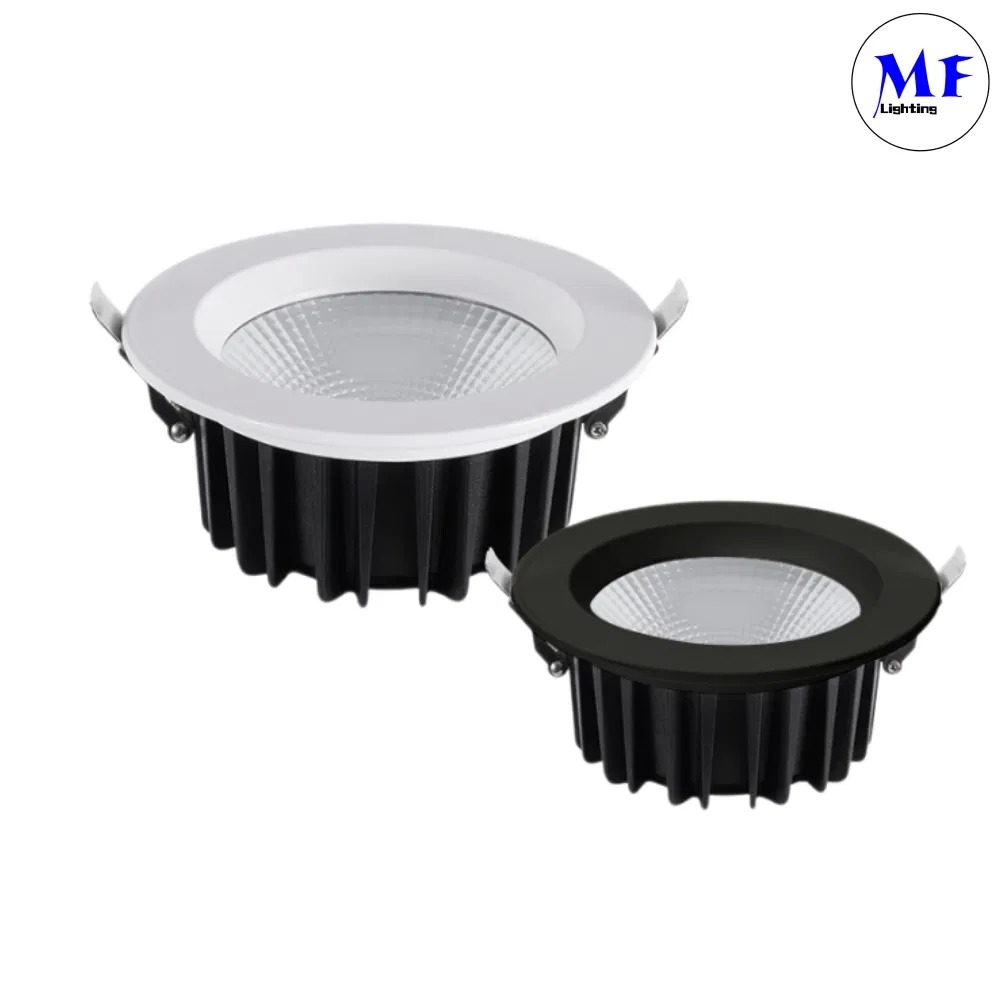

Housing color: White / Black.
Beam angle: 60 degree.
Dimensions
Installation Instructions
Easy Spring Clip Installation
- Cut ceiling opening according to required cut-out dimension
- Complete wiring by a qualified electrician
- Compress spring clips and insert fixture into ceiling hole
- Release spring clips to secure the luminaire, power on and test
Applications
LED downlights are versatile lighting fixtures that find wide application in various settings. With their sleek design and energy-efficient performance, LED downlights are commonly used in residential, commercial, and hospitality environments.
In residential settings, LED downlights are often installed in kitchens, living rooms, and bedrooms to provide ambient or task lighting. They offer a modern and stylish lighting solution while consuming less energy compared to traditional lighting options. LED downlights can create a warm and inviting atmosphere, enhancing the overall aesthetic appeal of the space.
In commercial spaces such as offices, retail stores, and showrooms, LED downlights are utilized to illuminate the area effectively. These downlights offer a focused and uniform light distribution, making them ideal for highlighting specific areas or products. LED technology ensures long-lasting performance, reducing maintenance costs and providing consistent lighting quality.
Hospitality venues, including hotels, restaurants, and bars, benefit from LED downlights to create a welcoming and visually appealing ambiance. These downlights can be used for general lighting, accenting architectural features, or accentuating artwork and displays. Additionally, the dimmable feature of LED downlights allows for flexible lighting control, enabling the adjustment of light levels to create different moods and atmospheres.
Overall, LED downlights are widely used due to their energy efficiency, long lifespan, and versatility. They offer excellent lighting performance, enhance aesthetics, and contribute to energy savings, making them a popular choice for a range of applications in both residential and commercial settings.
Hospitality: LED downlights are commonly used in hotels, resorts, and spas to create a soothing and luxurious atmosphere in lobbies, corridors, guest rooms, and common areas. They provide soft, warm illumination that enhances the guest experience and adds a touch of elegance to the space.
Museums and Galleries: LED downlights are preferred in art galleries and museums to illuminate exhibits and artwork with precision and accuracy. Their directional lighting helps to highlight the details and colors of the art pieces while minimizing heat and UV emissions that could potentially damage the artwork.
Showrooms: LED downlights are ideal for showcasing products in retail showrooms, car dealerships, and jewelry stores. Their focused beam and adjustable angles allow for effective accent lighting, drawing attention to specific merchandise and creating a visually appealing display.
Offices and Workspaces: LED downlights are widely used in office environments to provide bright, glare-free illumination for workstations, conference rooms, and common areas. They offer a comfortable working environment, reduce eye strain, and contribute to better productivity.
Educational Institutions: LED downlights are employed in schools, universities, and libraries to create conducive learning environments. They provide uniform lighting in classrooms, libraries, and study areas, enhancing concentration and visual comfort for students and teachers.
Healthcare Facilities: LED downlights are utilized in hospitals, clinics, and healthcare facilities for general lighting in corridors, waiting areas, and patient rooms. They offer a clean and bright light source, promoting a sense of well-being and aiding in accurate medical examinations.
Outdoor Spaces: LED downlights with suitable IP ratings can be used for outdoor applications such as building facades, pathways, gardens, and parking areas. They provide efficient and durable lighting solutions that enhance safety and security while reducing energy consumption.
Packaging Information
| Power |
Carton Size (cm) |
G.W (KG) |
PCS/CTN |
| 5W/7W/10W/12W |
64*27*56CM |
22.5KG |
100PCS |
| 15W/20W |
77*32*34CM |
19.5KG |
50PCS |
| 25W/30W/35W |
62*41*43.5CM |
25.0KG |
40PCS |
| 40W/45W/50W |
51*37*51.5CM |
22.0KG |
40PCS |
