Factory Price COB LED Recessed Downlight 30W Triac 0-10V Dali-2 Dt6 Dt8 Dimmable Tuya Zigbee Tuya WiFi Smart Control Ugr<19 Die-Cast Aluminum Ceiling Down Light

Contact Now

Factory Price COB LED Recessed Downlight 30W Triac 0-10V Dali-2 Dt6 Dt8 Dimmable Tuya Zigbee Tuya WiFi Smart Control Ugr<19 Die-Cast Aluminum Ceiling Down Light

Minimum Order Quantity :	1	Price :	11.4

Certification:	CE, RoHS

Detail Information
LED Chip:	0sram/Epistar COB As Options	Dimmable:	Non-Dim/Triac/0-10V/Dali-2 Dimmable/Tuya Zigbee As
CRI (Ra):	Ra90+/ Ra80+ As Options	Lifespan:	≥50000hrs
Lamp Body Material:	Die-Casting Aluminum	IP Rating:	IP40
Luminous Flux:	100lm/W	Power:	5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Color Temperature:	2700K/3000K /3500K/ 4000K / 5000K /6000K	Beam Angle:	60°
Input Voltage:	AC 200-240V	Operating Temperature:	-20°C ~50°C
PF:	5-20W≥0.50, 20W≥0.95	Cover:	PC Milky
Ugr:	<19
Highlight:	COB LED recessed downlight 30W dimmable , Triac 0-10V Dali-2 smart downlight , Die-cast aluminum ceiling down light Ugr<19

Product Description

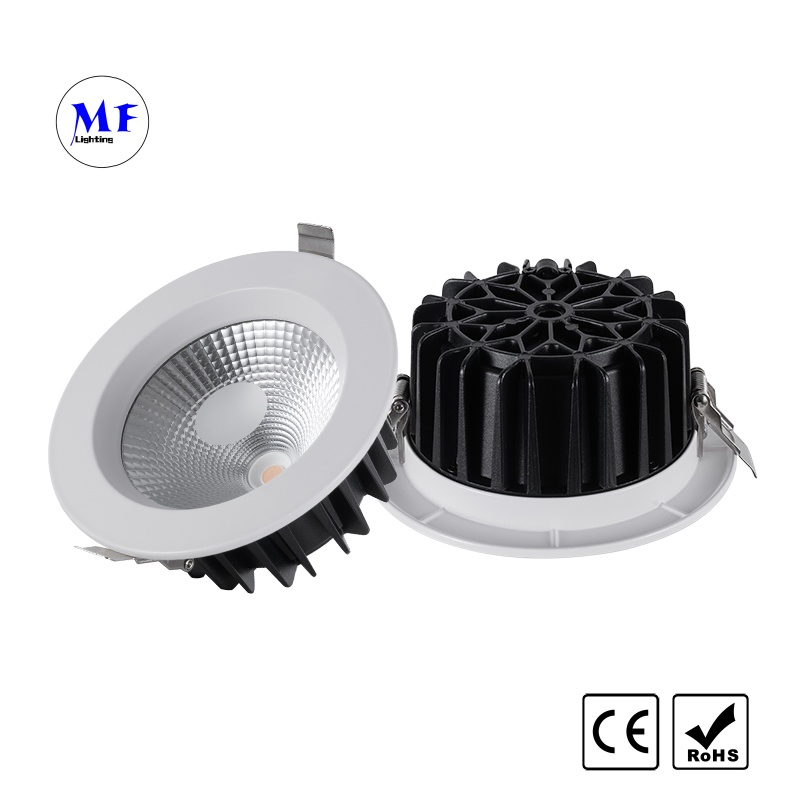

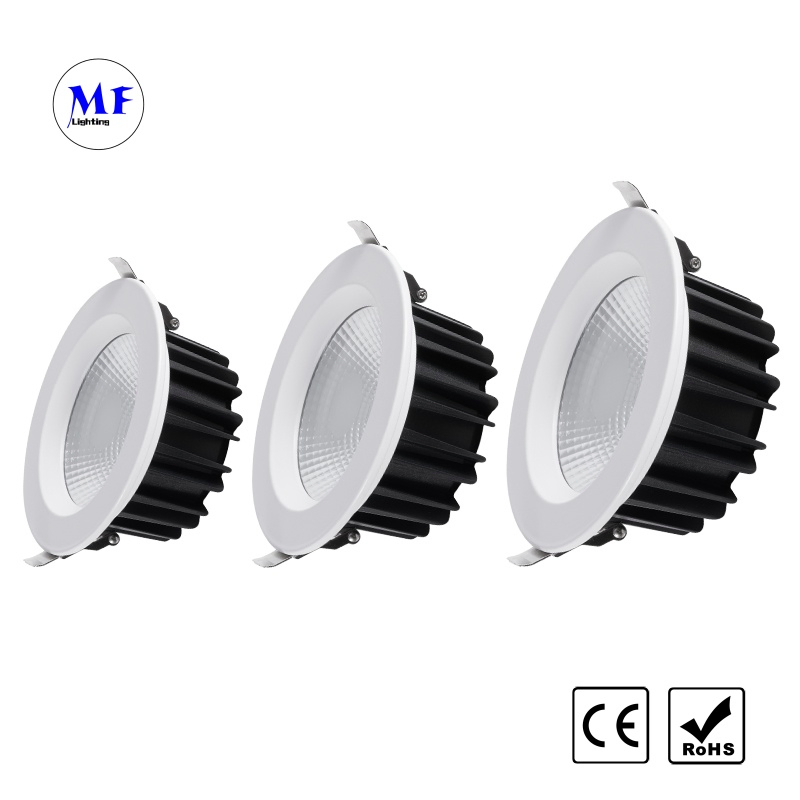

MF-DLT15 COB Series LED Recessed Downlight

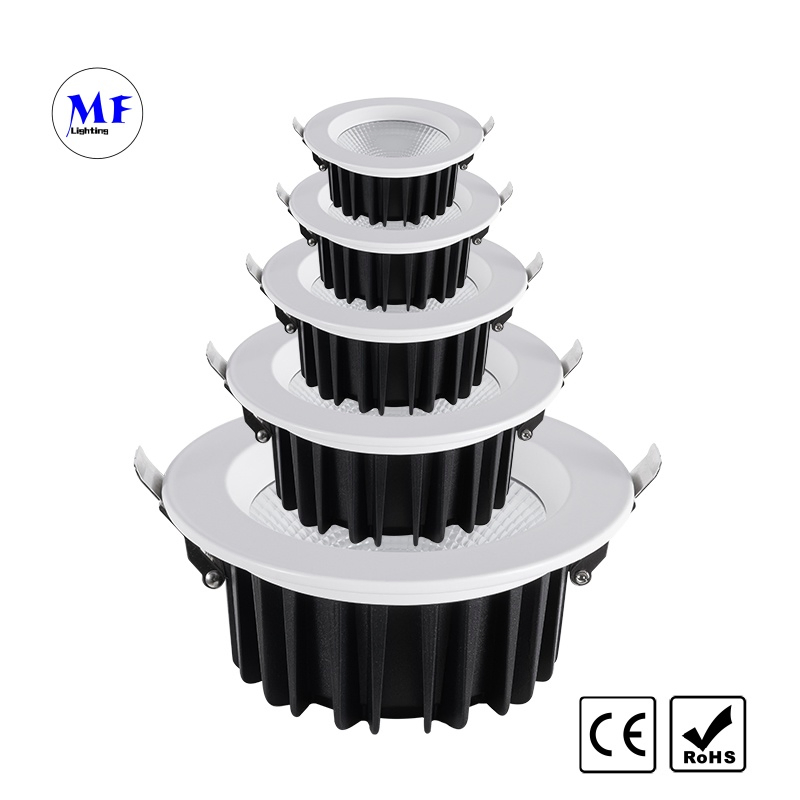

High-performance COB LED recessed downlight offering multiple power options from 5W to 50W with corresponding dimensions and ceiling cut-out sizes to fit various project requirements.

Key Features

Multiple dimming options: Non-dimmable, TRIAC, 0-10V, DALI, and Tuya Zigbee smart APP control
Long service life exceeding 50,000 hours with integrated die-cast aluminum heat sink
Low-glare performance (UGR<19) for comfortable, eye-friendly illumination
Color temperature range: 2700K-6000K with tunable CCT optional
High luminous efficacy: 100lm/W with high CRI options (Ra80+/Ra90+)

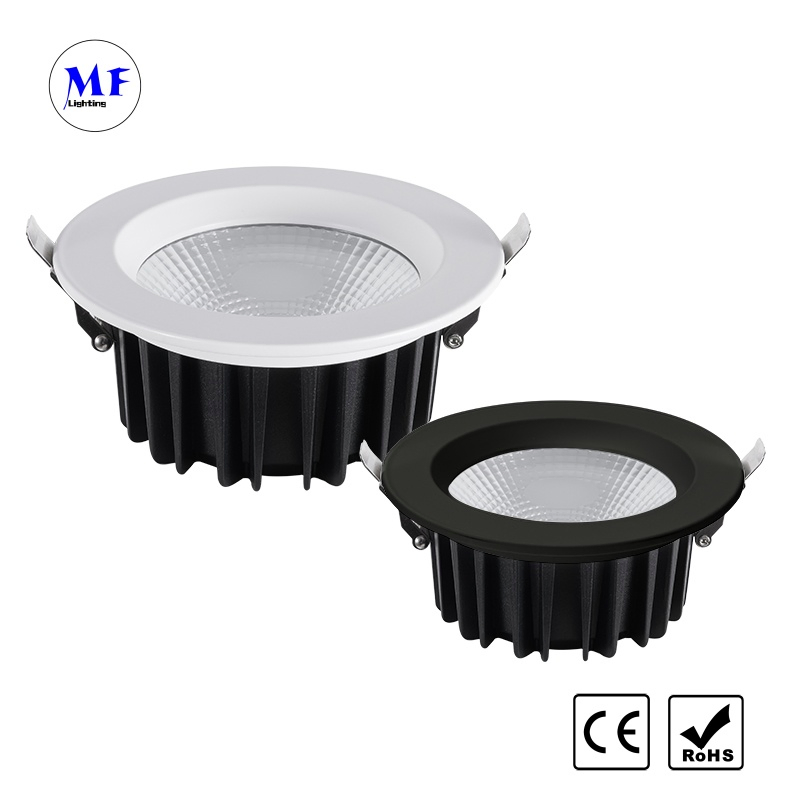

Available in white or black housing with IP20/IP40 rating for indoor use
Quick and easy ceiling installation with spring-clip structure

Technical Specifications

Model	MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Input Voltage	110Vac or 200-240Vac, 50Hz/60Hz
Power	5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Color Temperature	2700K/3000K/3500K/4000K/5000K/6000K
LED Chip	OSRAM/Epistar COB as options
LED Driver	Lifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim versions
Power Factor	5-20W≥0.50, 20W≥0.95
Housing Color	White/Black as options
Cover	PC Milky
Luminous Flux	100LM/W
CRI (Ra)	Ra90+/Ra80+ as options
Lifespan	≥50,000 hours
Beam Angle	60°
Material	Die-casting Aluminum
Operating Temperature	-20°C ~ 50°C
Dimmable	Non-Dim/TRIAC/0-10V/DALI-2 dimmable/Tuya Zigbee as options
CCT Adjustable	2700-6000K Tunable as optional
IP Rating	IP40
UGR	<19
Certification	CE/RoHS (Whole Lamp); CE/RoHS/CB/SAA (Driver)
Warranty Period	3 years

Installation Instructions

Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the luminaire size requirements.
Connect the Wires: Connect wires to luminaire terminals correctly according to installation manual. Professional electrician recommended.
Insert into Ceiling: Align spring clips on both ends vertically and insert into ceiling hole.
Lower Spring Clips: After confirming proper fit and correct wiring, lower clips and turn on power for use.

Additional Features

Multiple cover options: White PC cover or transparent glass cover
Wide CCT selection: 3000K / 3500K / 4000K / 6000K for different atmospheres
Excellent color consistency with uniform color output
High-performance BridgeLux chips for superior brightness
Flicker-free lighting with stroboflash-free design
Ideal for retail shops, boutiques, offices, and indoor commercial projects

Packaging & Shipping Information

Power	Carton Size (cm)	Gross Weight (KG)	Pieces per Carton
5W/7W/10W/12W	64×27×56 cm	22.5 KG	100 PCS
15W/20W	77×32×34 cm	19.5 KG	50 PCS
25W/30W/35W	62×41×43.5 cm	25.0 KG	40 PCS
40W/45W/50W	51×37×51.5 cm	22.0 KG	40 PCS

Company Profile

Frequently Asked Questions

Q1: Are you a manufacturer?

Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development and manufacturing, operating based on ISO quality management since 2009.

Q2: Can I order a sample of the LED Light?

Yes, we welcome sample orders to test and check product quality. Mixed samples are also acceptable.

Q3: What is the lead time for the LED Light?

Sample orders: 3-7 days. Mass production orders: 15-25 days. Exact lead time depends on order quantities.

Q4: How do you ship the finished products?

We offer optional shipping methods including SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED Light?

Yes, we provide OEM service. We can create labels and color boxes according to your requirements.

Q6: How do I proceed with an order for the LED Light?

Please provide your detailed requirements and application environment. We will recommend suitable products and solutions. After confirming details, issue a purchase order and make payment to confirm, then we start production and arrange shipment.

Q7: How do you handle defective products?

All products undergo strict quality control with defective rate less than 0.2%. We offer a 5-year warranty. During warranty period, provide pictures/videos of defective lights and we will ship replacements within days or with your next order.
