15W Triac /0-10V/Dali-2/Tuya Zigbee Dimmable 100lm/W LED Spot Downlight Beam Angle 60° Recessed Anti-Glare COB LED Down Light for Commercial and Housing Places

Minimum Order Quantity : 1 Price : 6.4
Certification: CCC, CE, RoHS, SAA

Detail Information

Power: 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W Color Temperature: 2700K/3000K / 4000K / 5000K /6000K
PF: 5-20W≥0.50, 20W≥0.95 Dimmable: Non-Dim/Triac/0-10V/Dali-2 Dimmable/Tuya Zigbee
Ugr: <19 IP Rating: IP20
LED Chip: O.Sram/E.Pistar COB As Options Luminous Flux: 100lm/W
CCT Adjustable: 2700-6000K Tunable As Optional If Need Lamp Body Material: Die-Casting Aluminum
Lifespan: ≥50000hrs Beam Angle: 60°
CRI: Ra80+/Ra90+ Operating Temperature: -20℃ ~50℃
Housing Colour: White/Black As Options
Highlight:

15W dimmable LED downlight

,

Triac 0-10V Dali-2 downlight

,

recessed anti-glare COB downlight

Product Description

15W Triac / 0-10V / Dali-2 / Tuya Zigbee Dimmable LED Spot Downlight
High-performance recessed anti-glare COB LED downlight with 100lm/W efficiency and 60° beam angle, designed for commercial and residential applications.

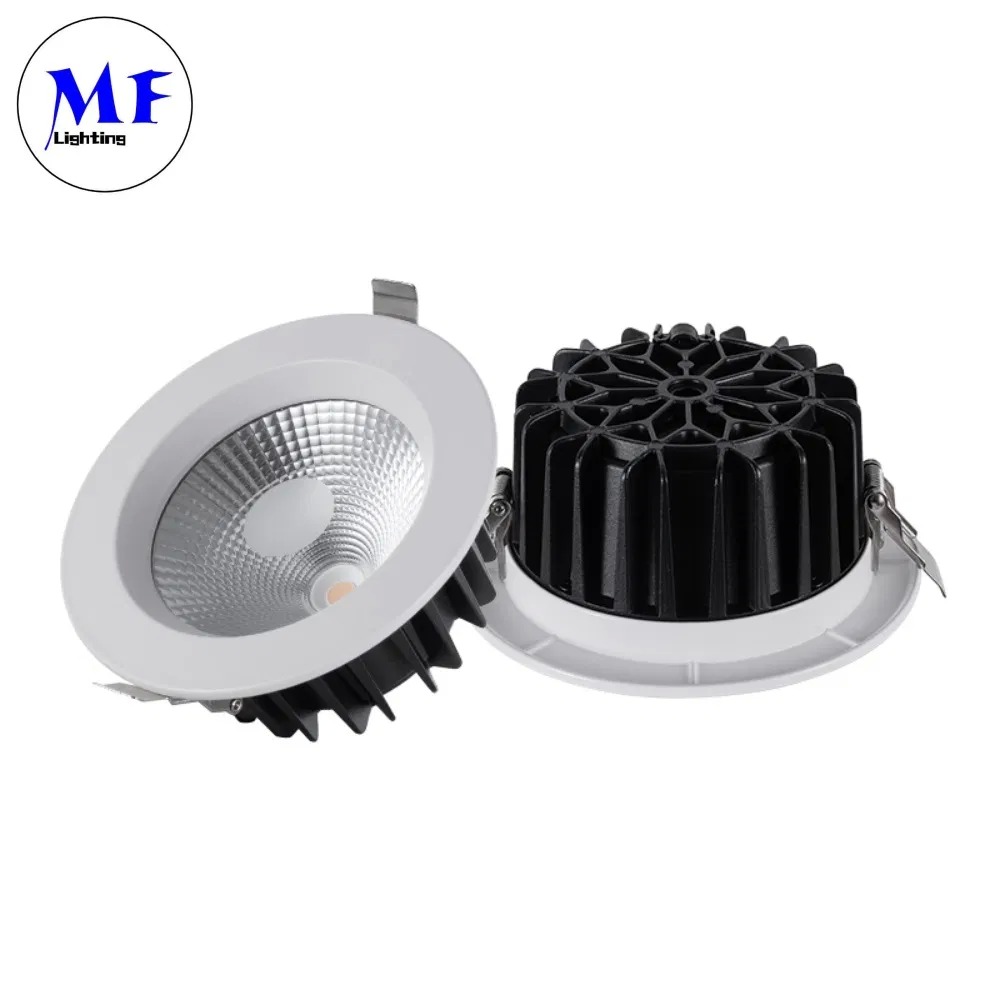

MF-DLT15 LED Downlight product overview
Product Features
  • IP20/IP40 Rating: Suitable for indoor applications
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures 50,000+ hours operation
  • Glare-free Design: Milky PC diffuser with UGR <19 for eye-friendly lighting in bedrooms and offices
  • Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya Zigbee and DALI-2 dimming with smart app control
  • Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT 2700-6000K options
  • High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+)
  • Multiple Housing Colors: Available in White and Black options
Product Details
The MF-DLT15 downlight features a multi-layer refractive optical lens that produces strong stereoscopic lighting effects. With a focused 60° beam angle and high-quality die-cast aluminum construction, it delivers excellent heat dissipation performance. The transparent glass cover and robust spring buckles enable simple, stable ceiling installation.

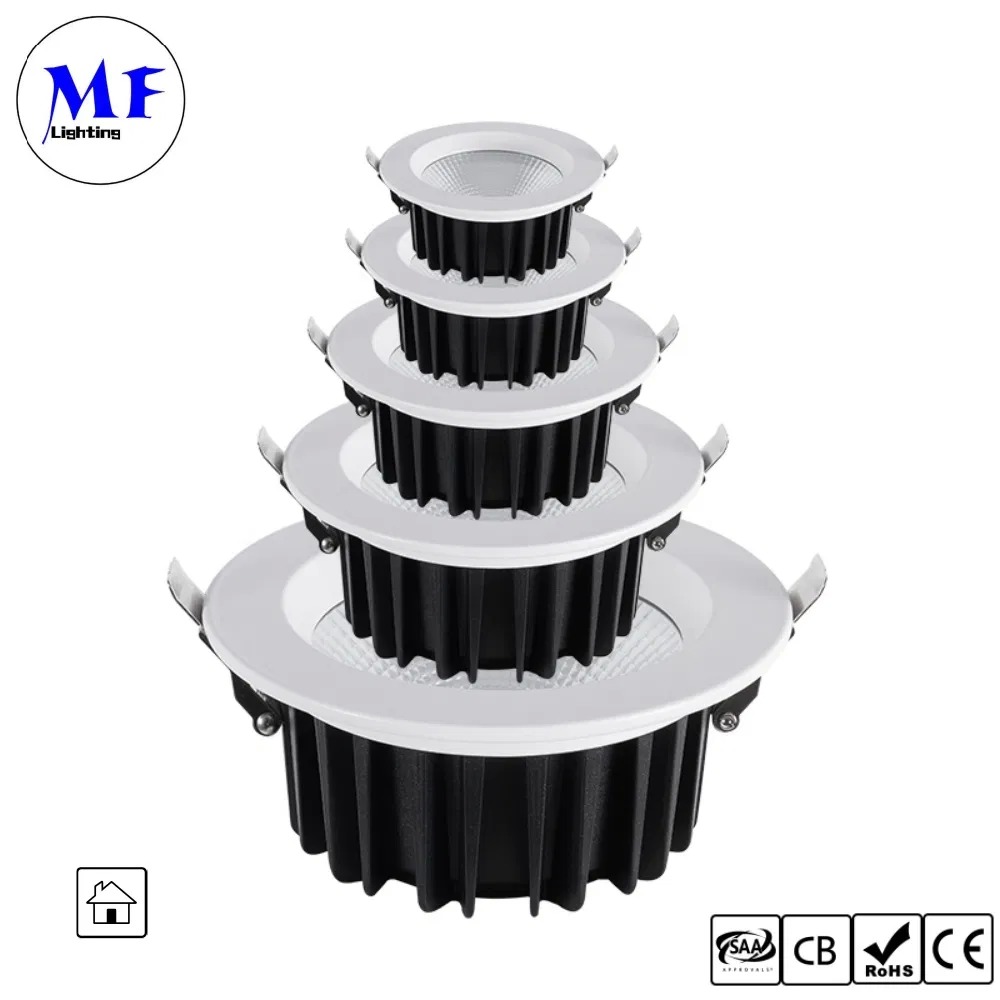

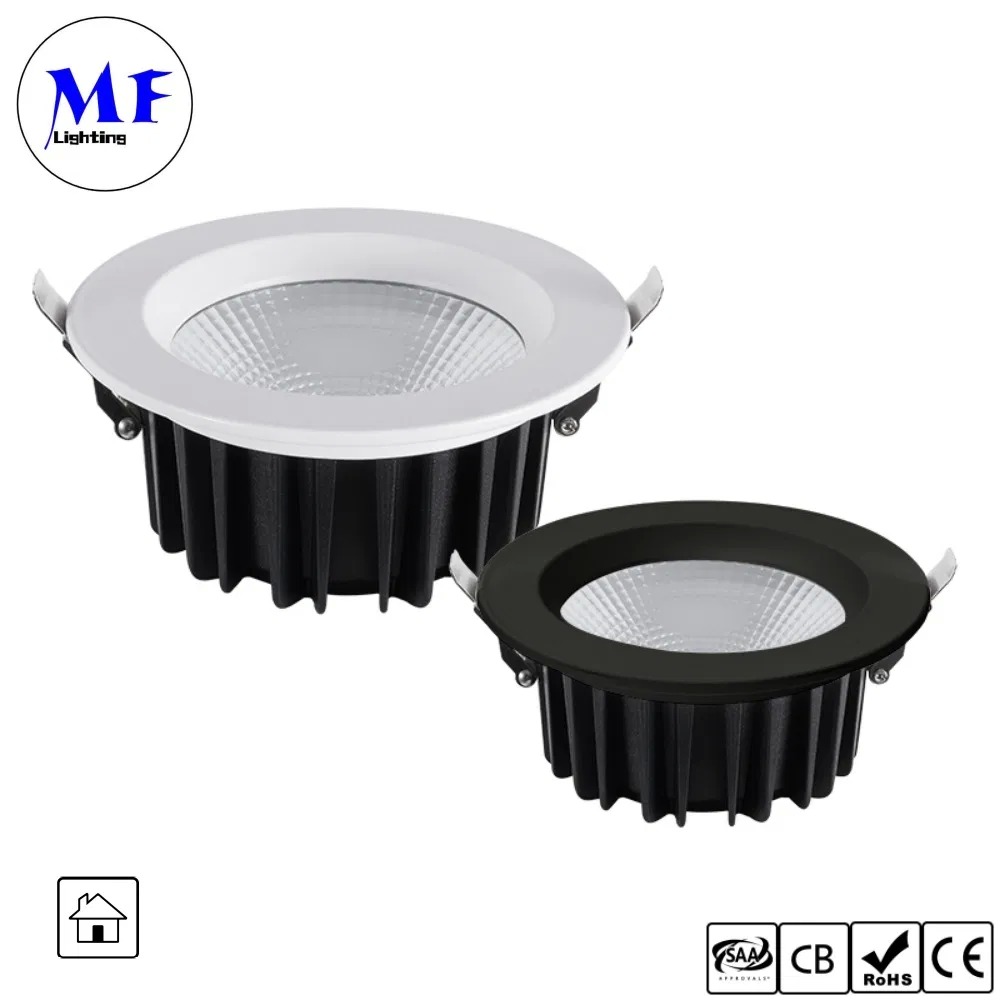

MF-DLT15 downlight detailed view MF-DLT15 downlight close-up
This commercial downlight provides flicker-free illumination to protect eyesight, delivering uniform and soft light for comfortable lighting experiences. The aerodynamic heat dissipation design with guide fins accelerates heat removal, effectively reducing operating temperatures and extending lamp service life.

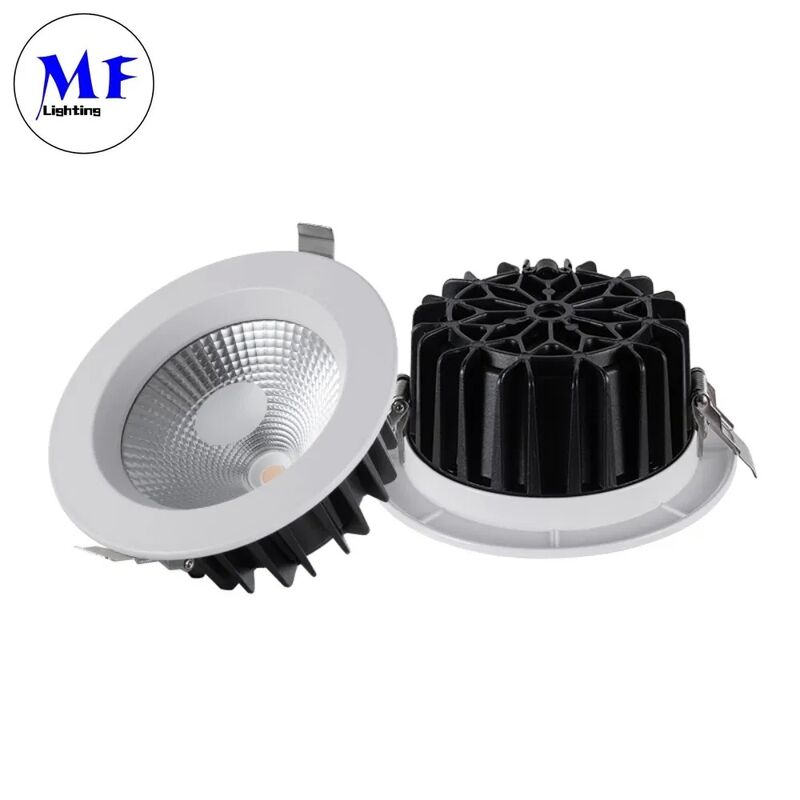

MF-DLT15 heat dissipation design MF-DLT15 lighting performance
Intelligent Dimming & CCT Tunable
Seamlessly adjust brightness and color temperature from 2700K warm white to 6000K cool white. Multiple control protocols supported including DALI, 0-10V, Tuya/Zigbee, and TRIAC. Switch freely among warm white, natural white and cool white to create different lighting atmospheres for commercial and residential applications.

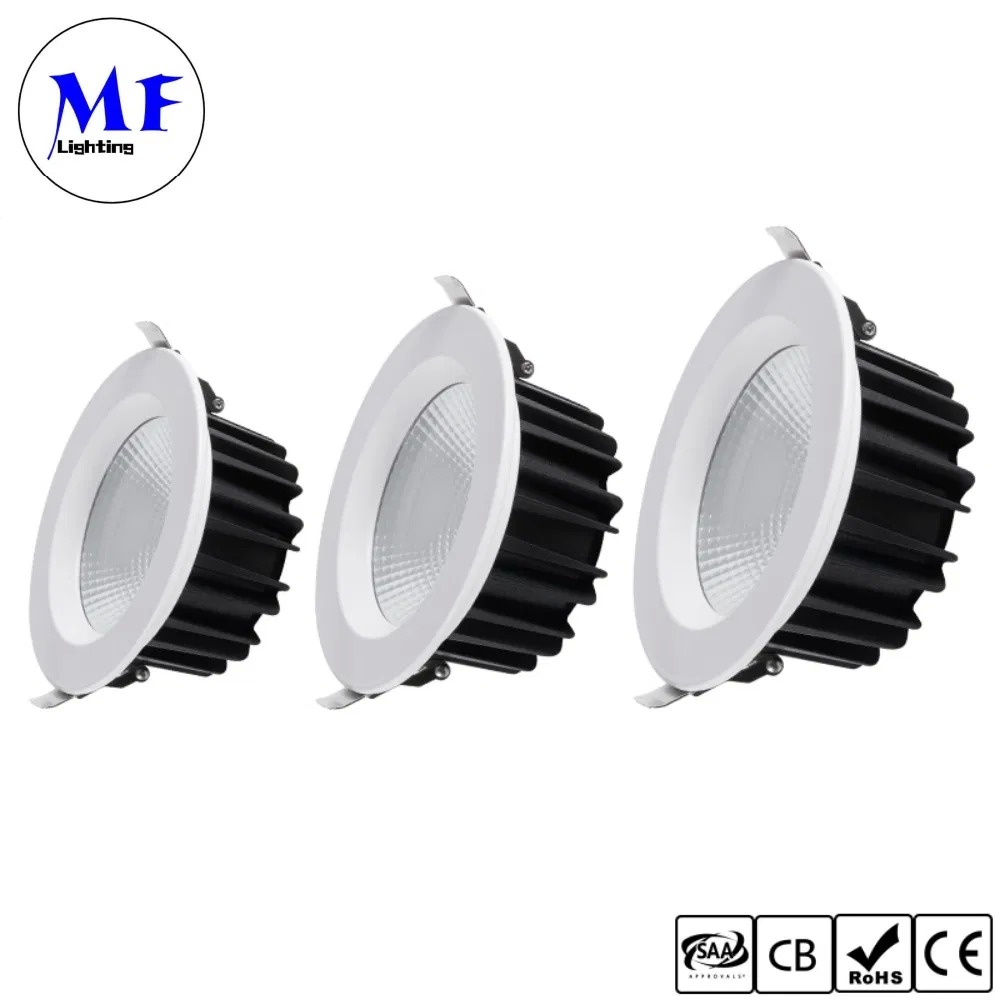

MF-DLT15 dimming control options MF-DLT15 color temperature adjustment
Technical Specifications
Model MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Input Voltage 110Vac or 200-240Vac, 50Hz/60Hz
Power 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Color Temperature 2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable
LED Chip O.SRAM/E.pistar COB as options
LED Driver Lifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim versions
Power Factor 5-20W≥0.50, 20W≥0.95
Housing Color White/Black as options
Luminous Flux 100LM/W
CRI (Ra) Ra80+/Ra90+
Lifespan ≥50,000 hours
Beam Angle 60°
Material Die-casting Aluminum
Operating Temperature -20ºC to 50ºC
Dimmable Non-Dim/Triac/0-10V/Dali-2/Tuya Zigbee as options
CCT Adjustable 2700-6000K Tunable as optional
IP Rating IP40
UGR <19
Certification CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty Period 3 years
Dimensions and Specifications
MF-DLT15 dimensional diagram
Model Power Cut Out (mm) Dimension (mm) Beam Angle
MF-DLT15 5W/7W/10W/12W 95 115×50 60°
MF-DLT15 15W/20W 120 145×62 60°
MF-DLT15 25W/30W 145 165×65 60°
MF-DLT15 30W/35W 170 190×75 60°
MF-DLT15 40W/45W 170 225×75 60°
MF-DLT15 50W 230 250×75 60°
Installation Instructions
MF-DLT15 installation diagram
  1. Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the luminaire size
  2. Connect the Wires: Connect wires to luminaire terminals correctly according to installation manual (professional electrician recommended)
  3. Insert into Ceiling: Align spring clips vertically and insert into ceiling hole
  4. Lower Spring Clips: After confirming proper fit and correct wiring, lower clips and turn on power
Packaging & Shipping
MF-DLT15 packaging MF-DLT15 shipping carton
Power Carton Size (cm) Gross Weight (kg) Pieces per Carton
5W/7W/10W/12W 64×27×56 22.5 100 PCS
15W/20W 77×32×34 19.5 50 PCS
25W/30W/35W 62×41×43.5 25.0 40 PCS
40W/45W/50W 51×37×51.5 22.0 40 PCS
Applications
Industrial Settings: Ideal for industrial environments where dust, moisture, or water exposure can be an issue, providing durable waterproof lighting solutions.
Retail & Commercial Spaces: Perfect for retail stores, restaurants, and commercial spaces requiring water resistance and long-lasting durability.
MF-DLT15 commercial application
Manufacturer Profile
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory, specializing in the design, production, and distribution of high-quality LED lighting products. With years of industry experience, we have established a reputation for excellence and innovation in LED lighting technology. Our skilled professionals are dedicated to providing customers with superior LED lighting products and services, with a strong commitment to quality and customer satisfaction for both residential and commercial lighting solutions.
Ming Feng Lighting factory Ming Feng Lighting facilities
Frequently Asked Questions
What products do you sell?
We provide high-quality floodlights, high bay lights, explosion-proof lights, tri-proof lights, downlights, and other lighting products, along with responsible services and reliable after-sales warranty.
Can I have my logo printed on LED light products?
Yes, we provide ODM and OEM services. Please inform us formally before production and confirm the design based on our sample.
How do you handle faulty products?
During the guarantee period, we will send new lights with new orders for small quantities. For defective batch products, we will repair and resend them, or discuss solutions including recalls based on the actual situation.
Can I place a sample order for LED lights?
Yes, we welcome sample orders to test and check quality. Both single samples and mixed samples are acceptable.
What is the shipping time after placing an order?
Typically 7 days for samples or small orders, 15 working days for bulk orders, depending on order quantity.
