5W CRI90 100lm/W Dimmable LED Spot Downlight
High-performance recessed anti-glare COB LED downlight with 60° beam angle, designed for commercial and residential applications. Features multiple dimming protocols and excellent color rendering.
Key Features
- IP40 Rating: Suitable for indoor applications
- Long Lifespan: 50,000+ hours with integrated die-cast aluminum heat sink
- Glare-free Design: Milky PC diffuser with UGR <19 for eye-friendly lighting
- Flexible Dimming: Supports Non-Dim, TRIAC, 0-10V, Tuya Zigbee, and DALI-2 protocols
- Wide Color Temperature: 2700K to 6000K with tunable CCT options
- High Efficiency: 100 lumens per watt with CRI options (Ra80+/Ra90+)

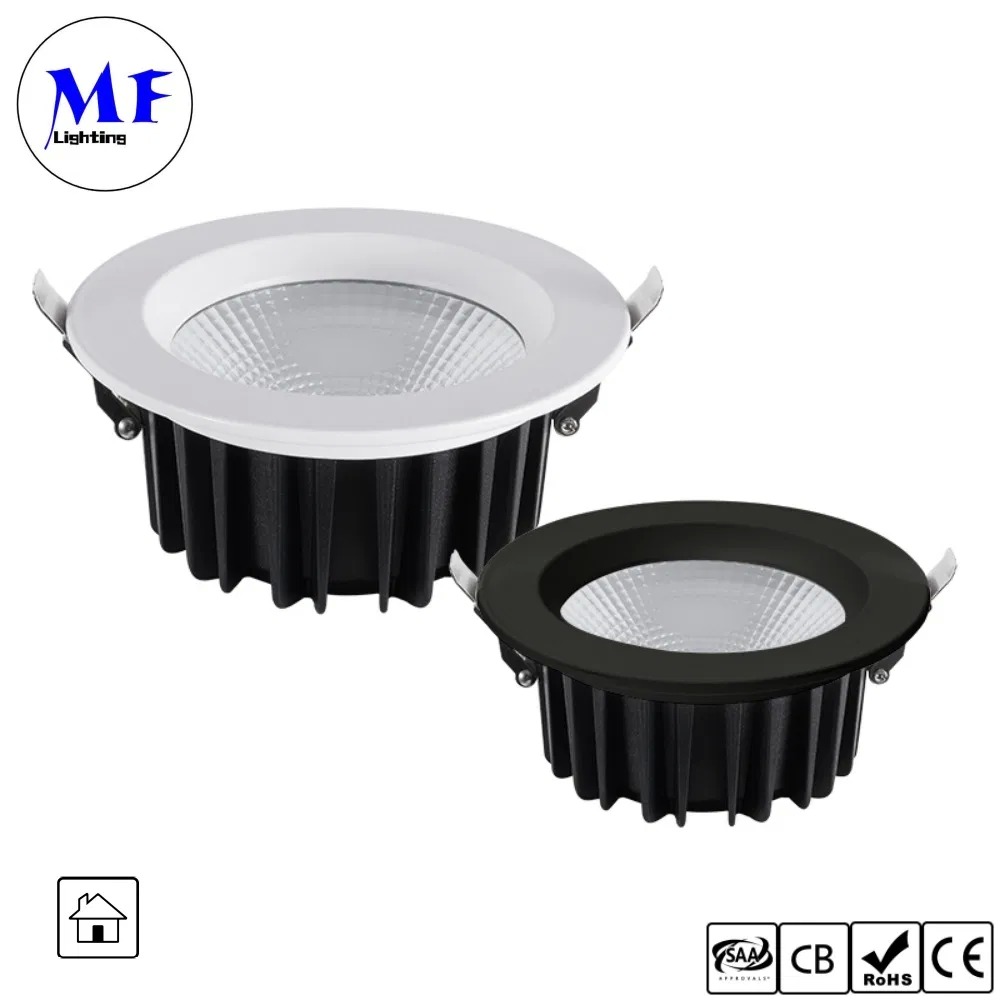

- Multiple Colors: Available in white and black housing options
Product Details

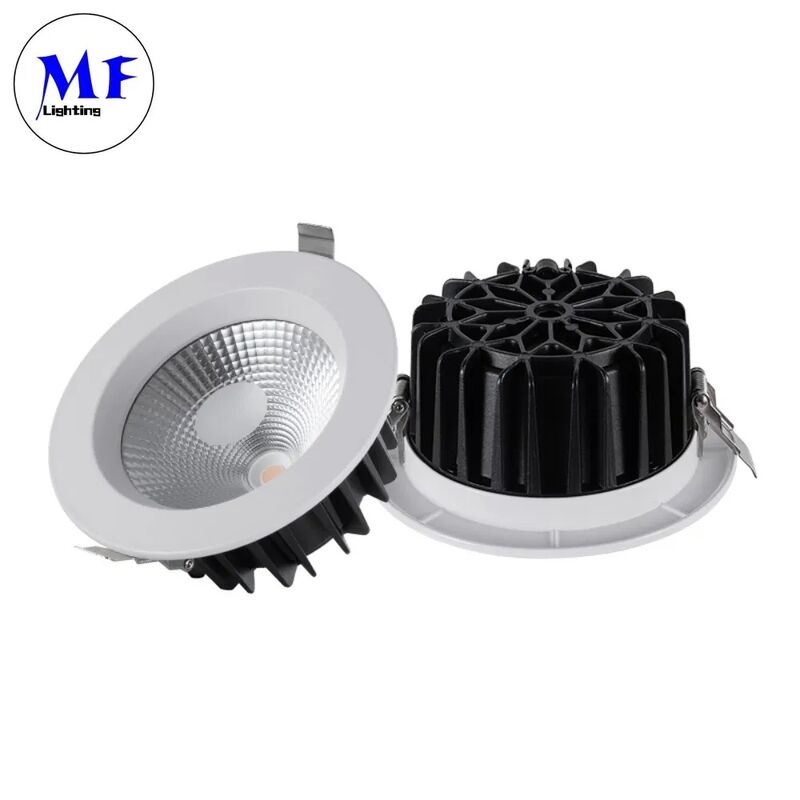

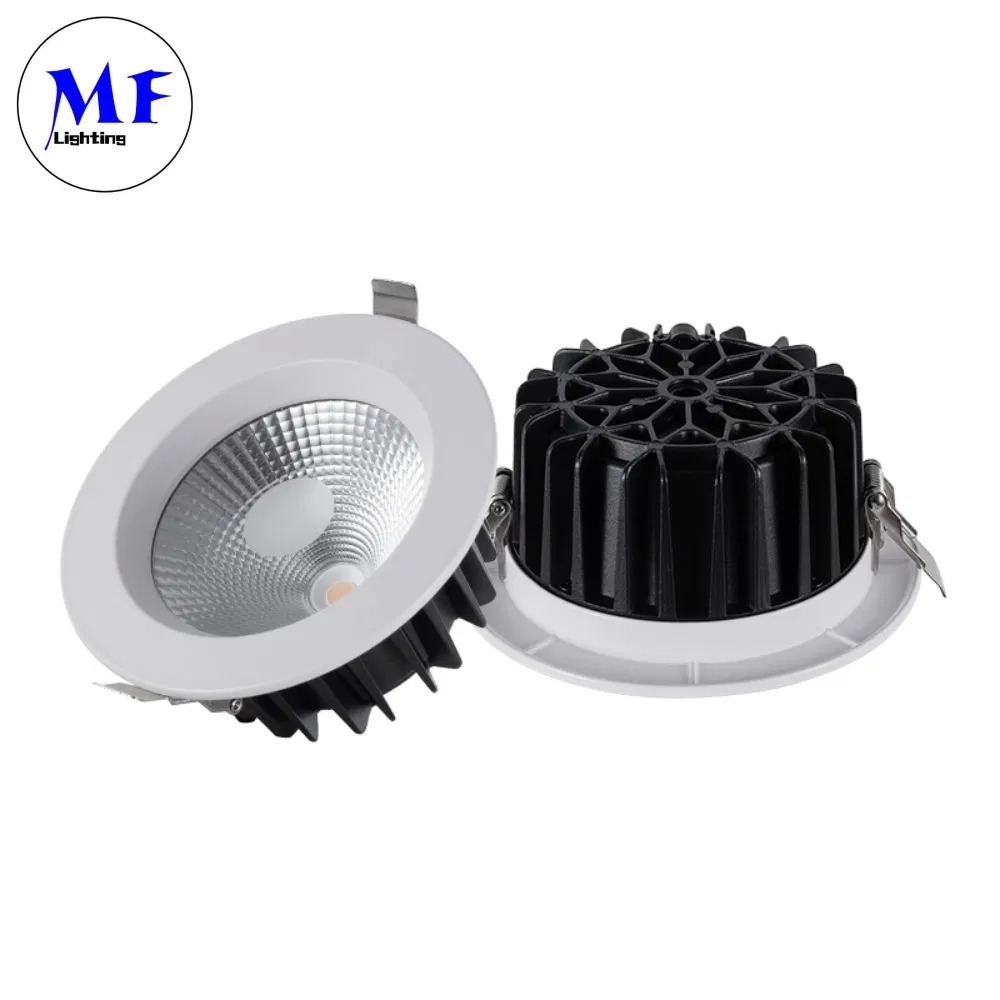

The MF-DLT15 downlight features a multi-layer refractive optical lens for strong stereoscopic lighting effects. With a focused 60° beam angle and high-quality die-cast aluminum construction, it delivers excellent heat dissipation. The transparent glass cover and spring buckles ensure simple, stable ceiling installation.
This commercial downlight provides flicker-free operation to protect eyesight, delivering uniform and soft light for comfortable illumination. The aerodynamic heat dissipation design with guide fins accelerates heat removal, reducing operating temperature and extending service life.
Intelligent Dimming & CCT Control
Seamlessly adjust brightness and color temperature from 2700K warm white to 6000K cool white. Multiple control protocols including DALI, 0-10V, Tuya/Zigbee, and TRIAC. Switch between warm white, natural white, and cool white to create customized lighting atmospheres for commercial and residential spaces.
Technical Specifications
| Parameter |
Specification |
| Model |
MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Input Voltage |
110Vac or 200-240Vac, 50Hz/60Hz |
| Power |
5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Color Temperature |
2700K/3000K/3500K/4000K/5000K/6000K, 2700-6500K Tunable |
| LED Chip |
O.SRAM/E.pistar COB as options |
| LED Driver |
Lifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim versions |
| Power Factor |
5-20W≥0.50, 20W≥0.95 |
| Luminous Flux |
100LM/W |
| CRI (Ra) |
Ra80+/Ra90+ |
| Lifespan |
≥50,000 hours |
| Beam Angle |
60° |
| Material |
Die-casting Aluminum |
| Operating Temperature |
-20°C to 50°C |
| Dimmable |
Non-Dim/Triac/0-10V/Dali-2/Tuya Zigbee as options |
| CCT Adjustable |
2700-6000K Tunable as optional |
| IP Rating |
IP40 |
| UGR |
<19 |
| Certification |
CE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver) |
| Warranty |
3 years |

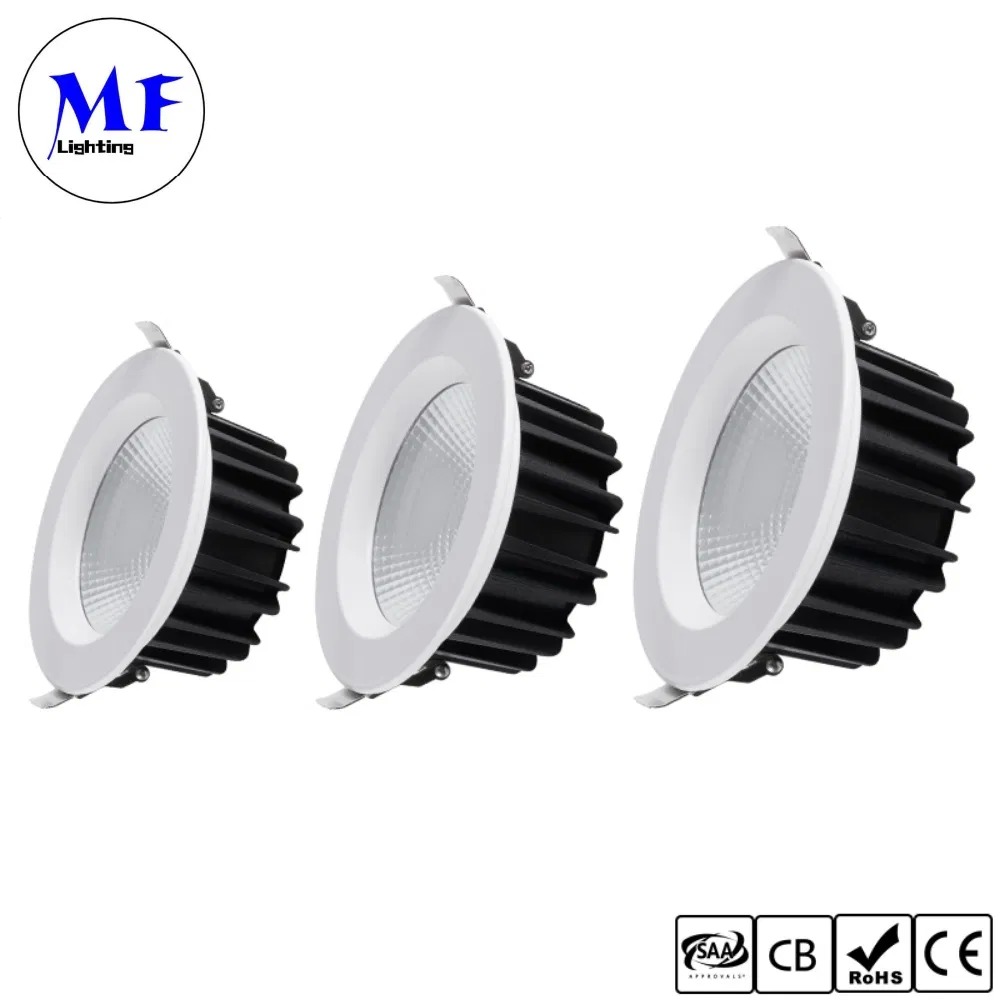

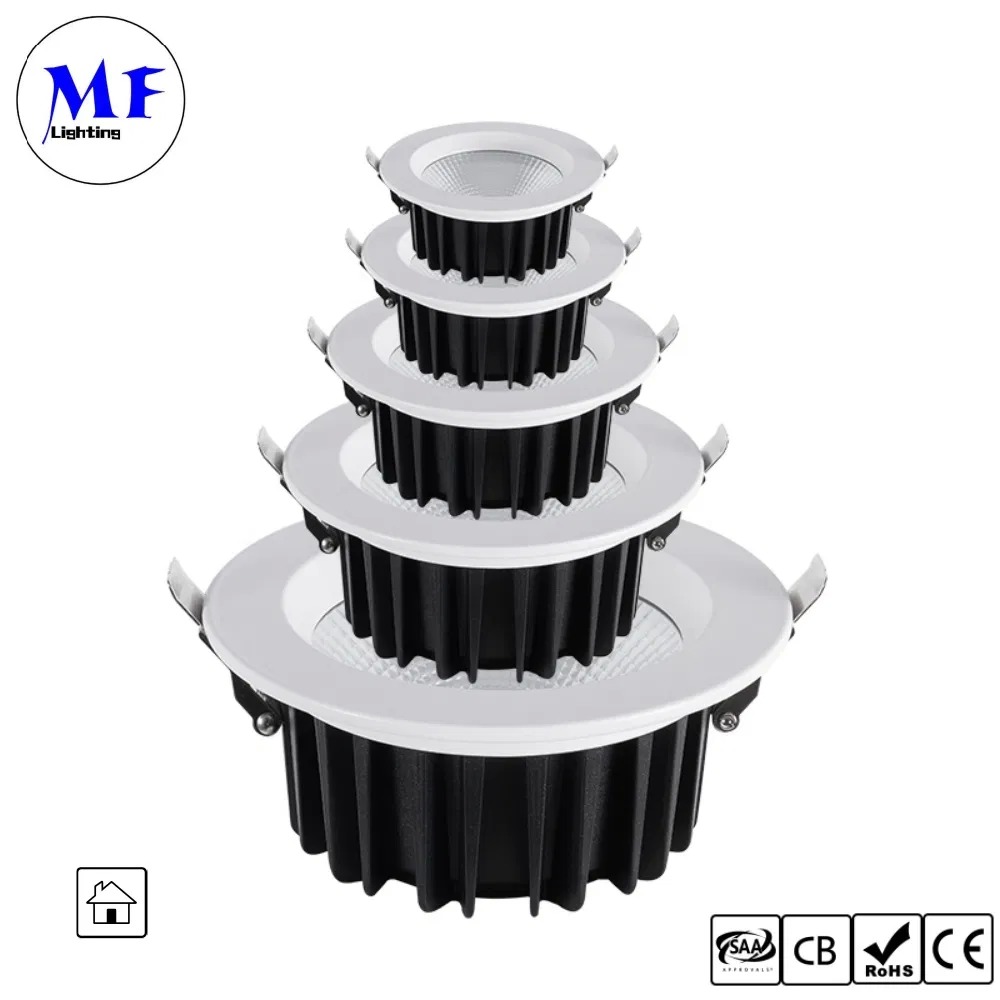

Dimensions & Models
| Model |
Power |
Cut Out (mm) |
Dimension (mm) |
Beam Angle |
| MF-DLT15 |
5W/7W/10W/12W |
95 |
115×50 |
60° |
| MF-DLT15 |
15W/20W |
120 |
145×62 |
60° |
| MF-DLT15 |
25W/30W |
145 |
165×65 |
60° |
| MF-DLT15 |
30W/35W |
170 |
190×75 |
60° |
| MF-DLT15 |
40W/45W |
170 |
225×75 |
60° |
| MF-DLT15 |
50W |
230 |
250×75 |
60° |
Installation Guide
- Ceiling Hole Cutting: Cut ceiling hole according to luminaire size using appropriate tools
- Connect Wires: Connect wires to luminaire terminals following installation manual (professional electrician recommended)
- Insert into Ceiling: Align spring clips vertically and insert into ceiling hole
- Lower Spring Clips: After confirming proper fit and wiring, lower clips and power on
Packaging & Shipping
| Power |
Carton Size (cm) |
Gross Weight (kg) |
Pieces per Carton |
| 5W/7W/10W/12W |
64×27×56 |
22.5 |
100 |
| 15W/20W |
77×32×34 |
19.5 |
50 |
| 25W/30W/35W |
62×41×43.5 |
25.0 |
40 |
| 40W/45W/50W |
51×37×51.5 |
22.0 |
40 |
Applications
Industrial Settings: Ideal for industrial environments where dust, moisture, or water exposure may be concerns.
Retail & Commercial Spaces: Perfect for retail stores, restaurants, and commercial spaces requiring water resistance and durability.
Manufacturer Profile
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with our own factory. We specialize in designing, producing, and distributing high-quality LED lighting products. With years of industry experience, we've established a reputation for excellence and innovation in LED lighting technology. Our skilled team is dedicated to providing customers with superior LED lighting products and services, backed by our commitment to quality and customer satisfaction for both residential and commercial lighting solutions.
Frequently Asked Questions
Q1: What products do you sell?
A1: We provide high-quality floodlights, high bay lights, explosion-proof lights, tri-proof lights, downlights, and other lighting products, along with responsible services and reliable after-sales warranty.
Q2: Can I add my logo to LED light products?
A2: Yes, we provide ODM and OEM services. Please inform us before production and confirm the design based on our sample.
Q3: How do you handle faulty products?
A3: During the guarantee period, we send replacement lights with new orders for small quantities. For defective batch products, we repair and resend them or discuss solutions including recalls based on the situation.
Q4: Can I order samples?
A4: Yes, we welcome sample orders to test and check quality. Single samples or mixed samples are acceptable.
Q5: What is your shipping time?
A5: Typically 7 days for samples or small orders, 15 working days for bulk orders, depending on order quantity.
