Factory Price IP40 CCT Tunnable Recessed SMD LED Downlight 20W 25W 50W Dimmable Anti Glare Ceiling Down Light with Milky PC Diffuser for Home Showroom

Contact Now

Factory Price IP40 CCT Tunnable Recessed SMD LED Downlight 20W 25W 50W Dimmable Anti Glare Ceiling Down Light with Milky PC Diffuser for Home Showroom

Minimum Order Quantity :	1	Price :	6.4

Certification:	CCC, CE, EMC, ETL, FCC, LVD, PSE, RoHS, SAA

Detail Information
Color Temperature:	2700 - 6000K Tunable As Opti	Lifespan:	≥50000hrs
Luminous Flux:	100lm/W	Power:	5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Housing Colour:	White	Material:	Die-Casting Aluminum
IP Rating:	IP20	Light Source:	SMD
CRI:	Ra80+/Ra90+	Ugr:	<19
Switch Type:	Triac Mode,0-10V Mode, Dali Mode	Beam Angle:	120 Degree
Working Temperature:	-20ºC ~ +50ºC	Input Voltage:	AC110Vac / AC200-240V, 50-60Hz
Power Factor:	5-20W ≥0.50;>20W ≥0.95
Highlight:	IP40 recessed LED downlight , dimmable ceiling down light , milky PC diffuser downlight

Product Description

Factory Price IP40 CCT Tunable Recessed SMD LED Downlight

MF DLT15 SMD recessed LED downlight delivers even wide-spread ambient lighting for modern commercial and residential renovation jobs. Power range covers 5W up to 50W fitted with milky PC diffuser for soft homogeneous light output.

Key Features

100LM per watt luminous efficiency with optional CRI80 and CRI90
120-degree beam angle with UGR less than 19 for glare reduction
Multiple control modes: Non Dim, Triac, 0-10V, Dali 2, Dali DT8, Tuya Zigbee and Tuya Wifi
Optional CCT adjustable function
Input voltage supports AC110Vac and AC200-240V
White and black housing options
IP40 rating for dry indoor locations
CE, RoHS, CB, SAA certified with 3-year factory warranty

SMD Source With Milky PC Diffuser

Built-in milky PC diffuser panel softens SMD light output, removing concentrated bright hot-spots. Creates smooth, far-reaching ambient illumination instead of narrow focused spot beams, perfectly suited for base-level room lighting.

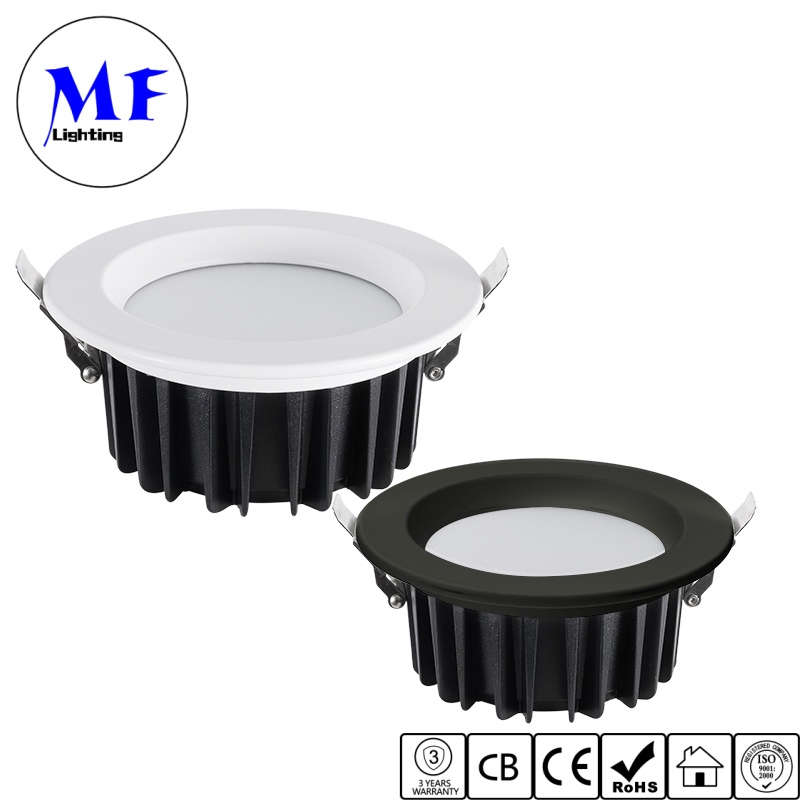

Complete Power Range And Dual-color Housing

Wide power portfolio spanning 5W to 50W. Multiple ceiling cut-out sizes support flexible project layout. White and black housing choices fit minimalist, dark-luxury and diverse modern interior decoration themes.

Anti-glare Performance

Stable 120-degree beam angle for broad area coverage. UGR less than 19 anti-glare characteristic reduces eye fatigue for spaces with longterm human activity. CRI80 / CRI90 optional for authentic color reproduction.

Complete Dimming Ecosystem

Offer Non Dim, Triac phase cut, 0-10V analog, Dali 2, Dali DT8, Tuya Zigbee, Tuya Wifi control variants. CCT adjustable function optional, allowing users to switch among warm, neutral and cool light atmospheres within single fixture. Work with AC110Vac and AC200-240V mainstream power supply systems.

Different from accent-oriented spot downlights, MF DLT15 is engineered for ambient general lighting. Milky PC diffuser softens SMD source output, avoiding glaring central hot-spot which commonly appears on bare-reflector COB lamps. Light spills smoothly across ceiling and wall surfaces.

Technical Specifications

Parameter	Specification
Model	MF DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Rated Power	5W,7W,10W,12W,15W,20W,25W,30W,35W,40W,45W,50W
Color Temperature	2700K,3000K,3500K,4000K,5000K,6000K; CCT adjustable 2700-6000K optional
LED Source	High-performance SMD light source
Power Factor	5-20W ≥0.50;>20W ≥0.95
Housing Color	White / Black optional
Cover Material	Milky PC Diffuser
Luminous Efficacy	100LM/W,100LM per watt
CRI(Ra)	CRI80 / CRI90 optional
Lifespan	≥50000 Hours
Beam Angle	120 degree wide beam angle
Material	Die casting Aluminum
Working Temperature	-20ºC ~ +50ºC
Dimmable Option	Non Dim / Triac / 0-10V / DALI 2 / Dali DT8 / Tuya Zigbee / Tuya Wifi
Input Voltage	AC110Vac / AC200-240V, 50-60Hz
IP Rating	IP40
UGR	less than 19 Anti glare
Certificates	Whole lamp: CE, RoHS;Driver: CE, RoHS, CB, SAA
Warranty	3 Years

Smart Control Capabilities

Multiple dimmable variants satisfy different project technical requirements. Tuya smart editions support mobile-APP remote management: brightness adjustment, CCT switching, multi-lamp group-control and custom scene-mode preset storage. CCT adjustable optional with 2700K-6000K range for customizable lighting atmosphere.

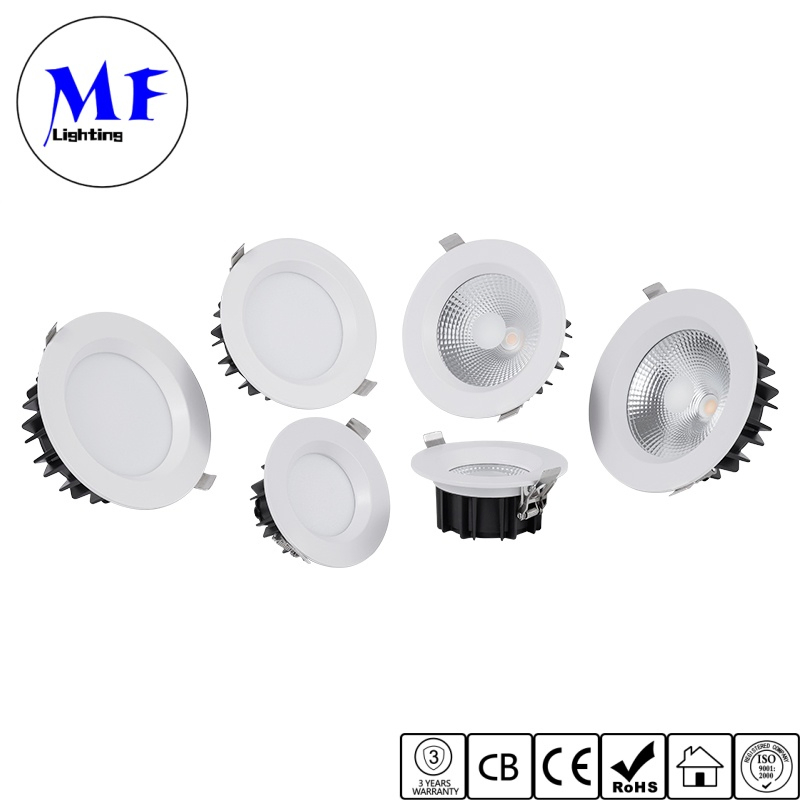

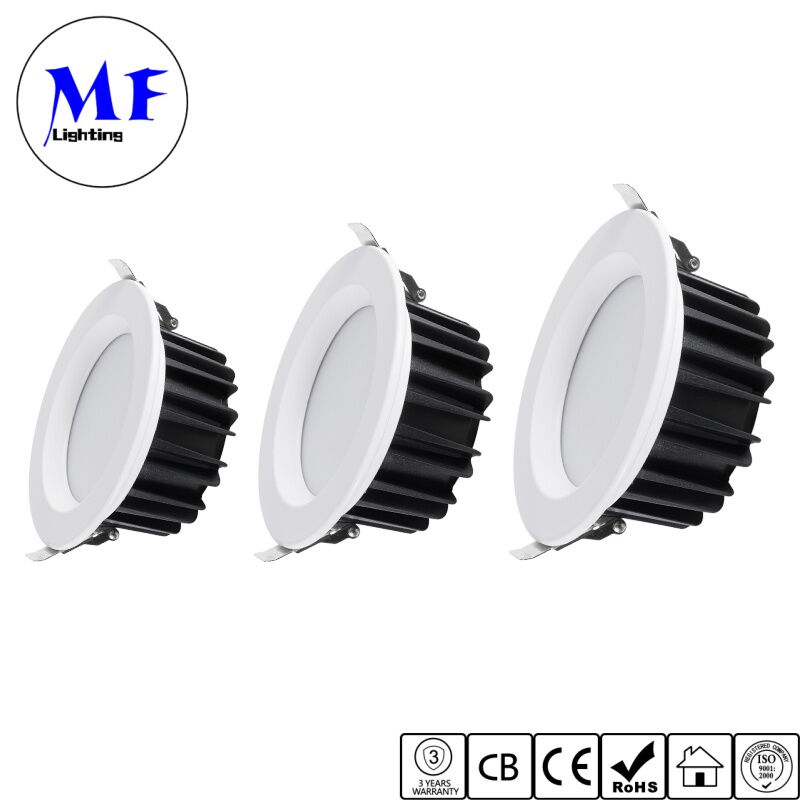

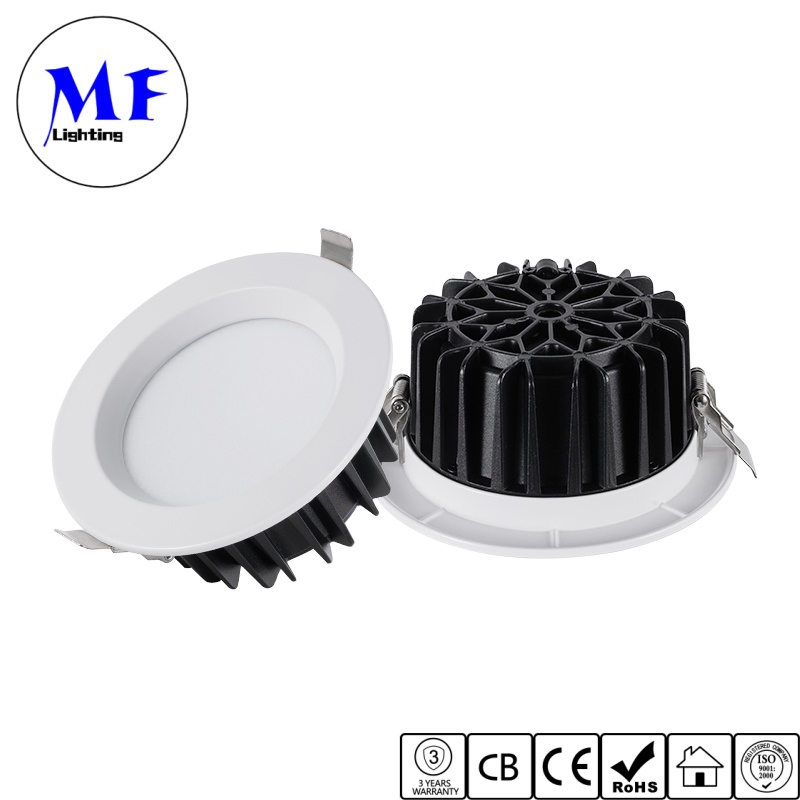

Product Gallery

Installation Guide

Cut ceiling opening strictly following cut-out dimension of selected power variant
Complete wiring connection to power supply. Professional certified electrician is strongly advised for wiring operation
Squeeze spring clips located on two sides of lamp body, insert full fixture assembly into ceiling opening
Release spring clips to achieve firm locking. Switch-on power supply and run lighting function test

Installation Tips

Double-check ceiling hole dimension before cutting ceiling panel
Calculate sufficient back-depth space inside ceiling matching lamp body height
For smart-control variants, strictly follow supporting driver operation manual

Packaging & Shipping

Neutral export-grade carton packing. Custom-printed color-box and OEM marking service available. Multiple logistics-solution options: sea freight, air freight, express delivery according to project-schedule requirement.

Power	Carton Size(cm)	Gross Weight	Quantity Per Carton
5W/7W/10W/12W	64x27x56	22.5KG	100PCS
15W/20W	77x32x34	19.5KG	50PCS
25W/30W/35W	62x41x43.5	25.0KG	40PCS
40W/45W/50W	51x37x51.5	22.0KG	40PCS

Applications

Ideal for retail boutique, showroom, hotel lobby, office and premium domestic interior lighting projects. Suitable for industrial settings, retail stores, restaurants, and other commercial spaces where water resistance and durability are needed.

Company Profile

Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology.

Our Service & OEM / ODM Support

OEM & ODM Customization Options

Select housing finish between white and black
Custom CRI grade, fixed or tunable CCT function
Pick suitable dimming and smart-control versions for individual project requirement

Quality Assurance

Complete lighting aging inspection for each production batch. Batch-inspection documents can be provided upon tender-project request.

After-sales Support

3-year factory-backed warranty; professional lighting-project technical consultation service.

Order Flexibility

Small trial sample orders are acceptable. Large-volume bulk-order support for commercial-construction-project procurement.
