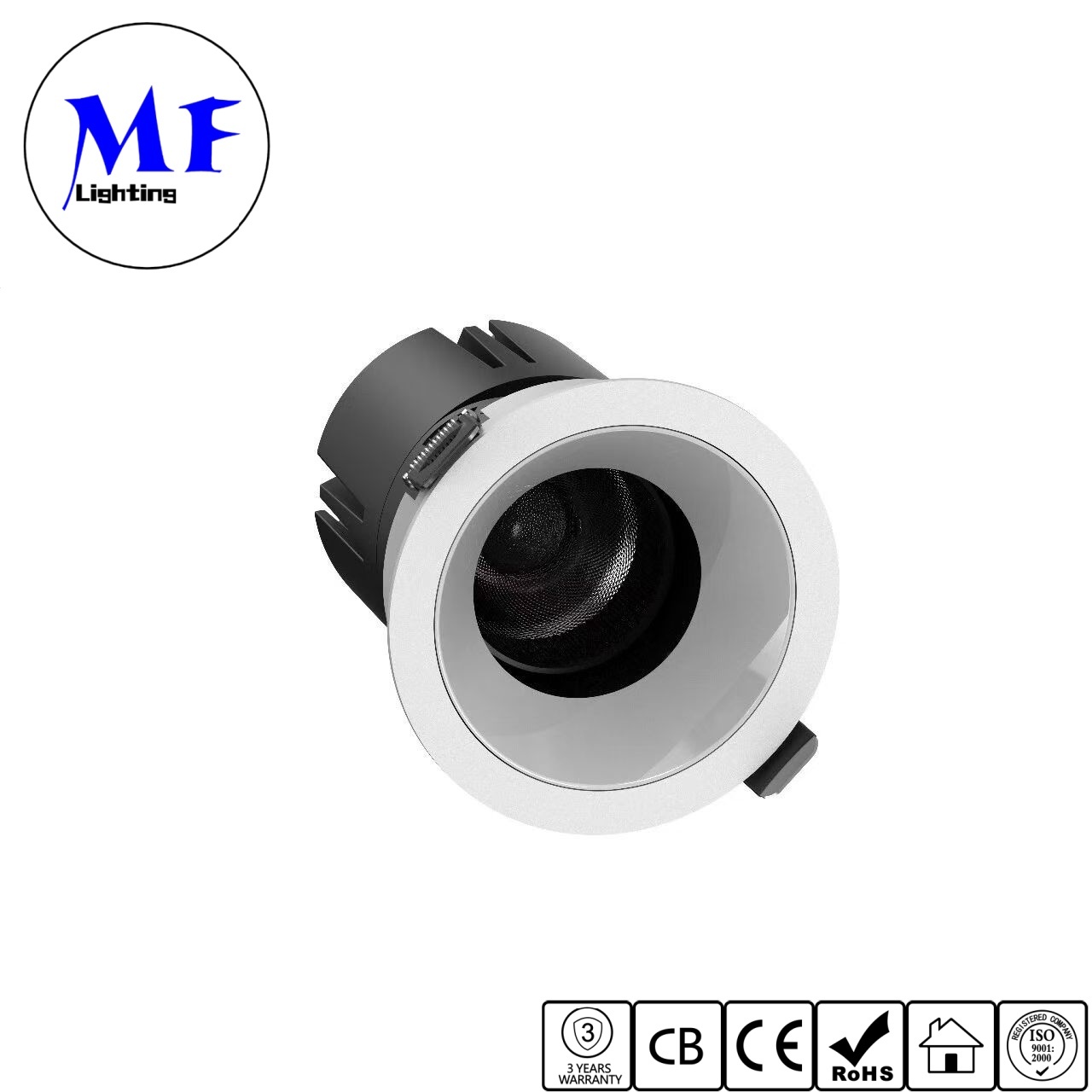

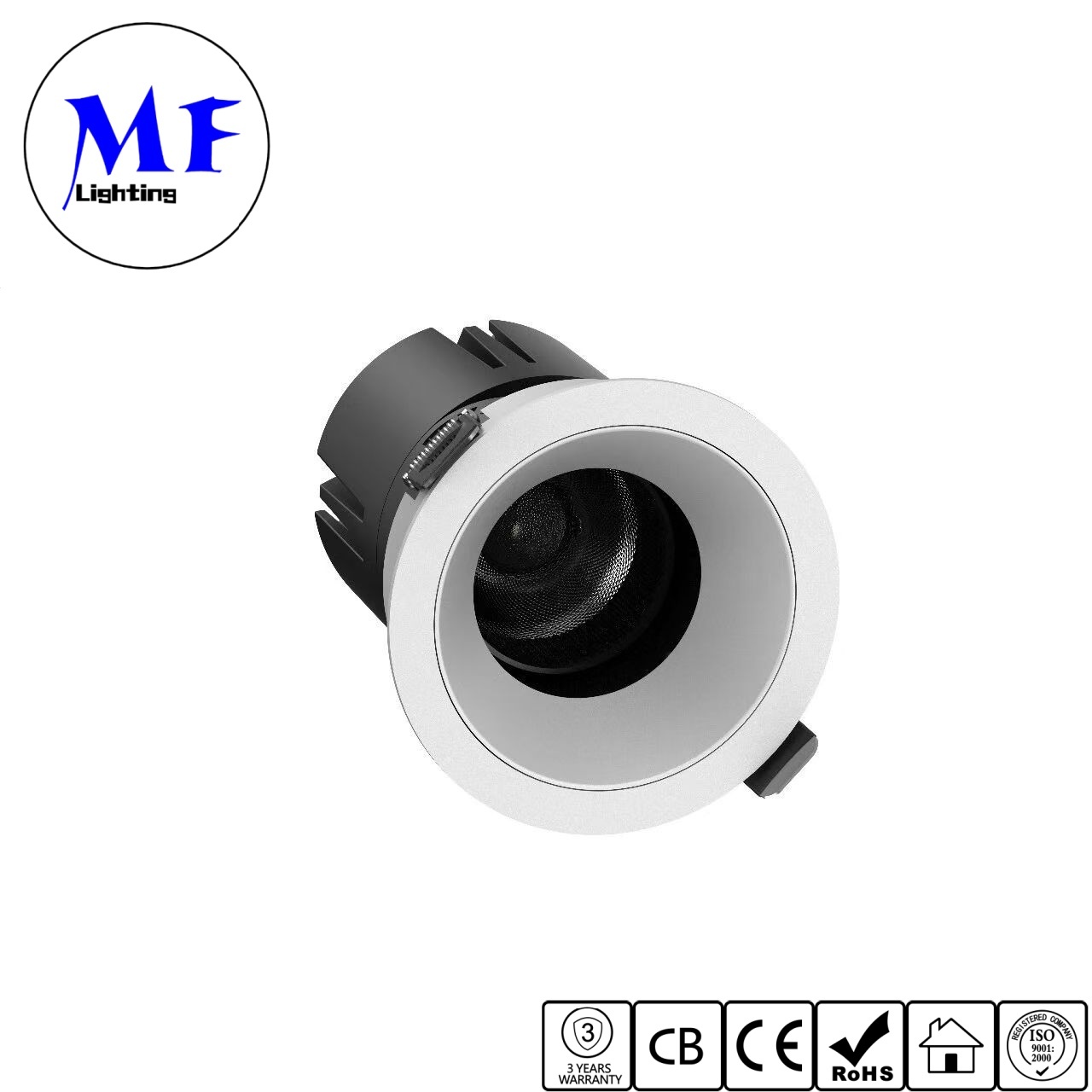

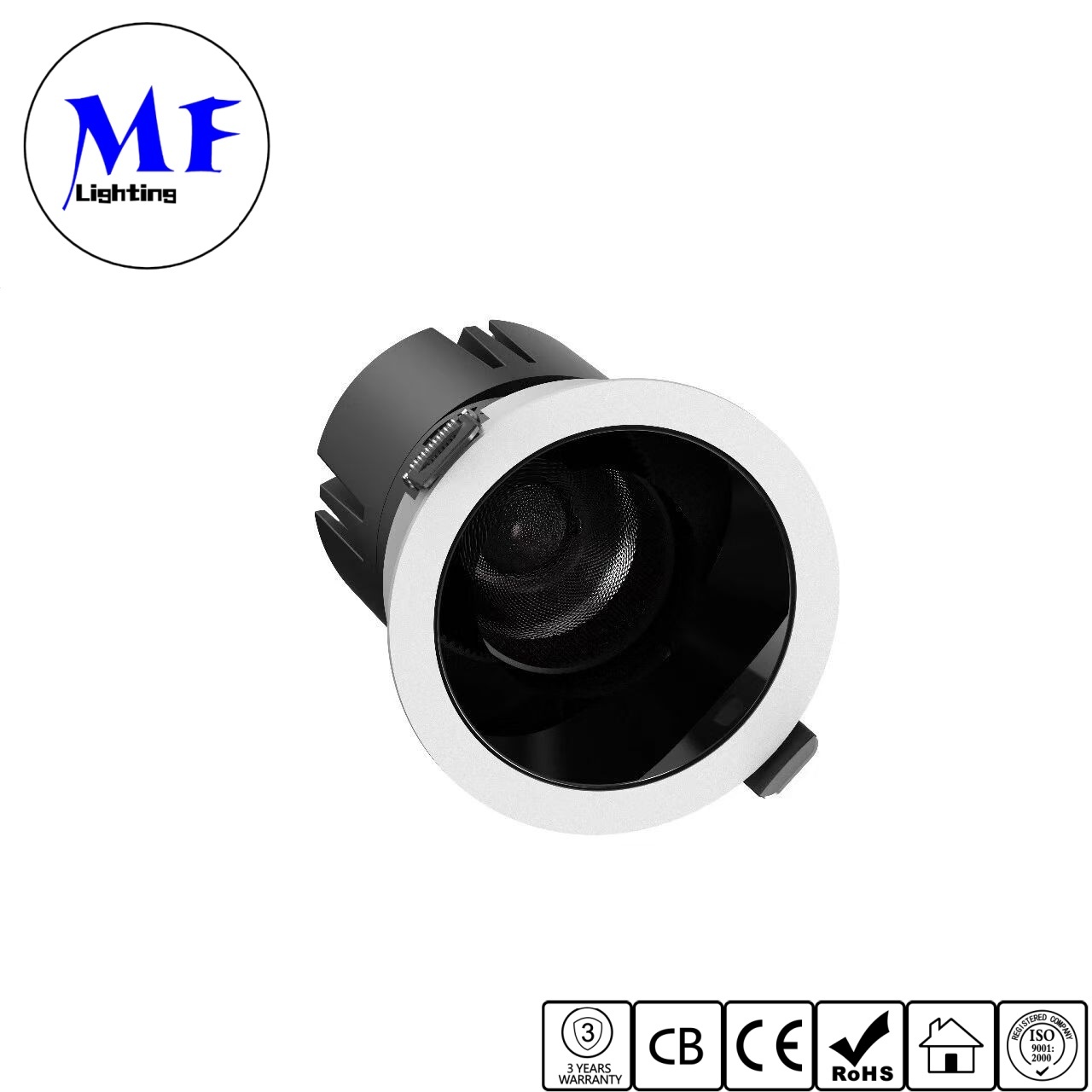

DIP 5 CCT COB Recessed Dimmable LED Down Light Spot Downlight 15°/24°/36°/55° Beam Angle Adjustable 120LM/W High Lumen Anti-Glare Tiltable

Product Description

DIP 5 CCT COB Recessed Dimmable LED Down Light Spot Downlight 15°/24°/36°/55° Beam Angle Adjustable 120LM/W High Lumen Anti-Glare Tiltable

Most fixed-angle recessed spotlights force designers to compromise lighting aim after ceiling installation.

MF HGS23 series solves this real-world pain point by adopting professional optical lens design plus mechanical tilting structure, letting installers adjust illumination angle from 0-30° after ceiling installation.

This COB-based accent-focused recessed fixture supplies three distinct trim profiles: Narrow, Standard and Wide trim, to match varied ceiling visual aesthetic requirements.
It provides 15°/24°/36°/55° optional beam angles and reaches 110-120LM/W high lumen output.

Two sets of driver configurations are prepared for different regional markets: 110Vac version supports DIP 5CCT adjustable function; 200-240VAC version works with Triac, 0-10V, Dali, Dali-2 multi-dimming protocols.
Rich reflector surface selections satisfy minimalist, dark-luxury and custom-decor schemes.

Beyond regular dry indoor usage, optional IP44 grade expands application scope toward semi-wet zones such as kitchen and bathroom.
Die-cast aluminum integrated heat sink copes with long-hour commercial continuous operation.

Pre-assembled spring-clip mechanism simplifies new-build construction and retrofit renovation deployment.

Professional Optical Lens & High‑Performance COB Light Output

Adopt specialized optical lens design paired with COB Chips. Achieve 110‑120LM/W high lumen output. Multiple optional beam angles:15°/24°/36°/55°, meet pinpoint highlighting and medium‑range wall‑washing requirements for commercial accent projects.

0‑30° Manual Adjustable Illumination Angle & Three‑style Trim Options

Illumination angle can be adjusted within 0‑30 degree after ceiling installation. Three trim variants: Narrow Trim, Standard Trim, Wide Trim. Designers can pick proper face‑plate dimension without changing ceiling cut‑out opening size, bring huge convenience for on‑site adjustment and project aesthetic matching.

Market‑targeted Driver Solution & Complete Dimming Choices

ETL qualified driver system for different regional power grids. 110Vac model supports DIP 5CCT adjustable for north‑american projects; 200‑240VAC variant compatible with Triac, 0‑10V, Dali, Dali‑2 dimmable modes. Realize flexible brightness and color‑temperature scene setting for global intelligent lighting projects.

Rich Multi‑tone Reflector & Damp‑zone Adaptable Protection Grade

Wide‑range reflector color portfolio: Matte White, Matte Silver, Matte Black, Bright Silver, Gun Black, Rose Gold, Champagne Gold. Standard IP20 for dry indoor space; optional IP44 rating extends usability for kitchen, bathroom and partial damp‑condition locations. Deep‑recess anti‑glare construction keeps UGR less than 19 for eye‑friendly visual experience

.

Robust Thermal Build & Project‑oriented Quality Assurance

Whole die‑cast aluminum heat‑dissipation construction stabilizes inner working temperature, rated service life ≥50000 hours. Full‑set CE, RoHS, CB, SAA certifications, backed by 5‑year factory warranty. Spring‑clip embedded installation without extra auxiliary mounting brackets.

CCT adjustable option provides 2700K-6000K tunable white output, helping create warm ambient mode, neutral working mode and cool display mode within one fixture.

Multiple dimmable variants satisfy different project technical requirements: Non-dimmable / Triac / 0-10V / DALI 2 / Dali DT8 / Tuya Zigbee / Tuya Wifi.

Tuya smart editions support mobile-APP remote management: brightness adjustment, CCT switching, multi-lamp group-control and custom scene-mode preset storage.

CCT adjustable optional with 2700K-6000K range. One single fixture can produce warm relaxing mode, neutral office-working mode and cool commodity-display mode.

Input voltage covers AC110Vac and AC200-240V, compatible with most household and commercial power-grid systems across global markets.

Power-factor compliance: 5-20W ≥0.50; power higher than 20W ≥0.95, meets international commercial-lighting energy-efficiency criteria.

Application:

Residential Spaces

· Kitchens - resistant to oil fumes and water splashes during cleaning.
· Bathrooms - safe against shower moisture and steam.

· Walk-in closets / storage rooms - keeps dust and insects out.
· Basements / garages - withstands humidity and dust.

Commercial & Public Spaces

· Hotels / apartments - for moist areas like guest bathrooms and corridors.

· Offices / shopping malls - meets dust-proof requirements while maintaining aesthetics.

· Ship cabins - specially suited for humid marine environments like bathrooms.



Job reference photos from Ming Feng

Industrial Settings:In industrial environments where dust ,moisture ,or water exposure can be an issue , waterproof lighting like these downlights can be beneficial.

Retail or Commercial Spaces:These downlights can also be used in retail stores ,restaurants ,or other commercial spaces where water resistance and durability are needed.



Neutral export-grade carton packing. Custom-printed color-box and OEM marking service available.

Multiple logistics-solution options: sea freight, air freight, express delivery according to project-schedule requirement.

Company Profile
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. At Ming Feng Lighting Co., Ltd., we pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs.
