Product Description

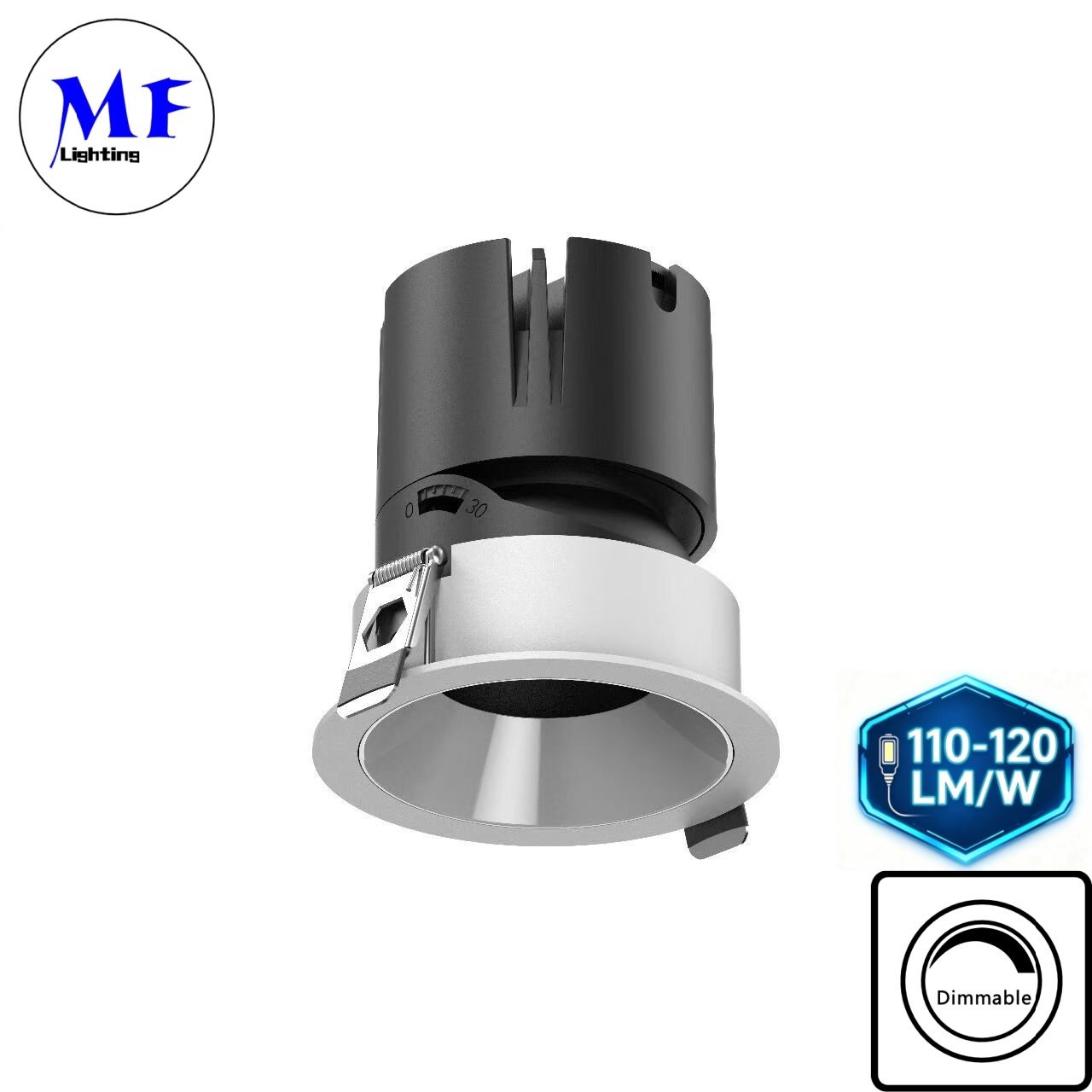

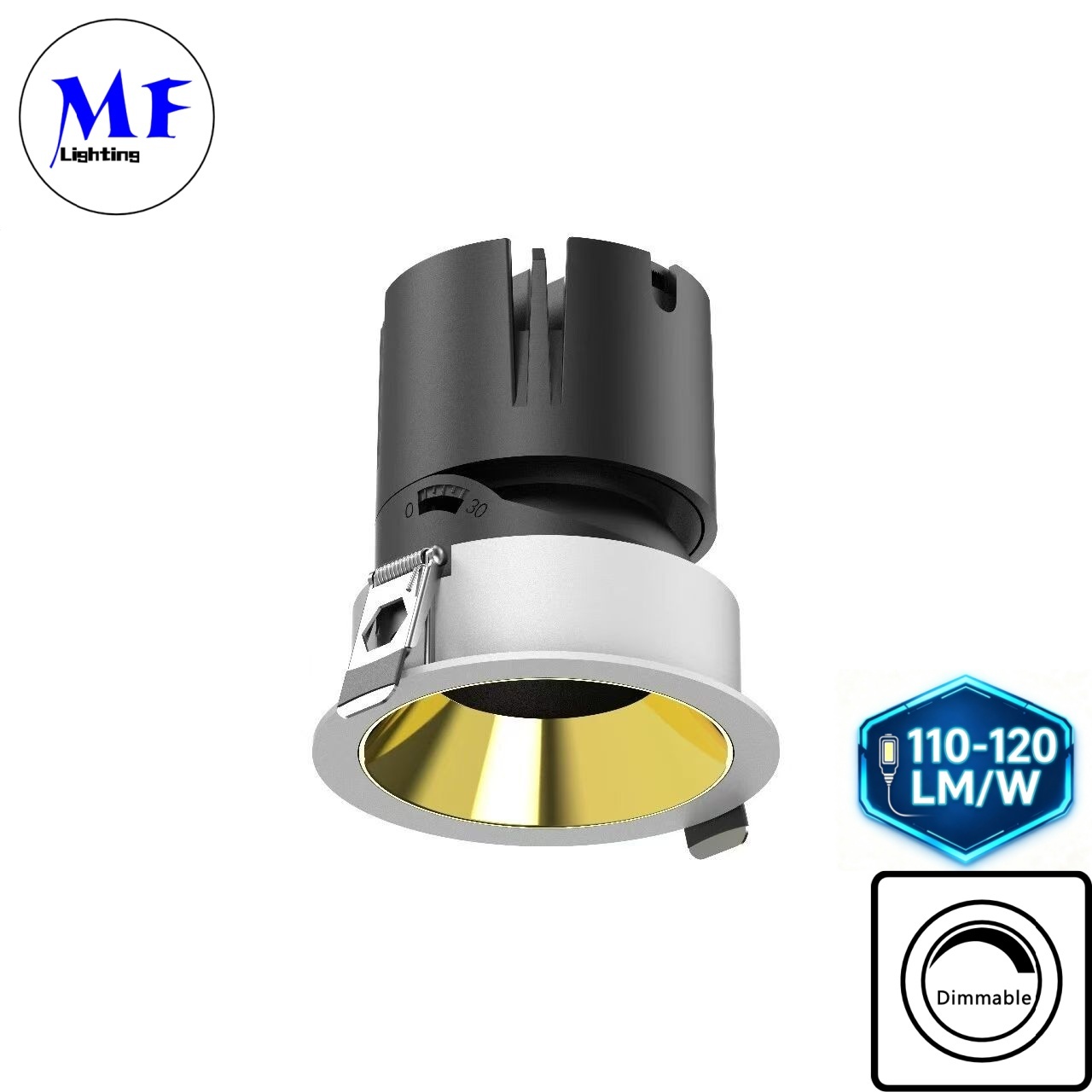

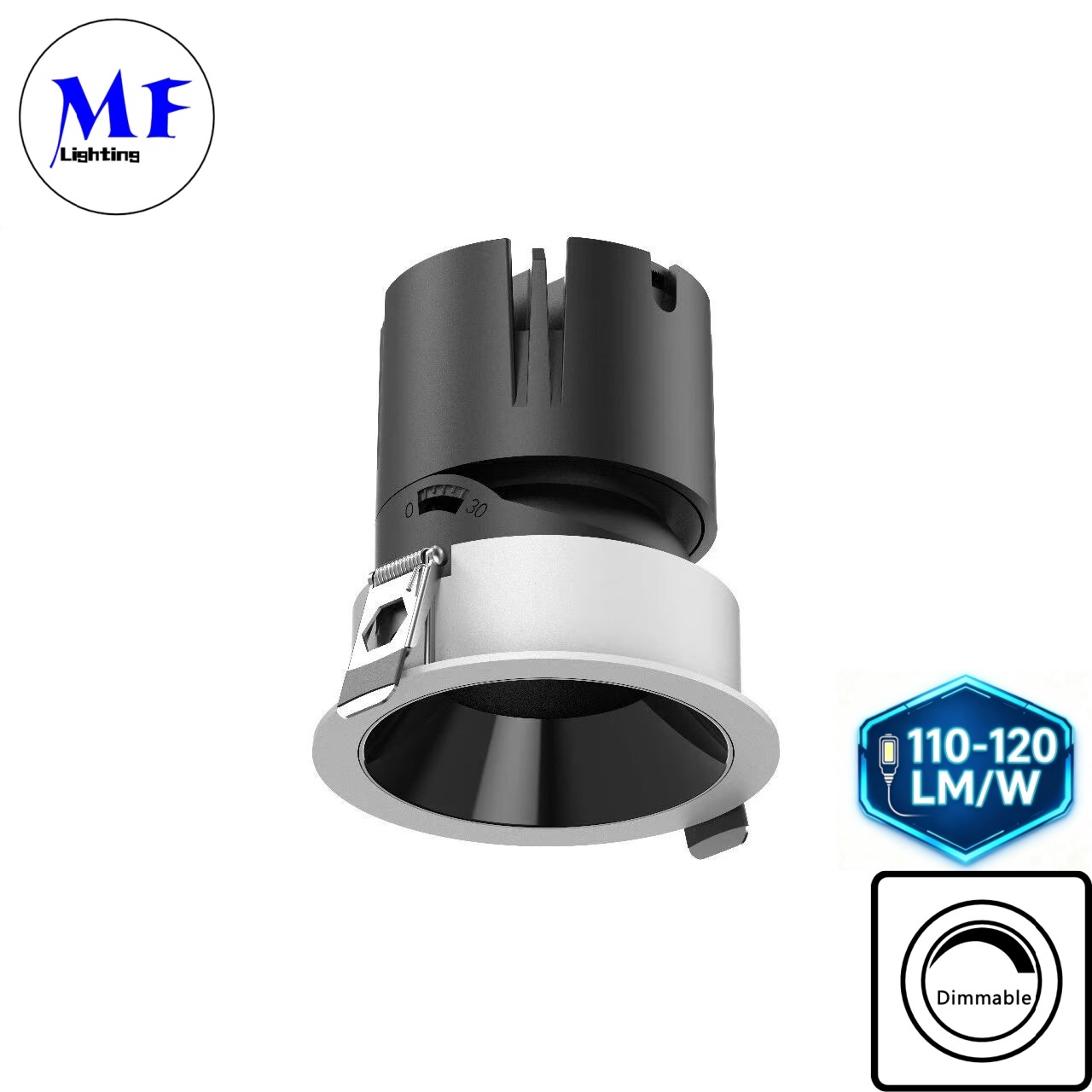

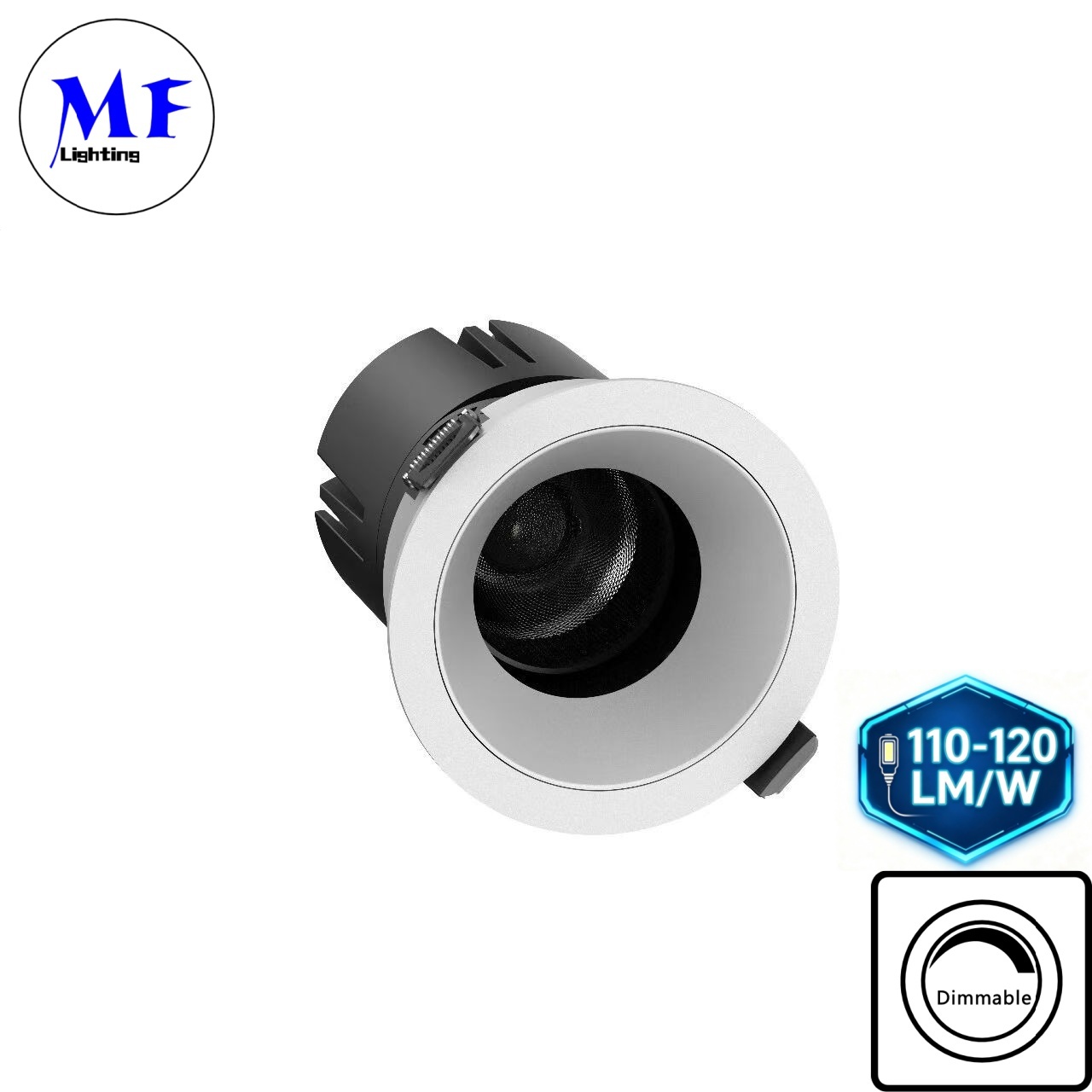

110-120LM/W High Lumen LED Down Light Anti-glare Triac Dali TUYA Dimmable Optical Lens Design for Bathroom Industrial Retail Commercial Spaces
IP20/IP44 Protect Rating: Anti-humid and dustproof design suitable for wet areas like bathrooms spaces.
Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.
Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices.
Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V,Tuya and DALI dimming with smart control via APP.
Wide Color Temperature Range: Available in 2700/3000K/ 3500K/4000/ 5000K/6000K for 200-240Vac input version, American Standard 110Vac Driver support DIP 5 CCT 2700K-3000K-3500K-4000K-5000K .
High Luminous Efficiency: Delivers 110-120 lumens per watt with high CRI >90 for accurate color rendering.
Multiple reflector Colors: Available in Matte White/Matte Silver/Matte Black/bright Sliver/Gun Black/Rose Gold/ Champagne gold
Multi-level adjustable beam angle: 15°/24°/36°/55°, Also The illumination angle of the lamp body can be adjusted 0-30 °
| Model |
MF-HGS23-7W/10W/12W/15W/20W/25W |
| Input voltage |
200-240Vac or 110Vac, 50hz/60hz, DC24V available |
| Power(watt) |
7W/10W/12W/15W/20W/25W |
| Color temperature |
2700K/3000K /3500K/ 4000K / 5000K /6000K, 2700-6000K Tunable |
| LED Chip |
Bridgelux COB |
| LED Driver |
Aohuaweiye/Lifud/BOKE Brand for different dim version |
| PF |
7-15W≥0.50, 20W-25W≥0.95 |
| Housing Colour |
White/Black |
| Reflector color |
Matte White/Matte Silver/Matte Black/bright Sliver/Gun
Black/Rose Gold/Champagne gold |
| Luminous Flux (lm) |
110-120LM/W |
| CRI(Ra) |
Ra90+ |
| Lifespan |
≥50000hrs |
| Beam Angle |
15°/24°/36°/55° |
| Material |
Die-casting Aluminum |
| Operating Temperature |
-200C ~500C |
| Dimmable |
Non-Dim/Triac/0-10V/Dali-2/Tuya dimmable as options |
| CCT Adjustable |
2700-6000K Tunable as optional if need |
| IP |
IP20/IP44 |
| UGR |
<19 |
| Certificate |
CE/ RoHS(Whole Lamp); CE/ROHS/CB/SAA(Driver) |
| Life Spain |
≥ 50,000Hrs |
| Warranty Period |
5 years |
Tailored Driver Solutions & Versatile Dimming Options
Our ETL-certified driver systems adapt to power grids across different regions. The 110Vac version features DIP 5CCT adjustable function, specially designed for North American projects. The 200‑240VAC model supports Triac, 0‑10V, DALI and DALI‑2 dimming protocols. It enables flexible brightness and colour temperature scene setup, ideal for global smart lighting projects.
Multiple Reflector Finishes & Damp-Rated Protection
A wide selection of reflector colours is available: Matte White, Matte Silver, Matte Black, Bright Silver, Gun Black, Rose Gold and Champagne Gold. Standard IP20 rating suits dry indoor areas; optional IP44 extends application to kitchens, bathrooms and other mildly humid spaces. Its deep recessed anti-glare design delivers UGR＜19, offering comfortable lighting to protect eyes.
Reliable Thermal Design & Project-Grade Quality Guarantee
Adopting full die-cast aluminium heat sink to maintain stable internal operating temperature, with a rated lifespan of ≥50,000 hours. The luminaire holds complete CE, RoHS, CB and SAA certifications and comes with a 5-year manufacturer warranty. Spring clip mounting allows quick installation with no extra support brackets required.
CCT adjustable option provides 2700K-6000K tunable white output, helping create warm ambient mode, neutral working mode and cool display mode within one fixture.
Multiple dimmable variants satisfy different project technical requirements: Non-dimmable / Triac / 0-10V / DALI 2 / Dali DT8 / Tuya Zigbee / Tuya Wifi.
Tuya smart editions support mobile-APP remote management: brightness adjustment, CCT switching, multi-lamp group-control and custom scene-mode preset storage.
CCT adjustable optional with 2700K-6000K range. One single fixture can produce warm relaxing mode, neutral office-working mode and cool commodity-display mode.
Input voltage covers AC110Vac and AC200-240V, compatible with most household and commercial power-grid systems across global markets.
Power-factor compliance: 5-20W ≥0.50; power higher than 20W ≥0.95, meets international commercial-lighting energy-efficiency criteria.
MF-HGS23 family are designed for recessed installation and are suitable for various applications such as:
Kitchen Lighting: In kitchens where steam and cooking splashes are common, waterproof downlights can provide both functional and aesthetic lighting solutions.
Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.
Job reference photos from Ming Feng
Industrial Settings:In industrial environments where dust ,moisture ,or water exposure can be an issue , waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces:These downlights can also be used in retail stores ,restaurants ,or other commercial spaces where water resistance and durability are needed.
| Power |
Carton Size(cm) |
G.W(KG) |
PCS/CTN |
| 7W |
52*37*24.5CM |
11.0KG |
50PCS |
| 10W |
60*37*30CM |
13.5KG |
30PCS |
| 12W |
60*37*30CM |
13.5KG |
30PCS |
| 15W |
60*37*30CMM |
13.5KG |
30PCS |
| 20W |
70*31*33CM |
14.6KG |
20PCS |
| 25W |
70*31*33CM |
14.6KG |
20PCS |
