Product Description

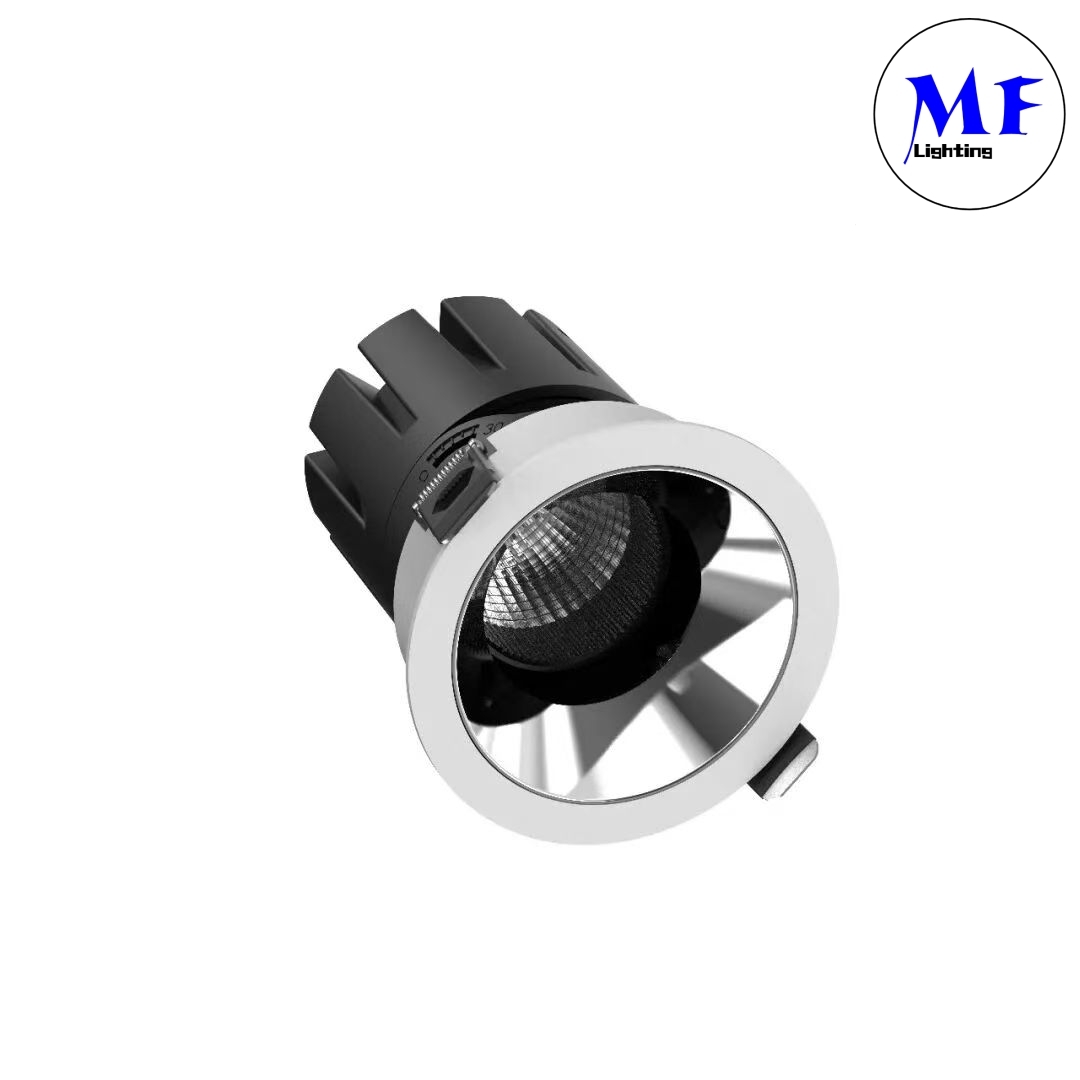

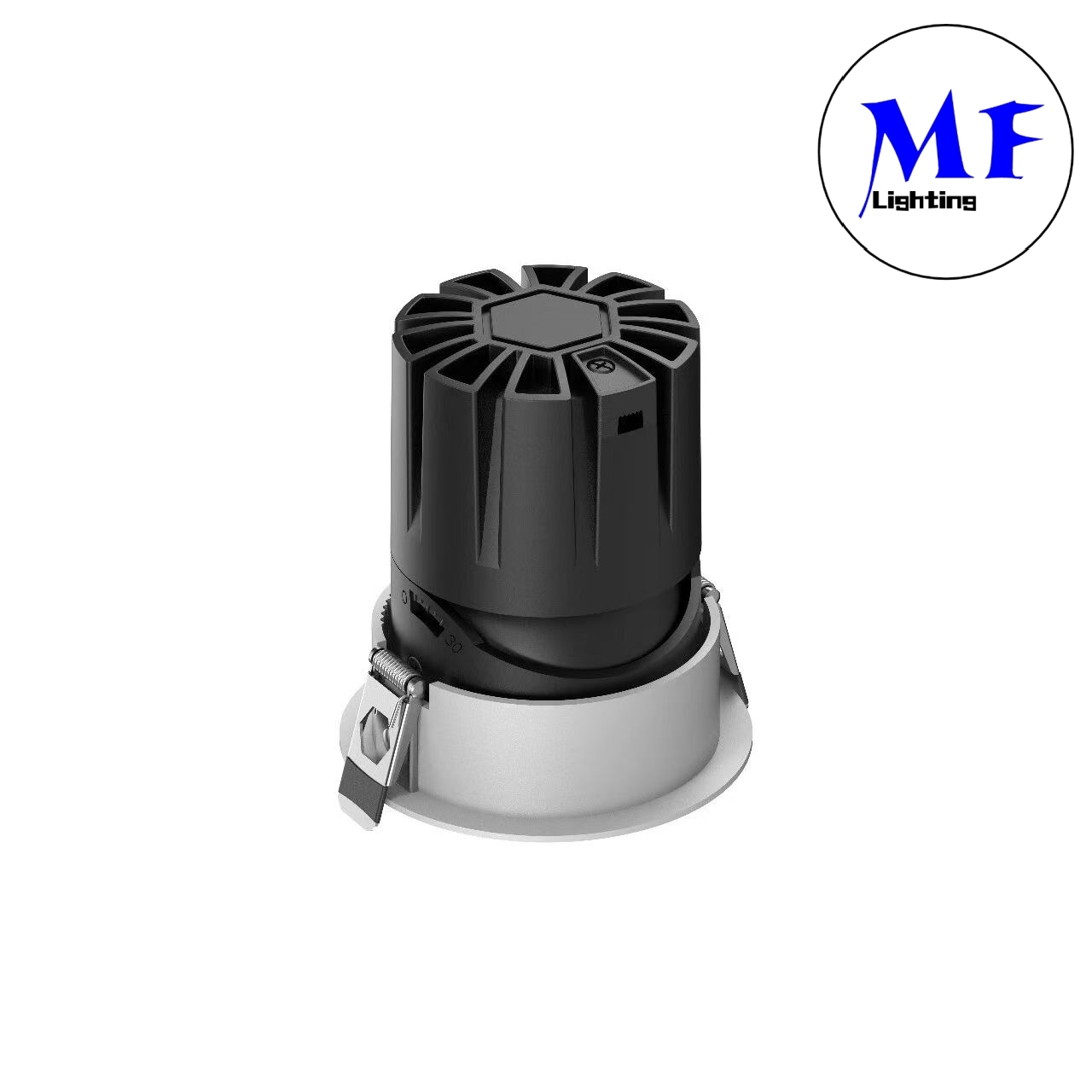

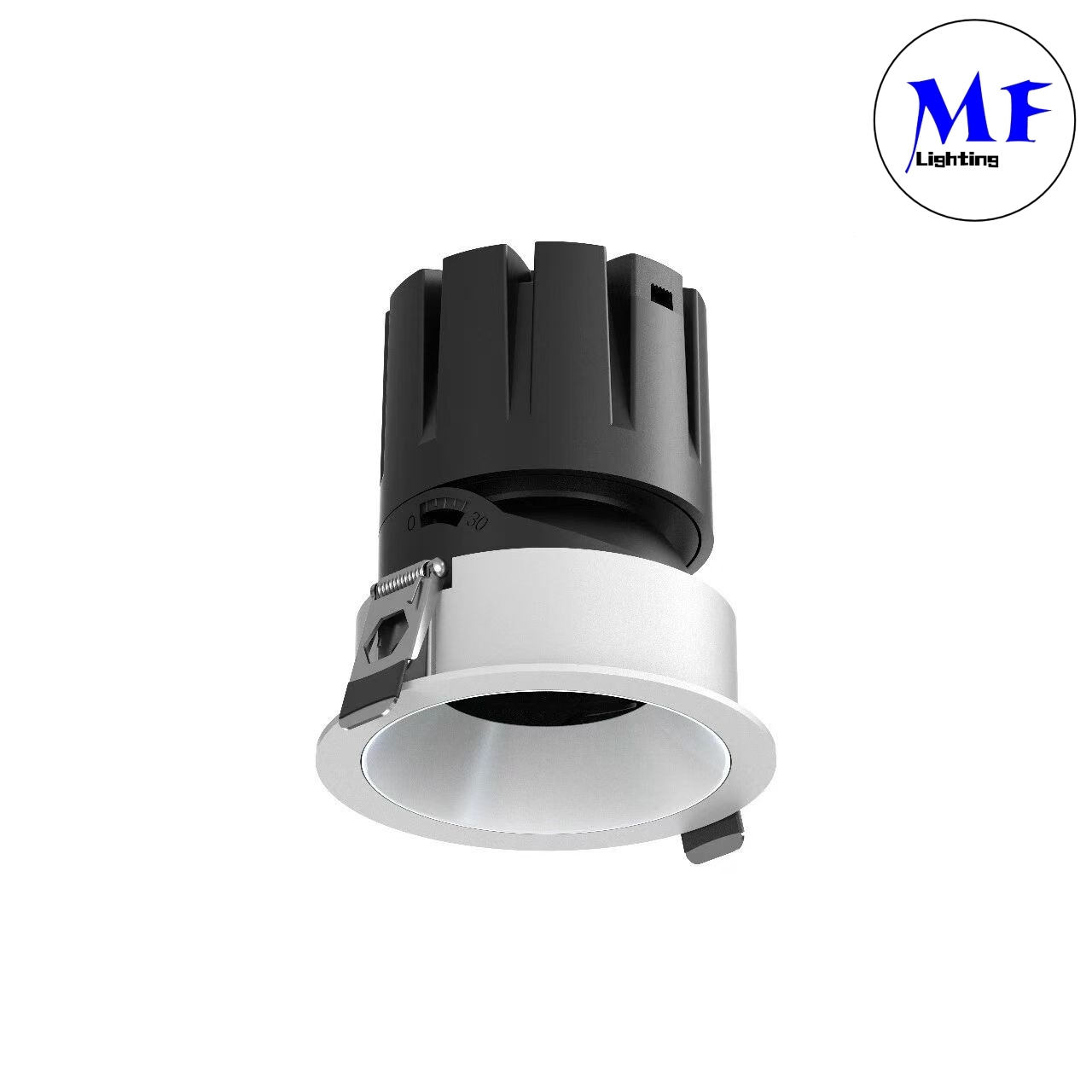

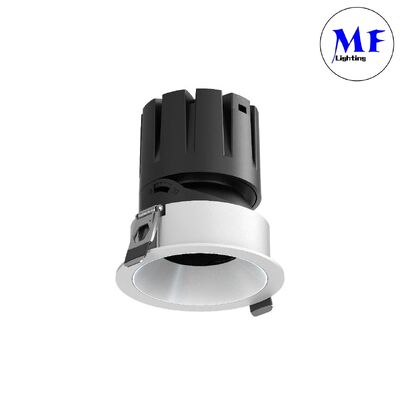

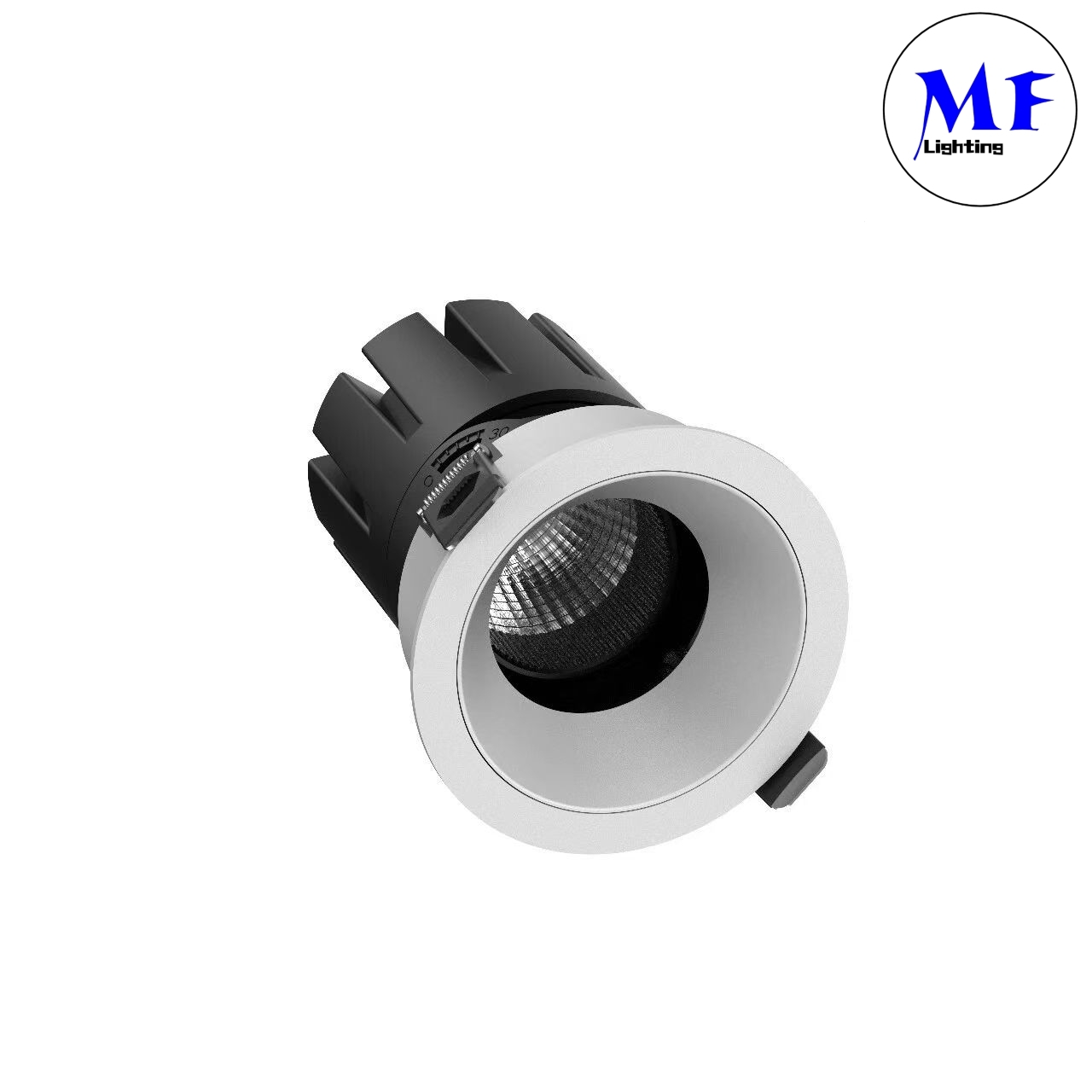

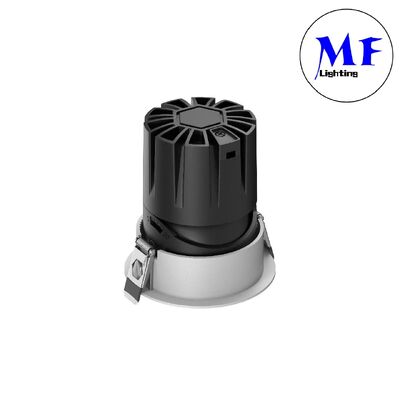

Smart Control 0-10V Dali Dip CCT Power Adjustable Dim Dimming 7W 10W 12W 15W 25W Indoor Lighting Recessed Hotel Aluminum High Lumen Bright LED Down Light

Feature

1. UGR<3 anti-glare design with deep recessed reflector-cup structure, eye-friendly for bedroom and office environment
2. Multiple dimming solutions: Non-Dim, TRIAC, 0-10V, DALI-2 and Tuya smart control (APP, WiFi, Bluetooth, Zigbee)
3. Wide CCT selection: fixed CCT 2700K/3000K/3500K/4000K/5000K/6000K; 5-CCT selectable by DIP switch; optional tunable white 2700-6000K
4. High luminous efficacy up to 100 lm/W, CRI>Ra90 for true-to-life color rendering

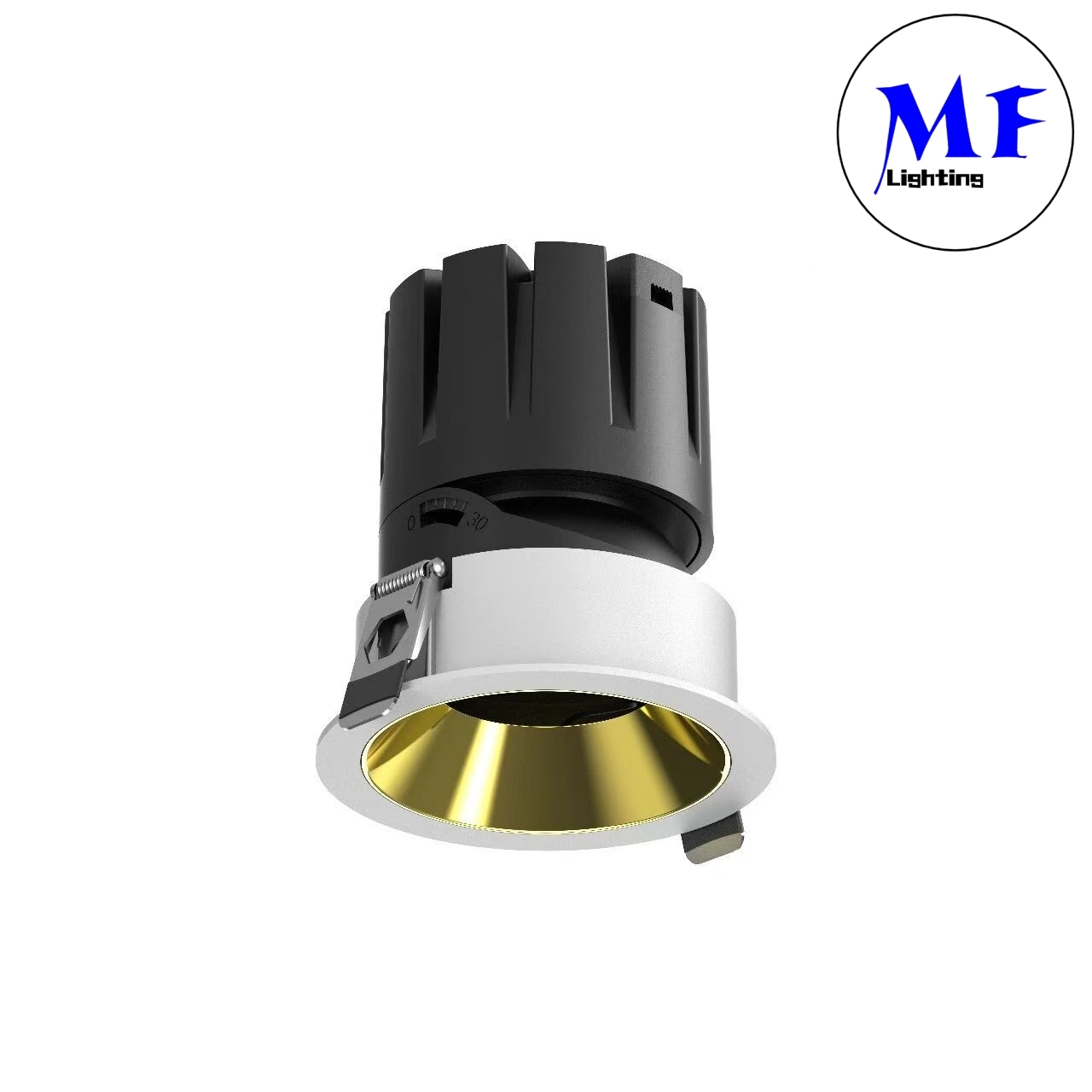

5. Multiple reflector colour options: Matte White, Matte Black, Matte Silver, Shiny Silver, Gun Black, Rose Gold, Champagne gold
6. Adjustable beam angle: fixed 24°/36°, lamp body tiltable within 0-30°
7. IP20 as standard, IP44 optional for damp spaces such as bathroom
8. Long service life ≥50,000 hours, 5-years warranty
9. Multiple trim versions available: Narrow Trim / Standard Trim / Wide Trim for each power rating
10. Wide input voltage support: 110Vac, 200-240Vac, DC24V optional

1. Housing & heat sink: Integrated die-cast aluminum structure for effective heat dissipation
2. Optical solution: High-precision aluminum reflector-cup optical system (reflector-cup version, not lens type)
3. Installation structure: Spring clip mounting for quick recessed ceiling installation
4. Internal components include wire press buckle, bracket, top cover, middle ring, aluminum face ring and light cup
5. Three trim profiles (Narrow / Standard / Wide Trim) share same cut-out hole for same wattage, only face diameter differs
6. Tilt mechanism: rotatable lamp body with scale marking for 0-30° aiming adjustment
7. Driver options: Aohuaweiye / Lifud / BOKE driver for different dimming types
8. LED source: Bridgelux COB chip
9. Power factor: ≥0.50 for 7-15W; ≥0.95 for 20-25W
10. Operating ambient temperature:-20ºC ~ +50ºC
11. Certifications: CE & RoHS for complete lamp; CB, SAA for driver

Design

1. Housing & heat sink: Integrated die-cast aluminum structure for effective heat dissipation
2. Optical solution: High-precision aluminum reflector-cup optical system (reflector-cup version, not lens type)
3. Installation structure: Spring clip mounting for quick recessed ceiling installation
4. Internal components include wire press buckle, bracket, top cover, middle ring, aluminum face ring and light cup
5. Three trim profiles (Narrow / Standard / Wide Trim) share same cut-out hole for same wattage, only face diameter differs
6. Tilt mechanism: rotatable lamp body with scale marking for 0-30° aiming adjustment
7. Driver options: Aohuaweiye / Lifud / BOKE driver for different dimming types
8. LED source: Bridgelux COB chip
9. Power factor: ≥0.50 for 7-15W; ≥0.95 for 20-25W
10. Operating ambient temperature:-20ºC ~ +50ºC
11. Certifications: CE & RoHS for complete lamp; CB, SAA for driver

Product description

1. Anti-glare lighting (UGR<19), eye-protecting indoor illumination.
2. Dimming function: single-color brightness adjustment via TRIAC / 0-10V / DALI / Tuya Zigbee.
3. CCT tuning function (optional): adjust color temperature from 2700K-6000K.
4. Good heat dissipation relying on die-cast aluminum heat sink to extend lamp working life.
5. IP40 dust-proof performance for indoor commercial, retail, restaurant and residential lighting.
6. Quick embedded ceiling mounting by strength spring buckle clips.

'- Cover: transparent / milky PC diffuser cover.
- Structure components: high-quality die-cast aluminum body, transparent glass / PC cover, strength spring buckle.
- Housing color: White / Black.
- Beam angle: 60 degree.

Product Size

Installation:

Easy Spring Clip Installation

1. Cut ceiling opening according to required cut-out dimension.
2. Complete wiring by a qualified electrician.
3. Compress spring clips and insert fixture into ceiling hole.
4. Release spring clips to secure the luminaire, power on and test.

Application:

This recessed square COB spotlight is designed for indoor‑only installation, available with IP20 or IP44 protection rating. Thanks to its UGR＜19 anti‑glare performance, high CRI output, multiple dimming & tunable‑CCT options, single‑/double‑/triple‑head configurations, it covers wide residential and commercial lighting scenarios.

1. Residential Applications

• Living rooms, bedrooms, hallways & foyers: Deep‑recessed anti‑glare structure (UGR＜19) delivers eye‑friendly ambient and accent lighting. Multiple reflector finishes (matte white, matte black, bright silver, gunmetal black) match various home interior styles. Tunable CCT function allows users to switch between warm white, natural white and cool‑white atmosphere for daily relaxation or entertainment scenarios.
• Kitchen & moisture‑prone domestic zones: IP44 version resists water splashes, applicable for kitchen ceiling lighting and other indoor home areas with minor humidity exposure.

Spring‑clip recessed mounting fits standard false ceiling cut‑outs; single‑head unit is widely adopted for regular household ceiling layout.

2. Commercial Retail Spaces

• Boutiques, fashion stores, showrooms and shopping malls: High‑CRI options (Ra80+ / Ra90+) reproduce true‑to‑life merchandise colors. Variable beam angles (15° /24° /36° /50°) support targeted accent lighting to highlight goods, display cabinets, wall exhibits and decorative artworks. Dimming systems (TRIAC, 0‑10V, DALI, Tuya Zigbee smart control) enable shops to adjust brightness and color temperature for different sales periods and promotional themes.
• Double‑head and triple‑head variants are preferred for large retail ceiling areas to simplify multi‑lamp layout.

3. Office & Corporate Premises

• Open‑plan offices, meeting rooms, reception lobbies and office corridors: UGR＜19 meets visual comfort requirements for long‑time screen‑working staff, effectively reducing glare‑caused eye fatigue. Stable die‑cast aluminum heat sink guarantees ≥50 000‑hour service life to cut maintenance frequency for large‑area commercial projects. DALI‑2 dimming compatibility fits centralized building lighting management systems.

4. Hospitality Industry

• Hotel guest rooms, hotel corridors, restaurant dining areas, cafes and lounges: Wide CCT range from 2700K‑6000K creates cozy dining or resting ambiance. Multiple reflector appearances coordinate with modern hotel interior decoration. IP44 option can be deployed for hotel restrooms and wet‑zone ceilings.

5. Other Indoor Commercial & Light‑Industrial Scenarios

• Exhibition spaces, galleries: High color rendering performance for artwork and exhibit illumination; anti‑glare design avoids distracting visual discomfort for visitors.
• Light‑duty indoor industrial environments: IP44 variant suits indoor locations with moderate dust or splash risk mentioned in product document, for general ambient lighting purpose. Note: Not for outdoor use or heavy‑duty wet industrial conditions.

Key advantages supporting above applications

1. Multi‑head selection (1‑head / 2‑head /3‑head) provides flexible solution for small‑size spot requirement or large‑area continuous ceiling lighting.
2. Rich dimming ecosystem: covers traditional analog dimming, bus control and Tuya Zigbee smart APP‑based CCT tuning to satisfy both fixed‑function commercial projects and smart‑home demands.
3. Die‑casting aluminum whole‑body construction ensures stable thermal performance under long‑hour continuous operation in commercial sites.
4. Spring‑clip installation allows quick retrofit and new‑build ceiling installation.

Limitation: This luminaire is for indoor application only; IP20 version shall not be used in splash‑prone humid areas.
