Product Description

MF-HGS23 Series

1.Colour:

Matte White/Matte Silver/Matte Black/bright Sliver/Gun

Black/Rose Gold

2. CCT: 2700/3000/4000/5000/6000K/2700~6500K Tunable optional.

3. Light Source: O-SRAM/Epistar
4. Power: 7W/10W/12W/15W/20W/25W 5 steps power adjustable optional.
5. Input: AC100-277V or AC 200-240V

6. IP20/IP44
7. Material: Die-casting Alu
8. Temperature range-20-50ºC



9. CRI: Ra80/90
10. 120lm/W
11. Warranty: 3 years

12.Wide color temperature Range: Available in 2700/3000K/ 3500K/4000/ 5000K/6000K for 200-240Vac input version, American

13.ETL Driver, American Standard 110Vac Driver support DIP 5 CCT 2700K-3000K-3500K-4000K-5000K

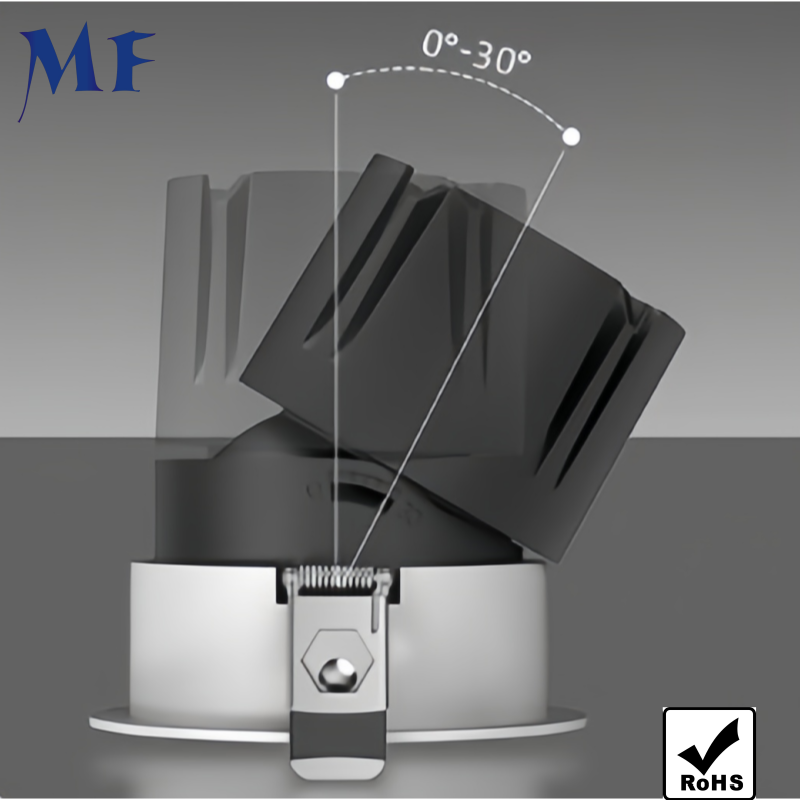

14.Multi-level adjustable beam angle: 15°/24°/36°/55°, Also The illumination angle of the lamp body
can be adjusted 0-30 °.

Application: school, hotel, hospital, subway, train station, shoppingmall, supermarket, hall, office, basement, public place.

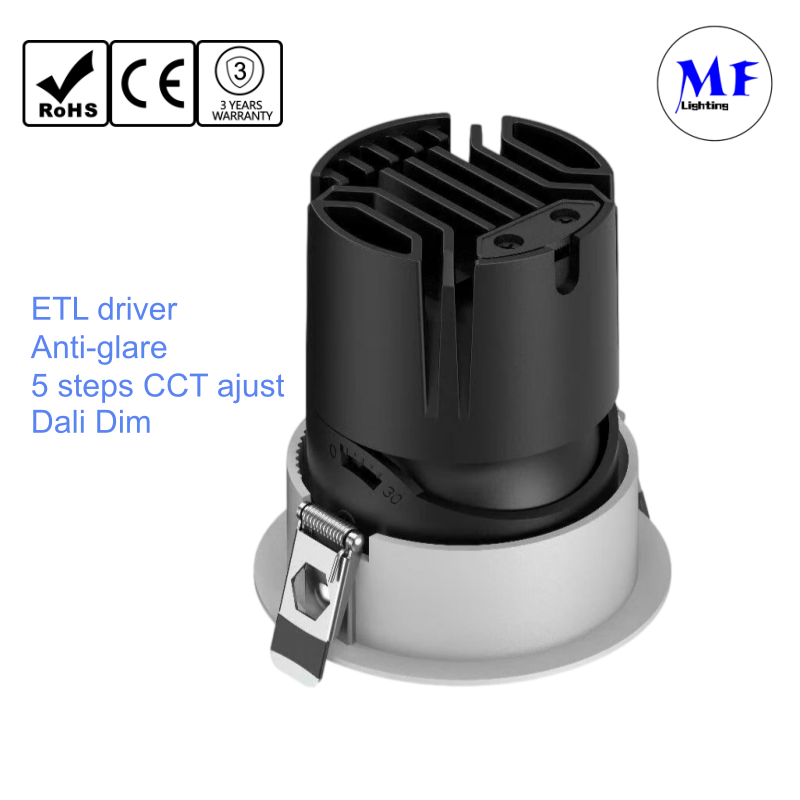

MF-HGS23 Series- Simple, Cozy and No-glare type

1. Residential Living Rooms & Bedrooms (The Ambiance Creators)
Non-waterproof downlights deliver the pure, glare-free warmth that turns a house into a home.

Installing this downlights in a living room coffered ceiling to create a cozy, cinematic atmosphere, paired with smart home controls.

2. Commercial Office Spaces (The Productivity Boosters)
In high-occupancy dry environments, efficiency and visual comfort are king.

· The Application: Grid ceiling installations in open-plan workspaces and private meeting rooms.
· The Advantage: Lower thermal resistance means these downlights can run cooler and last longer (often >50,000 hours) when compared to sealed equivalents. They pair perfectly with UGR<19 anti-glare technology.

A corporate headquarters utilizing 6000K daylight non-waterproof downlights in corridors and breakrooms to synchronize circadian rhythms, keeping staff alert and focused, without the added cost of unnecessary IP65 housing.

3. Retail & Showroom Displays (The Sales Accelerators)
Where product appearance dictates purchasing decisions, clarity is everything.

· The Application: Spot-lighting merchandise, apparel racks, and shelving units.
· The Advantage: The absence of a diffusion cover means zero light loss. You get 100% raw lumen output, making colors pop with vivid accuracy (Ra>90 available).

A high-end jewelry boutique using non-waterproof adjustable gimbal downlights in glass display cabinets, ensuring diamonds sparkle under crisp, pure white light without the hazy diffusion caused by waterproof covers.

4. Dry Warehouses & Storage Facilities (The Cost-Effective Workhorses)
Practicality and broad coverage are the only requirements here.

· The Application: High-bay or low-bay storage areas with climate control.
· The Advantage: Highly cost-effective for large-scale installations. Easier to maintain and re-lamp due to simpler housing designs.

An archive storage room utilizing wide-beam non-waterproof downlights to eliminate dark corners between tall shelving units, ensuring safety and readability of labels without paying a premium for waterproof seals that are never used.

5. Hospitality Interiors (Hotel Corridors & Lobbies)
First impressions require flawless, consistent illumination.

· The Application: Soffits, coves, and ceiling recesses in indoor public areas.
· The Advantage: Slimmer driver compartments allow for installation in shallow ceilings (as low as 60mm depth), perfect for modern architectural designs.

A luxury hotel installing a linear row of non-waterproof downlights along a long indoor corridor to create a rhythmic "runway" effect, guiding guests elegantly to their suites.

Easy Spring Clip Installation

1. Ceiling Hole Cutting:Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
2. Connect the Wires:Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
3. Insert into the Ceiling:Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
4. Lower the Spring Clips:After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.
